Summary of Contents for PRAXSYM PM-6000

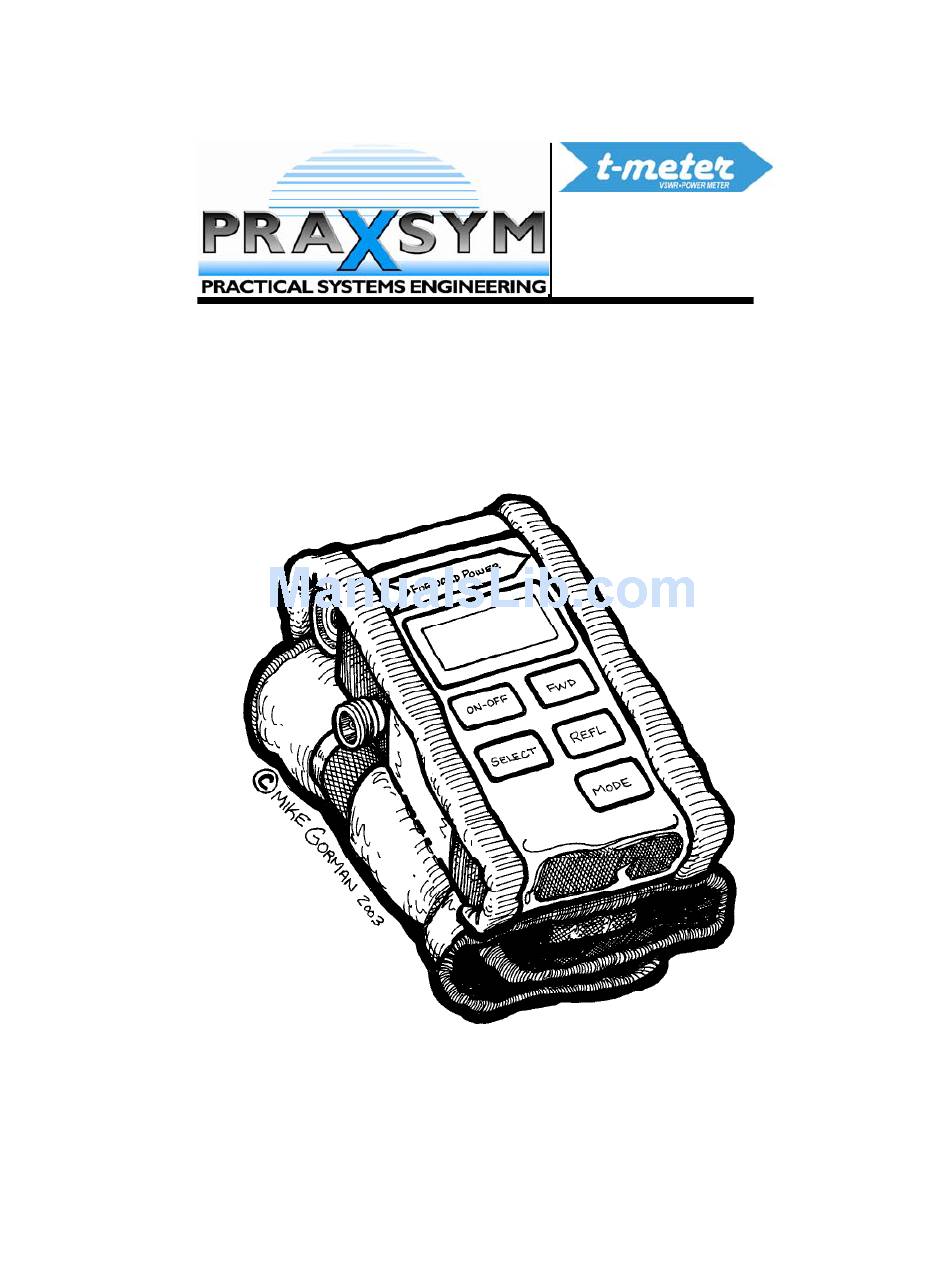

- Page 1 Multi-Band Wireless Power/ VSWR Meter User’s Manual PM-6000...
- Page 2 Warranty concerns or claims should be pursued with the company from which the product was purchased. PRAXSYM warrants that all items will be free from defects in material and workmanship under use as specified in this guide for a period of one year from date of delivery.
-
Page 3: Table Of Contents
P R A X S Y M Table of Contents Introduction to the PM-6000 Using the PM-6000 Measuring Transmitter Power Measuring Transmission Line Loss Measuring VSWR of Antenna and Terminations Specifications Appendix — VSWR Table Appendix—Notes Page ii... -
Page 4: Introduction To The Pm-6000
PM-6000 Introduction to the PM-6000 The PM-6000 is a handheld broadband power meter capable of de- tecting forward and reflected power in a microwave radio system. The meter is capable of detecting various types of wireless broad- band modulation schemes in multiple frequency bands. -
Page 5: Using The Pm-6000
P R A X S Y M Using the PM-6000 The PM-6000 ships with a durable nylon case that is secured with hook and loop flaps. The package is designed so that the meter can be used while still in the nylon case. The flaps that cover and protect the meter can be secured behind the unit while it is in use. - Page 6 PM-6000 power direction. Use the arrow labeled “FORWARD SIGNAL” as a guide when connecting the meter. Pressing and quickly releasing the ON-OFF button turns the meter on. The meter will display a less than sign, “<”, along with the lowest signal level the meter can measure in the selected band if it is not connected to a source that is within the meter’s dynamic range.
- Page 7 P R A X S Y M Depressing FWD or REFL also exits MODE at any time. FWD: Displays forward power and VSWR. A right- pointing arrow in the upper right of the display indicates the meter is measuring forward power. The power measurement is displayed continu ously.
-
Page 8: Measuring Transmitter Power
“N” adapter. The meter should be terminated with the 50 Ω load in- cluded in the kit. Turn the PM-6000 on by pressing the ON-OFF button. Select the fre- quency band of interest by pressing the MODE button until the fre- quency list is shown. - Page 9 P R A X S Y M Page 6...
-
Page 10: Measuring Transmission Line Loss
(if necessary). Move the PM-6000 to the opposite end of the transmission line. Con- nect the meter as shown on the opposite page. Take another for- ward power reading. Subtract this forward power reading from that taken directly off the back of the transmitter. - Page 11 P R A X S Y M Page 8...
-
Page 12: Measuring Vswr Of Antenna And Terminations
VSWR of 1.5:1. Therefore, a defective or damaged antenna feed should be evident using the PM-6000 as they will indicate a VSWR higher than 1.5:1. It is possible to measure the VSWR (or return loss) of a transmission line termination by placing the meter between it and the radio. - Page 13 P R A X S Y M Page 10...
-
Page 14: Specifications
PM-6000 Electrical Specifications Frequency Range: 2.4G 2400-2484 MHz 3.5G 3400-3600 MHz 4.9G 4940-4990 MHz 5.3G 5250-5350 MHz 5.5G 5470-5598 MHz 5.7G 5598-5725 MHz 5.8G 5725-5850 MHz 6.0G 5925-6095 MHz 6.2G 6095-6260 MHz 6.3G 6260-6425 MHz 6.6G 6526-6650 MHz 6.7G 6650-6775 MHz 6.8G... -
Page 15: Environmental Specifications
P R A X S Y M Insertion Loss: 0.4 dB @ 2.4 GHz, 0.75 dB @ 5.8 GHz VSWR Measurement Range: 2.4, 3.5, 4,9, 5.3, 5.5, 5.7, and 5.8 GHz bands 1.2:1 to 6.0:1 6.0, 6.2, 6.3, 6.6, 6.7, and 6.8 GHz bands 1.5:1 to 6.0:1 Environmental Specifications Temperature Range:... -
Page 16: Appendix - Vswr Table
PM-6000 Appendix - VSWR Table Return Loss Reflected Transmiss. VSWR (dB) Power (%) Loss (dB) 1.01 46.1 0.005 0.0002 1.02 40.1 0.01 0.0005 1.03 36.6 0.022 0.0011 1.04 34.1 0.04 0.0018 1.05 32.3 0.06 0.0028 1.06 30.7 0.082 0.0039 1.07 29.4... - Page 17 P R A X S Y M Return Loss Reflected Transmiss. VSWR (dB) Power (%) Loss (dB) 1.38 15.9 2.55 0.112 1.39 15.7 2.67 0.118 15.55 2.78 0.122 1.41 15.38 0.126 1.42 15.2 3.03 0.132 1.43 15.03 3.14 0.137 1.44 14.88 3.28 0.142...
-
Page 18: Appendix-Notes
PM-6000 Notes Page 15... - Page 19 P R A X S Y M Notes Page 16...
- Page 20 P R A X S Y M 121509 Rev - P/N 900-000002-006...
