Summary of Contents for PRAXSYM t-meter

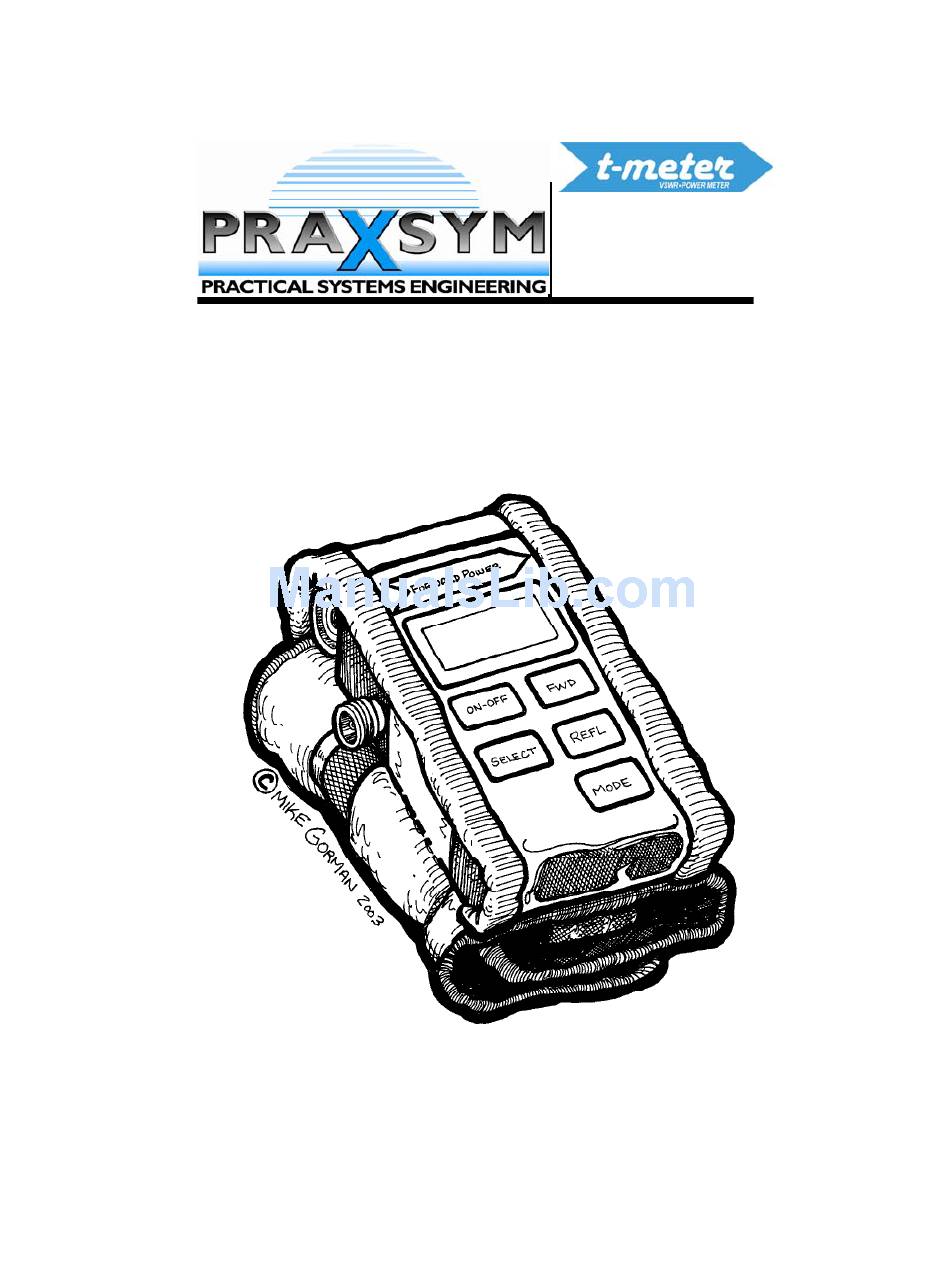

- Page 1 Broadband Wireless Power Meter User’s Manual...
- Page 2 Warranty concerns or claims should be pursued with the company from which the product was purchased. PRAXSYM warrants that all items will be free from defects in material and workmanship under use as specified in this guide for a period of one year from date of delivery.
-
Page 3: Table Of Contents
P R A X S Y M Table of Contents Introduction to the t-meter Using the t-meter Measuring Transmitter Power Measuring Transmission Line Loss Measuring VSWR of Antenna and Terminations Specifications Appendix — VSWR Table Appendix—Notes Page ii... -
Page 4: Introduction To The T-Meter
T-METER Introduction to the t-meter The t-meter is a handheld broadband power meter capable of detect- ing forward and reflected power in a microwave radio system. The meter is capable of detecting various types of wireless broadband modulation schemes in the license exempt 2.4, 5.3, and 5.8GHz fre- quency bands, with application specific coverage at 4.9GHz (PM-... -
Page 5: Using The T-Meter
P R A X S Y M Using the t-meter The t-meter ships with a durable nylon case that is secured with hook and loop flaps. The package is designed such that the meter can be used while still in the nylon case. The flaps that cover and protect the meter can be secured behind the unit while it is in use. - Page 6 T-METER The meter should always be inserted into the system in the forward power direction. Use the arrow labeled “FORWARD SIGNAL” as a guide when connecting the meter. Pressing and quickly releasing the ON-OFF button turns the meter on. The meter will display “Below Range” if it is not connected to a source that is within it’s dynamic range (0 to 20dBm).
- Page 7 P R A X S Y M measurement is displayed continuously. The VSWR is displayed for two seconds on the bottom display line and then is replaced for one second by the band indi- cator (“2.4G” for example) and the in-line attenu- ator setting (“+00,”...
-
Page 8: Measuring Transmitter Power
“N” adapter. The meter should be terminated with the 50Ω load in- cluded in the kit. Turn the t-meter on by pressing the ON-OFF button. Select the fre- quency band of interest by pressing the MODE button until the fre- quency list is shown. - Page 9 P R A X S Y M Page 6...
-
Page 10: Measuring Transmission Line Loss
(if necessary). Move the t-meter to the opposite end of the transmission line. Con- nect the meter as shown on the opposite page. Take another for- ward power reading. Subtract this forward power reading from that taken directly off the back of the transmitter. - Page 11 P R A X S Y M Page 8...
-
Page 12: Measuring Vswr Of Antenna And Terminations
T-METER Measuring VSWR of Antenna and Termina- tions To measure the VSWR of an antenna, place the meter into the system between the transmission line and the antenna. Use the “FORWARD SIGNAL” arrow on the meter to orient the meter properly. The arrow will point towards the antenna when it is properly inserted. - Page 13 P R A X S Y M Page 10...
-
Page 14: Specifications
T-METER Electrical Specifications Frequency Range: PM-2458: 2.4-2.4835 GHz, 5.150-5.350 GHz, 5.725-5.850 GHz PM-4900: 2.4-2.4835 GHz, 4.94-4.99 GHz, 5.150-5.350 GHz, 5.47-5.5975GHz, 5.5975- 5.725GHz, 5.725-5.850 GHz PM-900: 902-926MHz, 2.4-2.4835 GHz, 5.150- 5.350 GHz, 5.47-5.5975GHz, 5.5975- 5.725GHz, 5.725-5.850 GHz PM-3500: 2.4-2.4835 GHz, 3.40-3.60 GHz, 5.150-5.350 GHz, 5.47-5.5975GHz, 5.5975-... -
Page 15: Environmental Specifications
P R A X S Y M Environmental Specifications Temperature Range: -10 to 50 deg C Humidity: 0 to 95% RH non-condensing Altitude: 0 to 15,000 feet Mechanical Specifications RF Connectors: Type “N” female (input, output) Display: 2 lines by 8 characters, LCD – not illuminated Keypad: Five keys –... -
Page 16: Appendix - Vswr Table
T-METER Appendix - VSWR Table Return Loss Reflected Transmiss. VSWR (dB) Power (%) Loss (dB) 1.01 46.1 0.005 0.0002 1.02 40.1 0.01 0.0005 1.03 36.6 0.022 0.0011 1.04 34.1 0.04 0.0018 1.05 32.3 0.06 0.0028 1.06 30.7 0.082 0.0039 1.07 29.4... - Page 17 P R A X S Y M Return Loss Reflected Transmiss. VSWR (dB) Power (%) Loss (dB) 1.38 15.9 2.55 0.112 1.39 15.7 2.67 0.118 15.55 2.78 0.122 1.41 15.38 0.126 1.42 15.2 3.03 0.132 1.43 15.03 3.14 0.137 1.44 14.88 3.28 0.142...
-
Page 18: Appendix-Notes
T-METER Notes Page 15... - Page 19 P R A X S Y M Notes Page 16...
- Page 20 P R A X S Y M Version 102406...
