Instruction Manual
Instruction Manual

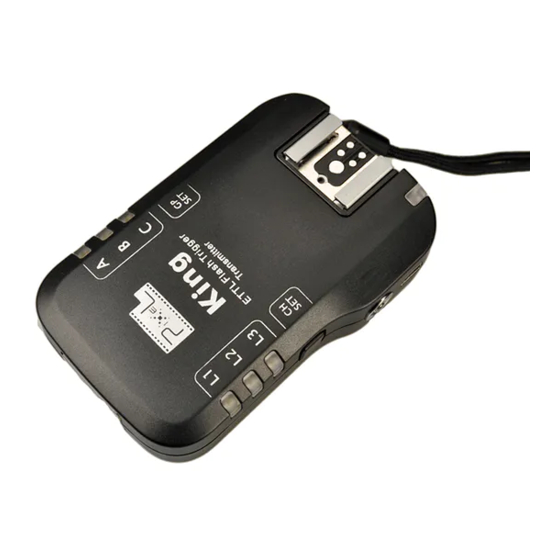

King
Wireless TTL Flash Trigger
For Sony
Overview
Thank you for purchasing PIXEL product
Thank you for purchasing the Pixel product --- King. King achieves high-sync
flash shooting with Sony cameras and other creative lighting function including
ADI-TTL, M, FP
...
etc. King supports shutter speeds up to 1/8000 s. King has 3
different groups; each group can use multiple units and set each as individual
power settings.
Please read this instruction manual completely and ensure proper operations
with your flashgun before using this product.
1
Advertisement
Related Manuals for Pixel King
Summary of Contents for Pixel King
- Page 1 Wireless TTL Flash Trigger For Sony Overview Thank you for purchasing PIXEL product Thank you for purchasing the Pixel product --- King. King achieves high-sync flash shooting with Sony cameras and other creative lighting function including ADI-TTL, M, FP …...
- Page 2 Cautions Make sure the camera and flash are powered off before installing the King. As an electronic accessory this may be affected by rare environmental causes. Normal working operations should not be affected by this. Drops or shocks will lead to product failure.
- Page 3 ADI-TTL、TTL、M Flash Mode Sync Mode 1st Curtain, 2nd Curtain, High Speed Sync Group Control 3 different groups (7 different combinations) King supports flash zooming, focal length, ISO, Function shutter speed, FV lock and FP 1/8000S Sync Speed Compatible Flash Flashgun, Studio light and outdoor light...
- Page 4 Support flash focusing light Follow camera instructions for above usage. Included items Please check the listed items below in the package, please contact your dealer if there are missing items. King Transmitter King Receiver PC-1/4 Connecting Cable (6.35mm) PC-3.5 Connecting Cable Receiver Holder USB 2.0 Cable...
- Page 5 Name of each part Transmitter Group setting Channel Gr oup button (GP SET) Indicator Indicator Sticker Channel setting button (CH SET) Battery Battery Compartment Compartment PC sync socket USB Socket Power Switch Hot Shoe Trigger pin Mounting Foot Operation Indicator Eyelet Receiver Group setting...
- Page 6 Eyelet: Use strap or lanyard to hold the device Hot Shoe: For attaching the flashgun. Receiver side---For attaching to the flashgun. Channel setting button (CH SET): Set the device channel. Slightly press the buttonto check the current status; press again or hold for 2sec to enter setting mode.
- Page 7 5V DC power supplied through USB socket. King is using 2-steps power switch; switch to OFF to turn off and switch to ON to turn The setting will be saved after the power is off, even the different setting on each channel.
- Page 8 Channel indicator has 3 red indicators which are L1, L2, and L3. Transmitter and receiver use the same setting method and can be set as 7 different channels. [L1]、 [L2]、 [L3]、 [L1、 L2]、 [L2、 L3]、 [L1、 L3]、 [L1、L2、L3]. Group indicator are 3 red indicators which are A, B and C. Transmitter andreceiver use the same setting method and transmitter can be set as 7different groups.
- Page 9 Device Installation Transmitter Installation 1. Loosen the transmitter lock ring to the right and insert into camera hot shoe; tighten the transmitter lock ring to the left. Receiver Installation 1. Insert flashgun to receiver hot shoe. 2. Follow the flashgun locking system to lock the flash.
- Page 10 Operation Instruction Compatible camera and flash light instruction as below. (This is using Sony A550x camera and HVL-F58AM flash) Camera mode Support camera menu ADI or pre Support all flash modes control flash TTL control from camera Slow sync Fill-flash Rear sync Wireless...
- Page 11 Support ISO Support Exposure Compensation (EV) Support White Balance Flash mode Support TTL mode Support M mode...
- Page 12 If you have any question please kindly to contact our local dealer or visit to http://www.pixelhk.com. This instruction manual is updated at 01st July, 2011. Please contact the PIXEL seller to get the information if you want to use this product combined with other latest product, which published after this date.
