  • Page 1 Pawn Wireless Flash Trigger Product Manual...
  • Page 2 1/250s. The shutter control mode included single, continuous, BULB and 4sec delay shooting. Pawn is using global free channel 2.4GHz and FSK modulation system to make the performance more stable. Unique power saving design makes the battery life of the transmitter and receiver last longer.
  • Page 3 3. When connecting the cable with the device, do not pull directly on the wires. Drops or shocks will lead to product failure. The batteries should be installed correctly. Reverse polarity may cause batteries to leak corrosive liquids, heat or explosion. When not in use for long durations, please turn off the transmitter’s and the receiver’s power and remove the battery.

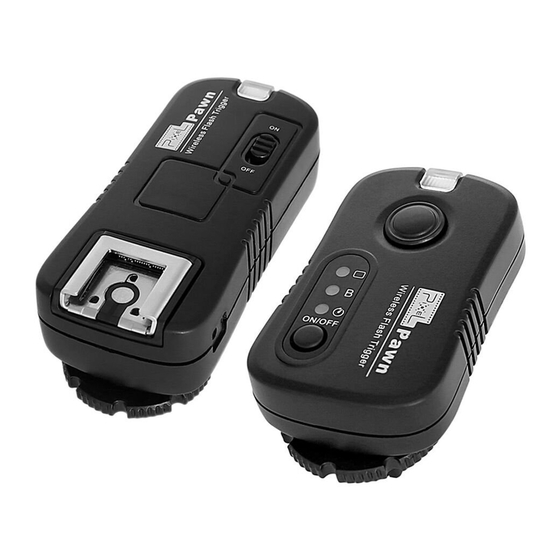

  • Page 4 Description Light Indicator Shutter Release Button Function Light Indicator Power Switch/ Setting Button Battery Compartment Cover Channel Switch CR-20 2 Lithium Battery Locking Screw Hot Shoe Part Connecting Pins Pawn TX...
  • Page 5 Light Indicator Power Switch Sticker Hot Shoe Part Input/ output socket Battery Compartment Cover Channel switch Hot Shoe Nut Locking Screw Pawn RX...
  • Page 6 When using multi-sets Pawn in the same area, please change each sets to different channels. PS: When you get any frequency jamming, please change the channel.
  • Page 7 side into camera shutter release socket. Battery Compartment: Loading two AAA batteries. Receiver’s Hot Shoe Nut: for Tripod or other mounting nut. Transmitter Mounting Foot: Input interface connection with camera hot shoe. Sticker: Showing product S/N number, battery type on the sticker.

  • Page 8: Items Included

    Maximum distance up to 80 meters. Extra low standby power consumption : Transmitter Standby Time: 10000 hours Receiver Standby Time: up to 300 hours Low-Voltage Design allow using rechargeable batteries. Items Included Please check the listed items below in the package and contact your dealer if there is any missing.

  • Page 9: Specifications

    Shutter Control Cable (either one) 2pcs For Canon 2pcs For Nikon For Sony 3pcs For Olympus/Panasonic Specifications Type FSK2.4GHz Wireless System Di stance 80 meters Channel 10000 hours (for CR-2032 Lithium Transmitter Battery) Standby Time Receiver Standby 400 hours (for AAA Battery) Time Dimensions Transmitter: 65.5mm x 39mm x 28mm...

  • Page 10: Basic Operation

    Basic Operation Battery Installation and Replacement Transmitter: Please follow the steps to install and replace the battery: [+]positive Slide and open the battery compartment cover. metal spring P l e a s e p r e s s t h e m e t a l spring and take out the battery.

  • Page 11: Power Switch

    After red light blinks for several times, the transmitter turns off. 4） Please turn off the transmitter when not in use. Receiver: Pawn RX is using 2-steps power switch; switch to OFF to turn off and switch to ON to turn on.

  • Page 12: Channel Setting

    Channel Setting For proper operation, same channel must be set for the transmitter and receiver. Transmitter Receiver Set the Transmitt er Functio n When act as Wireless Remote Controal for shooting, you can set the transmitter with different function. 1）Press “SET” of transmitter, the function indicator lights up and shows the current function mode.
  • Page 13 When the function indicator is turned off, you can check the current mode by pressing “SET” slightly. Fire the flashgun 1） Check if all connections are completed. See if all the power is turned on and the flashgun's parameter is set. 2）...
  • Page 14 Control camera shooting Single shoot function: 1) Press “SET” button of transmitter slightly and choose the mode as[ 2) Set the camera function mode as [ 3) Half press the shutter release button for sending out the focus signal. The light indicator of the transmitter and receiver will show green.
  • Page 15 4）TX sends out shooting signals while fully pressed. At the moment TX red light on and flashes but RX red light on and blinks. The Camera starts to shoot. 5) Repress the RX release button, TX stops sending out signals and RX stops sending out shooting signals then the Camera stops shooting.
  • Page 16 This instruction manual is updated on 1st October, 2011. Please contact the PIXEL seller to get the information if you want to use this product together with other latest product, which published after this date.
