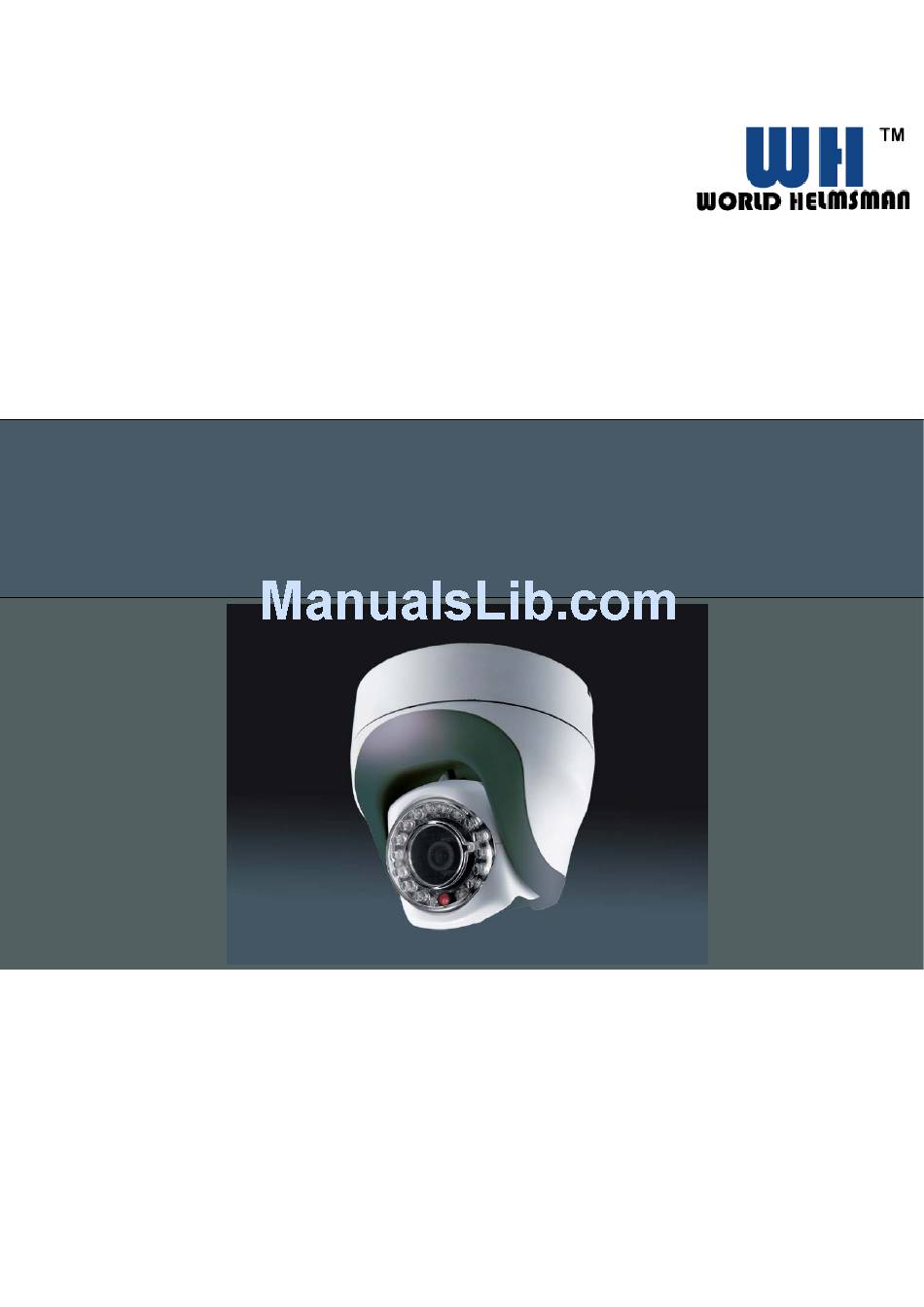

- Page 1 WH-M100/ WH-M150/ WH-M300/ WH-M500 IP Network Camera Hardware User Manual z ...
- Page 2 WH-M100/ WH-M150/ WH-M300/ WH-M500 network camera User Manual Safety precautions 4. Select a proper location and use safe hoist for installing PTZ speed dome cameras. 5. Confirm that the hoist is capable of lifting to the installation position. 6. Proper protective measures must be provided in the hoist, for protecting engineering staffs.
- Page 3 WH-M100/ WH-M150/ WH-M300/ WH-M500 network camera User Manual Precautions on installation 1. Basic requirements for installation Follow local regulations about installation safety request. Check out if accessories are complete. Optional accessories are required for different installation sites. Please contact your local distributors for proper installation accessories, so that the camera could be installed safely without causing danger.
- Page 4 WH-M100/ WH-M150/ WH-M300/ WH-M500 network camera User Manual When using 20AWG (Belden 8760) Shielded Twisted Pair Cable, different control Baud Rate will have different transmission distance performance, the ideal is as below table: Baud rate Max. Transmission Distance 2400 1200 meters...
-
Page 5: Hardware Installation
WH-M100/ WH-M150/ WH-M300/ WH-M500 network camera User Manual Accessories and Installation Below are the accessories of Mini Speed Dome camera (PTZ dome): Quick-installation plate Signal-Power IP basement Hardware Installation Step1 Ceiling Mounting Ceiling bracket IP basement PTZ Dome & ceiling... - Page 6 WH-M100/ WH-M150/ WH-M300/ WH-M500 network camera User Manual Step 2: Electrification test a. Before connecting the power, make a final check to confirm correct wiring. b. When powering on the camera, it will automatically execute self testing by doing firstly Tilt up/down scanning, and then Pan horizontal scanning, then camera will stop at the Preset Point 1.
- Page 7 WH-M100/ WH-M150/ WH-M300/ WH-M500 network camera User Manual PELCO Control Keyboard When using RS485 serial connection, the max. in one serial connection is to connect up to 32 pieces of speed dome, if over 32 pieces of speed dome, then please use “RS485 Aster Connection” method together with our WH-810 (8 port RS485 distributor) to diversify the number of speed dome in one single serial connection, in order to make sure the stability of the complete control system.
- Page 8 WH-M100/ WH-M150/ WH-M300/ WH-M500 network camera User Manual Please open the plastic cover (like above photo) on the back-side of speed dome, then you will find one 10-PIN DIP SWITCH, SW9/10 is for setting speed dome protocols as below procedures: 1.
- Page 9 WH-M100/ WH-M150/ WH-M300/ WH-M500 network camera User Manual...
- Page 10 WH-M100/ WH-M150/ WH-M300/ WH-M500 network camera User Manual...
- Page 11 WH-M100/ WH-M150/ WH-M300/ WH-M500 network camera User Manual...
- Page 12 WH-M100/ WH-M150/ WH-M300/ WH-M500 network camera User Manual RS485 Common Troubleshooting Error Possible Causes Solutions Able to do self-test on 1. Keyboard’s (or DVR’s) Alter protocols for consistency initial electrification, communication protocol is not but is unable to be consistent with camera’s controlled A.
