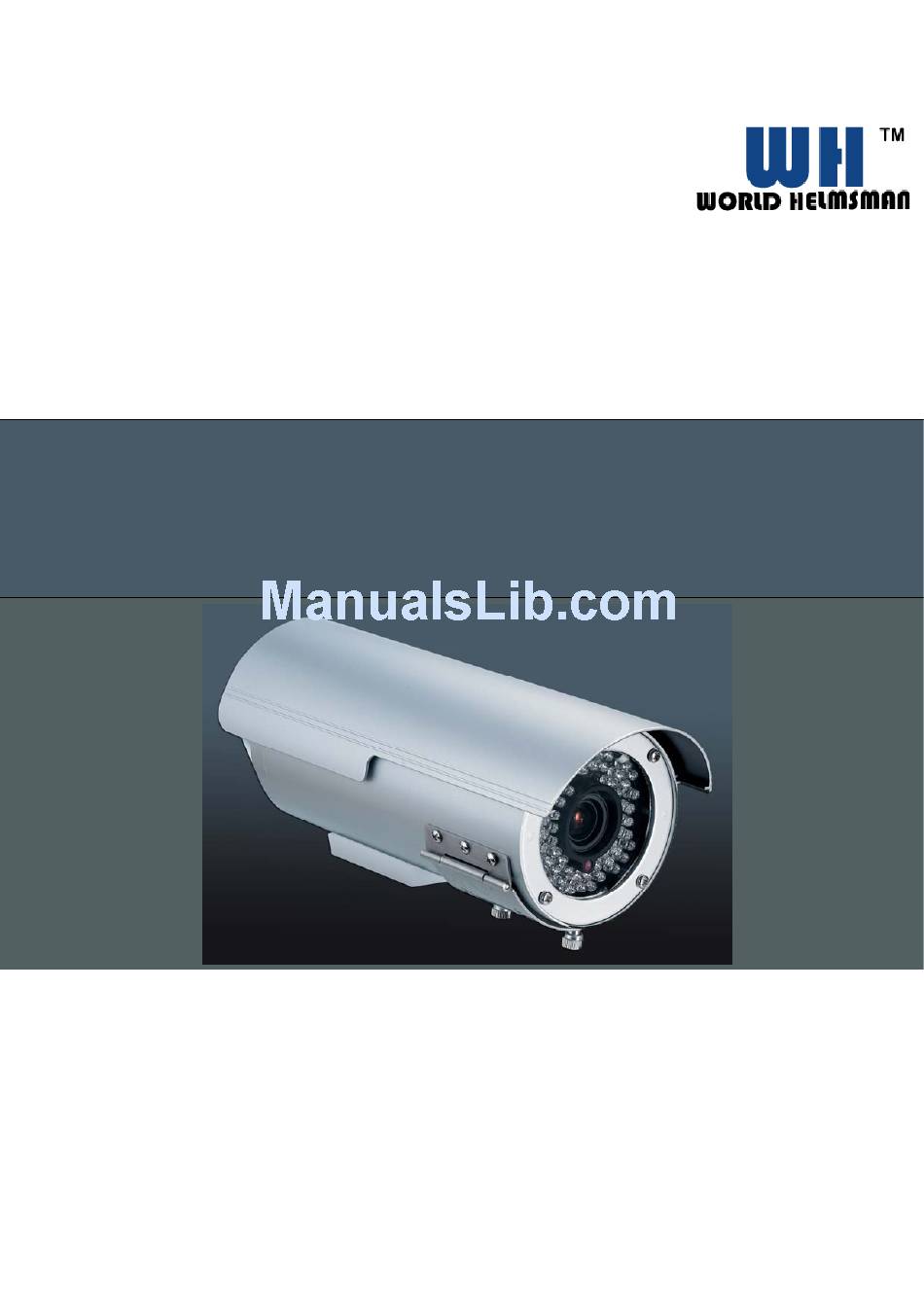

- Page 1 WH-R6000/ WH-R6600 IP Network Camera Hardware User Manual z ...
- Page 2 WH-R6000/ WH-R6600 network camera User Manual SAFETY PRECAUATIONS Select a proper location and use safe hoist for installing outdoor IP network cameras. Confirm that the hoist is capable of lifting to the installation position. Proper protective measures must be provided in the hoist, for protecting engineering staffs.
- Page 3 WH-R6000/ WH-R6600 network camera User Manual Connecting Chart The Ethernet cable and power cable are necessary for previewing function. Make sure all cables are correctly and firmly connected. 1. Connect an analog monitor to IP network camera Video Output (BNC connector) 2.
- Page 4 WH-R6000/ WH-R6600 network camera User Manual Components Descriptions Shelter and top shell. The place to fasten on the holder. The modulation cover. The Camera and LEDs. AC power input. Yellow & green wires connect to GND. Blue & brown wires connect to the power (AC 110V ~ 240V).
- Page 5 WH-R6000/ WH-R6600 network camera User Manual 1. Video Output Analogue BNC video out 2. Reset Hardware reset button (Press down the button for 3 sec for factory default setting) 3. LAN / WAN Port 10/100 Mbps auto sensing, fast Ethernet port for secure Local Network, or WAN for FTTH or xDSL connectivity.
- Page 6 WH-R6000/ WH-R6600 network camera User Manual Modulation 2 1 (A‐1) （B‐2） Unfasten screws part 1、2, which are specified in picture A-1 and open the cover. Two triggers for modulating wide, tele and focus. III. For modulating Tele and Wide. Pull the trigger according the T arrow to set in tele.
