WH-110/ WH-H230/ WH-H260 Network Camera


Hardware User Manual






z
















Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WH-110 and is the answer not in the manual?

Questions and answers

Related Manuals for World Helmsman WH-110

Summary of Contents for World Helmsman WH-110

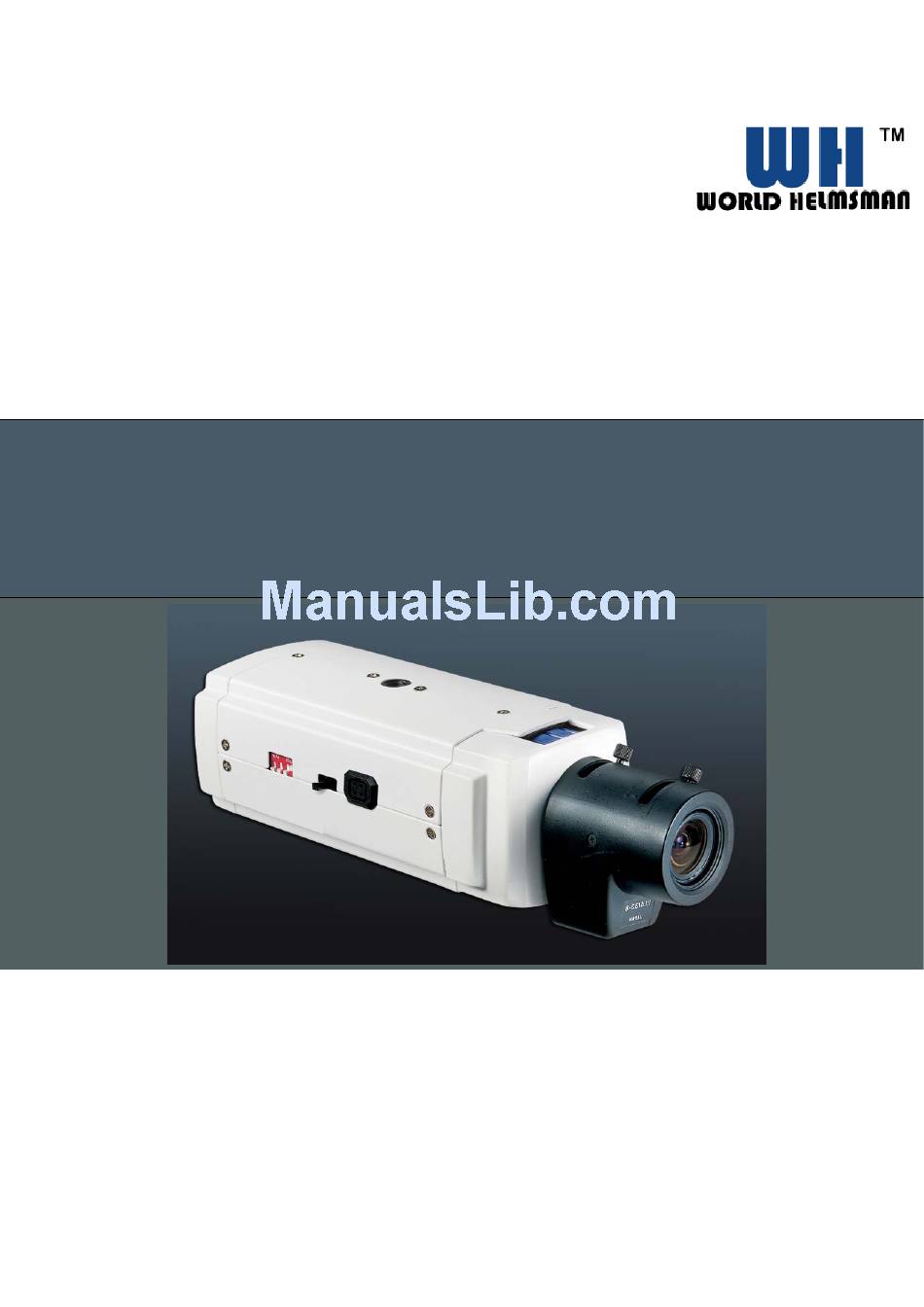

  • Page 1                               WH-110/ WH-H230/ WH-H260 Network Camera     Hardware User Manual             z                 ...
  • Page 2 WH-110/ WH-H230/ WH-H260 network camera User Manual Notices This user manual is intended for administrator and user of IP network cameras. Operational instructions & network configuration are elaborated. Prior knowledge about network setup and configuration will be helpful. IMPORTANT Check PC specification requirements.
  • Page 3 TABLE OF CONTENTS 1. INTRODUCTION 1.1 PRODUCT OVERVIEW WH-110/ WH-H230/ WH-H260 fixed IP network camera is a professional IP surveillance application. With embedded web viewer, streaming video/audio over network can be accessed like browsing a website. It is also capable of encoding MPEG4 stream, the only digital surveillance product in the market with proprietary design for "Ease-of-use", "Reliability", and "Manageability".

  • Page 4: Physical Description

    WH-110/ WH-H230/ WH-H260 network camera User Manual 1.3 PHYSICAL DESCRIPTION Back Panel 1. Power Socket DC12V 1A 2. Video Out 3. Reset Button 4. LAN/WAN RJ45 Port 10/100 Mbps auto sensing, fast Ethernet port for secure Local Network or WAN for FTTH or xDSL connectivity 5.
  • Page 5 WH-110/ WH-H230/ WH-H260 network camera User Manual Side Panel 1. Auto Iris 2. V.D D.D Video Driver or Digital Driver 3. VR Variable Resistant adjustment 4. DIP Switches for CCD Functions Auto Electronic Shutter Speed Mode AES On 1/50 (60) sec. ~ 1/100,000 sec;...

  • Page 6: Hardware Installation

    WH-110/ WH-H230/ WH-H260 network camera User Manual 2 Hardware Installation Make sure network environment Default IP of IP network camera is 192.168.1.2 Please make sure IP network camera and your PC are in the same network segment before running the installation.
  • Page 7 WH-110/ WH-H230/ WH-H260 network camera User Manual Connect necessary cables The Ethernet cable and power cable are necessary for previewing function. Make sure all cables are correctly and firmly connected. 1. Connect an analog monitor to IP network camera Video Out (BNC connector) 2.

  • Page 8: Before You Install Software

    WH-110/ WH-H230/ WH-H260 network camera User Manual 3. SOFTWARE CD Software CD in the package contains the following: I. NVR2 IP video surveillance software II. NVR video surveillance software User Manual III. Firmware binary file IV. IP Network Camera Manual V.

  • Page 9: Language Support

    WH-110/ WH-H230/ WH-H260 network camera User Manual 5. LANGUAGE SUPPORT Chinese Traditional、English、French Standard、German、Italian、 Portuguese、Turkish NOTE NVR setup will auto-run when inserting CD. Pay attention to dialog box questions before you press OK button. World Helmsman Technology Co., Ltd. 3F-5, No.81, Sec.1, Hsin Tai Wu Rd., Hsichih,...

This manual is also suitable for:

Wh-h230Wh-h260
