Polaris Ranger 800 EFI Owner's Manual

Polaris 2014 atv owner's manual
Hide thumbs
Table of Contents

Advertisement

Quick Links

PMS 419
RANGER® 800 EFI
RANGER® 800 EPS
RANGER CREW® 800 EFI
RANGER® 6X6
Owner's Manual
for Maintenance and Safety

Advertisement

Table of Contents
loading

Related Manuals for Polaris Ranger 800 EFI

Summary of Contents for Polaris Ranger 800 EFI

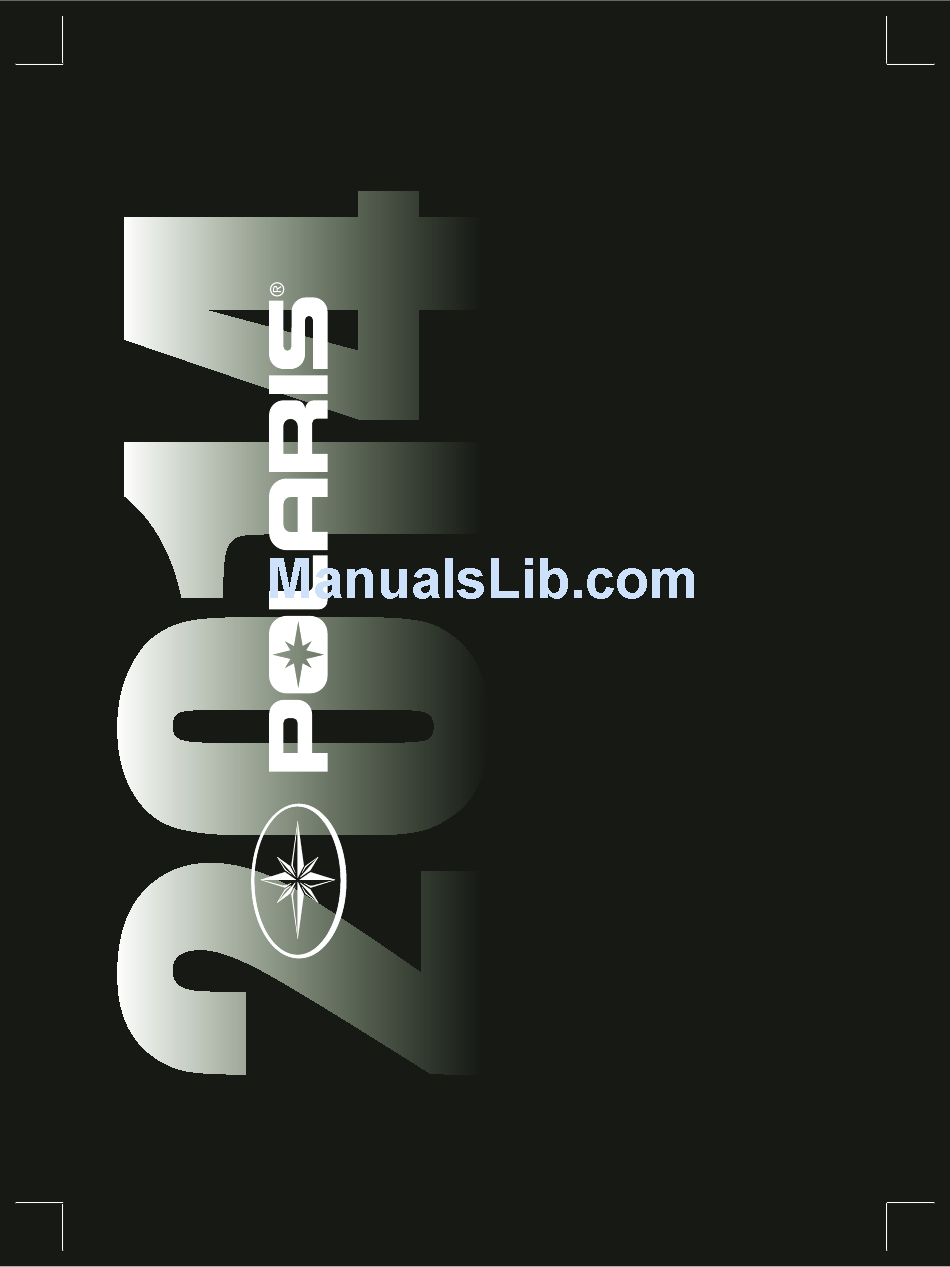

  • Page 1 PMS 419 RANGER® 800 EFI RANGER® 800 EPS RANGER CREW® 800 EFI RANGER® 6X6 Owner's Manual for Maintenance and Safety...
  • Page 2 WARNING Read, understand, and follow all of the instructions and safety precautions in this manual and on all product labels. Failure to follow the safety precautions could result in serious injury or death. WARNING The engine exhaust from this product contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm.
  • Page 3 WELCOME Thank you for purchasing a POLARIS vehicle, and welcome to our world-wide family of POLARIS enthusiasts. Be sure to visit us online at www.polaris.com for the latest news, new product introductions, upcoming events, career opportunities and more. Here at POLARIS we proudly produce an exciting line of utility and recreational products. •...
  • Page 4 The original instructions for this vehicle are in English. Other languages are provided as translations of the original instructions. Printed in U.S.A. 2014 RANGER 800 EFI / RANGER 800 EPS / RANGER 6X6 / RANGER CREW 800 Owner’s Manual P/N 9924689...

  • Page 5: Table Of Contents

    TABLE OF CONTENTS Introduction ........4 Safety .

  • Page 6: Introduction

    INTRODUCTION The RANGER is an off-road vehicle. Familiarize yourself with all laws and regulations concerning the operation of this vehicle in your area. The following signal words and symbols appear throughout this manual and on your vehicle. Your safety is involved when these words and symbols are used. Become familiar with their meanings before reading the manual.
  • Page 7 INTRODUCTION WARNING Failure to follow the warnings contained in this manual can result in severe injury or death. Your POLARIS RANGER is not a toy and can be hazardous to operate. This vehicle handles differently than other vehicles, such as cars, trucks or other off-road vehicles. A collision or rollover can occur quickly, even during routine maneuvers like turning, or driving on hills or over obstacles, if you fail to take proper precautions.

  • Page 8: Vehicle Identification Numbers

    INTRODUCTION Vehicle Identification Numbers Record your vehicle's identification numbers and key number in the spaces provided. Remove the spare key and store it in a safe place. An ignition key can be duplicated only by ordering a POLARIS key blank (using your key number) and mating it with one of your existing keys.
  • Page 9 INTRODUCTION European Vibration and Noise The driver-perceived noise and hand/arm and whole body vibration levels of this machinery is measured per prEN 15997. The operating conditions of the machinery during testing: The vehicles were in like-new condition. The environment was controlled as indicated by the test procedure(s).

  • Page 10: Safety

    SAFETY Safe Riding Gear The driver and all passengers must wear helmet, eye protection, gloves, long-sleeve shirt, long pants, over-the-ankle boots and seat belt at all times. Protective gear reduces the chance of injury. Long Sleeves Eye Protection Long Pants Gloves Over-the-Ankle Boots Helmet...

  • Page 11: Safe Riding Gear

    SAFETY Safe Riding Gear Eye Protection Do not depend on eyeglasses or sunglasses for eye protection. Whenever riding this POLARIS vehicle, always wear shatterproof goggles or use a shatterproof helmet face shield. POLARIS recommends wearing approved Personal Protective Equipment (PPE) bearing markings such as VESC 8, V-8, Z87.1, or CE.
  • Page 12 SAFETY Safety Labels and Locations Warning labels have been placed on the vehicle for your protection. Read and follow the instructions of the labels on the vehicle carefully. If any of the labels depicted in this manual differ from the labels on your vehicle, always read and follow the instructions of the labels on the vehicle.
  • Page 13 SAFETY Safety Labels and Locations Seat Belt/Drive Responsibly Warning WARNING Improper vehicle use can result in SEVERE INJURY or DEATH Be Prepared • Fasten seat belts. • Wear an approved helmet and protective gear. • ALWAYS use vehicle cab nets and/or doors. •...

  • Page 14: Clutch Cover Warning

    SAFETY Safety Labels and Locations Load/Passenger/Tire Pressure Warning Storage Box Load 250 lbs. (113 kg) WARNING • Never carry passengers in cargo box. • Passengers can be thrown off. This can cause serious injury or death. IMPROPER TIRE PRESSURE OR OVERLOADING CAN CAUSE LOSS OF CONTROL RESULTING IN SERIOUS INJURY OR DEATH.

  • Page 15: Operator Safety

    SAFETY Operator Safety WARNING Serious injury or death can result if you do not follow these instructions and procedures, which are outlined in further detail within your owner's manual. • Read this entire manual and all labels carefully. Follow the operating procedures described.
  • Page 16 SAFETY Operator Safety • Always travel slowly and use extra caution when operating on unfamiliar terrain. Be alert to changing terrain. • Never operate on excessively rough, slippery or loose terrain. • Always follow proper procedures for turning. Practice turning at slow speeds before attempting to turn at faster speeds.

  • Page 17: Equipment Modifications

    SAFETY Operator Safety • Always use the proper size and type of tires specified in this manual. Always maintain proper tire pressure as specified on safety labels. • Never modify this vehicle through improper installation or use of non-POLARIS- approved accessories. •...

  • Page 18: Age Restrictions

    SAFETY Operator Safety WARNING Failure to operate the RANGER properly can result in a collision, loss of control, accident or rollover, which may result in serious injury or death. Heed all safety warnings outlined in this section of the owner’s manual. See the OPERATION section of the owner’s manual for proper operating procedures. Age Restrictions This vehicle is an ADULT VEHICLE ONLY.

  • Page 19: Cab Nets

    SAFETY Operator Safety Cab Nets Riding in this vehicle without using the cab nets (or doors, if equipped) increases the risk of serious injury or death in the event of an accident or rollover. Always use the cab nets (or doors) while riding in this vehicle.

  • Page 20: Handling Gasoline

    SAFETY Operator Safety Handling Gasoline Gasoline is highly flammable and explosive under certain conditions. • Always exercise extreme caution whenever handling gasoline. • Always turn off the engine when refueling. • Always refuel outdoors or in a well ventilated area free of any source of flame or sparks. •...

  • Page 21: Turning Improperly

    SAFETY Operator Safety Turning Improperly Turning improperly could cause loss of traction, loss of control, accident or rollover. Always follow proper procedures for turning as described in this owner’s manual. Never turn abruptly or at sharp angles. Never turn at high speeds. Practice turning at slow speeds before attempting to turn at faster speeds.

  • Page 22: Improper Tire Maintenance

    SAFETY Operator Safety Improper Tire Maintenance Operating this vehicle with improper tires or with improper or uneven tire pressure could cause loss of control or accident. Always use the size and type of tires specified for your vehicle. Always maintain proper tire pressure as described in the owner's manual and on safety labels.

  • Page 23: Features And Controls

    FEATURES AND CONTROLS Component Locations Your vehicle is equipped with cab nets on both sides of the vehicle. Cab nets (or doors, if equipped) must be used by both operator and passengers at all times. Any illustrations without cab nets are only to allow component identification. Always use the cab nets (or doors).

  • Page 24: Auxiliary Outlets

    FEATURES AND CONTROLS Console Instrument Park Brake Gear Selector Cluster Lever (Shifter) Storage Cup Holder 12V Auxiliary Storage Tray Outlets Compartment Auxiliary Outlets The 12-volt receptacles have spade connections on the back that may be used to power an auxiliary light or other optional accessories or lights.

  • Page 25: Light Switch

    FEATURES AND CONTROLS Switches AWD/Differential Switch Ignition Switch Ignition Switch Light Switch The ignition switch is a three-position, key-operated Mode Button switch. The key can be removed from the switch when it is in the OFF position. The engine is off. Electrical circuits are off, except Acc, 12V.

  • Page 26: Trailer Hitch Bracket

    FEATURES AND CONTROLS Trailer Hitch Bracket This vehicle is equipped with a receiver hitch bracket for a trailer hitch. To avoid injury and property damage, always heed the warnings and towing capacities outlined on pages 44-45. Brake Pedal Throttle Brake Pedal Depress the brake pedal to slow or stop the vehicle.

  • Page 27: Park Brake Lever

    FEATURES AND CONTROLS Park Brake Lever To help prevent the vehicle from rolling, engage the park brake when parking the vehicle. When the park Trip 1 brake is fully engaged, “BRAKE” appears in the rider information display. Engine speed is limited to 1300 RPM in all gears, except neutral.
  • Page 28 FEATURES AND CONTROLS Cab Nets Riding in this vehicle without using the cab nets (or doors, if equipped) increases the risk of serious injury or death in the event of an accident or rollover. Cab nets (or doors) must be used by both operator and passengers at all times.

  • Page 29: Seat Removal

    FEATURES AND CONTROLS Seat Removal Pull up on the front of the seat and slide it toward the front of the vehicle. Install the seat by sliding the tabs into the rear of the seat base. Push down firmly on the front of the seat until the pins are fully seated into the grommets.

  • Page 30: Storage Compartments

    FEATURES AND CONTROLS Rollover Protective Structure (ROPS) The Rollover Protective Structure (ROPS) on this vehicle meets OSHA 1928.53 rollover performance requirements. Always have your authorized POLARIS dealer thoroughly inspect the ROPS if it ever becomes damaged in any way. No device can assure occupant protection in the event of a rollover. Always follow all safe operating practices outlined in this manual to avoid vehicle rollover.

  • Page 31: Instrument Cluster

    FEATURES AND CONTROLS Instrument Cluster Speedometer Indicator Lamps High water pressure may damage components. Wash the vehicle by hand or with a garden hose using mild soap. Do not use alcohol to clean the instrument cluster. Do not allow insect sprays to contact the lens.
  • Page 32 FEATURES AND CONTROLS Instrument Cluster Rider Information Center The rider information center is located in the instrument cluster. All segments will light up for one second at start-up. If the instrument Trip 1 cluster fails to illuminate, a battery over-voltage may have occurred and the instrument cluster may have shut off to protect the electronic speedometer.

  • Page 33: Instrument Cluster

    FEATURES AND CONTROLS Instrument Cluster Rider Information Center Use the MODE button to toggle through the information area options. Display Units (Standard/Metric) The display can be changed to display either standard or metric units of measurement. Tip: To exit the set-up mode at any time, wait 10 seconds.The display automatically exits and returns to the odometer display.
  • Page 34 FEATURES AND CONTROLS Instrument Cluster Rider Information Center Odometer Mode The odometer records and displays the distance traveled by the vehicle. Trip Meter Mode The trip meter records the distance traveled by the vehicle if reset before each trip. To reset, select the trip meter mode.
  • Page 35 FEATURES AND CONTROLS Instrument Cluster Rider Information Center Engine Error Codes Suspect Parameter The error screen displays only when the Error Code Number (SPN) Number (0-9) CHECK ENGINE light is on or when it goes on and off during one ignition cycle. Error codes are not stored.

  • Page 36: Operation

    OPERATION WARNING Failure to operate the vehicle properly can result in a collision, loss of control, accident or rollover, which may result in serious injury or death. Read and understand all safety warnings outlined in the safety section of this owner’s manual. Break-In Period The break-in period for your new RANGER is the first twenty hours of operation, or the time it takes to use the first two tanks full of fuel.

  • Page 37: Pre-Ride Inspection

    OPERATION Pre-Ride Inspection Failure to inspect and verify that the vehicle is in safe operating condition before operating increases the risk of an accident. Always inspect the vehicle before each use to make sure it's in safe operating condition. Item Remarks Page Brake system/pedal travel...

  • Page 38: Starting The Engine

    OPERATION Starting the Engine 1. Always start the engine outdoors or in a well-ventilated area. 2. Sit in the driver's seat and fasten the seat belt. Secure the cab nets (or doors). 3. Apply the brakes. Engage the park brake. 4.

  • Page 39: Driving Procedure

    OPERATION Driving Procedure 1. Wear a helmet, eye protection, gloves, long-sleeve shirt, long pants and over-the-ankle boots. 2. Perform the pre-ride inspection. See page 35. 3. Sit in the driver's seat and fasten the seat belt. 4. Always use the cab nets (or doors) while riding in this vehicle.

  • Page 40: Driving With A Passenger

    OPERATION Driving with a Passenger 1. Perform the pre-ride inspection. See page 35. 2. Make sure all passengers are at least 12 years of age and tall enough to comfortably and safely sit in a passenger seat with the seat belt secured, put both feet on the floor and grasp the hand hold.

  • Page 41: Driving On Slippery Surfaces

    OPERATION Driving on Slippery Surfaces WARNING Skidding or sliding can cause loss of control or rollover (if tires regain traction unexpectedly). When operating on slippery surfaces such as ice or loose gravel, reduce speed and use extra caution to reduce the chance of skidding or sliding out of control. Do not operate on excessively slippery surfaces. Whenever riding on slippery surfaces such as wet trails or loose gravel, or during freezing weather, follow these precautions: 1.

  • Page 42: Driving Over Obstacles

    OPERATION Driving Over Obstacles Follow these precautions when operating over obstacles: 1. Always check for obstacles before operating in a new area. 2. Look ahead and learn to read the terrain. Be constantly alert for hazards such as logs, rocks and low hanging branches. 3.

  • Page 43: Driving Uphill

    OPERATION Driving Uphill Whenever traveling uphill, follow these precautions: 1. Always travel straight uphill. 2. Avoid excessively steep hills. 3. Keep both feet on the floor. 4. Always check the terrain carefully before ascending any hill. 5. Never climb hills with excessively slippery or loose surfaces.

  • Page 44: Driving Through Water

    OPERATION Driving Through Water Your POLARIS RANGER can operate through water up to a maximum recommended depth equal to the floorboards. NOTICE: Immersion can result in major damage if the vehicle isn't serviced correctly and promptly. After immersion, always take the vehicle to your dealer service. Do not start the engine! If it's impossible to bring the vehicle to your dealer before starting the engine, perform the service outlined on page 76, and take the vehicle to your dealer at the first opportunity.

  • Page 45: Driving In Reverse

    OPERATION Driving in Reverse Follow these precautions when operating in reverse: 1. Always check for obstacles or people behind the vehicle. Always inspect left and right fields of vision before backing. 2. Always avoid backing downhill. 3. Back slowly. 4. Apply the brakes lightly for stopping. 5.

  • Page 46: Hauling Cargo

    OPERATION Hauling Cargo WARNING Hauling cargo improperly can alter vehicle handling and may cause loss of control or brake instability, which can result in serious injury or death. Always follow these precautions when hauling cargo: Never exceed the maximum weight capacity of the vehicle. When determining the weight you are adding to the vehicle, include the weight of the operator, passenger, accessories, loads in the rack or box and the load on the trailer tongue.

  • Page 47: Towing Loads

    OPERATION Towing Loads Towing improperly can alter vehicle handling and may cause loss of control or brake instability. Always follow these precautions when towing: 1. Never load more than 150 lbs. (68.1 kg) tongue weight on the towing bracket. 2. Always shift to low gear for towing. 3.

  • Page 48: Dumping The Cargo Box

    OPERATION Dumping the Cargo Box 1. Select a level site to dump the cargo box. Do not attempt to dump or unload the vehicle while parked on an incline. 2. Apply the brakes. Place the transmission in gear. Engage the park brake. 3.

  • Page 49: Engaging Awd

    OPERATION All Wheel Drive (AWD) Engaging AWD Press the top of the switch to engage All Wheel Drive (AWD). The 4X4 indicator illuminates in the rider information center to indicate that the vehicle is in AWD. See page 30. Differential Lock When the AWD switch is on, the front wheels will automatically engage any time the rear wheels lose traction.

  • Page 50: Locking The Differential

    OPERATION All Wheel Drive (AWD) Locking the Differential NOTICE: Damage to the differential can occur if it is engaged while the vehicle is traveling at high speeds or while the rear wheels are spinning. Slow the vehicle to nearly stopped before engaging the differential.

  • Page 51: Winch Guide

    WINCH GUIDE These safety warnings and instructions apply if your vehicle came equipped with a winch or if you choose to add an accessory winch to your vehicle. WARNING Improper winch use can result in SEVERE INJURY or DEATH. Always follow all winch instructions and warnings in this manual.

  • Page 52: Winch Safety Precautions

    WINCH GUIDE Winch Safety Precautions 13. Never winch up or down at sharp angles. This can destabilize the winching vehicle and possibly cause it to move without warning. 14. Never attempt to winch loads that weigh more than the winch’s rated capacity. 15.

  • Page 53: Winch Operation

    WINCH GUIDE Winch Operation Read the Winch Safety Precautions in the preceding pages before using your winch. Tip: Consider practicing the operation and use of your winch before you actually need to use it in the field. WARNING Improper winch use can result in SEVERE INJURY or DEATH. Always follow all winch instructions and warnings in this manual.
  • Page 54 WINCH GUIDE Winch Operation 4. Always use the hook strap when handling the hook. WARNING! Never put your fingers into the hook. This could lead to SEVERE INJURY. Attach the hook itself onto the load or use a tow strap or chain to secure the load to the winch cable.
  • Page 55 WINCH GUIDE Winch Operation 8. Read and adhere to the following information for winch damping to ensure safe winch use. In order to absorb energy that could be released by a winch cable failure, always place a “damper” on the winch cable. A damper can be a heavy jacket, tarp, or other soft, dense object.
  • Page 56 WINCH GUIDE Winch Operation 13. Extensive winching will run down the battery on the winching vehicle. Let the winching vehicle’s engine run while operating the winch to prevent the battery from running low if winching for long periods. 14. The winch motor may become hot during winch use. If you winch for more than 45 seconds, or if the winch stalls during operation, stop winching and permit the winch to cool down for 10 minutes before using it again.

  • Page 57: Winch Cable Care

    WINCH GUIDE Winch Cable Care For your safety, always replace POLARIS winch parts (including the cable) with genuine POLARIS replacement parts available at your authorized POLARIS dealer. WARNING! Use of worn or damaged cable could lead to sudden failure and SEVERE INJURY. 1.
  • Page 58 WINCH GUIDE Shock Loading WARNING! Your winch cable is very strong but it is NOT designed for dynamic, or “shock” loading. Shock loading may tension a winch cable beyond its strength and cause the cable to break. The end of a broken winch cable under such high loading can cause SEVERE INJURY or DEATH to you and other bystanders.

  • Page 59: Winch Maintenance And Service Safety

    WINCH GUIDE Winch Maintenance and Service Safety WARNING! Improper or lack of winch maintenance and service could lead to SEVERE INJURY or DEATH. Always follow all winch instructions and warnings in this manual. 1. Always inspect your winch before each use. Inspect for worn or kinked winch cable. Also inspect for worn or loose parts including mounting hardware.

  • Page 60: Emission Control Systems

    EMISSION CONTROL SYSTEMS Noise Emission Control System Do not modify the engine, intake or exhaust components, as doing so may affect compliance with U.S.A. EPA noise control requirements (40 CFR 205) and local noise level requirements. Operation on Public Lands in the U.S.A. Your POLARIS vehicle has a spark arrester that was tested and qualified to be in accordance with the USFS standard 5100-1c.

  • Page 61: Maintenance

    MAINTENANCE Periodic Maintenance Chart Careful periodic maintenance will help keep your vehicle in the safest, most reliable condition. Inspection, adjustment and lubrication of important components are explained in the periodic maintenance chart. Inspect, clean, lubricate, adjust and replace parts as necessary. When inspection reveals the need for replacement parts, use genuine POLARIS parts available from your POLARIS dealer.

  • Page 62: Periodic Maintenance Chart

    MAINTENANCE Periodic Maintenance Chart Perform all services at whichever maintenance interval is reached first. Item Maintenance Interval Remarks (whichever comes first) Hours Calendar Miles (Km) Steering Front suspension Rear suspension Tires Brake fluid level Pre-Ride Make adjustments as need ed. See Pre-Ride Checklist on page 35.
  • Page 63 MAINTENANCE Periodic Maintenance Chart Item Maintenance Interval Remarks (whichever comes first) Hours Calendar Miles (Km) Throttle cable/throttle pedal 50 H Inspect; adjust; lubricate; replace if necessary E Throttle body air intake ducts/ 50 H Inspect duct for proper sealing/air leaks flange Drive belt 50 H...

  • Page 64: Lubrication Recommendations

    MAINTENANCE Lubrication Recommendations Check and lubricate all components at the intervals outlined in the Periodic Maintenance Chart beginning on page 59, or more often under severe use, such as wet or dusty conditions. Items not listed in the chart should be lubricated at the general lubrication interval. Item Lube Method...

  • Page 65: Engine Intake Restrictor Plate

    MAINTENANCE Engine Intake Restrictor Plate Some RANGER 800 models are equipped with an intake restrictor plate in order to meet vehicle class regulations. This plate MUST NOT be removed for any reason. Removal of the intake restrictor plate will void the warranty on the vehicle. Engine Oil Always check and change the engine oil at the intervals outlined in the Periodic Maintenance Chart beginning on page 59.

  • Page 66: Oil And Filter Change

    MAINTENANCE Engine Oil Oil and Filter Change Always change the oil and filter at the intervals outlined in the Periodic Maintenance Chart beginning on page 59. Always change the oil filter whenever changing oil. 1. Position the vehicle on a level surface. 2.

  • Page 67: Gearcase Specification Chart

    MAINTENANCE Gearcases Gearcase Specification Chart RANGER 4X4 Gearcase Specifications Gearcase Lubricant Capacity Fill Plug(s) Drain Plug Torque Torque Main Gearcase AGL Gearcase 34 oz. 12 ft. lbs. 12 ft. lbs. (Transmission) (1000 ml) (16.3 Nm) (16.3 Nm) Lubricant & Transmission Fluid Front Gearcase Demand Drive Fluid 9.3 oz.
  • Page 68 MAINTENANCE Gearcases Transmission (Main Gearcase) (4X4/CREW) Always check and change the transmission oil at the intervals outlined in the Periodic Maintenance Chart beginning on page 59. Refer to the Gearcase Specifications Chart on page 65 for recommended lubricants, capacities and torque specifications. See page 100 for the part numbers of POLARIS products.
  • Page 69 MAINTENANCE Gearcases Transmission (Main Gearcase) (6X6) Always check and change the transmission oil at the intervals outlined in the Periodic Maintenance Chart beginning on page 59. Maintain the oil level even with the bottom of the fill plug hole. Refer to the Gearcase Specifications Chart on page 65 for recommended lubricants, capacities and torque specifications.
  • Page 70 MAINTENANCE Gearcases Front Gearcase Always check and change the front gearcase oil at the intervals outlined in the Periodic Maintenance Chart beginning on page 59. Maintain the oil level even with the bottom thread of the fill plug hole. Refer to the Gearcase Specifications Chart on page 65 for recommended lubricants, capacities and torque specifications.
  • Page 71 MAINTENANCE Gearcases Middle Gearcase (6X6) Always check and change the middle gearcase oil at the intervals outlined in the Periodic Maintenance Chart beginning on page 59. Maintain the oil level even with the bottom thread of the fill plug hole. Refer to the Gearcase Specifications Chart on page 65 for recommended lubricants, capacities and torque specifications.
  • Page 72 MAINTENANCE Gearcases Rear Gearcase (6X6) Always check and change the rear gearcase oil at the intervals outlined in the Periodic Maintenance Chart beginning on page 59. Refer to the Gearcase Specifications Chart on page 65 for recommended lubricants, capacities and torque specifications. See page 100 for the part numbers of POLARIS products.

  • Page 73: Spark Plugs

    MAINTENANCE Spark Plugs Spark Plug Recommendations Refer to the specifications section beginning on page 94 for the recommended spark plug type for your vehicle. Always torque spark plugs to specification. NOTICE: Using non-recommended spark plugs can result in serious engine damage. Always use POLARIS-recommended spark plugs.

  • Page 74: Cooling System

    MAINTENANCE Cooling System The engine coolant level is controlled or maintained by the recovery system. The recovery system components are the overflow bottle, radiator filler neck, radiator pressure cap and connecting hose. As coolant operating temperature increases, the expanding (heated) excess coolant is forced out of the radiator, past the pressure cap, and into the overflow bottle.

  • Page 75: Radiator Coolant Level

    MAINTENANCE Cooling System Overflow Bottle Coolant Level Always check and change the coolant at the intervals outlined in the Periodic Maintenance Chart beginning on page 59. Maintain the coolant level between the minimum and maximum marks on the bottle (when the fluid is cool). The overflow bottle is located in front of the right front wheel.
  • Page 76 MAINTENANCE POLARIS Variable Transmission (PVT) System WARNING Failure to comply with the instructions in this warning can result in severe injury or death. Do not modify any component of the PVT system. Doing so may reduce its strength so that a failure may occur at a high speed.

  • Page 77: Pvt Drying

    MAINTENANCE POLARIS Variable Transmission (PVT) System Belt Replacement/Debris Removal If a belt fails, always clean any debris from the duct and from the clutch and engine compartments when replacing the belt. WARNING! Failure to remove ALL debris when replacing the belt could result in vehicle damage, loss of control and severe injury or death.

  • Page 78: Vehicle Immersion

    MAINTENANCE Vehicle Immersion NOTICE: If your vehicle becomes immersed, major engine damage can result if the machine is not thoroughly inspected. Take the vehicle to your dealer before starting the engine. If it's impossible to take your RANGER to a dealer before starting it, follow the steps outlined below.

  • Page 79: Spark Arrester

    MAINTENANCE Spark Arrester WARNING Failure to heed the following warnings while servicing the spark arrester could result in serious injury or death. • Do not perform service on the spark arrester while the system is hot. Exhaust system temperatures can reach 1000° F. Allow components to cool sufficiently before proceeding. •...

  • Page 80: Throttle System

    MAINTENANCE Throttle System WARNING Failure to check or maintain proper operation of the throttle system can result in an accident and lead to serious injury or death if the throttle pedal sticks during operation. Always check the pedal for free movement and return before starting the engine and occasionally during operation.

  • Page 81: Brake Fluid

    MAINTENANCE Brakes The front and rear brakes are hydraulic disc type brakes activated by the brake pedal. See page 24. Brake Fluid Inspect the brake system routinely. Inspect the level of the brake fluid before each operation. WARNING! After opening a bottle of brake fluid, always discard any unused portion. Never store or use a partial bottle.

  • Page 82: Steering Wheel Inspection

    MAINTENANCE Brakes Park Brake Adjustment Inspect and adjust park brake cable tension after the first 25 hours of operation and every 100 hours thereafter to ensure proper cable tension. Loss of tension in the park brake cable may cause “BRAKE” to display in the rider information center, along with activation of the limiting feature.

  • Page 83: Tire Tread Depth

    MAINTENANCE Tires WARNING Operating your vehicle with worn tires, improperly inflated tires, non-standard tires or improperly installed tires will affect vehicle handling and could cause an accident resulting in serious injury or death. Always follow all tire maintenance procedures as outlined in this manual and on the labels on the vehicle.

  • Page 84: Wheel Removal

    MAINTENANCE Tires Wheel Removal 1. Apply the brakes. Engage the park brake. 2. Stop the engine. Place the transmission in gear. 3. Loosen the wheel nuts slightly. 4. Elevate the side of the vehicle by placing a suitable stand under the frame. 5.

  • Page 85: Headlight Lamp Replacement

    MAINTENANCE Lights Poor lighting can result in reduced visibility when driving. Headlight and taillight lenses become dirty during normal operation. Clean lights frequently and replace burned out lamps promptly. Do not operate this vehicle at night or in low light conditions until the headlight is replaced.

  • Page 86: Headlight Beam Adjustment

    MAINTENANCE Lights Headlight Beam Adjustment 8" (20 cm) 25 ft. (7.6 m) 1. Place the vehicle on a level surface with the headlight approximately 25 ft. (7.6 m) from a wall. 2. Place the transmission in gear. Engage the park brake. 3.
  • Page 87 MAINTENANCE Fuses If the engine stops or will not start, or if you experience other electrical failures, a fuse may need replacement. Locate and correct any short circuits that may have caused the blown fuse, then replace the fuse. Spare fuses are provided in the fuse box. The power steering fuse (if equipped) is located on the power steering wiring harness near the fuse box.
  • Page 88 MAINTENANCE Battery WARNING Battery electrolyte is poisonous. It contains sulfuric acid. Serious burns can result from contact with skin, eyes or clothing. Antidote: External: Flush with water. Internal: Drink large quantities of water or milk. Follow with milk of magnesia, beaten egg, or vegetable oil.

  • Page 89: Battery Removal

    MAINTENANCE Battery Battery Removal WARNING Improperly connecting or disconnecting battery cables can result in an explosion and cause serious injury or death. When removing the battery, always disconnect the negative (black) cable first. When reinstalling the battery, always connect the negative (black) cable last. 1.

  • Page 90: Battery Installation

    MAINTENANCE Battery Battery Installation Using a new battery that has not been fully charged can damage the battery and result in a shorter life. It can also hinder vehicle performance. Follow the battery charging instructions on page 89 before installing the battery. 1.
  • Page 91 MAINTENANCE Battery Battery Charging (Conventional Battery) 1. Remove the battery from the vehicle to prevent damage from leaking or spilled electrolyte during charging. See page 87. 2. Charge the battery with a charging output no larger than 1/10 of the battery’s amp/hr rating.

  • Page 92: Cleaning And Storage

    MAINTENANCE Cleaning and Storage Washing the Vehicle Keeping your POLARIS vehicle clean will not only improve its appearance but it can also extend the life of various components. NOTICE: High water pressure may damage components. POLARIS recommends washing the vehicle by hand or with a garden hose, using mild soap.

  • Page 93: Storage Tips

    MAINTENANCE Cleaning and Storage Storage Tips NOTICE: Starting the engine during the storage period will disturb the protective film created by fogging and damage could occur. Never start the engine during the storage period. Clean the Exterior Make any necessary repairs and clean the vehicle as recommended. See page 90. Stabilize the Fuel 1.
  • Page 94 MAINTENANCE Cleaning and Storage Storage Tips Inspect and Lubricate Inspect all cables and lubricate all areas of the vehicle as recommended in the Periodic Maintenance Chart beginning on page 59. Battery Maintenance See page 88 for storage and charging procedures. Fluid Levels Inspect the fluid levels.

  • Page 95: Removal From Storage

    MAINTENANCE Removal from Storage 1. Check the battery electrolyte level and charge the battery if necessary. Install it in the vehicle. Make sure the battery vent hose is routed properly and that it's not pinched or restricted in any way. 2.

  • Page 96: Specifications

    SPECIFICATIONS RANGER 800 EFI/EPS Maximum Weight Capacity 1500 lbs. (681 kg) (including operator, passenger, cargo, accessories) 1100 lbs. (499 kg) (Models sold in California) Dry Weight 1237 lbs. (561 kg) Test GVW - Rollover Protection 2940 lbs. (1333.5 kg) per OSHA 29 CFR 1928.53...
  • Page 97 SPECIFICATIONS RANGER 800 EFI/EPS Driving System Type PVT, 4-wheel independent shaft, lockable differential Shift Type Single Lever (H/L/N/R) Gear Reduction - Low 7.70:1 Gear Reduction - Reverse 7.00:1 Gear Reduction - High 3.6:1 Drive Ratio - Front: 3.818:1 Drive Ratio - Rear 3.105:1...
  • Page 98 SPECIFICATIONS RANGER 6X6 Maximum Weight Capacity 2000 lbs. (907 kg) (includes weight of operator, passenger, cargo, accesso- ries) Dry Weight 1551 lbs. (703.5 kg) Test GVW - Rollover Protection 3660 lbs. (1660 kg) per OSHA 29 CFR 1928.53 System (ROPS) Fuel Capacity 8.8 gal.
  • Page 99 SPECIFICATIONS RANGER 6X6 Driving System Type Shift Type Single Lever, Console (H/L/N/R) Gear Reduction - Low 8.71:1 Gear Reduction - Reverse 7.91:1 Gear Reduction - High 3.85:1 Drive Ratio - Front: 3.818:1 Drive Ratio - Final 3.70:1 Tire Size - Front 25 x 10 - 12 Tire Size - Center/Rear 25 x 11 - 12...
  • Page 100 SPECIFICATIONS RANGER CREW 800 Maximum Weight Capacity 1750 lbs. (795 kg) (includes weight of operator, passengers, cargo, acces- sories) Dry Weight 1495 lbs. (678 kg) Test GVW - Rollover Protection 3360 lbs. (1524 kg) per OSHA 29 CFR 1928.53 System (ROPS) Fuel Capacity 8.8 gal.
  • Page 101 SPECIFICATIONS RANGER CREW 800 Driving System Type PVT, 4-wheel independent shaft, lockable differential Shift Type Single Lever (H/L/N/R) Gear Reduction - Low 7.70:1 Gear Reduction - Reverse 7.0:1 Gear Reduction - High 4.63:1 Drive Ratio - Front: 3.818:1 Drive Ratio - Final 3.105:1 Tire Size - Front 26 x 9 - 12...

  • Page 102: Polaris Products

    POLARIS PRODUCTS Part Number Description Engine Lubricant 2870791 Fogging Oil (12 oz./355 ml Aerosol) 2876244 PS-4 Full Synthetic 5W-50 4-Cycle Oil (qt./.95 l) 2876245 PS-4 Full Synthetic 5W-50 4-Cycle Oil (gal./3.8 l) Gearcase / Transmission Lubricants 2878068 AGL Full Synthetic Gearcase Lubricant & Transmission Fluid (qt./.95 l) 2878069 AGL Full Synthetic Gearcase Lubricant &...

  • Page 103: Troubleshooting

    TROUBLESHOOTING Drive Belt Wear/Burn Possible Cause Solution Driving onto a pickup or tall Use low range during loading. trailer in high range Starting out going up a steep Use low range. See warnings on page 41. incline Driving at low RPM or ground Drive at a higher speed or use low range more frequently.
  • Page 104 TROUBLESHOOTING Park Brake Engine Limiting Feature Fails to Disengage Possible Cause Solution Park brake is not completely disengaged Ensure lever is in forward-most position Park brake connector malfunction or switch move- Disconnect the connector if temporary continued ment or failure operation is necessary, see your dealer promptly for service Engine Doesn't Turn Over...
  • Page 105 TROUBLESHOOTING Engine Runs Irregularly, Stalls or Misfires Possible Cause Solution Fouled or defective spark plugs Inspect, clean and/or replace spark plugs Worn or defective spark plug wires See your dealer Incorrect spark plug gap or heat range Set gap to specs or replace plugs Loose ignition connections Check all connections and tighten Water present in fuel...

  • Page 106: Warranty

    WARRANTY LIMITED WARRANTY POLARIS Sales Inc., 2100 Highway 55, Medina, MN 55340 (POLARIS) gives a SIX MONTH LIMITED WARRANTY on all components of your POLARIS vehicle against defects in material or workmanship. POLARIS further warrants that the spark arrestor in this product will meet the efficiency requirements of USFS standard 5100-1C for at least 1000 hours when subjected to normal use and when maintenance and installation are in accordance with POLARIS recommendations.
  • Page 107 WARRANTY LIMITATIONS OF WARRANTIES AND REMEDIES This warranty excludes damages or failures caused by abuse, accident, fire, or any other cause other than a defect in materials or workmanship and provides no coverage for consumable components, general wear items, or any parts exposed to friction surfaces, stresses, environmental conditions and/or contamination for which they were not designed or not intended, including but not limited to the following items: •...
  • Page 108 WARRANTY HOW TO OBTAIN WARRANTY SERVICE If your vehicle requires warranty service, you must take it to a POLARIS Servicing Dealer. When requesting warranty service you must present your copy of the Warranty Registration From to the dealer. (THE COST OF TRANSPORTATION TO AND FROM THE DEALER IS YOUR RESPONSIBILITY).
  • Page 109 This emissions limited warranty is in addition to the POLARIS standard limited warranty for your vehicle. POLARIS Industries Inc. warrants that at the time it is first purchased, this emissions-certified vehicle is designed, built and equipped so it conforms with applicable U.S. Environmental Protection Agency emission regulations.
  • Page 110 WARRANTY U.S.A. EPA Emissions Limited Warranty The exclusive remedy for breach of this limited warranty shall be, at the exclusive option of POLARIS, repair or replacement of any defective materials, components or products. THE REMEDIES SET FORTH IN THIS LIMITED WARRANTY ARE THE ONLY REMEDIES AVAILABLE TO ANY PERSON FOR BREACH OF THIS WARRANTY.

  • Page 111: Maintenance Log

    MAINTENANCE LOG Use the following chart to record periodic maintenance. DATE MILES (KM) TECHNICIAN SERVICE PERFORMED / COMMENTS OR HOURS...

  • Page 112: Index

    INDEX Accessory Outlets ......22 Component Locations ..... . 21 Air Filter .
  • Page 113 INDEX Fan, Cooling ......72 Idle Speed ....... 78 Filter Cleaning, Air .
  • Page 114 INDEX Oil Recommendation, Engine ....63 Safety Labels ......10-12 Operation on Public Lands .
  • Page 115 INDEX Tachometer ......32 Vehicle Identification Numbers ....6 Throttle Body .
  • Page 116 PMS 419 WARNING Improper vehicle use can result in SEVERE INJURY or DEATH NEVER Operate: • If you are under age 16 and without a valid driver’s license. • Without first viewing safety video and taking a ROHVA training course at www.rohva.org.

This manual is also suitable for:

2014 ranger crew 800 efi2014 ranger 800 epsRanger 6x62014 ranger 800 efi2014 ranger 6x6
