INSTRUCTION MANUAL
C-CC351A NTSC

COLOR CAMERA

C-CC351A PAL
C-CC354A NTSC
C-CC354A PAL
Please follow the instructions in this manual to obtain the optimum results from this unit.
We also recommend that you keep this manual handy for future reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the C-CC351A NTSC and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Toa C-CC351A NTSC

  • Page 1: Color Camera

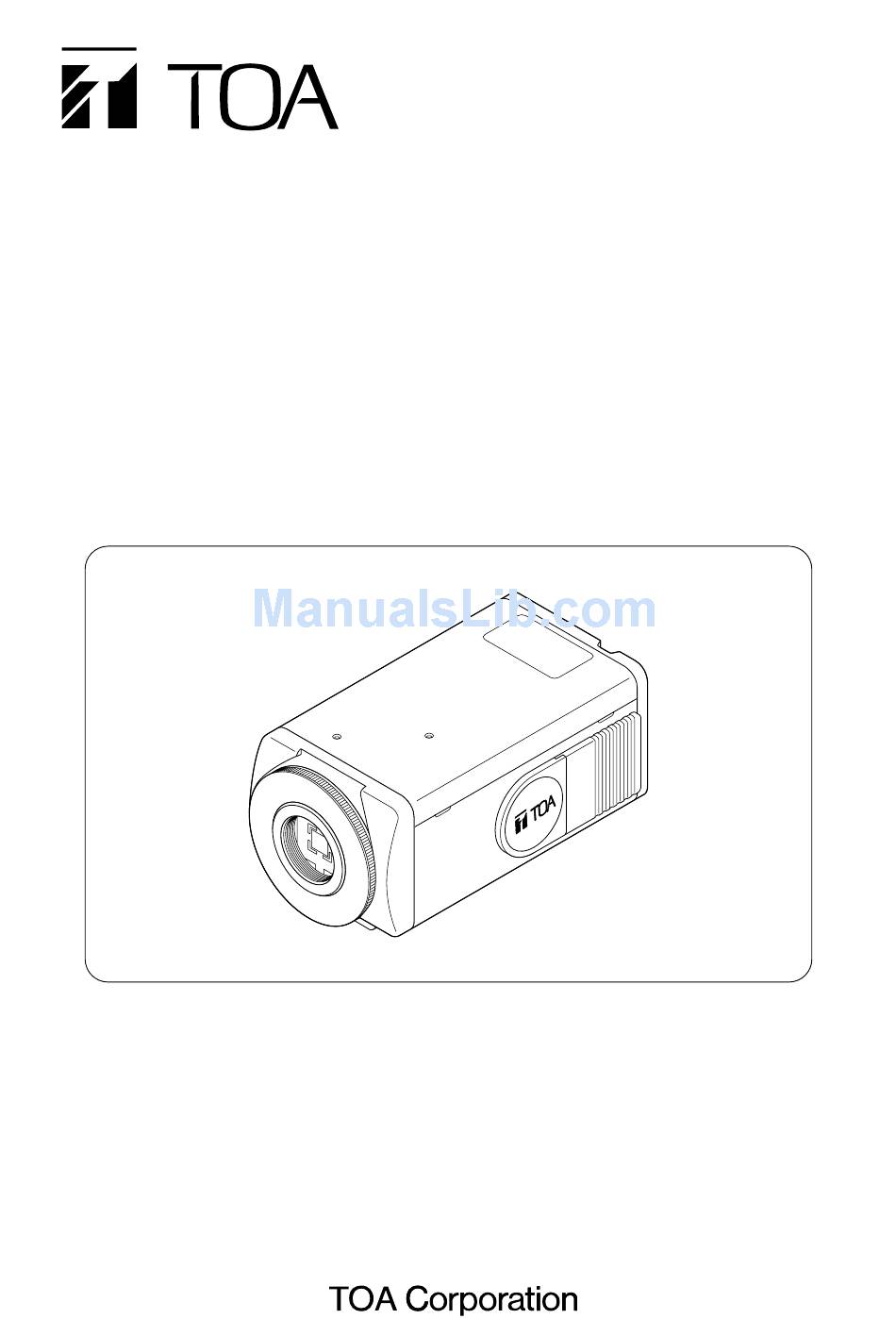

    INSTRUCTION MANUAL C-CC351A NTSC COLOR CAMERA C-CC351A PAL C-CC354A NTSC C-CC354A PAL Please follow the instructions in this manual to obtain the optimum results from this unit. We also recommend that you keep this manual handy for future reference.
  • Page 2: Table Of Contents

    TABLE OF CONTENTS 1. SAFETY PRECAUTIONS ................3 2. GENERAL DESCRIPTION ................4 3. PRECAUTIONS ....................4 4. NOMENCLATURE ..................5 5. INSTALLATION ....................6 6. CONNECTIONS ....................6 7. ABOUT THE LENSES 7.1. Lens (optional) Selection and Camera Setting .......... 7 7.2.
  • Page 3: Safety Precautions

    AC outlet and contact your nearest TOA dealer. Make no further • Leave the installation of the unit to your TOA attempt to operate the unit in this condition as this dealer because the installation requires expert may cause fire or electric shock.
  • Page 4: General Description

    Modifications Any modifications made to this device that are not approved by TOA Corporation may void the authority granted to the user by the FCC to operate this equipment.
  • Page 5: Nomenclature

    4. NOMENCLATURE [Left side panel] (NTSC version) [Top panel] (PAL version) Note: Controls , and are exposed when you move the cover toward the rear panel. [Rear panel] [Front panel] [Right side panel] (C-CC351A) (C-CC354A) [Bottom panel] (C-CC351A only) (PAL version) (NTSC version) (1) Back focal length adjustment ring fixing screw (8) Vertical phase control...
  • Page 6: Installation

    5. INSTALLATION [Ceiling Mounting Example] [Wall Mounting Example] Camera mounting Ceiling surface bracket (optional) Wall surface Lock lever Camera mounting bracket (optional) Pedestal Mount Wall surface Mount Lock lever Pedestal Camera mounting bracket (optional) 1. Mount the optional camera mounting bracket to the ceiling or wall. The bracket must be fixed securely using an electrical box and screws supplied with the bracket.
  • Page 7: About The Lenses

    7. ABOUT THE LENSES 7.1. Lens (optional) Selection and Camera Setting • When using the flickering-reduction function outdoors or under the fluorescent lighting, use the auto-iris lens. Follow the procedure below to perform the setting: 1. Set the Lens Auto/Manual selector switch of the mode switch (6) to "AUTO" position (factory-preset position).
  • Page 8: Adjustment

    8. ADJUSTMENT 1. Supply power to the camera. The power indicator (11) will light. 2. To view the flickering-free picture, shift the flickering-reduction switch of the mode switch (6) to "1/100" position (NTSC version) ,"1/120" position (PAL version). 3. Connect the video output terminal (10) to the monitor so that the picture may be displayed on the monitor. 4.
  • Page 9: Camera Function Setting

    9. CAMERA FUNCTION SETTING The following 9 functions can be set and reset. Note Be sure to set the mode switch (for AGC, backlight compensation,Wide Dynamic, ATW, and flickering- reduction operation settings) to the "(MENU)" position. Failure to do this makes it impossible to set the "shutter speed/flickering-free operation,"...
  • Page 10: Iris Level Setting

    Note Use the menu keys ( key, key, SET key, and /CLR key) located on the camera's side panel to set the camera functions. Side panel-mounted menu keys • Camera menu display screen Initial screen 1. The camera menu screen appears if the SET key is pressed for about 2 seconds.
  • Page 11: Shutter Speed/Flickering-Reduction Operation Setting

    Shutter Speed/Flickering-Reduction Operation Setting • Shutter speed setting screen NTSC: You can set the shutter speed to NORMAL (1/60), 1/100 (flickering-reduction for), 1/125, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000 or AES. PAL : You can set the shutter speed to NORMAL (1/50), 1/120 (flickering-reduction for), 1/125, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000 or AES.
  • Page 12 Figure 1 : Valid • Wide Dynamic Area Setting Screen Set the areas on the screen which will be used to detect backlighting. When the brightness level of the on-screen area greatly varies because of a frequently moving object in the area, its influence can be eliminated by registering the area as "Invalid."...
  • Page 13: Backlight Compensation Setting

    Backlight Compensation Setting This function prevents an object from becoming too dark to be viewed due to backlight. • Backlight compensation setting screen Each item represents the size of the screen area used to detect backlighting. • ON 4/4: Whole screen •...
  • Page 14: Automatic Gain Control (Agc) And Sensitivity Level Settings

    Automatic Gain Control (AGC) and Sensitivity Level Settings • AGC/sensitivity level setting screen 1 An AGC level can be automatically changed, maintained constant or set for OFF. This screen also permits a sensitivity level to be changed in increments of OFF, 2 times, 4 times, 6 times, 8 times, 10 times, 16 times, 24 times or 32 times.
  • Page 15: White Balance Setting

    Sensitivity Operation AUTO Incremental Automatically adjusts the sensitivity for up to the parameter designated maximum level. Change the incremental parameter when giving more consideration to a residual image reduction than to a sensitivity level increase. Normally, use this mode. AUTO Use this mode to automatically adjust a AGC level without using the sensitivity increasing function, and create pictures free from residual images in poor lighting...
  • Page 16 • White balance setting screen 2 When AWB is selected, the cursor first flashes at the position of LAST. If you press the SET key here for registration, the [ ] cursor in the indication of "RED – – + – – BLUE" begins to flash. If you select "REFRESH"...
  • Page 17: Chroma Level Setting

    Chroma Level Setting • Chroma level setting screen 1 You can adjust the chroma level of the picture as you like. Move the flashing [ ] cursor with the key and the key to select either NORMAL or MANUAL, then press the SET key to register the setting.
  • Page 18: Camera Id Title Setting

    • Enhancement setting screen 2 When you select MANUAL and register its setting, the ] cursor in the indication of "SOFT – – + – – SHARP" flashes, permitting a level to be varied with the and the key. Pressing the SET key here for registration will return the display to the initial screen.
  • Page 19: Resetting The Camera Functions To The Factory-Preset Values

    When you select YES, the current setting is reset to the factory-preset status, and then the display returns to the initial screen. The following table shows the factory-preset values: [Factory-preset values for the C-CC351A NTSC, C-CC351A PAL, C-CC354A NTSC,C-CC354A PAL] Setting Item Factory-Preset Value Shutter speed...
  • Page 20: About The Mode Switch

    10. ABOUT THE MODE SWITCH Set each switch to the position that provides the best picture reproduction. The color camera has the remote camera control function. When setting the camera's property with the menu key, set the corresponding switch (AGC, backlight compensation, ATW, and flickering reduction) to the "(MENU)" side (right-hand side). [PAL] [NTSC] (MENU)
  • Page 21 • Flickering-reduction switch Flickering of the picture may Normally, set the switch to this [PAL] [PAL] interfere with the view under position. fluorescent lamps in the area with power frequency of 60 Hz (50Hz) . In such cases, set the switch to "1/100"...
  • Page 22: Specifications

    11. SPECIFICATIONS Model No. C-CC351A PAL C-CC351A NTSC Power Source 230VAC 120VAC Power Consumption Image Sensor 1/3 type IT-CCD No. of Effective Pixels 752 (H) x 582 (V) 768 (H) x 494 (V) Scanning System 2:1 interlace Scanning Frequency (H/V) 15.625 kHz / 50.00 Hz...
  • Page 23 Model No. C-CC354A PAL C-CC354A NTSC Power Source 24 VAC, 50/60 Hz or 12 VDC Power Consumption Image Sensor 1/3 type IT-CCD No. of Effective Pixels 752 (H) x 582 (V) 768 (H) x 494 (V) Scanning System 2:1 interlace Scanning Frequency (H/V) 15.625 kHz / 50.00 Hz 15.734 kHz / 59.94 Hz...
  • Page 24 Printed in Japan 133-12-858-5B...
