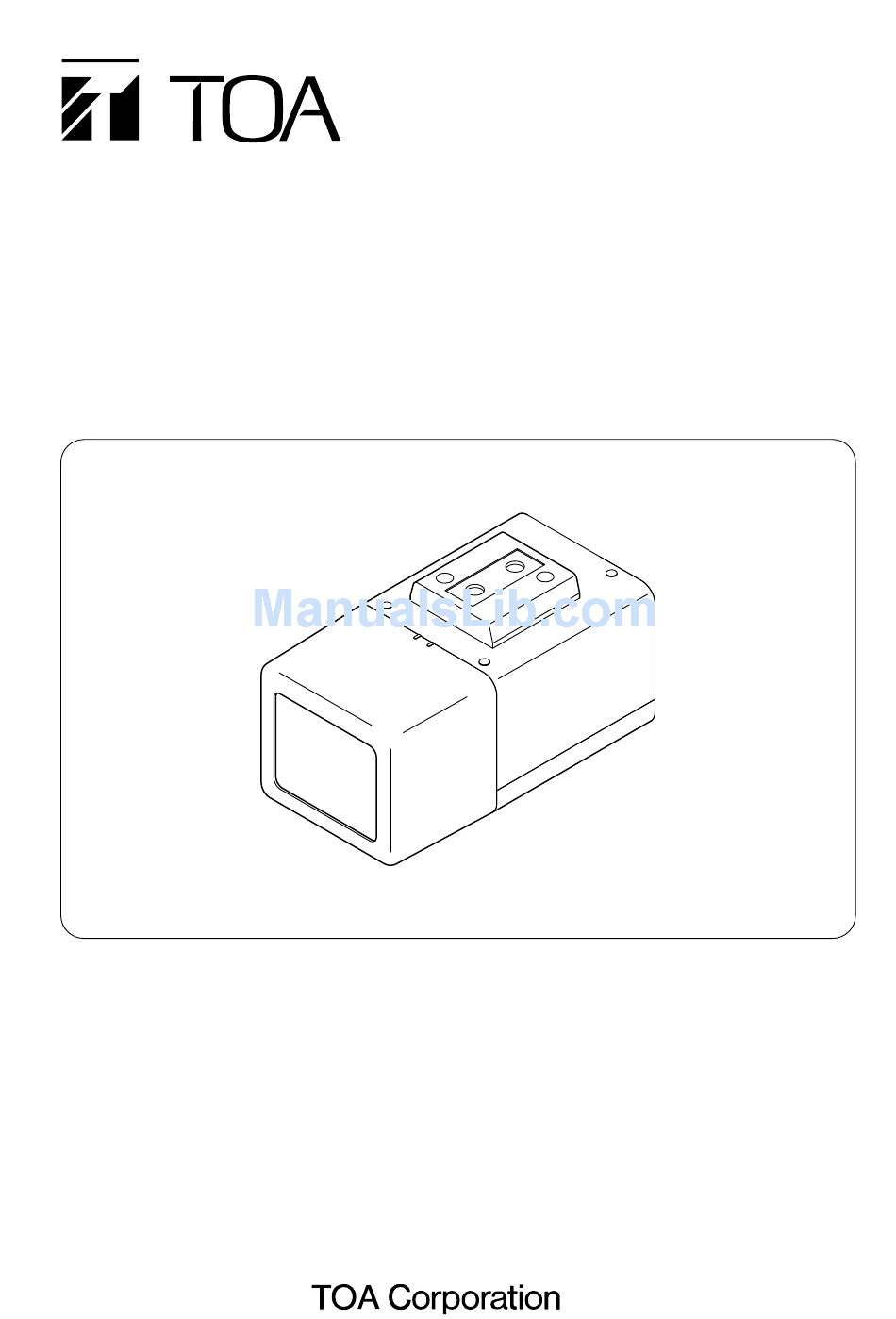

Page 1: Color Camera
COLOR CAMERA Thank you for purchasing TOA’s Color Camera. Please carefully follow the instructions in this manual in order to ensure long, trouble-free use of your color camera. INSTRUCTION MANUAL C-CV14-2 NTSC C-CV14-2 PAL... -
Page 2: Table Of Contents
TABLE OF CONTENTS 1. SAFETY PRECAUTIONS 2. GENERAL DESCRIPTION 3. HANDLING PRECAUTIONS 4. NOMENCLATURE 5. INSTALLATION 5.1. Lens Cover Attachment and Detachment ... 7 6. CONNECTIONS 7. ADJUSTMENT 8. ABOUT THE MODE SETTING SWITCH 8.1. Adjustment Switch ... 9 8.2. Backlight Compensation Switch ... 9 8.3. -
Page 3: Safety Precautions
1. SAFETY PRECAUTIONS • Before installation or use, be sure to carefully read all the instructions in this section in order to ensure long, trouble-free operation. • Be sure to follow all the precautionary instructions in this section, which contain important warnings regarding safety. -
Page 4: General Description
NTSC complies with Part 15 of the FCC Rules. Note This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. -
Page 5: Nomenclature
4. NOMENCLATURE (1) Vari-focal lens (2) Focus ring (3) Zoom ring (4) Camera mount (5) Camera mount fixing screw (6) Power input terminal (24 V AC or 12 V DC) Note Fixing holes (11) are provided in both the top and bottom panels. (7) Iris control (8) Video output terminal (BNC) (9) Mode setting switch... -
Page 6: Installation
5. INSTALLATION [Ceiling mounting example] Camera mounting bracket (optional) Lock lever Pedestal Camera mount WARNING Install the unit only in a location that can structurally support the weight of the unit and the mounting bracket. Doing otherwise may result in the unit falling down and causing personal injury. -
Page 7: Lens Cover Attachment And Detachment
5.1. Lens Cover Attachment and Detachment To detach, lightly press on both the top and bottom of the lens cover and pull it forward. To attach, align the clips inside the lens cover with the corresponding camera tabs, then press on the cover. Inside of the lens cover Clips 6. -
Page 8: Adjustment
7. ADJUSTMENT 1. Switch on the camera power after completing camera connections. Power is supplied to the camera. 2. Normally,set the Shutter Speed switch to "1/60"(NTSC) or "1/50"(PAL) position. Flickering of the picture may interfere with the view under fluorescent lamp in the area with power frequency of 50 Hz(NTSC) or 1/60 Hz(PAL). -
Page 9: About The Mode Setting Switch
8. ABOUT THE MODE SETTING SWITCH Set the Mode Setting switch for the best possible picture reproduction depending on installation conditions. IRIS VIDEO OUT 8.1. Adjustment Switch Set this switch when adjusting the lens focus.(Provides the same effect as when using the ND filter.) OFF ON Standard position : Set to OFF after lens adjustment completion. -
Page 10: If You Think There Is A Failure: (Troubleshooting)
9. IF YOU THINK THERE IS A FAILURE: (TROUBLESHOOTING) Symptom Camera images are • The monitor’s power switch is not not displayed on the • Cables are not correctly connected. monitor. • The BNC plug is not correctly • Power is not supplied to the •... -
Page 11: Specifications
10. SPECIFICATIONS Model No. Power Source 24 V AC, 50/60 Hz, or 12 V DC Power Consumption Image Device 1/4” IT-CCD Number of Effective Pixels 768 (H) x 494 (V), 380,000 pixels Scanning System 2:1 interlace Scanning Frequency 15.734 kHz (H), 59.94 Hz (V) Video Output VBS1.0 V(p-p), 75 , BNC connector Synchronizing System... - Page 12 Printed in Vietnam 1 3 3 - 1 2 - 8 6 9 - 5 D...
