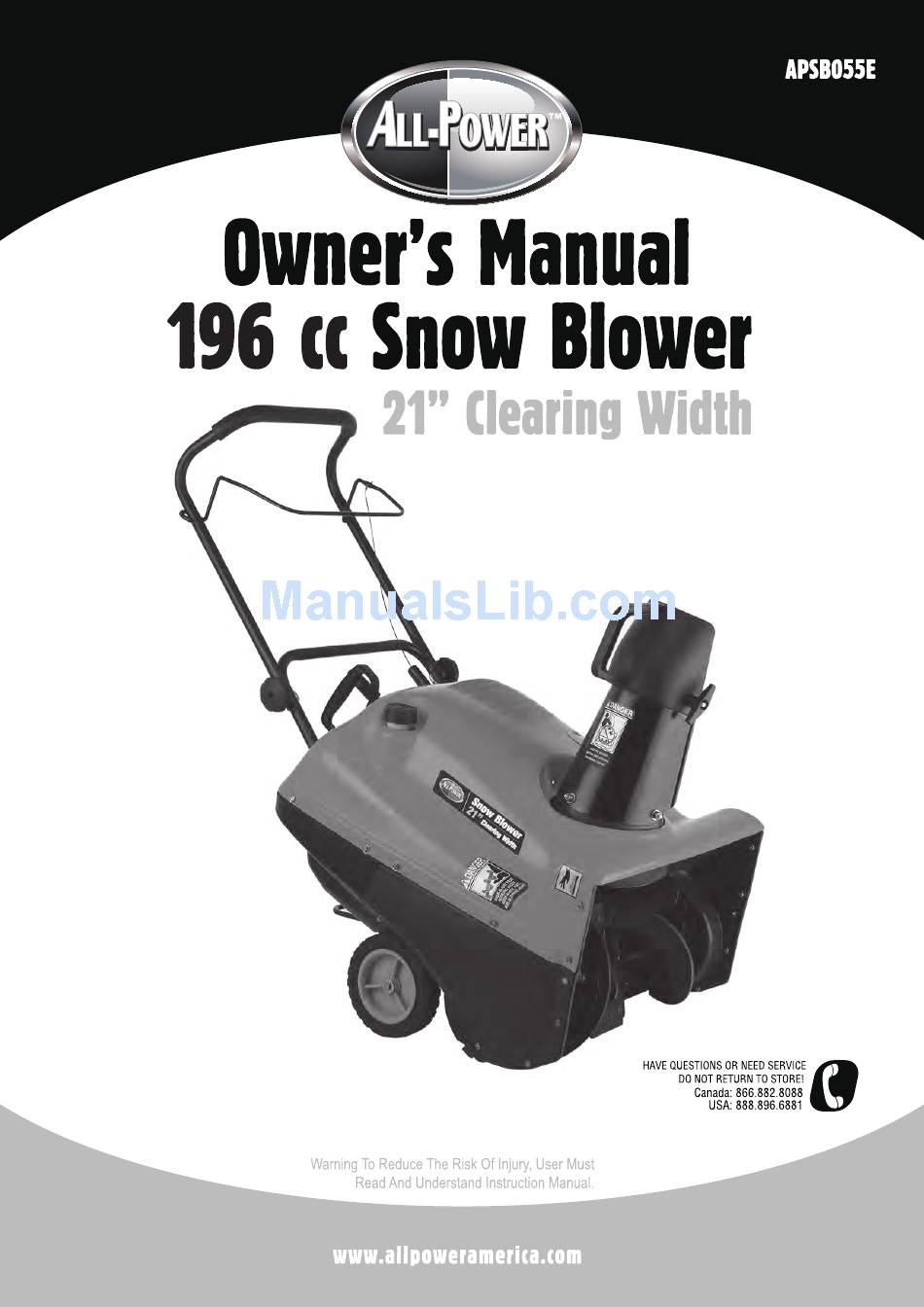

All-Power 19*6 cc Owner's Manual

All-Power 19*6 cc Owner's Manual

21" clearing width
Hide thumbs

Advertisement

Quick Links

Download this manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the 19*6 cc and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for All-Power 19*6 cc

Summary of Contents for All-Power 19*6 cc

  • Page 2: Table Of Contents

    Model: APSB055E Electric Start 196cc Displacement 4 Cycle Engine 21 inch Single Stage Auger Propelled CAUTION: Before using this product,read this manual and follow all of its Safety Rules and Operating Instructions. INTRODUCTION……………………………………………………………………………………………..……2 RESPONSIBILITY OF THE OWNER………………………………………………………………………..….2 RULES FOR SAFE OPERATION……………………………………………………………………….………3 MAINTENANCE AND STORAGE………………………………………………………………………………5 SYMBOLS…………………………………………………………………………………………….……..…..6 ASSEMBLY………………………………………………………………………………………………..………7...

  • Page 3: Responsibility Of The Owner

    Congratulations on your purchase. This Snowthrower has been designed, engineered and manufactured to give you the best possible dependability and performance. However, like all mechanical products, your machine will occasionally require adjustment and maintenance. This handbook should be read before operating or performing and adjustments on your machine.
  • Page 4 LOOK FOR THIS SYMBOL TO POINT OUT IMPORTANT SAFETY PRECAUTIONS. IT MEANS-- -- ATTENTION!!! BECOME ALERT!!! YOUR SAFETY IS INVOLVED. WARNING: Engine Exhaust, some of its constituents, and certain vehicle components contain or emit chemicals known to the State of California （USA）to cause cancer and birth defects or other reproductive harm.
  • Page 5 c. Fill fuel tank outdoors with extreme care. Never fill fuel tank indoors. d. Replace fuel cap securely and wipe up spilled fuel. e. Never store fuel or snow thrower with fuel in the tank inside of a building where fumes may reach an open flame or spark.
  • Page 6 14. Never operate the snow thrower near enclosures, automobiles, window wells, dropoffs, and the like without proper adjustment of the snow discharge angle. Keep children and pets away. 15. Do not overload the snow thrower capacity by attempting to clear snow at too fast a rate. 16.

  • Page 7: Symbols

    IMPORTANT: Many of the following symbols are located on your snow thrower or on literature supplied with the product. Before you operate the snow thrower, learn and understand the purpose for each symbol. CONTROL AND OPERATING SYMBOLS Safety Warning Symbols...

  • Page 8: Assembly

    WARNING: Always wear safety glasses or eye shieldswhile assembling snow thrower. TOOLS REQUIRED 1 -- Knife to cut carton Figure 1 shows the snow thrower in the operating position. References to the right or left hand side of the snow thrower are from the viewpoint of the operator’s position behind the unit.
  • Page 9 Adjust The Upper Chute 1. Remove the T--knob and bolt on the upper chute (Figure 4). 2. Rotate the upper chute to the operating position (past the lower chute stop). 3. Install the bolt and tighten the T--knob. Add Engine Oil 1.
  • Page 10 KNOW YOUR SNOW THROWER READ THIS OWNER’S MANUAL AND SAFETY RULES BEFORE OPERATING YOUR SNOW THROWER. Compare the illustrations with your SNOW THROWER to familiarize yourself with the location of various controls and adjustments. Save this manual for future reference. ENGINE AND SNOW THROWER OPERATING CONTROLS The engine operating controls and their functions are as follows: Auger Drive Lever - Starts and stops the auger.

  • Page 11: Operation

    TO CONTROL SNOW DISCHARGE 1. Turn the chute control rod to set the direction of the snow throwing. 2. Loosen the wing knob on the chute deflector and move the deflector to set the distance. Move the deflector (Up) for more distance, (Down) for less distance.
  • Page 12 6. Tighten the fill cap/dipstick securely each time you check the oil level. 7. Install the oil fill cap/dipstick access panel. NOTE: Synthetic oil can assist with starting in extreme cold temperatures. Synthetic 5W30 is acceptable for all temperatures. DO NOT mix oil with gasoline. NOTE: Oil level must be at FULL mark.
  • Page 13 TO START ENGINE Be sure that engine oil is at FULL mark on the oil fill cap/dipstick.The snow thrower engine is equipped with a 120 volt A.C.electric starter and recoil starter. Before starting the engine, be certain that you have read the following information.
  • Page 14 WARNING: Rapid retraction of the starter cord (kickback) will pull your hand or arm toward the engine faster than you can let go of the starter cord. This can result in entangled hair or clothing, broken bones, bruises, traumatic amputation or severe lacaration. Do not crank the engine with the spark plug removed.Make sure the spark plug, muffler, fuel cap and hous- ing are in place and firmly secured by the equipped fasteners.
  • Page 15 Frozen Starter If the starter is frozen and will not turn the engine, follow the steps below. 1. Pull as much starter rope as possible out of the starter. 2. Release the starter handle and let it snap back against the starter. Repeat until the engine starts. Warm engines will cause condensation in cold weather.
  • Page 16 SNOW THROWING TIPS 1. When the handle is raised, the auger blades will engage the ground and the snow thrower will move forward. When the auger drive lever is released, the auger blades will stop. 2. Most efficient snow throwing is accomplished when the snow is removed immediately after if falls. 3.

  • Page 17: Maintenance

    CUSTOMER RESPONSIBILITIES GENERAL RECOMMENDATIONS The warranty on this snow thrower does not cover items that have been subjected to operator abuse or negligence. To receive full value from the warranty, the operator must maintain the snow thrower as instructed in this manual. EMISSIONS CONTROL Maintenance, replacement, or repair of the emission control devices and systems can be performed by any non-road engine repair establishment or individual.
  • Page 18 ENGINE SPECIFICATIONS DISPLACEMENT 196 cc ROTATE SPEED 4000RPM BORE 68mm STROKE 45mm GASOLINE (CAPACITY) 1.5L OIL CAPACITY 0.6L(5W30) SPARK PLUG F7RTC VALVE CLEARANCE Intake: 0.1~0.15 mm Exhaust: 0.15~0.2 mm NOISE(≤7m) 65 dbA DIMENSION(LXWXH) 312×362×335 DRY WEIGHT 15kg SNOW THROWER ENGINE LUBRICATION Check the crankcase oil level before starting the engine and after each eight (8) hours of continuous use.
  • Page 19 1. Open the spark plug access door on the control panel (Figure 18). 2. The spark plug and wire are now visible. 3. Remove the spark plug wire. 4. Clean the area around the spark plug base to prevent dirt from entering the engine when the spark plug is removed.

  • Page 20: Storage

    STORAGE WARNING: Never store your snow thrower with gasoline in the fuel tank indoors or in an enclosed, poorly ventilated area. If gasoline remains in the tank, fumes may reach an open flame, spark or pilot light from a furnace, water heater, clothes dryer, cigarette, etc. To prevent damage (if snow thrower is not used for more than 30 days) follow the steps below.

  • Page 22: Parts

    Snow Blower LIMITED WARRANTY All-Power warrants to the original purchaser who uses the product in a consumer application (personal, residential or household usage) that all products covered under this warranty are free from defects in material and workmanship for one year from the date of purchase.
  • Page 23 Expendable parts or accessories supplied with the product which are expected to become inoperative or unusable after a reasonable period of use. Merchandise sold by All-Power which has been manufactured by and identified as the product of another company, such as gasoline engines. The product manufacturer's warranty, if any, will apply.
