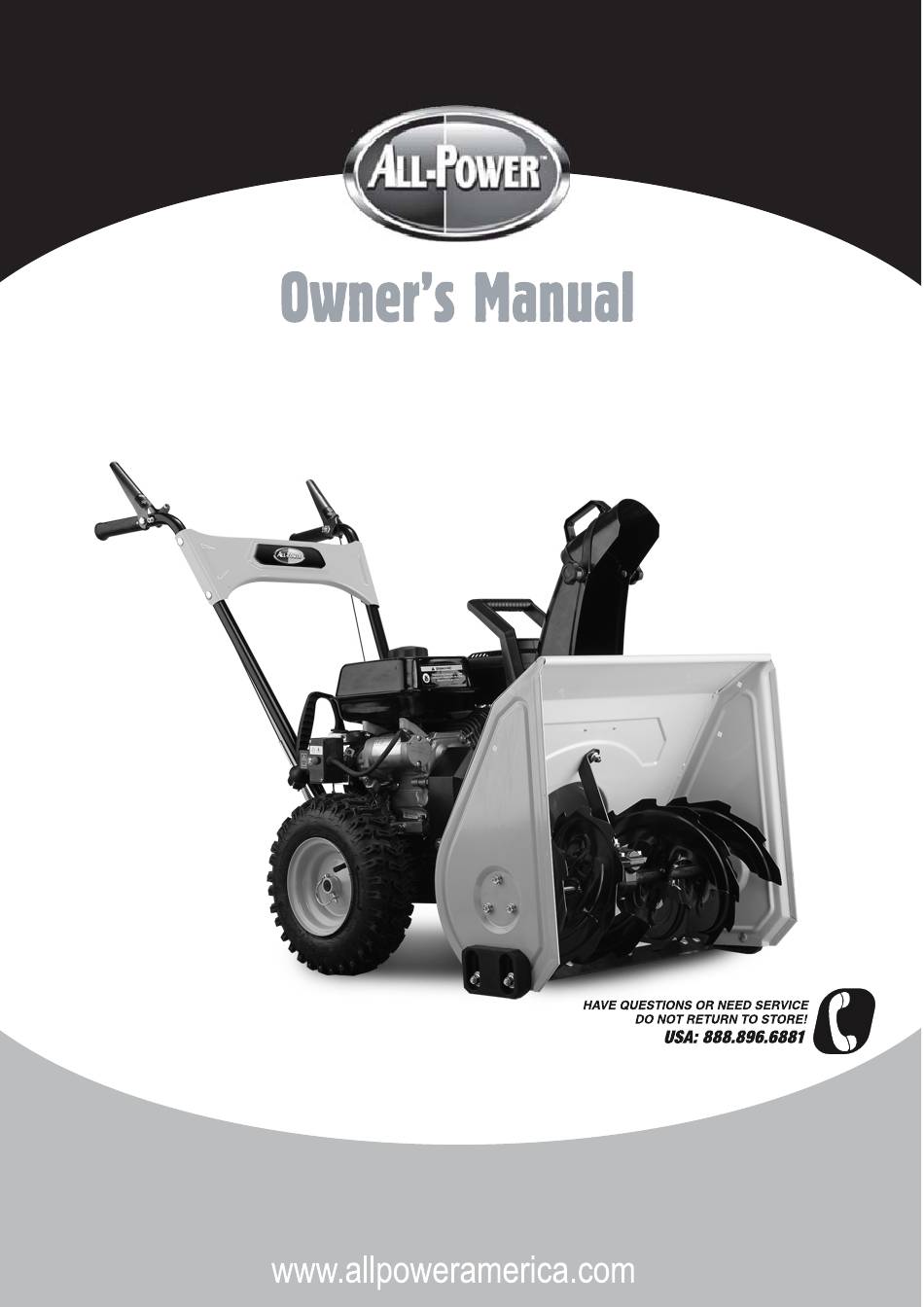

Page 1
APSB2421 Snow Blower Warning To Reduce The Risk Of Injury, User Must Read And Understand Instruction Manual.
Page 2
WARNING: Hot Surface, Do not touch! Wear eye protection Wear ear protection Read the user manual Wear gloves...
Page 4
SAFE OPERATION PRACTICES DANGER : This machine was built to be operated according to the rules for safe operation in this manual. As with any type of power equipment, carelessness or error on part of the operator can result in serious injury. This machine is capable of amputating hands and feet and throwing objects.
clothing that can get caught in moving parts. Do not wear jewelry, long scarves or other loose clothing, which could become entangled in moving parts. Wear footwear which will improve footing on slippery surfaces. Use a grounded three-wire extension cord and receptacle for all units with electric start engines. Adjust collector housing height to clear gravel or crushed rock surfaces.
Do not operate machine while under the influence of alcohol or drugs. 10. Exercise extreme caution when operating on or crossing gravel surfaces. Stay alert for hidden hazards or traffic. 11. Exercise caution when changing direction and while operating on slopes. 12.
Page 7
up of auger/impeller. 10. Never store the machine or fuel container inside where there is an open flame, spark or pilot light such as a water heater, furnace, clothes dryer etc. 11. Always refer to the operator’s manual for proper instructions on off-season storage. Do not modify engine To avoid serious injury or death, do not modify engine in any way.
Page 8
Assembly: 1 Mount the armrest: first unscrew the nut, put in order four bores on the upper armrest, plug in the bolt and screw it with a nut. 1) Nut and bolt 2) Armrest 3 Mount the connecting rod: pull out pinchcock and pin bearing, drill through a bore on the connecting rod with a pin bearing, plug and fix the pinchcock in the pin bearing, and screw the other side on the connecting rod with a nut.
Page 9
4 Mount the moving wire and auger wire: Connecting the Moving wire and Auger Wire on the left and right side position 1) Moving Wire 2) Auger Wire 5 Mount the chute: place it on the chute seat, put down a fixed block to aim with a bore, and screw the fixed block with a bolt.
Page 10
1. Drive Control 2. Auger Control 3. Chute Direction Control 4. Speed Control 5. Skid Shoes 6. Auger 7. Chute Control...
WARNING Read, understand, and follow all instructions and warnings on the machine and in this manual before operating. Shift Lever 1 2 3 4 Figure1 The shift lever is located between the lower handles. Place the shift lever into any of seven positions to control the direction of travel and ground speed.
The drive control is located on the right handle. Squeeze the control grip against the handle to engage the wheel drive. Release to stop.see figure 5 Chute Directional Control The chute directional control is located on the panel of the snow thrower. To change the direction in which snow is thrown, turn chute directional control as follows: Crank clockwise to discharge to the right.
The oil level shall be between the marks “HIGH” and “LOW”. See fig 7 If necessary fill with oil up to the FULL mark .See fig.11. Use good quality oil marked A.P.I. service SF ,SG or SH. Use SAE 5W30 oil . Use SAE OW30 oil for temperatures under – 18 Do not use SAE 10W40.
7. When disconnecting the extension cord, always unplug the end at the three-prong wall outlet unplugging the opposite end form the snow thrower. Recoil Starter 1. Rotate choke control to FULL choke position (cold engine start). NOTE: If the engine is already warm, place choke control in the OFF position instead of FULL. 2_Push the primer two or three times for cold engine start, making sure to cover vent hole in the center of the primer when pushing.
To Engage Drive 1 . With the throttle control in the Fast(rabbit)position, move shift lever into oe of the five forward(F) position or two reverse (R) positions. Select a speed appropriate for the snow conditions and a pace you’re comfortable with. NOTE: When selecting a Drive Speed, use the slower speeds until you are comfortable and familiar with the operation of the snow thrower.
Page 16
Gear Case The auger gear case has been filled with grease and sealed at the factory. If disassembled for any reason, lubricate with two ounces of new grease NOTE: Do not over fill the gear case. You can damage the seals. Be sure the vent plug is free of grease in order to relieve pressure.
Page 17
MAINTENANCE Augers The auger is secured to the spiral shaft with two shear pins and a cotter pins. If the auger should strike a foreign object or ice jam, the snow thrower is designed so that the pins Figure15 may shear. Refer to the Figure 18 If the augers will not turn, check to see if the pins have sheared.
Page 18
MAINTENANCE Carefully position the hex shaft downward and to the left before carefully sliding the friction wheel assembly off the shaft. NOTE: If you’re replacing the friction wheel assembly as a whole, discard the worn part and slide the new part onto Figure21 the hex shaft .
MAINTENANCE Checking Spark Plug Check spark plug yearly or every 100 operating hours 1. Clean area around spark plug. 2. Remove and inspect spark plug 3. Replace spark plug if porcelain is cracked or if electrodes are pitted, burned or fouled with deposits 4.
Tire Pressure Before operating, Check the pressure and reduce pressure to between 15 psi and 20 psi If the tire pressure is not equal in both tires, the unit may pull to one side or the other. OFF-SEASON STORAGE Preparing Engine WARNING: Never store snow thrower with fuel in tank indoors or in poorly ventilated areas, where fuel fumes may reach an open flame, spark or pilot light as on a furnace, water heater, clothes...
