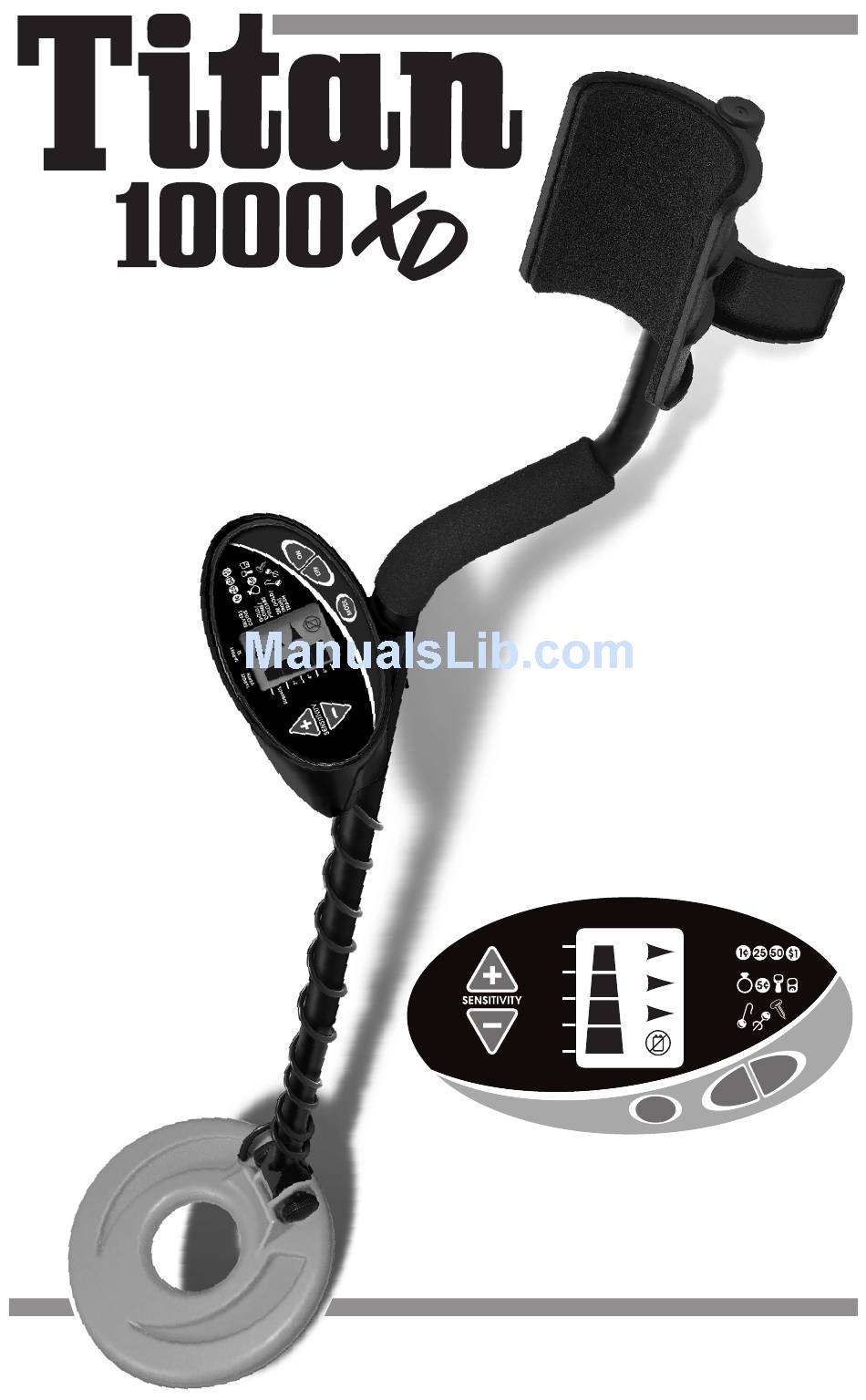

Owner' s Manual
TARGET
TARGET
DEPTH
ID
SILVER/
COINS
SURFACE
GOLD/
COINS/
2"
PULLTABS
SM GOLD/
4"
IRON/
TRASH
6"
MODE
ON
OFF

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 1000XD and is the answer not in the manual?

Questions and answers

Summary of Contents for Titan 1000XD

  • Page 1 Owner’ s Manual TARGET TARGET DEPTH SILVER/ COINS SURFACE GOLD/ COINS/ 2” PULLTABS SM GOLD/ 4” IRON/ TRASH 6” MODE...
  • Page 2: Table Of Contents

    TABLE OF CONTENTS Assembly ....... . .3-4 Batteries ........5 Quick-Start Demo .
  • Page 3: Assembly

    ASSEMBLY Assembly is easy and requires no tools. ● Position the lower stem (the straight tube) with the silver button toward the back. Using the bolt and knurled knob, attach the search coil to the plastic extension protruding from the lower stem. ●...
  • Page 4: Assembly

    ASSEMBLY ARMREST DETECTOR CONTROL HOUSING STAND AND FACE PADDED HANDLE SEARCHCOIL PLUG 1/4” HEADPHONE JACK UPPER SHAFT LOCK BUTTON SEARCH COIL CABLE LOWER SHAFT KNURLED KNOB BOLT SEARCH COIL...
  • Page 5: Batteries

    BATTERIES Use ALKALINE batteries only. To install the batteries: ● Remove battery cover by disengaging the clip at the back. ● Align the polarity of the batteries correctly, with the positive "+" toward coil plug connection, indicated by the + and –...
  • Page 6: Quick-Start Demo

    QUICK-START DEMONSTRATION I. Supplies Needed • A Nail • A Quarter • A Pull-Tab from a beverage can • A Zinc Penny (dated after 1982) II. Position the Detector a. Place the detector on a table, with the search coil hanging over the edge.
  • Page 7 QUICK-START DEMONSTRATION (continued) TARGET TARGET VI. Press the MODE touchpad again.(*) DEPTH a. A flashing indicator will point toward IRON. SILVER/ b. The flashing indicator tells us that Iron has COINS been eliminated from detection. GOLD/ COINS/ 2” PULLTABS VII. Wave the Nail over the Search Coil SM GOLD 4”...
  • Page 8: Basic Operation

    BASIC OPERATION POWERING UP Press the ON touch pad. All display indicators will illuminate momentarily. The 4-segment pyramid-shaped Sensitivity Indicator will illuminate on the left side of the display. The 4-segment pyramid indicates that the detector is at full sensitivity. When an object is detected, the object will be identified by a tone, a display indicator, and a depth indication.
  • Page 9 BASIC OPERATION (continued) The RIGHT SIDE of the display classifies objects into three categories. Silver/Copper: ------------------------------------------ TARGET TARGET Objects composed of silver and DEPTH cooper will illuminate this arrow. SILVER/ COINS Buried and heavily oxidized metal GOLD/ COINS/ objects, such as old tin cans, can also 2”...
  • Page 10: Mode Control (Discrimination)

    BASIC OPERATION (continued) The MODE CONTROL The MODE touch pad allows for the elimination from detection of unwanted metal objects. By pressing MODE, the user toggles among four different discrimination settings. If an object is detected during mode selection, the detector will exit mode selection.
  • Page 11: Discrimination Settings

    BASIC OPERATION (continued) Discrimination Settings are as follows: Mode Metals Status Display Eliminated Tones (During discrimination selection) SILVER/ COINS SURFACE GOLD/ COINS/ 2” PULLTABS No Target SM GOLD/ 4” IRON/ All-Metal None High Indicators TRASH 6” Flashing MODE DEPTH SILVER/ COINS URFACE GOLD/...
  • Page 12: Audio Target Identification

    AUDIO TARGET IDENTIFICATION While the LCD (Liquid Crystal Display) is very accurate in identifying buried objects, the user in the field does not always maintain the display screen in his field of vision. Therefore, we have incorporated an audio feedback mechanism to alert the user to the nature of buried objects.
  • Page 13: Sensitivity Adjustment

    SEVERE GROUND CONDITIONS A secondary use for the Sensitivity Control is to reduce false detection signals caused by severe ground conditions. While your Titan 1000 XD contains circuitry to eliminate the signals caused by most naturally occurring ground minerals, 100% of all ground conditions cannot be anticipated.
  • Page 14: In The Field Techniques

    IN THE FIELD TECHNIQUES PINPOINTING COIL MOVEMENT Accurate pinpointing takes practice When swinging the coil, be careful and is best accomplished by “X-ing” to keep it level with the ground the target area. about one inch from the surface. Never swing the coil like a pendu- lum.
  • Page 15 IN THE FIELD TECHNIQUES (continued) Swing the search coil slowly, identification. overlapping each sweep as you move forward. It is important to sweep the Most worthwhile objects will respond coil at a consistent speed over the with a repeatable tone. If the signal ground as you search.
  • Page 16 IN THE FIELD TECHNIQUES (continued) detector’s response. and frequently hold the most promise for finding the most lost valuables. You may encounter some false signals as you proceed. False signals Also maintain the search coil occur when the detector beeps, but positioned just above the no metal target is present.
  • Page 17: Troubleshooting

    TROUBLESHOOTING TROUBLE SHOOTING GUIDE SYMPTOM CAUSE SOLUTION Detector chatters • Using detector • Use detector or beeps erratically indoors outdoors only • Using detector near • Move away power lines from power lines • Using 2 detectors in • Keep 2 detectors close proximity at least 20’...
  • Page 18: Care & Maintenance

    CARE AND MAINTENANCE Your Titan 1000 XD Metal Detector is an example of superior design and crafts- manship. The following suggestions will help you care for your metal detector so you can enjoy it for years to come. Keep the detector’s chassis dry and do not let water enter it. If the chassis gets wet, wipe it dry immediately.
  • Page 19: Terminology

    TERMINOLOGY The following terms are used throughout the manual, and are standard terminology among detectorists. ELIMINATION Reference to a metal being "eliminated" means that the detector will not emit a tone, nor light up an indicator, when a specified object passes through the coil’s detection field.
  • Page 20: Treasure Hunter's Code Of Ethics

    Copyright© 2009 by First Texas Products, L.L.C. All rights reserved, including the right to reproduce this book, or parts thereof, in any form. Published by First Texas Products, L.L.C. Titan is made exclusively for Kellyco Metal Detector by First Texas Products, L.L.C. www.kellycodetectors.com METAL DETECTOR SUPERSTORE...
