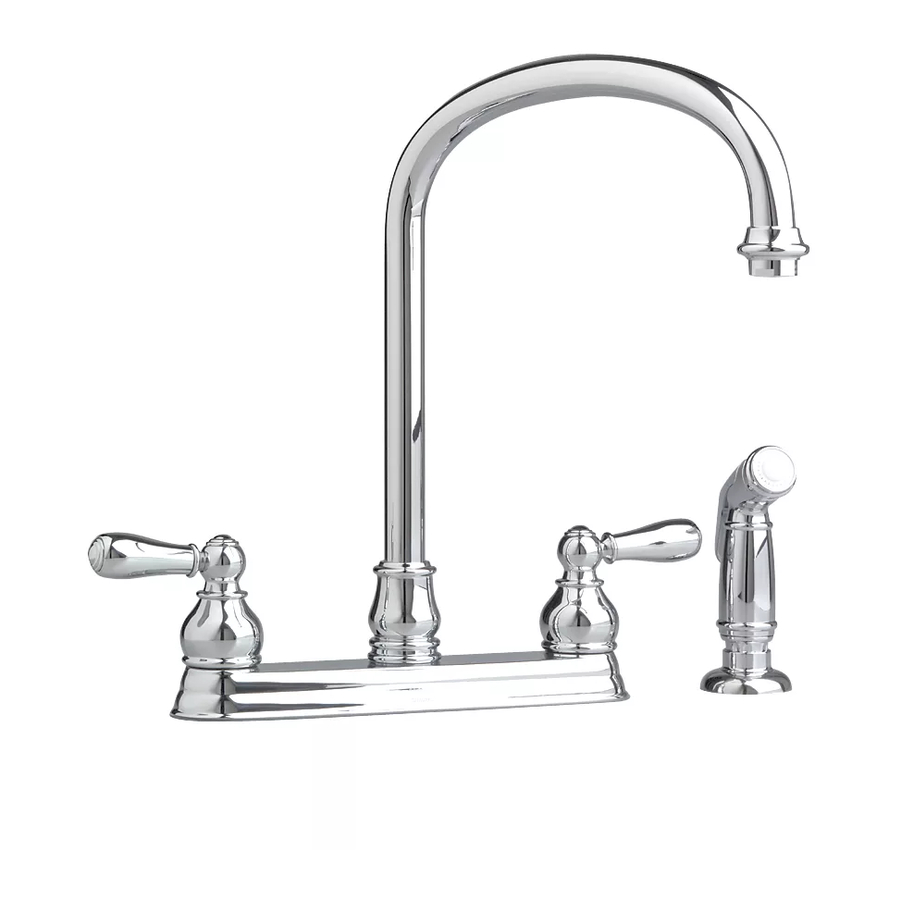

American Standard Hampton 4751.702 Installation Instructions

American Standard Hampton 4751.702 Installation Instructions

Kitchen faucets with everclean finish

Advertisement

KITCHEN FAUCETS
with
EverClean™ Finish
Congratulations on purchasing your American Standard faucet with
EverClean finish found only on American Standard faucets.
EverClean Finish
• One wipe effortlessly removes spots
• Eliminates the need for cleaners and scrubbing
• Permanent surface protectant remains beautiful for the life of the faucet
• EverClean™ available on: Polished Chrome, Satin Nickel, Stainless Steel,
Polished Brass (or any combination of these finishes)
To ensure that your installation proceeds smoothly-please read these instructions carefully before you begin.

TOOLS REQUIRED

Channel Locks

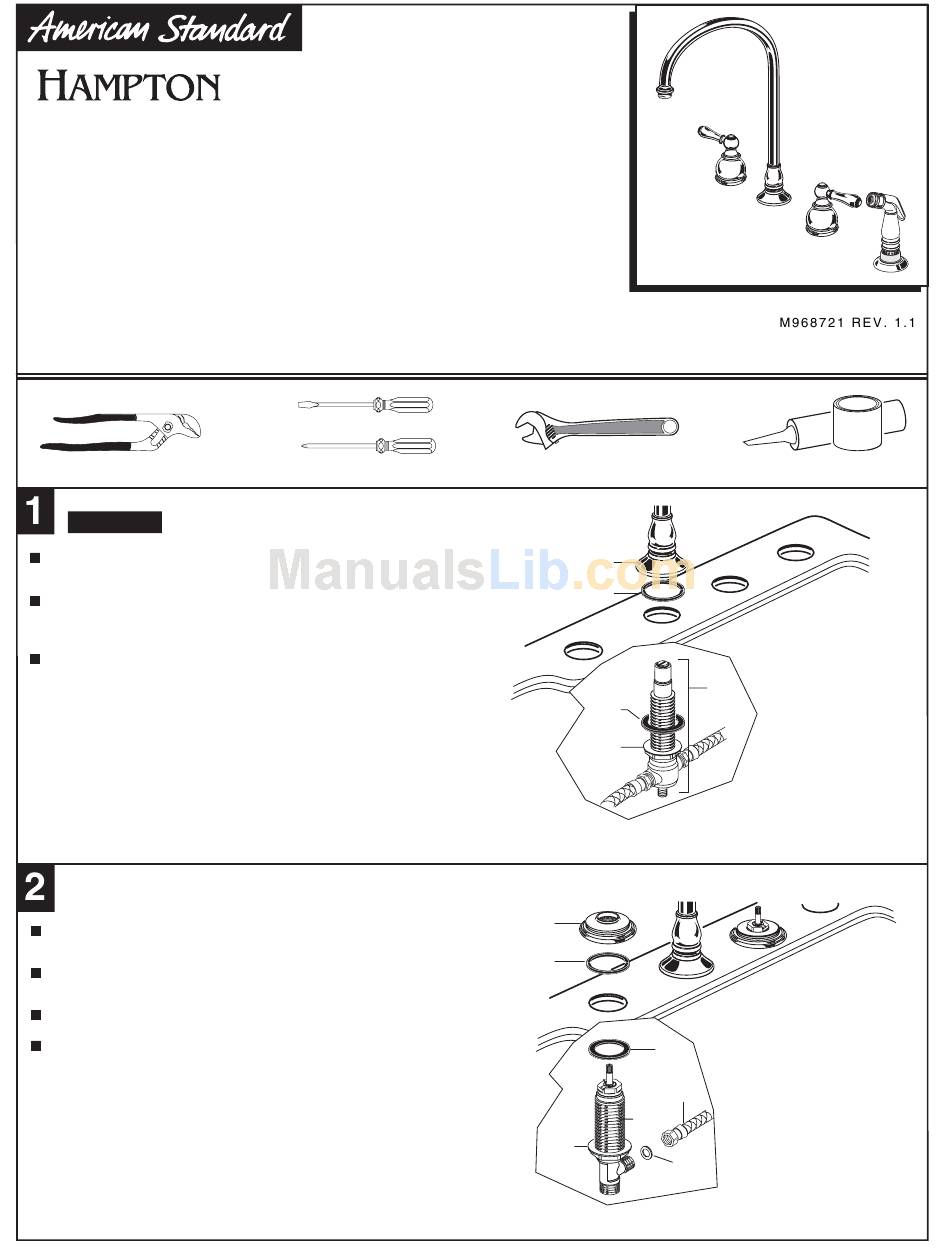

INSTALL FAUCET

Turn off hot and cold water
CAUTION
supplies before beginning.
Install LOCK NUT (1) and RUBBER WASHER (2) onto SPOUT BODY (3).
Insert SPOUT BODY (1) through hole from underside of SINK.
Place RUBBER RING (4) into SPOUT ESCUTCHEON (5) and screw
ESCUTCHEON (5) onto SPOUT BODY (3) until snug against
internal stop.
From under sink tighten LOCK NUT (1) to secure SPOUT.

INSTALL VALVE BODIES

Install LOCK NUT (1) and RUBBER WASHER (2) onto VALVE BODIES (3).
Insert VALVE BODY (3) through hole from underside of SINK.
Place RUBBER RING (4) into ESCUTCHEON (5) and screw
ESCUTCHEON (5) onto VALVE BODY (3) until snug against internal stop.
From under sink tighten LOCK NUT (1) to secure VALVE BODY (3).
Insert SEAL WASHERS (6) into SPOUT BODY SUPPLY HOSES (7) and
tighten connection to VALVE BODIES (3).
Installation
Instructions
Flat Blade Screwdriver
Phillips Screwdriver
4751.702
4751.712
4751.722
4751.732
Certified to comply with ASME A112.18.1M
Adjustable Wrench
5
4
2
1
5
4
2
7
3
1
6
Plumbers' Putty or Caulking
3

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Hampton 4751.702 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for American Standard Hampton 4751.702

  • Page 1 KITCHEN FAUCETS with EverClean™ Finish Congratulations on purchasing your American Standard faucet with EverClean finish found only on American Standard faucets. EverClean Finish • One wipe effortlessly removes spots • Eliminates the need for cleaners and scrubbing • Permanent surface protectant remains beautiful for the life of the faucet •...
  • Page 2 INSTALL HANDLES CROSS HANDLE Push ADAPTER (2) into HANDLE BASE (3) in a way that the male square on the ADAPTER (2) fits in the female 8 point star of the HANDLE (4). Turn HANDLE STEM (1) to the off position. Push HANDLE BASE (3), ADAPTER (2) and HANDLE (4) onto VALVE STEM (1).
  • Page 3 If spout drips, operate handles several times from OFF to ON position. Do not force-handles turn only 90˚. EverClean™ Finish Care Instructions American Standard’s EverClean finish will wipe clean with a soft, dry cloth. A soft cloth with clean water may also be used, if desired. No additional cleaning products are required.

This manual is also suitable for:

Hampton 4751.712Hampton 4751.722Hampton 4751.732
