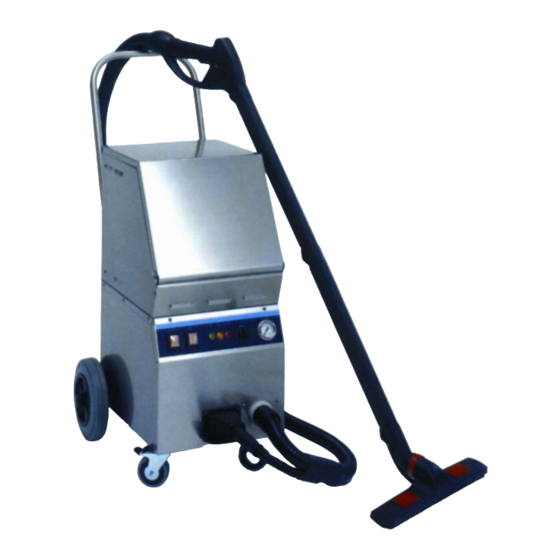

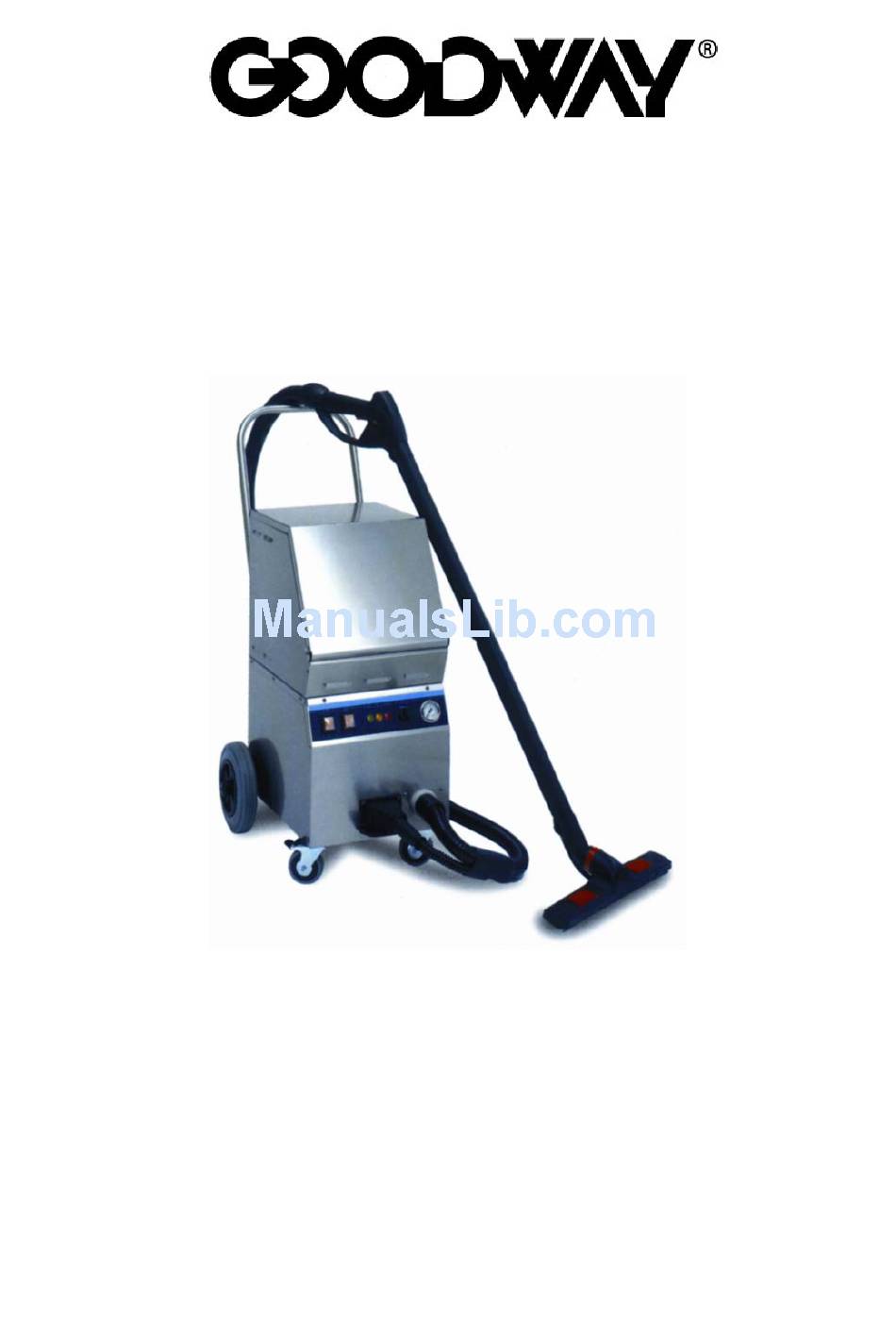

GVC-2200-V
Operation Manual
Goodway Technologies Corporation
420 West Avenue
Stamford, CT 06902-6384 USA
Phone (203) 359-4708
Toll Free (800) 333-7467 Customer Service (800) 370-2855
Fax (203) 359-9601
Internet: http://www.goodway.com
E-Mail: goodway@goodway.com
Effective date January 30, 2003
©Copyright 2003 Goodway Technologies Corp., Stamford, CT U.S.A.
Goodway is a Trademark of Per K. Reichborn. Goodway reserves the right to improve products; contact the
factory for the latest configuration and uses.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Goodway GVC-2200-V
Summary of Contents for Goodway GVC-2200-V
- Page 1 Internet: http://www.goodway.com E-Mail: goodway@goodway.com Effective date January 30, 2003 ©Copyright 2003 Goodway Technologies Corp., Stamford, CT U.S.A. Goodway is a Trademark of Per K. Reichborn. Goodway reserves the right to improve products; contact the factory for the latest configuration and uses.
-
Page 2: Table Of Contents
GVC-2200-V Operation & Maintenance Manual For your own safety please read this manual thoroughly before you start to use your GVC-2200-V, and ensure all operators are fully trained in its correct and safe use! Contents Page Introduction Safety and Warnings... -
Page 3: Introduction
“Maintenance”. The function of this equipment is to facilitate safe, effective and efficient cleaning. Use of the GVC-2200-V in conditions outside of the recommendations provided in this manual can affect performance and reduce the effective service life, and can present potential risk to users;... -
Page 4: Safety Regulations
The Vacuum must not be used for any other purposes other than those described in this manual; i.e. it is not designed to pick up general dirt. Goodway Technologies Corp.. will not be held liable for any damages caused from improper, incorrect or unreasonable use. - Page 5 2.4.7 In the event of breakdown or malfunction, switch off the GVC-2200-V and refer to Section 11 “Fault Diagnosis” and Section 8 “Maintenance” sections. Contact an authorized service technician for repairs. Any unauthorized tampering with the GVC-2200-V voids the warranty.
-
Page 6: Accessories
GVC-2200-V Operation & Maintenance Manual Accessories The following accessories are supplied with the GVC-2200-V: 1 bar handle 4 screws for the bar handle 1 steam/vacuum hose complete with pistol-grip (12V), 16 feet 2 extension wands 1 large floor tool complete with squeegee blades and bristle insert... -
Page 7: Operating Instructions
Ensure that all switches on the pistol-grip are in the “OFF” position. The hose assembly socket is located at the lower front of the GVC-2200-V, behind a hinged flap, into which the hose assembly is plugged (round red button downwards) and secured. Attach the Vacuum hose into the round hose socket located to the right of the hose assembly socket. -
Page 8: Control Panel
After about 10 - 12 minutes the maximum working pressure is achieved in the boiler and the green control (Ready) light shows. *The GVC-2200-V is delivered without water in the boiler, the first time it is operated may take longer for the pumping to cease, after which please remove the stick-on warning label from the heating switch before operating. -
Page 9: Connecting The Accessories
This is located on the pistol grip above the vacuum trigger switch. Slide the locking device from right to left to lock and left to right to unlock). The GVC-2200-V is now ready for use. Connecting the accessories Select the most appropriate accessories according to the intended application. -
Page 10: Emergency Procedures
Switch off first the Heating, then the main on/off switch. It is recommended also that the GVC-2200-V be disconnected from the main power supply. The drain tank spigot is located on the back of the GVC-2200-V. Open clockwise and drain the recovery tank contents. To rinse the recovery tank, open the GVC-2200-V’s top cover;... -
Page 11: Application
Cleaning internal glass surfaces (use low steam) Do not attempt to clean glass surfaces other than those which are heat resistant. The GVC-2200-V is not suitable for external window cleaning. GVC-2200-VVAC Page 11 of 16... -
Page 12: Operating The Vacuum
Should the GVC-2200-V require servicing, this must be conducted by Authorized personnel only. Do not dismantle or undertake procedures not described in this manual. -
Page 13: Technical Specification
GVC-2200-V Operation & Maintenance Manual Technical Specification Voltage 115 volt, 60 Hz Pistol-grip voltage 12 volt Heating capacity 2200 watt Electrical insulation rating Protection degree (IEC 529 ) IP X4 Steam/water function Operates on the pistol-grip Boiler material High grade steel (1.4301) Boiler volume (total) 1.6 gallons... -
Page 14: Additional Accessories
GVC-2200-V Operation & Maintenance Manual Additional Accessories Please contact Goodway Technologies when ordering accessories. Large squeegee hand tool Brush adaptor Directional nozzle Squeegee attachment Brush attachment Small hand tool for small hand tool for small hand tool Brass brush Steel brush... -
Page 15: Fault Diagnosis
GVC-2200-V Operation & Maintenance Manual 10. Fault Diagnosis Before reporting malfunctions to your Distributor/Service Center, please try to examine the problem yourself using the guidance below. Symptom Possible cause(s) Action 1. GVC-2200-V does 1. No power supply. 1. If the main ‘on/off’ switch is not not heat. -
Page 16: Contacts
GVC-2200-V Operation & Maintenance Manual Company Contacts Goodway Technologies Corp.. 420 West Avenue Stamford, CT 06902 U.S.A. Telephone: 203-359-4708 Toll Free: 800-243-7932 Fax: 203-359-9601 Email: goodway@goodway.com Website: www.goodway.com GVC-2200-VVAC Page 16 of 16 August 22, 2002...
