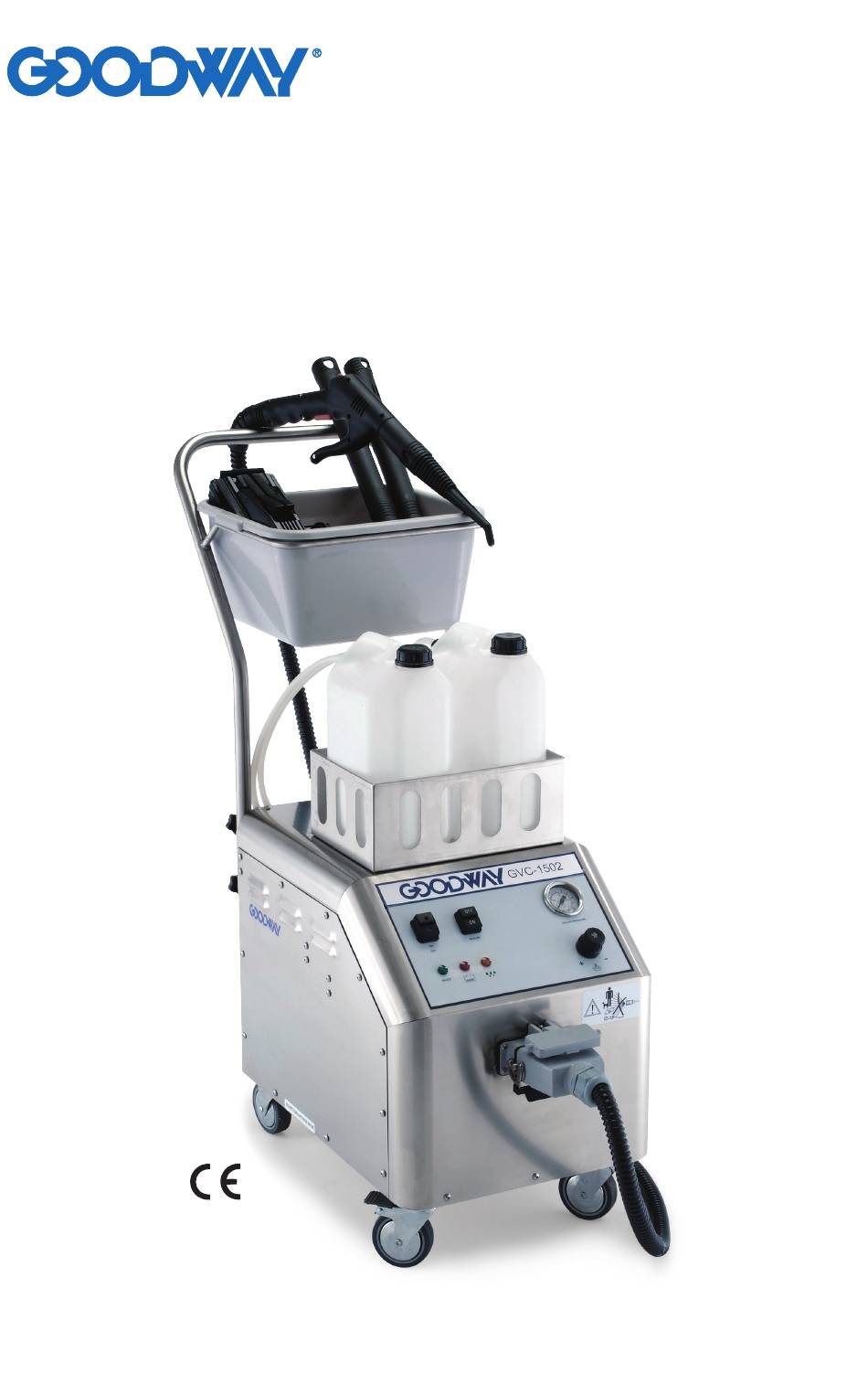

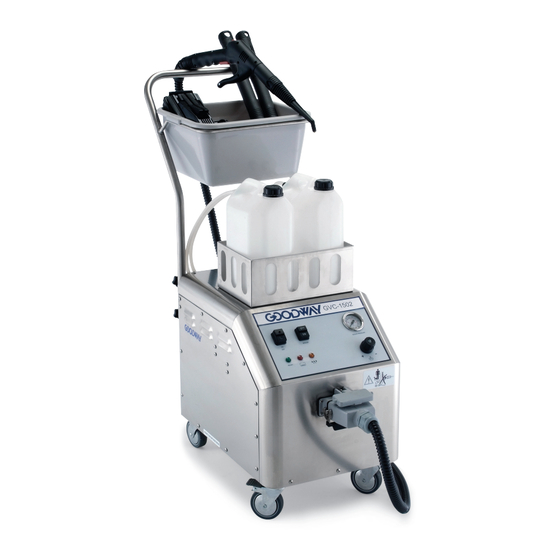

- Page 1 GVC-1502/ GVC-1502A Professional Steam Cleaner Operating and Maintenance Instructions Read before operating.
-
Page 2: Table Of Contents
PLUMBING PARTS LIST........................17 Thank you for purchasing this Goodway GVC-1502/GVC-1502A. We appreciate your business and look forward to serving you in the future. As with all Goodway products, you can be assured that the finest quality components and workmanship have gone into this machine. -
Page 3: Important Safety Instructions
Do not operate without eye protection or other necessary protective gear. Consult SDS on all products used with this machine. Consult Goodway or chemical manufacturer about mixing or using unspecified chemicals with this unit. Keep work area clean and well lit. -
Page 4: Safety Features
Never allow any part if this appliance to be immersed in liquid. • Always ensure the GVC-1502 is kept upright, even when not switched on. Use only authorized parts, components and accessories with this appliance. For instance, should the power supply cord become damaged, it must be replaced only with the correct cord, obtainable (as with all components, parts and accessories) from Goodway Technologies Corp. -
Page 5: Power Connections
50°F (10°C) and 104°F (40°C) with humidity lower than 90%. NOTE: Deionized and distilled water should never be used in the GVC-1502. POWER CONNECTIONS The GVC-1502 is supplied with 13 feet (4 m) of cable and has a 15A three pin plug. Ensure voltage between machine and supply match. -
Page 6: Electrical Safety
(93-S02328) Steam output regulator valve On/Off Main Switch (93-S02196) (93-S02180) Steam hose connecting socket (93-S02203) Green Light Red Light Orange Light Flashing Filling Boiler Low Water Level Chemical being applied Steady Light Ready for use (93-S02361) (93-S02360) (93-S02362) GVC-1502 0819... -
Page 7: Specification
Before you start cleaning, direct the nozzle into a suitable receptacle and depress the trigger on the handle to blow out residual condensation from the steam hose. Now direct the steam jet onto the surface you wish to clean and depress the trigger. GVC-1502 0819... -
Page 8: Chemical Injection
Goodway Technologies Service Department. CHEMICAL INJECTION The GVC-1502 has the facility to add detergent to the dry steam as it is released from the cleaning head. The GVC-1502 is supplied with two chemical bottles located on top of the machine housing. -
Page 9: Accessory Kit
Triangular Brush 9376 9.5" (24 cm) Squeegee Tool 9377 2 3/8" (5 cm) Round Nylon Brush 9378 1" (2.5 cm) Round Copper Brush 9379 1" (2.5 cm) Round Nylon Brush 9381 1" (2.5 cm) Round Stainless Steel Brush GVC-1502 0819... -
Page 10: Hardware Parts Diagram
HARDWARE PARTS DIAGRAM GVC-1502 0819... -
Page 11: Hardware Parts List
Handle Screw 93-S02160 Cover Handle 93-S02161 Basket 93-S02162 93-S02163 Label 93-S02164 Left Panel 93-S02165 Holder for Tank 93-S02166 93-S02324 Washer 93-S02168 Base 93-S02169 Wheel with Brake 93-S02325 Wheel without Brake 93-S02176 Right Panel 93-S02326 Silicon Seal 93-S02178 Mousse GVC-1502 0819... -
Page 12: Wiring Parts Diagram
WIRING PARTS DIAGRAM GVC-1502 0819... -
Page 13: Wiring Parts List
93-S02361 93-S02183 Red light with Nut 93-S02362 93-S02184 Green light with Nut 93-S02185 Spacer 93-S02186 Electronic Card 93-S02187 Locking Nut 93-S02188 Plastic Support 93-S02189 93-S02642 93-S02190 Electronic Board 93-S02191 Strain Reliever 93-S02364 93-S02192 Power Supply Cable 93-S02194 Label GVC-1502 0819... -
Page 14: Boiler Parts Diagram
BOILER PARTS DIAGRAM GVC-1502 0819... -
Page 15: Boiler Parts List
93-S02367 93-S02335 Solenoid Valve 93-S02336 Pressure Switch 93-S02337 Ring 93-S02338 Boiler Level Probe 93-S02339 Insulation 93-S02340 Fitting 93-S02227 Air Valve 93-S02228 Fitting 93-S02368 93-S02341 Boiler 93-S02369 93-S02342 Thermostat 93-S02343 Bracket 93-S02344 Screw 93-S02345 Bracket 93-S02346 Thermostat 93-S02234 Hose GVC-1502 0819... -
Page 16: Plumbing Parts Diagram
PLUMBING PARTS DIAGRAM GVC-1502 0819... -
Page 17: Plumbing Parts List
93-S02239 Water Tank 93-S02240 Chemical Tank 93-S02241 Silicon Holder 93-S02242 Silicon Tube 93-S02243 Fitting 93-S02201 Clamp 93-S02204 Silicone Hose 93-S02347 Elbow 93-S02247 Relief Valve 93-S02370 93-S02248 Water Pump 93-S02249 Bracket 93-S02200 Hose fitting 93-S02250 Water Filter 93-S02251 Socket GVC-1502 0819... - Page 18 Visit: www.goodway.com P/N: MNL-GVC1502 ©Copyright 2019 Goodway Technologies Corp., Stamford, CT USA Effective date August 7, 2019 Goodway is a Trademark of Crossford International. Goodway reserves the right to improve products; contact the factory for the latest configuration and uses.
