EMMLabs DAC2 Owner's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

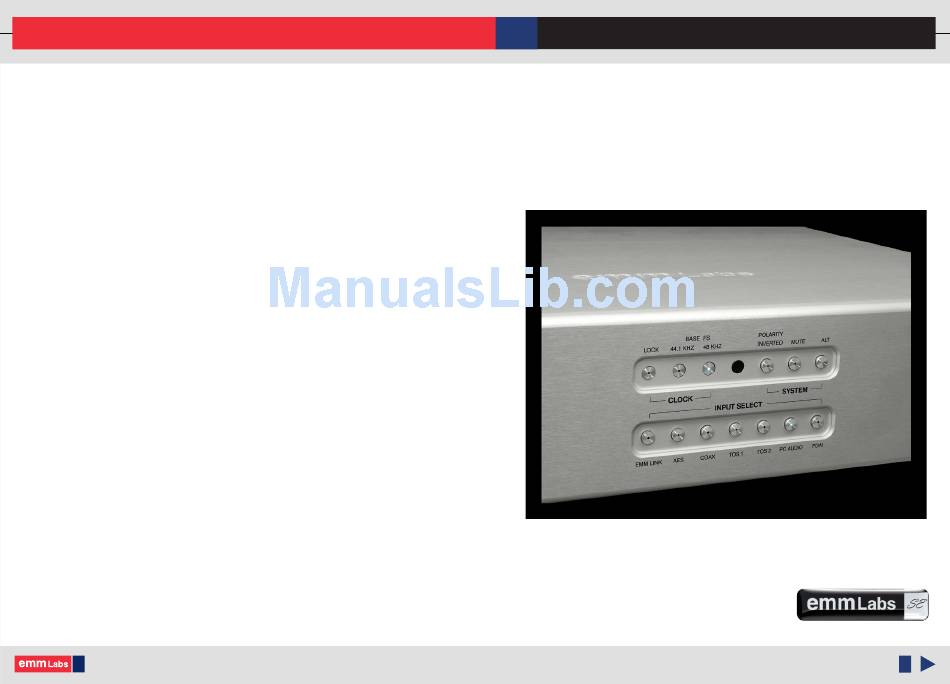

Version 1.3
001
DAC2 AUDIO CONVERTER OWNER'S MANUAL
© 2010 EMM Labs Inc., All Rights Reserved. EMM Labs reserves the right to amend specifications & design without notice.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DAC2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for EMMLabs DAC2

Summary of Contents for EMMLabs DAC2

  • Page 1 Version 1.3 DAC2 AUDIO CONVERTER OWNER’S MANUAL © 2010 EMM Labs Inc., All Rights Reserved. EMM Labs reserves the right to amend specifications & design without notice.

  • Page 2: Welcome

    Welcome DAC2 AUDIO CONVERTER OWNER’S MANUAL ank you for choosing EMM Labs... © 2010 EMM Labs Inc., All Rights Reserved. EMM Labs reserves the right to amend specifications & design without notice.

  • Page 3: Table Of Contents

    Table Of Contents DAC2 AUDIO CONVERTER OWNER’S MANUAL Welcome Warranty DAC2 Audio Converter Features & Specifications Front Panel & Functions Rear Panel & Functions Operation Infrared Remote Control Appendix A - Serial Remote Control (RS232) © 2010 EMM Labs Inc., All Rights Reserved. EMM Labs reserves the right to amend specifications & design without notice.

  • Page 4: Warranty 004

    DAC2 AUDIO CONVERTER OWNER’S MANUAL Warranty EMM Labs warrants the DAC2 product against defects in material and workmanship under normal use and service for a period of time speci ed by the product’s serial number from the date of rst delivery to the owner.

  • Page 5: Dac2 Audio Converter

    Uses our exclusive aerospace grade composite laminate circuit boards. e DAC2, when paired with an EMM Labs transport, performs as an unparalleled CD/SACD playback system. © 2010 EMM Labs Inc., All Rights Reserved. EMM Labs reserves the right to amend specifications & design without notice.

  • Page 6: Features & Specifications

    Features & Specifications DAC2 AUDIO CONVERTER OWNER’S MANUAL Features & Speci cations 2-Channel D/A conversions: • from PCM (44.1kHz, 48kHz, 88.2kHz, 96kHz) to analog • from DSD to analog Supported digital input formats: • AES/EBU (1 connector) • SPDIF (Coax) •...
  • Page 7 Features & Specifications DAC2 AUDIO CONVERTER OWNER’S MANUAL Features & Speci cations System control via wired Infrared remote and serial RS-232 ports (see Appendix A) Power supply: • Power factor corrected • Factory set to 100V or 115V or 230V, 50/60Hz operation •...

  • Page 8: Front Panel & Functions

    Front Panel & Functions DAC2 AUDIO CONVERTER OWNER’S MANUAL Front Panel & Functions       1. Standby/Power-Save button: Toggles the operation between on and power-save mode. In power save mode the remote control and all front panel functions become inactive.
  • Page 9 Front Panel & Functions DAC2 AUDIO CONVERTER OWNER’S MANUAL Front Panel & Functions 3. POLARITY INVERTED button: When this button is lit the polarity of all analog outputs are inverted. e inversion is performed in the digital domain. 4. MUTE button: When lit all outputs are muted.

  • Page 10: Rear Panel & Functions

    Main fuse holder as well as included spare fuse is located within this compartment. 3. Product VOLTAGE indicator: Indicates working voltage of the DAC2. Only use with indicated line voltage. 4. Product model and serial number indicator: Warranty void if model/serial number indicator is not attached to unit, missing or damaged whereby serial number cannot be seen.
  • Page 11 Rear Panel & Functions DAC2 AUDIO CONVERTER OWNER’S MANUAL Rear Panel & Functions 5. Analog Line Output: • Left and Right Balanced (XLR) Connectors • Left and Right Un-Balanced (RCA) Connectors • Level High/Low switch (Output Line Level with 0dBfs signal on AES/EBU input): Low position: XLR outputs: 4V (+14.38dBu)

  • Page 12: Operation 012

    Basic Operations and Input Connections 1. Memory: A er 10 seconds when no button has been pushed or changed, the DAC2 memorizes its momentary setup in permanent memory for later retrieval a er the next powerup. It will be recalled immediately a er the unit is turned on. Each individual input selection will keep its last con guration before powerdown.
  • Page 13 48kHz (PCM 48kHz or 96kHz audio). For AES connections the DAC2 uses a single AES input to carry 2 channels of PCM audio up to 96kHz. NOTE: If the LOCK light is not ON then the DAC2 is not receiving appropriate digital audio from the digital source.
  • Page 14 Using either the remote or the front panel of the DAC2 select EMM Link. e LOCK light and the 44.1kHz sync. light both should be lit on the DAC2. © 2010 EMM Labs Inc., All Rights Reserved. EMM Labs reserves the right to amend specifications & design without notice.

  • Page 15: Infrared Remote Control

    EMM Labs transport. e functions that are relevant to the DAC2: DAC: is function toggles the front panel LEDs ON or OFF on the DAC2 When in OFF mode only the LOCK LED would be lit. INPUT: ese buttons are used to select the digital source input: •...

  • Page 16: Appendix A - Serial Remote Control (Rs232)

    DAC2 AUDIO CONVERTER OWNER’S MANUAL Serial Remote Control (RS232) e DAC2 is equipped with a 9-pin RS232 port for system remote control via a serial cable (not provided by EMM Labs). Please use a standard RS232 cable. Do not use a null model cable, as this will not work.
  • Page 17 Selects USB PCM audio via USB interface Status bytes sent from DAC2 e DAC2 sends back 4 Bytes terminated with a <CR> whenever any status changes. <Byte 0><Byte 1><Byte 2><Byte 3><CR> Byte 0 ASCII ' 0 ' - Not Used...
  • Page 18 Appendix A - Serial Remote Control (RS232) DAC2 AUDIO CONVERTER OWNER’S MANUAL Status bytes sent from DAC2 (cont`d) Byte 3 bit 5 Not Used bit 6 Status of mute (0 when muted) bit 7 Not Used Byte 4 <CR> (0x0D)
