DA2 AUDIO CONVERTER OWNER'S MANUAL
© 2015-2016 EMM Labs Inc., All Rights Reserved. EMM Labs reserves the right to amend specifications & design without notice.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DA2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for EMMLabs DA2

Summary of Contents for EMMLabs DA2

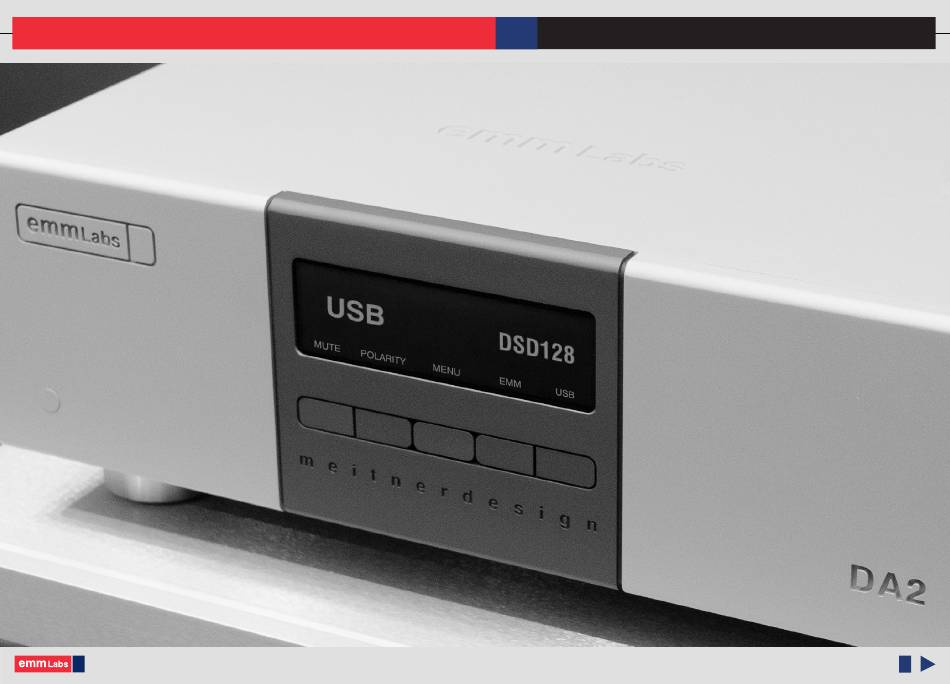

  • Page 1 Version 1.1 DA2 AUDIO CONVERTER OWNER’S MANUAL © 2015-2016 EMM Labs Inc., All Rights Reserved. EMM Labs reserves the right to amend specifications & design without notice.

  • Page 2: Welcome

    Welcome DA2 AUDIO CONVERTER OWNER’S MANUAL ank you for choosing EMM Labs © 2015-2016 EMM Labs Inc., All Rights Reserved. EMM Labs reserves the right to amend specifications & design without notice.

  • Page 3: Table Of Contents

    Table Of Contents DA2 AUDIO CONVERTER OWNER’S MANUAL Welcome Table of Contents Safety Instructions Warranty DA2 Audio Converter Features & Specifications Front Panel & Functions Rear Panel & Functions Operation DSD & DXD Audio Infrared Remote Control © 2015-2016 EMM Labs Inc., All Rights Reserved. EMM Labs reserves the right to amend specifications & design without notice.

  • Page 4: Safety Instructions

    Safety Instructions DA2 AUDIO CONVERTER OWNER’S MANUAL Safety Instructions Prior to Installing you new EMM Labs product please read the following safety instructions: • Read and follow all instructions. • Keep these instructions. • Do not use or install product near any sources of water, rain and/or moisture.

  • Page 5: Warranty 005

    DAC2X AUDIO CONVERTER OWNER’S MANUAL Warranty EMM Labs warrants the DA2 product against defects in material and workmanship under normal use and service for a period of time speci ed by the product’s serial number from the date of rst delivery to the owner.

  • Page 6: Da2 Audio Converter

    • Supports DSD for CD/SACD playback over EMM Optilink e DA2, when paired with an EMM Labs transport, performs as an unparalleled CD/SACD playback system. © 2015-2016 EMM Labs Inc., All Rights Reserved. EMM Labs reserves the right to amend specifications & design without notice.

  • Page 7: Features & Specifications

    Features & Specifications DA2 AUDIO CONVERTER OWNER’S MANUAL Features & Speci cations 2-Channel D/A conversions: • from PCM (44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz) to analog • from PCM 352DXD and 384DXD to analog via USB • from DSD and 2xDSD to analog via USB •...
  • Page 8 Features & Specifications DA2 AUDIO CONVERTER OWNER’S MANUAL Features & Speci cations System control via Infrared remote and serial RS-232 ports (see Appendix A) Power supply: • Power factor corrected • Factory set to 100V or 115V or 230V, 50/60Hz operation •...

  • Page 9: Front Panel & Functions

    Front Panel & Functions DA2 AUDIO CONVERTER OWNER’S MANUAL Front Panel & Functions    1. Standby/Power-Save button: Toggles the operation between on and power-save mode. In power save mode the remote control and all front panel functions become inactive.

  • Page 10: Rear Panel & Functions 010

    2. Main Power Switch 3. Product VOLTAGE indicator: Indicates working voltage of the DA2. Only use with indicated line voltage. 4. Main Power connector © 2015-2016 EMM Labs Inc., All Rights Reserved. EMM Labs reserves the right to amend specifications & design without notice.
  • Page 11 Rear Panel & Functions DA2 AUDIO CONVERTER OWNER’S MANUAL Rear Panel & Functions 5. Digital Inputs (All inputs support up to 24bit, 192kHz. USB Audio input additionally supports DXD and DSD/DSD64 and 2xDSD/DSD128 streaming): • EMM Optilink: input for interconnection with an EMM Labs transport.

  • Page 12: Operation 012

    • ASSIGN INPUT BUTTON 2 - assigns a xed input to input button 2 • REMOVE ASSIGNMENTS - removes input button assignments • SAVE/RESET SETTINGS - saves DA2 settings or reverts the settings back to factory default. 4. Input Toggle Back (◄) or Forward (►) Toggle/scroll through the DA2 source inputs using the back (◄) button or...
  • Page 13 2. ASSIGN INPUT 1 & ASSIGN INPUT 2 Using the ASSIGN INPUT 1 & ASSIGN INPUT 2 feature, you can directly Assign assign up to two DA2 inputs to the front panel buttons rather than using the INPUT 1 ►...
  • Page 14 S A V E a l l U s e r S e t t i n g s reset the DA2 back to factory default. Press the “SAVE” button to save all o r R E S E T t o f a c t o r y d e f a u l t s .
  • Page 15 TOS2 Same as TOS1. Connect the source digital outputs to the appropriate DA2 digital inputs and select the appropriate input using the input toggle/scroll back (◄) or forward (►) buttons. © 2015-2016 EMM Labs Inc., All Rights Reserved. EMM Labs reserves the right to amend specifications & design without notice.
  • Page 16 EMM Optilink Cable Additionally for the TSD1 External Clock switch must be set to internal: Using either the remote or the front panel of the DA2 select EMM Link. e DA2 display should show the appropriate sample rate when locked.
  • Page 17 5. DA2 USB Audio: First, use only an appropriate well-sheilded certi ed USB 2.0* cable to connect the DA2’s USB Audio input to any USB digital audio source component (computer, laptop, media server etc.). e DA2 USB Audio interface uses the B-type USB connector similar to connectors used on printers.

  • Page 18: Dsd & Dxd Audio

    DA2 AUDIO CONVERTER OWNER’S MANUAL Basic Operations and Input Connections 7. In general for most audio applications you will be able to select the DA2 USB Audio device (Meitner Audio 2.0) from within the application and choose the appropriate ASIO, WASAPI or Kernel driver.

  • Page 19: Infrared Remote Control

    Infrared Remote Control DA2 AUDIO CONVERTER OWNER’S MANUAL Infrared Remote Control e remote control provides combined functions for both the DA2, associated transport and some pre-amp functions. e functions that are relevant to the DA2: DAC: is function toggles the front panel preset display brightness settings on DA2.
