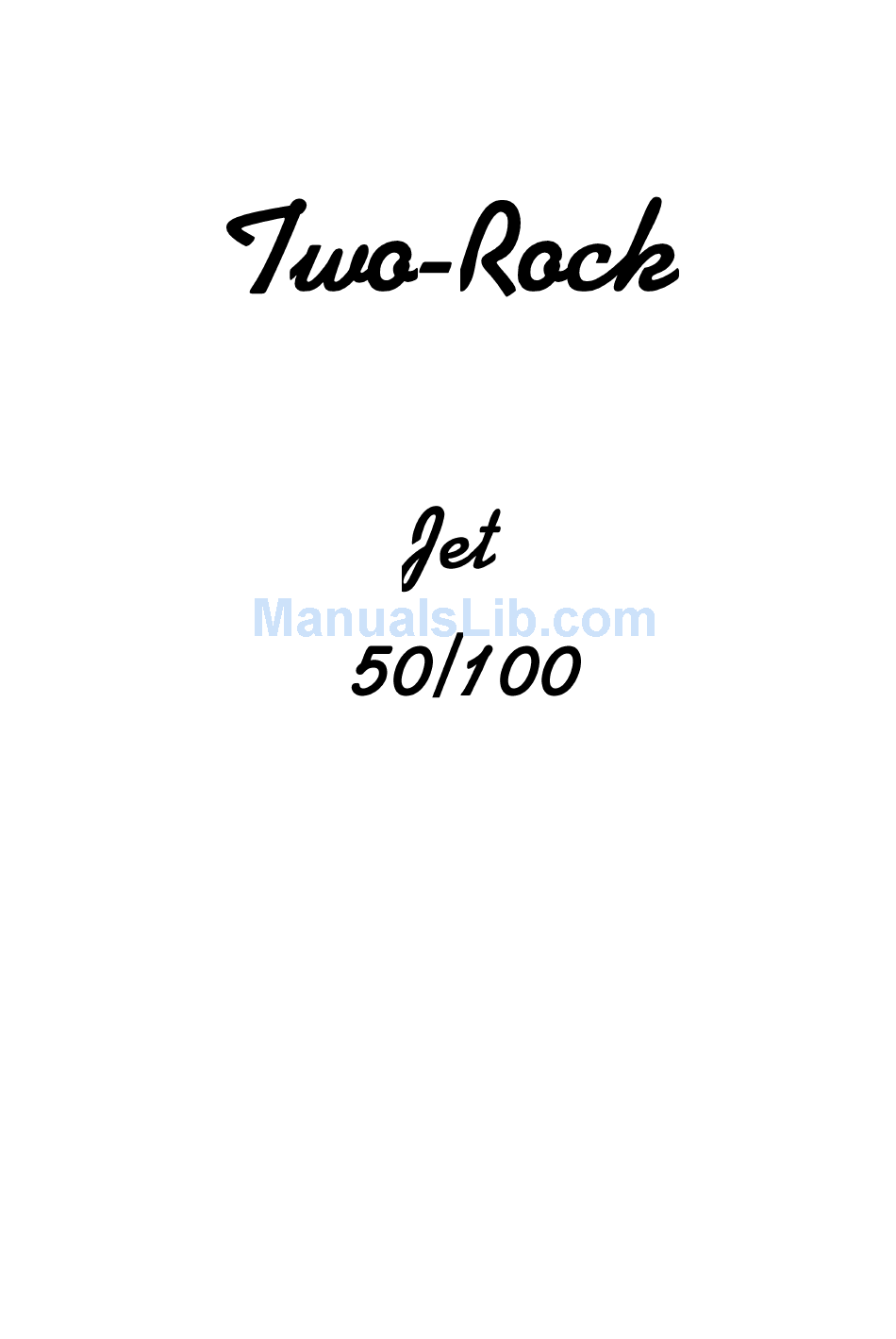

OWNERS MANUAL

Advertisement

loading
Need help?

Need help?

Do you have a question about the Jet 50 and is the answer not in the manual?

Questions and answers

Related Manuals for Two-Rock Jet 50

Summary of Contents for Two-Rock Jet 50

  • Page 1 OWNERS MANUAL...
  • Page 2 Dear Customer, Thank you for your purchase of a amplifier from Premier Builders Guild. As a discerning guitarist, you know the road to great tone begins with great components. Our Classic Design, carefully selected parts and hand-built approach combine to make an extremely versatile instrument. Please take the time to read this manual.

  • Page 3: Front Panel Functions

    Front Panel Functions 1. Input Jack- High impedance input to the amplifier. Plug in your instrument here. 2. Push/Pull Treble Control- Adjusts the high frequency response. In the full counter-clockwise position, high frequencies are cut. In the full clockwise position, high frequencies are allowed to pass to the gain stage.

  • Page 4: Rear Panel Functions

    11. Indicator Lamp- This lamp will illuminate when the power switch is in the “up” position, indicating the unit is receiving A/C power. Rear Panel Functions 1. A/C Input- Connects the amplifier to A/C power via the power cord supplied. Please check to make sure you have the correct cable for the voltage rating of your country.

  • Page 5: Fuse Chart

    Fuse Chart All Fuses are 3AG Type 250 Volt, SLO-BLO Export 100 Volt Domestic Fuses: Export 220, 230, 240 Fuses: 2A – 22/35 Watt 2A – 22/35 Watt 1A-22/35 Watt 2.5 - 50 Watt 2.5 - 50 Watt 1.6 - 50 Watt 3.2 - 100 Watt 3.2 - 100 Watt 2.5 - 100 Watt...
  • Page 6 (Tube Complement) V1- 12AX7, Rhythm channel V2- 12AX7, Lead Channel V3- 5751/12AT7, Reverb Driver V4- 12AX7, Mixing/Effects loop V5- 12AX7. Phase Inverter V6, V7, V8, V9- Stock 6L6GC, Output Each fine production tube is tested and matched to our exacting specifications. External bias adjustment and test points are located on the chassis near the output tube sockets.
  • Page 7 Please contact us with any other questions or comments that you may have. We look forward to hearing from you! PHONE: 1(707)584-TONE (8663) (M-F 9am-5pm PST) FAX: 1(707)584-8661 ADDRESS: Two-Rock 619 Martin Avenue, Suite 6 Rohnert Park, CA 94928 SERVICE: service@two-rock.com WEB:...
  • Page 8 DO NOT use cleaning solvents. Wipe exterior with a clean, dry cloth only. Refer servicing to a qualified service technician. This is a product of Premier Builders Guild 619 MARTIN AVENUE, SUITE 6 ROHNERT PARK, CA 94928 707-584-8663 www.two-rock.com SERIAL NUMBER: _____________________________...
