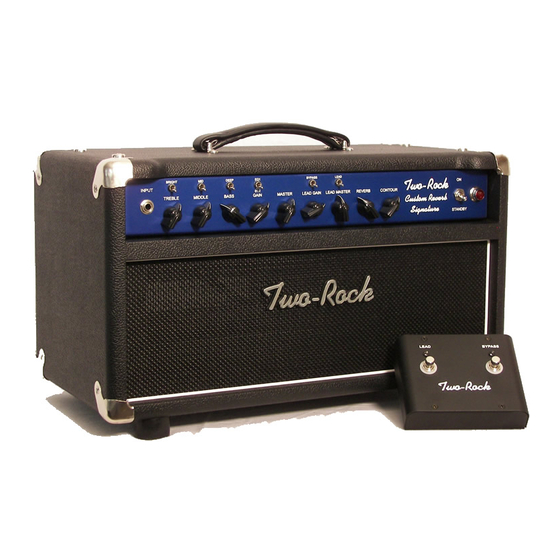

- Page 1 Two-Rock Custom Reverb OWNERS MANUAL...
- Page 2 Thank you for your purchase of a Two-Rock amplifier from K&M Analog Designs As a discerning guitarist, you know the road to great tone begins with great components. Our Classic Design, carefully selected parts and hand-built approach combine to make an extremely versatile instrument.
- Page 3 FRONT PANEL FUNCTIONS Input Jack- High impedance input to the amplifier. Plug in your instrument here. Treble Control- Adjusts the high frequency response. In the full counter-clockwise position, high frequencies are bypassed to ground. In the full clockwise position, high frequencies are allowed to pass to the next gain stage.
- Page 4 Lead Gain- Adjusts the input level (gain) of the lead channel. Lead master- Adjusts the output level of the lead channel. Lead Channel Switch- Sends the instrument signal through the lead circut, adding extra stages of gain to the signal and enabling the lead gain and lead master controls. To enable foot switch control of this function, switch must be in the down position.
- Page 5 REAR PANEL FUNCTIONS A/C Input- Connects the amplifier to A/C power via the power cord supplied. Unless otherwise specified, your amplifier is designed to operate on 120 volts A/C, 60 cycles. Fuse- 3 AG Type, slow blow fuse. 50 Watt amps use 2.5 Amp slo-blo; 100 Watt amps use 3.5 Amp slo-blo.
- Page 6 V1- 12AX7, Rhythm channel V2- 12AX7, Lead Channel V3- 5751/12AT7, Reverb Driver V4- 12AX7, Reverb/effects V5- 12AX7. Phase Inverter V6,V7- 6L6GC, Output V8, V9- 6L6GC, Output (100 Watt) Each fi ne production tube is tested and matched to our exacting specifi cations. External bias adjustment and test points are located on the chassis near the output tube sockets.
- Page 7 Bill Krinard and Joe Mloganoski. We know your new Two-Rock amplifier will provide many hours of enjoyment and inspiration in the years to come. This manual is a resource for some of your questions. Please contact us with any other questions or comments that you may have.
- Page 8 This is a product of: K&M Analog Designs, LLC 619 MARTIN AVENUE, SUITE 6 ROHNERT PARK, CA 94928 707-584-8663 www.two-rock.com SERIAL NUMBER:_____________________________...
