Poulan Pro HDF825X Repair Parts Manual

Front tine tiller
Hide thumbs Also See for HDF825X:
1
2
3
4
5
6
7
8

Advertisement

Quick Links

Download this manual See also: Operator's Manual

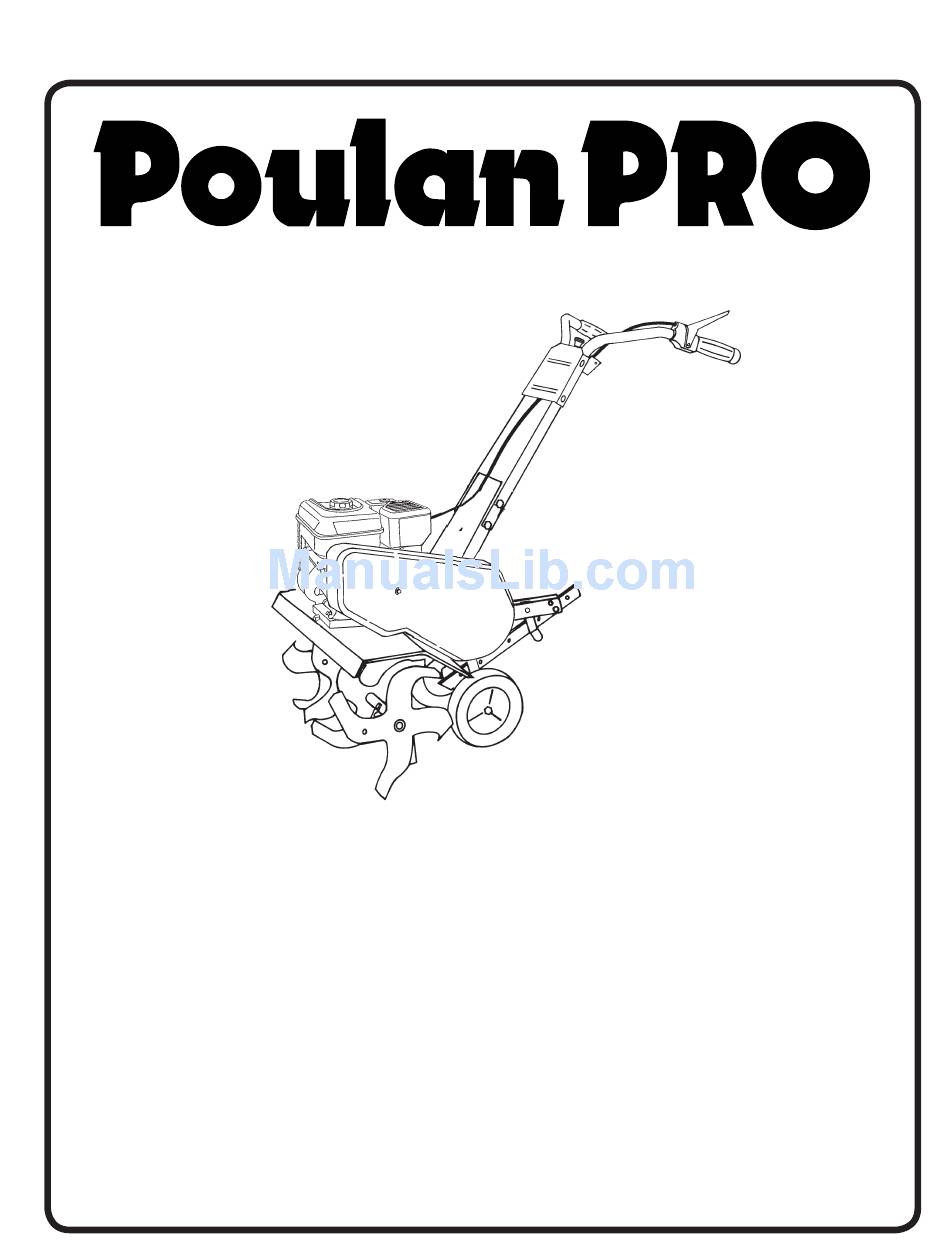

IMPORTANT MANUAL
Do Not Throw Away
REPAIR PARTS MANUAL
MODEL:
HDF825X
FRONT TINE TILLER
ALWAYS WEAR EYE PROTECTION DURING OPERATION
Visit our website: www.poulan-pro.com
411045 Rev 1 12.05.07 TH
Printed in U.S.A.

Advertisement

loading
Need help?

Need help?

Do you have a question about the HDF825X and is the answer not in the manual?

Questions and answers

Related Manuals for Poulan Pro HDF825X

Summary of Contents for Poulan Pro HDF825X

  • Page 1 IMPORTANT MANUAL Do Not Throw Away REPAIR PARTS MANUAL MODEL: HDF825X FRONT TINE TILLER ALWAYS WEAR EYE PROTECTION DURING OPERATION Visit our website: www.poulan-pro.com 411045 Rev 1 12.05.07 TH Printed in U.S.A.
  • Page 2 FRONT TINE TILLER – MODEL NUMBER HDF825X (MFG. ID. NO. 96082000500) HANDLE ASSEMBLY PART PART DESCRIPTION DESCRIPTION 187820X428 Bracket, Handle 180847 Bolt, Carriage, Gr. 5 5/16-18 x 3/4 72140512 Bolt, Carriage 5/16-18 x 1-1/2 181452X428 Panel, Handle 165787 Grip, Handle 166377 Handle, R.H.
  • Page 3 FRONT TINE TILLER – MODEL NUMBER HDF825X (MFG. ID. NO. 96082000500) BELT GUARD AND PULLEY ASSEMBLY PART PART DESCRIPTION DESCRIPTION 180377 Bracket Assembly, Belt Guard 188502 Bolt, Belt Guard 9484R Clip, Cable 12000036 Ring, Klip 86777 Screw, Hex Washer Head, Slotted,...
  • Page 4 FRONT TINE TILLER – MODEL NUMBER HDF825X (MFG. ID. NO. 96082000500) WHEEL AND DEPTH STAKE ASSEMBLY PART PART DESCRIPTION DESCRIPTION 9194R Pin, Clevis 5388J Spring, Stake 74760520 Bolt, Hex Head 5/16-18 x 1-1/4 121117X Bolt, Shoulder 74760512 Bolt, Hex Head 5/16-18 x 3/4...
  • Page 5 FRONT TINE TILLER – MODEL NUMBER HDF825X (MFG. ID. NO. 96082000500) TINE ASSEMBLY PART DESCRIPTION 156934 Tine, Outer, R.H. 3146R Retainer, Spring 156932 Tine, Inner, R.H. 156931 Tine, Inner, L.H. 156933 Tine, Outer, L.H. 4929H Pin, Clevis...
  • Page 6 FRONT TINE TILLER – MODEL NUMBER HDF825X (MFG. ID. NO. 96082000500) TRANSMISSION PART PART DESCRIPTION DESCRIPTION 74760524 Bolt, Hex Head, Grade 2 9173R Spacer, Split 5/16-18 x 1-1/2 19091412 Washer 9/32 x 7/8 x 12 Gauge 74780652 Bolt, Hex Head 3/8-16 x 3-1/4...
  • Page 7 FRONT TINE TILLER – MODEL NUMBER HDF825X (MFG. ID. NO. 96082000500) DECALS PART DESCRIPTION 403653 Decal, Poulan Pro 410308 Decal, Poulan Pro, 825 Series / 26" 411979 Decal, Forward and Reverse 121753X Decal, Reverse, Tine Control 110614 Decal, Hand Placement...

  • Page 8: Parts And Service

    PARTS AND SERVICE This product has been expertly en gi neered and carefully manu fac tured to rigid quality stan dards. As with all mechanical products, some adjustments or part replacement may be necessary during the life of your unit. For Parts and service, contact our authorized distributor: call 1-800-849-1297 •...
