Poulan Pro HDF900 Repair Parts Manual
  1. Manuals
  2. Brands
  3. Poulan Pro Manuals
  4. Tiller
  5. HDF900
  6. Repair parts manual

Poulan Pro HDF900 Repair Parts Manual

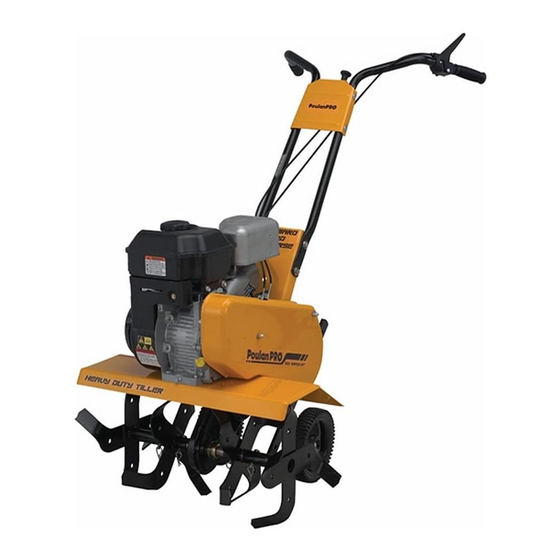

Front tine tiller
Hide thumbs Also See for HDF900:
1
2
3
4
5
6
7
8

Advertisement

Quick Links

Download this manual See also: Operator's Manual
IMPORTANT MANUAL
Do Not Throw Away
REPAIR PARTS MANUAL
MODEL:
HDF900
FRONT TINE TILLER
ALWAYS WEAR EYE PROTECTION DURING OPERATION
Visit our website: www.poulan-pro.com
432119

Advertisement

loading
Need help?

Need help?

Do you have a question about the HDF900 and is the answer not in the manual?

Questions and answers

Related Manuals for Poulan Pro HDF900

Summary of Contents for Poulan Pro HDF900

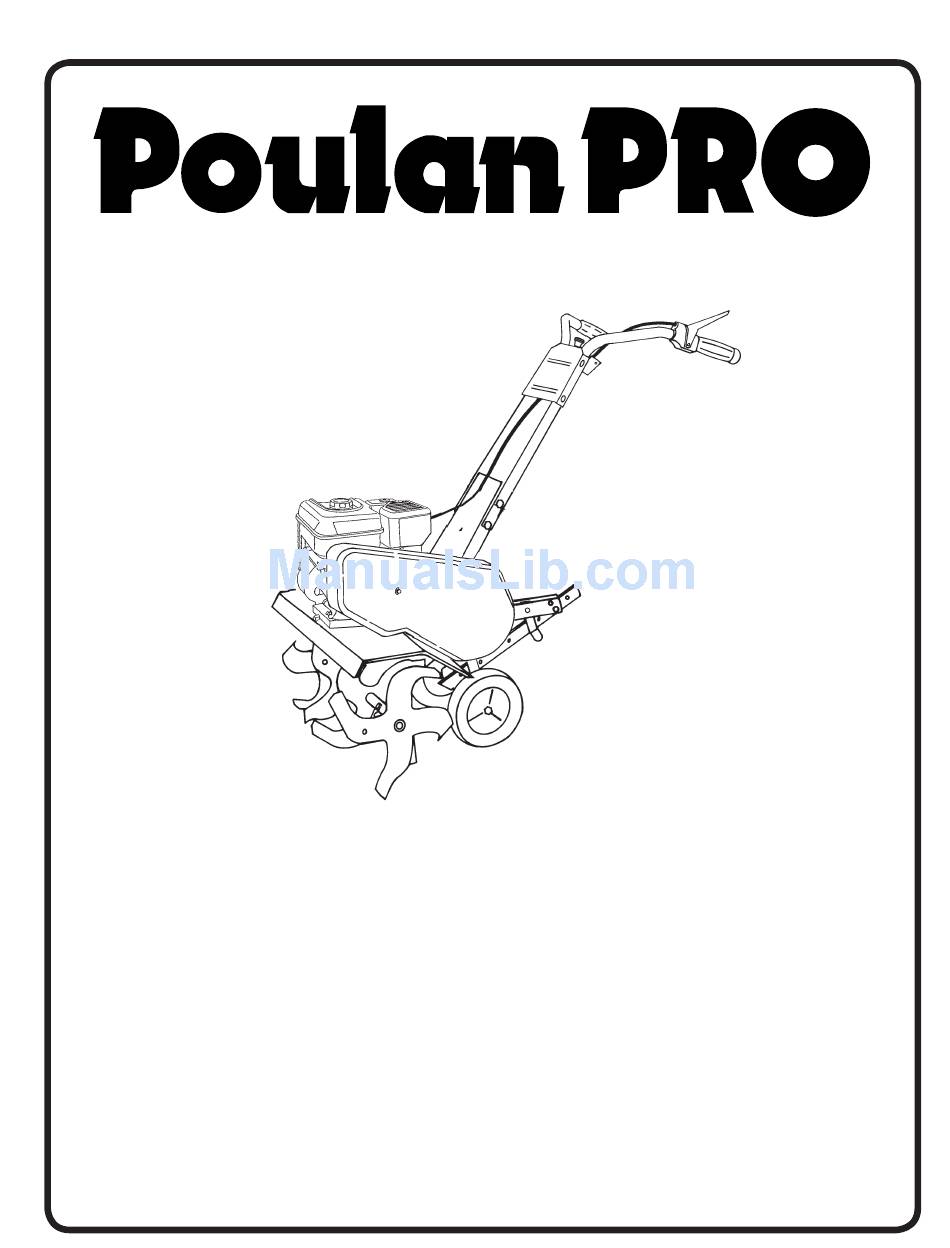

  • Page 1 IMPORTANT MANUAL Do Not Throw Away REPAIR PARTS MANUAL MODEL: HDF900 FRONT TINE TILLER ALWAYS WEAR EYE PROTECTION DURING OPERATION Visit our website: www.poulan-pro.com 432119...
  • Page 2 FRONT TINE TILLER – MODEL NUMBER HDF900 (MFG. ID. NO. 96082001700) HANDLE ASSEMBLY FT-handle_assy_1 PART PART DESCRIPTION DESCRIPTION 187820X421 Bracket, Handle 180847 Bolt, Carriage, Gr. 5 5/16-18 x 3/4 72140512 Bolt, Carriage 5/16-18 x 1-1/2 181452X421 Panel, Handle 165787 Grip, Handle 166377 Handle, R.H.
  • Page 3 FRONT TINE TILLER – MODEL NUMBER HDF900 (MFG. ID. NO. 96082001700) BELT GUARD AND PULLEY ASSEMBLY PART PART DESCRIPTION DESCRIPTION 180377 Bracket Assembly, Belt Guard 188502 Bolt, Belt Guard 9484R Clip, Cable 12000036 Ring, Klip 86777 Screw, Hex Washer Head, Slotted,...
  • Page 4 FRONT TINE TILLER – MODEL NUMBER HDF900 (MFG. ID. NO. 96082001700) WHEEL AND DEPTH STAKE ASSEMBLY PART PART DESCRIPTION DESCRIPTION 9194R Pin, Clevis 121117X Bolt, Shoulder 74760520 Bolt, Hex Head 5/16-18 x 1-1/4 400246X428 Wheel 74760512 Bolt, Hex Head 5/16-18 x 3/4...
  • Page 5 FRONT TINE TILLER – MODEL NUMBER HDF900 (MFG. ID. NO. 96082001700) TINE ASSEMBLY PART DESCRIPTION 156934 Tine, Outer, R.H. 3146R Retainer, Spring 156932 Tine, Inner, R.H. 156931 Tine, Inner, L.H. 156933 Tine, Outer, L.H. 4929H Pin, Clevis...
  • Page 6 FRONT TINE TILLER – MODEL NUMBER HDF900 (MFG. ID. NO. 96082001700) TRANSMISSION PART PART DESCRIPTION DESCRIPTION 74760524 Bolt, Hex Head, Gr. 25/16-18 x 1-1/2 9173R Spacer, Split 74780652 Bolt, Hex Head, 3/8-16 x 3-1/4 19091412 Washer, 9/32 x 7/8 x 12 Ga.
  • Page 7 FRONT TINE TILLER – MODEL NUMBER HDF900 (MFG. ID. NO. 96082001700) DECALS PART DESCRIPTION 432198 Decal, Poulan Pro 433396 Decal, Poulan Pro 432220 Decal, Forward and Reverse 121753X Decal, Reverse, Tine Control 110614X Decal, Hand Placement 433411 Decal, Engine 433412...

  • Page 8: Parts And Service

    Model Number/Manufacturer's I.D. Number b. Description of part. For Technical Assistance: call 1-800-829-5886 For a Parts Manual, go to our website: www.poulan-pro.com/support.asp NOTE: HOP provides parts and service through its au thor ized dis tribu tors and dealers; there fore, all requests for parts and service should be directed to your local dealer(s).
