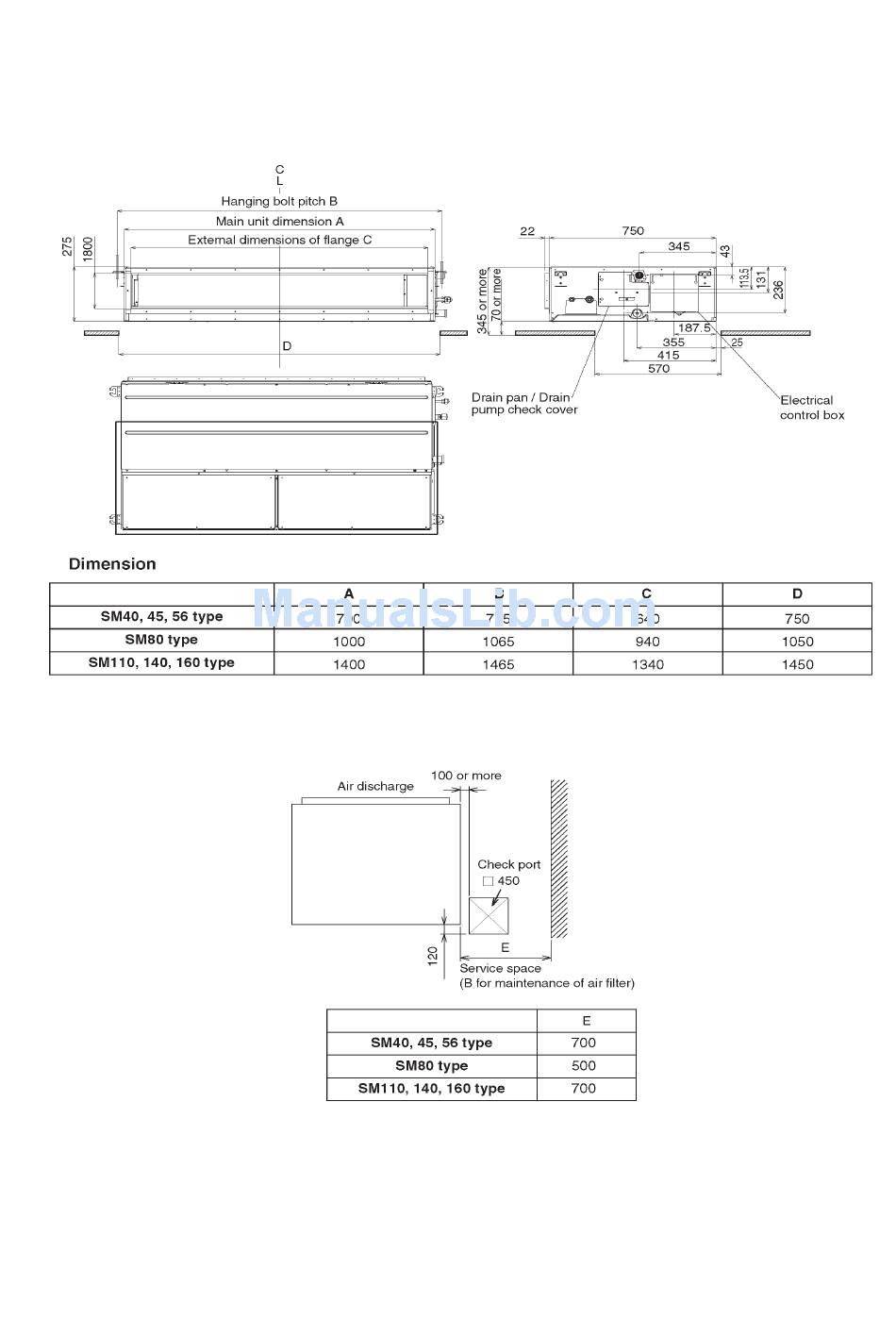

2. CONSTRUCTION VIEWS (EXTERNAL VIEWS)
∗ ∗ ∗ ∗ ∗
∗ ∗ ∗ ∗ ∗
∗ ∗ ∗ ∗ ∗
∗ ∗ ∗ ∗ ∗
RAV-SM406BT
RAV-SM456BT
RAV-SM566BT
RAV-SM806BT
∗ ∗ ∗ ∗ ∗
∗ ∗ ∗ ∗ ∗
∗ ∗ ∗ ∗ ∗
RAV-SM1106BT
RAV-SM1406BT
RAV-SM1606BT
– 17 –
