Summary of Contents for Body Champ BRM 3671

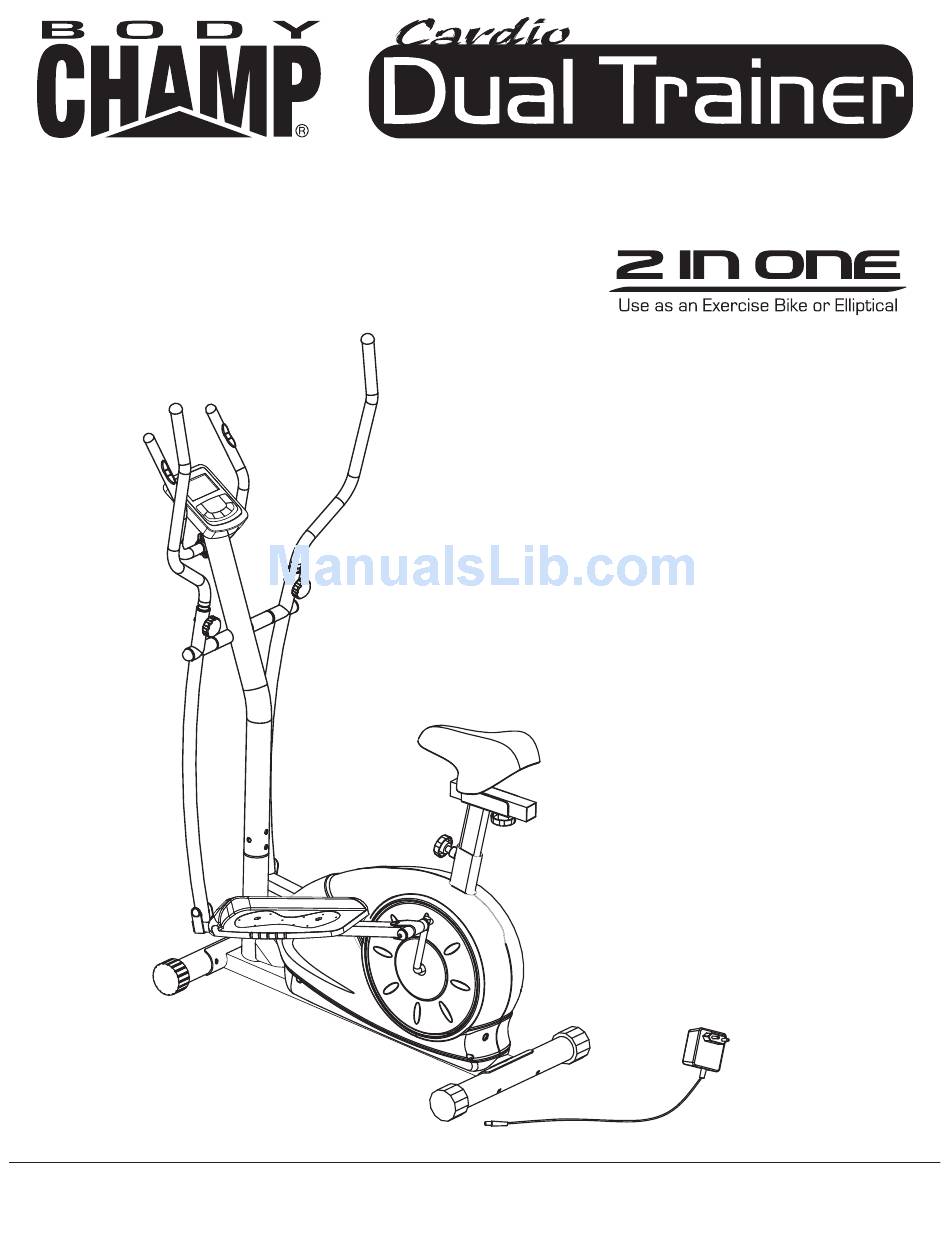

  • Page 1 BRM 3671 /3681/3690 For use under U.S. Patent numbers 6159132, D459773, D438264 * This item is for consumer use only and it is not meant for commercial use. OWNE R’ S MAN UAL...
  • Page 2 This page intentionally left blank...
  • Page 3: General Information

    Please read this manual carefully before commencing the Body Flex Sports warrants your product for assembly of your product or starting to exercise. a period of 1 year for the frame and 90 days on all parts if the item is used for the intended •...
  • Page 4 Hardware & Tool List The following hardware is used to assemble your unit. Please take a moment to familiarize yourself with these items. Please note, most of these parts are already pre-assembled on your unit. Do not be alarmed if you see parts on this page that are not included in your hardware packet.
  • Page 5 Parts Listing The following parts list describes all of the parts illustrated on the exploded diagram on the following page. Please note, most of these parts are already pre-assembled on your unit. Part # Description Part # Description 1......Handle Bar Foam Grip 37....Arc-Washer (for M8 bolt) 2......Bolt (M8 x 15 mm) 38....Bolt (M8x20 mm)
  • Page 6: Exploded Diagram

    Exploded Diagram The following diagram is provided to help you familiarize yourself with the parts and hardware that will be used during the assembly process. Please note that not all of the parts and hardware you see here will be used while you are assembling the machine because some of these items are already pre-installed.
  • Page 7: Assembly Instructions

    Assembly Instructions A s s e m b l y S t e p 1 Hardware Required FRONT STABILIZER ASSEMBLY Secure the Front Stabilizer (#69) to the Main Frame (#48) using a total of two Carriage Bolts (#27) #27. Carriage Bolt (M8x73 mm) two Arc-Washers (#37) and two Cap Nuts (#49).
  • Page 8: Wire Connections

    Assembly Instructions A s s e m b l y S t e p 2 Hardware Required WIRE CONNECTIONS Connect the Main Sensor Wire [middle] (#54) to the Main Sensor Wire [lower] (#67). #38. Bolt (M8x20 mm) #37. Arc-Washer CENTER POST ASSEMBLY [4 pieces] [4 pieces] Slide the Center Post (#58) onto the Main Frame (#48) and...
  • Page 9: Left Side

    Assembly Instructions A s s e m b l y S t e p 3 Coupler Bar Assembly Slide two Spacers (#31) onto the two bars that are protruding from the Center Post (#58). Then slide one Left Pedal Bolt (#18L) into the Pedal Connection Joint (#20 ). Assemble the Coupler Bar (#8L) to the left side of the unit by sliding the upper part onto the left bar that is protruding from the Center Post (#58).
  • Page 10: Handle Bar Assembly

    Assembly Instructions A s s e m b l y S t e p 5 A s s e m b l y S t e p 4 HANDLE BAR ASSEMBLY PULSE HANDLE BAR ASSEMBLY Insert the two Handle Bars (#29L & 29R) into the Install the Pulse Handle Bar (#70) onto the openings at the end of the two Coupler Bars front side of the Center Post (#58) using two...
  • Page 11 Assembly Instructions Hardware Required A s s e m b l y S t e p 6 Seat Assembly Remove the Washers and Nuts that are pre-assembled on the back of the Seat (#33) and set them aside as they will be used #39.
  • Page 12: Pedal Assembly

    Assembly Instructions A s s e m b l y S t e p 8 A s s e m b l y S t e p 7 COMPUTER ASSEMBLY PEDAL ASSEMBLY Remove the Screws (#63) that are pre-assembled on the Computer Attach the two Pedals (#13) as shown using a (#51) and set them aside for now.
  • Page 13: Safety And Maintenance

    • For any replacement warning labels, please contact our CUSTOMER SUPPORT at (888) 266-6789 or (909) 598-9876, or mail in a written request to: Body Flex Sports, Inc. 21717 Ferrero Parkway, Walnut, CA 91789. More detailed information about how to reach our CUSTOMER SUPPORT may be found on Page 1 of the Owner’s Manual under the “CUSTOMER SUPPORT”...
  • Page 14: Computer Operation

    Computer Operation I. To operate the monitor A-0. Plug in the AC Adapter to power supply. You will see this first screen followed by the next one. A-1. You may select different training mode of MANUAL, PROGRAM, USER or TARGET H.R. by pressing UP, DOWN buttons (a1). Press MODE button to confirm.
  • Page 15 Computer Operation B-6 During all training period, you may press ST/STOP to stop monitor counting at anytime. C. Training in PROGRAM mode - press UP button until PROGRAM shows up on the upper line, press MODE to confirm. (c1) (c2) (c3) (c4) C-1 The initial set program profile is P1 (c1 &...
  • Page 16 Computer Operation left-upper corner) and beep for 8 times to remind you.(d6) D-5 You may press ST/STOP button to start training again. The function which has achieved to zero will start from previous set data counting down, and other set function data will keep counting up or down from previous records. D-6 During all training period, you may press ST/STOP to stop monitor counting at anytime.
  • Page 17 Computer Operation Displays current training rotations per minute. TIME Count up - If NO preset target, Time will count up from 00:00 to maximum 99:59 with each increment of 1 second. Count down - If training with preset Time, Time will count down from preset value to 00:00.Each preset increment or decrement of 1 minute between 1:00 to 99:00.
  • Page 18: Troubleshooting

    Troubleshooting (AFTER COMPLETE ASSEMBLY) Solution Troubleshoot Area If the computer is not picking up your hand pulse signal (or you are getting HAND PULSE SIGNAL inaccurate readings), please adjust the following: Slightly moisten/dampen the palms with water so the sensors can detect a pulse signal.
  • Page 19 PLEASE KEEP THESE INSTRUCTIONS FOR FUTURE USE & REFERENCE. DO NOT DISCARD. WARNING: SERIOUS INJURIES AND EVEN DEATH CAN OCCUR IF THE PROPER SAFETY PRECAUTIONS ARE NOT FOLLOWED. The diagram below highlights and reviews many of the important Safety and Warning labels also found on the unit.
  • Page 20: Proof Of Purchase

    Proof of purchase Model Number BRM 3671/3681/3690 version: 11-21-2013 BRM3671/3681/3690 MADE IN CHINA...
