Summary of Contents for Magic Chef MCBM920W1

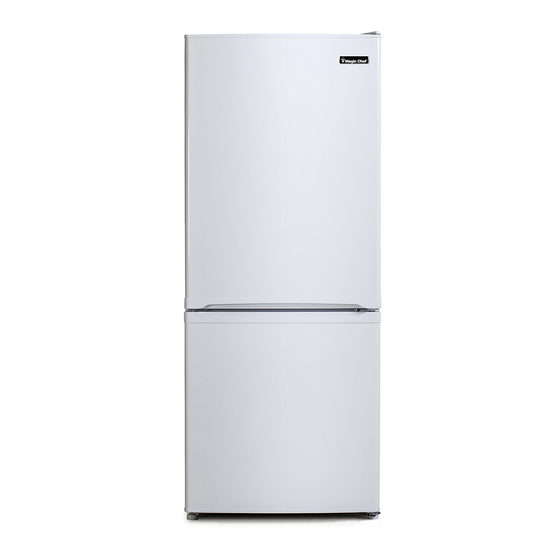

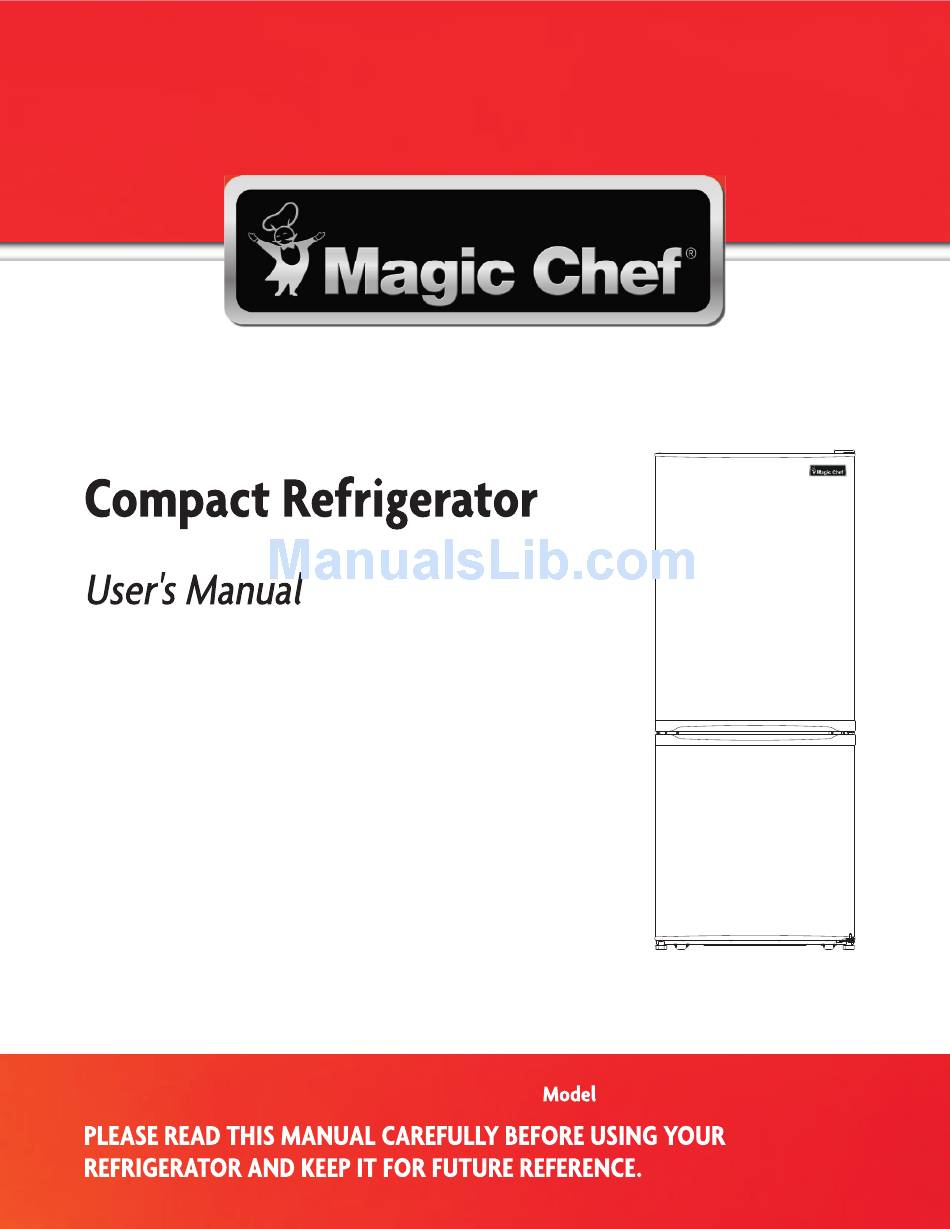

- Page 1 9.2 Cu. Ft. MCBM920W1 / MCBM920S1...
- Page 3 Important Safety Instructions To reduce the risk of fire, electrical shock, or injury follow these basic precautions when using your refrigerator. 1) WARNING―Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction. 2) WARNING―Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
-
Page 4: Table Of Contents
TABLE OF CONTENTS NAMES OF THE PARTS……………………………………………………… 2 SPECIFICATIONS…………………………………………………………….. IMPORTANT SAFETY INSTRUCTIONS…………………………………… INSTALLATION INSTRUCTION BEFORE USING YOUR REFRIGERATOR……………………..…… 4 INSTALLING YOUR REFRIGERATOR ……………………………… 4 ELECTRICAL CONNECTION………………………………………… 5 OPERATING THE REFRIGERATOR TEMPERATURE CONTROL………………………………………….. 6 OPERATING THE FREEZER COMPARTMENT TEMPERATURE CONTROL………………………………………….. 6 ICE TRAY…………………………………………………………………... -
Page 5: Names Of The Parts
NAMES OF THE PARTS MODEL NO. MCBM920W1/MCBM920S1 1 Interior Light 7 Freezer Shelf 2 Refrigerator Temperature Control 8 Freezer Basket 3 Freezer Temperature Control 9 Refrigerator Door Racks 4 Refrigerator Shelves 10 Can Dispenser 5 Glass Crisper Cover 11 Bottle Storage Bin... -
Page 6: Specifications
SPECIFICATIONS – Model # MCBM920W1 Product Description Magic Chef Refrigerator MCBM920W1 Model No. Capacity 9.2 Cu. Ft. Width Height Depth Unit Dimensions ( inches ) 23 4/5” 59 4/5” 26 2/3” Net Weight ( lbs) 128( lbs ) SPECIFICATIONS – Model # MCBM920S1... -
Page 7: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS To reduce the risk of fire, electrical shock, WARNING or injury when using your refrigerator, follow these basic precautions: • Read all instructions before using the refrigerator. • DANGER or WARNING: Risk of child entrapment. • To avoid the possibility of child entrapment, please take the following precautions before throwing out the refrigerator. -
Page 8: Electrical Connection
Electrical Connection WARNING Improper use of the grounded plug can result in the risk of electrical shock. If the power cord is damaged, have it replaced by an authorized service center. This refrigerator should be properly grounded for your safety. The power cord of this refrigerator is equipped with a three-prong plug which mates with standard three prong wall outlets to minimize the possibility of electrical shock. -
Page 9: Operating The Refrigerator
OPERATING THE REFRIGERATOR Temperature Control • Your refrigerator separate control regulating temperature for each section independently. The temperature controls are located at the rear of refrigerator section. (See the graphics shown above). • The first time you turn the unit on, adjust the temperature control knob to “coldest”... -
Page 10: Changing The Light
CHANGING THE LIGHT Before removing the light bulb, turn off the refrigerator first and then unplug the unit from the wall outlet. Failure to do so could result in electrical shock or personal injury. • As shown in Figure step 1, remove the lamp cover; •... -
Page 11: Door Reversal
utility bins from doors. Door and Hinge Removal 1. Unplug refrigerator or disconnect power. 2. Keep both doors closed until you are ready to lift them free from the cabinet. NOTE: Provide additional support for the doors while the hinges are being moved. Do not depend on the door magnets to hold the doors in place while you are working. -
Page 12: Care And Maintenance
CARE AND MAINTENANCE Cleaning Your Refrigerator • Upon installation of your new appliance, it is recommended that it be cleaned thoroughly. • Turn off the refrigerator first and then unplug the unit from the wall outlet. • Remove all food content. •... -
Page 13: Troubleshooting Guide
TROUBLESHOOTING GUIDE You can solve many common refrigerator problems easily, saving you the cost of a possible service call. Try the suggestions below to see if you can solve the problem before calling for service. PROBLEM POSSIBLE CAUSE Refrigerator does not operate. Not plugged in. - Page 14 refrigerator and move it from the wall. See “Installation Instructions”. Moisture forms on inside refrigerator walls. Weather is hot and humid, which increases internal rate of frost build-up. This is normal. Door is slightly open. Door is kept open too long, or is opened too frequently.
-
Page 15: Refrigerator Warranty
MCBM920W1 In Home MCBM920S1 In Home...
