Summary of Contents for Blisstool LTC48X

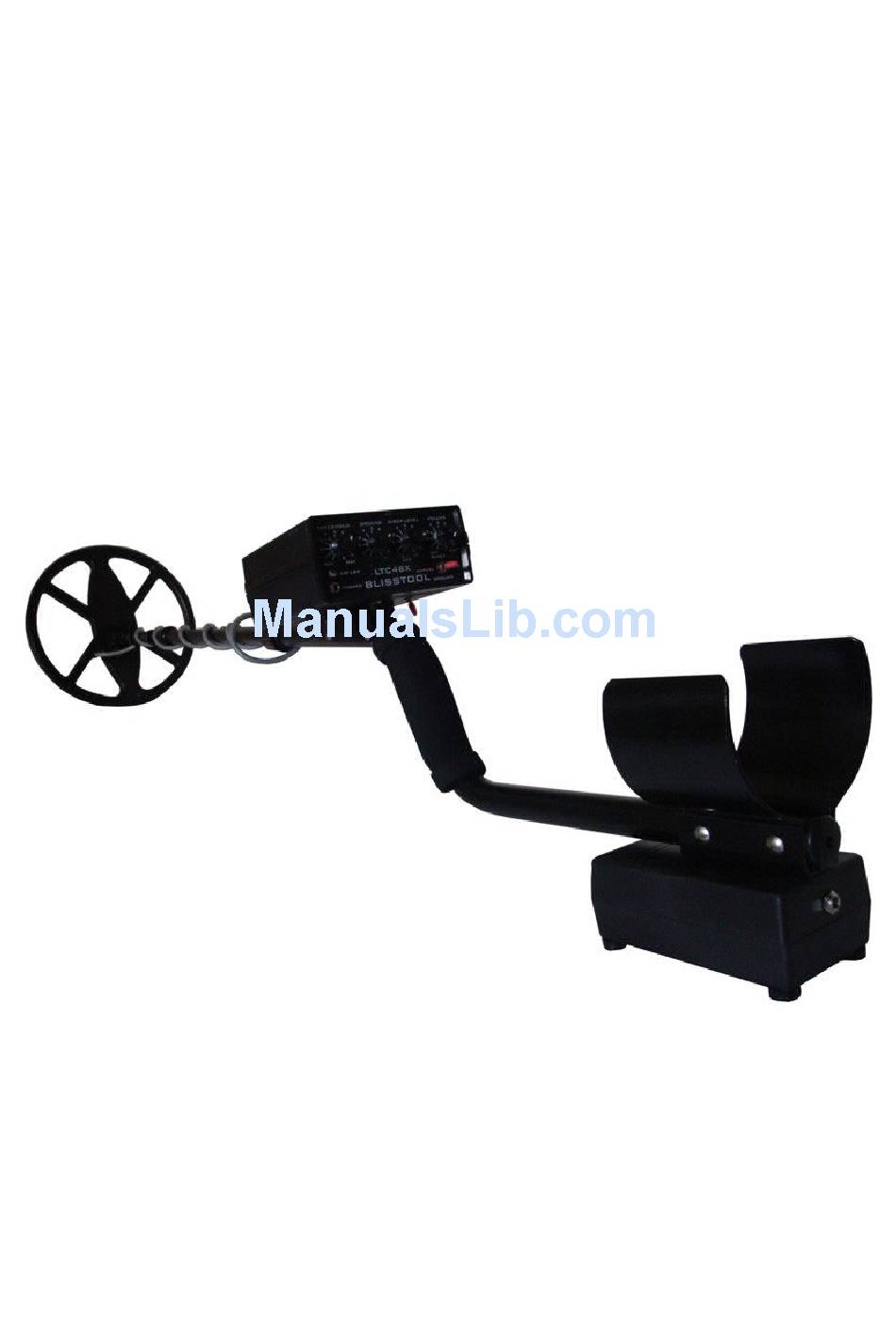

- Page 1 BLISSTOOL BLISSTOOL LTC48X User Guide version EN201008241400 2007 - 2010 © BLISSTOOL...
-
Page 2: Table Of Contents
3. Versions....................5 4. Modifications..................6 5. Standard package................6 6. Optional accessories.................7 6.1. Army backpacks (Kitbag)..................7 6.2. External power module BLISSTOOL EBP01B............7 6.3. Stereo headphones....................7 7. Device construction................8 8. Device assembling and disassembling..........10 9. Control, adjustment and indication appliances......11 9.1. VOLUME potentiometer..................11 9.2. -
Page 3: Introduction
– or at least satisfactory stability! Before using your LTC48X for the first time, we recommend you to read detailed this user guide in order to optimally use all its capabilities. BLISSTOOL LTC48X -... -
Page 4: Features
– High quality double shielded against electromagnetic interference cable for the search coil – Weight in assembled mode (ready for work): 1.9kg – RoHS compliant – Developed and manufactured in Bulgaria – 3 Year Worldwide Warranty BLISSTOOL LTC48X - User Guide (version EN201008241400) Page 4 of 28... -
Page 5: Versions
BLISSTOOL LTC48X is available in two versions: version 1 (LTC48X v1) и version 2 (LTC48X v2). On the front panel of the metal detector both versions are labeled LTC48X, but on the box with the electronics, additionally marked is the exact version of the metal detector. -
Page 6: Modifications
4. Modifications Both versions of BLISSTOOL LTC48X are offered with 4 different options for power (capacity and type of the battery, battery charger): 1/ Rechargeable battery NiMH 12V, 2500mAh (10х1.2V, GP NiMH) and automatic battery charger 12V, 250mA (Working with a single charge: up to 50 working hours; Long battery life: approximately 500 cycles of charge-discharge;... -
Page 7: Optional Accessories
(from 230 to 330 grams depending on battery). BLISSTOOL EBP01B has a metal clip type carbine for attachment to a belt and an adjustable strap to wear over the shoulder or waist. -
Page 8: Device Construction
– the lower connecting rod and the search coil are assembled together with the plastic bolt and nut. Fig. 2 / Components of metal detector BLISSTOOL LTC48X BLISSTOOL LTC48X - User Guide (version EN201008241400) Page 8 of 28... - Page 9 For fixing the bottom of the connecting shielded cable of the search coil, is used included in the package fixing patches type velcro. BLISSTOOL LTC48X - User Guide (version EN201008241400) Page 9 of 28...
-
Page 10: Device Assembling And Disassembling
8. Device assembling and disassembling The metal detector BLISSTOOL LTC48X is assembled in the following sequence: 1. The upper part of the lower connecting rod is attached to the lower part of intermediate connecting rod via the small fixing ring, and adjusted at the appropriate length. -
Page 11: Control, Adjustment And Indication Appliances
The individual zones are numbered as zones "1", "2" and "3". This numbering corresponds to: soils with black and/or negative mineralization („1“); not mineralized or weakly mineralized soils („2“); soils with a color and/or positive mineralization („3“). BLISSTOOL LTC48X - User Guide (version EN201008241400) Page 11 of 28... -
Page 12: Ground Potentiometer
GROUND potentiometer scale, the sound is louder when the search coil is near the ground, while at others the sound is louder when the search coil is high above the ground. BLISSTOOL LTC48X - User Guide (version EN201008241400) Page 12 of 28... -
Page 13: Threshold Potentiometer
The maximal audio threshold corresponding to a stable device condition depends on the terrain’s characteristics, the device balancing (in the manual ground balance working mode) and the user search speed. BLISSTOOL LTC48X - User Guide (version EN201008241400) Page 13 of 28... -
Page 14: Discr Level Potentiometer
For practical use when searching for non-ferrous metals are recommended operating with the following levels of DISCR LEVEL: - For LTC48X v2: from „4“ to „6“. - For LTC48X v1: from „6“ to „10“. When detecting vibratory (dubious) signal, usually for heavily corroded iron, iron with alloys or deeply buried object, the level could be increase more in order to get more accurate signal discrimination. -
Page 15: Discr Depth Potentiometer
DISCR LEVEL potentiometer (degree of discrimination) may result in the rejection of weak color signals of small or deep buried ferrous metals. In LTC48X v2 because has increasing range of discrimination by DISCR LEVEL potentiometer, DISCR WIDTH potentiometer usually not used (set to level NORM). -
Page 16: Loudspeaker
3.5mm to 6.35mm external stereo audio adapter for headphones. To protect your hearing, it is desirable before turning stereo headphones to BLISSTOOL LTC48X, to reduce the volume of the metal detector by VOLUME potentiometer, as put it between levels "2" and "3". - Page 17 Fig. 3 / Control, adjustment and indication appliances of BLISSTOOL LTC48X BLISSTOOL LTC48X - User Guide (version EN201008241400) Page 17 of 28...
-
Page 18: Device Adjustment And Preparation For Work
With this, the metal detector is adjusted and ready for work. 11. Search method Metal detector BLISSTOOL LTC48X works in motion mode, ie it reacts to a metal object buried in the ground only when the search coil is swung above it. - Page 19 For this purpose, helps the already described above centering of the signal to study the area of detection: whether it is narrow or wide. BLISSTOOL LTC48X - User Guide (version EN201008241400) Page 19 of 28...
-
Page 20: Battery. Battery Charging
The alkaline batteries are disposable and after being exhausted must be replaced with new ones. If your BLISSTOOL LTC48X is modification with alkaline batteries, if no longer using it, remove the alkaline batteries from the metal detector. The following instructions about the recharging refer to modifications with NiMH battery. These modifications are standard equipped with an automatic battery charger. -
Page 21: Practical Recommendations
13. Practical recommendations The metal detector BLISSTOOL LTC48X is designed to find metal objects buried in the ground. It does not work well in residential areas and rich urban environment because it is highly sensitive electronic device and is troubled by surrounding electric devices, systems with electricity and metal objects (metal parts of the structure of the property, equipment and furnishings of the property). -
Page 22: Indicative And Recommended Settings
BLISSTOOL LTC48X. It is advisable to use them as a basis, but you yourself by testing and accumulation of practical experience with BLISSTOOL LTC48X need to find the optimum settings for the terrains on which you work. -
Page 23: Settings For Maximum Depth Of Detection
GROUND potentiometer: level at which the metal detector is balanced to the terrain (usually between levels from "3" to "7") DISCR LEVEL potentiometer: at LTC48X v2 of level „4“, while at LTC48X v1 of level „6“ DISCR WIDTH potentiometer: of level „NORM“... -
Page 24: Settings For Terrains With Low Degree Of Mineralization
GROUND switch: position „AUTO“ AUTO ZONES switch: position „3“ or „2“ DISCR LEVEL potentiometer: at LTC48X v2 of level „4“, while at LTC48X v1 of level „7“ DISCR WIDTH potentiometer: of level „NORM“ DISCR DEPTH potentiometer: of levels from „6“ to „10“... -
Page 25: Settings For Terrains With Middle Degree Of Mineralization
GROUND switch: position „AUTO“ AUTO ZONES switch: position „2“ or „1“ DISCR LEVEL potentiometer: at LTC48X v2 of level „4.5“, while at LTC48X v1 of level „9“ DISCR WIDTH potentiometer: of level „NORM“ DISCR DEPTH potentiometer: of levels from „7“ to „10“... -
Page 26: Settings For Terrains With High Degree Of Mineralization
GROUND switch: position „AUTO“ AUTO ZONES switch: position „1“ or „3“ DISCR LEVEL potentiometer: at LTC48X v2 of level „5“, while at LTC48X v1 of level „10“ DISCR WIDTH potentiometer: at LTC48X v2 of level „NORM“, while at LTC48X v1 of level „2“... -
Page 27: Warranty Support And Service
15. Warranty support and service The metal detector BLISSTOOL LTC48X has a 3 Year Worldwide Warranty for the quality of the produced components and in case of any factory flaws. The warranty excludes the battery and is not valid for mechanical damages of the respective components and for damages done by an incorrect usage or unauthorized access and repair (opening the electronic block;... - Page 28 In order RoHS compliance, in the electronics of BLISSTOOL LTC48X are used high quality electronic components, unleaded tino for soldering and pcb board with a final coating nickel- gold. These green technologies ensure of your metal detector high quality and a long life. For comparison, the standard and cheaper technology that is not RoHS compliant, includes the use of tino with a high content of lead and pcb board with a final coating tin-lead.
