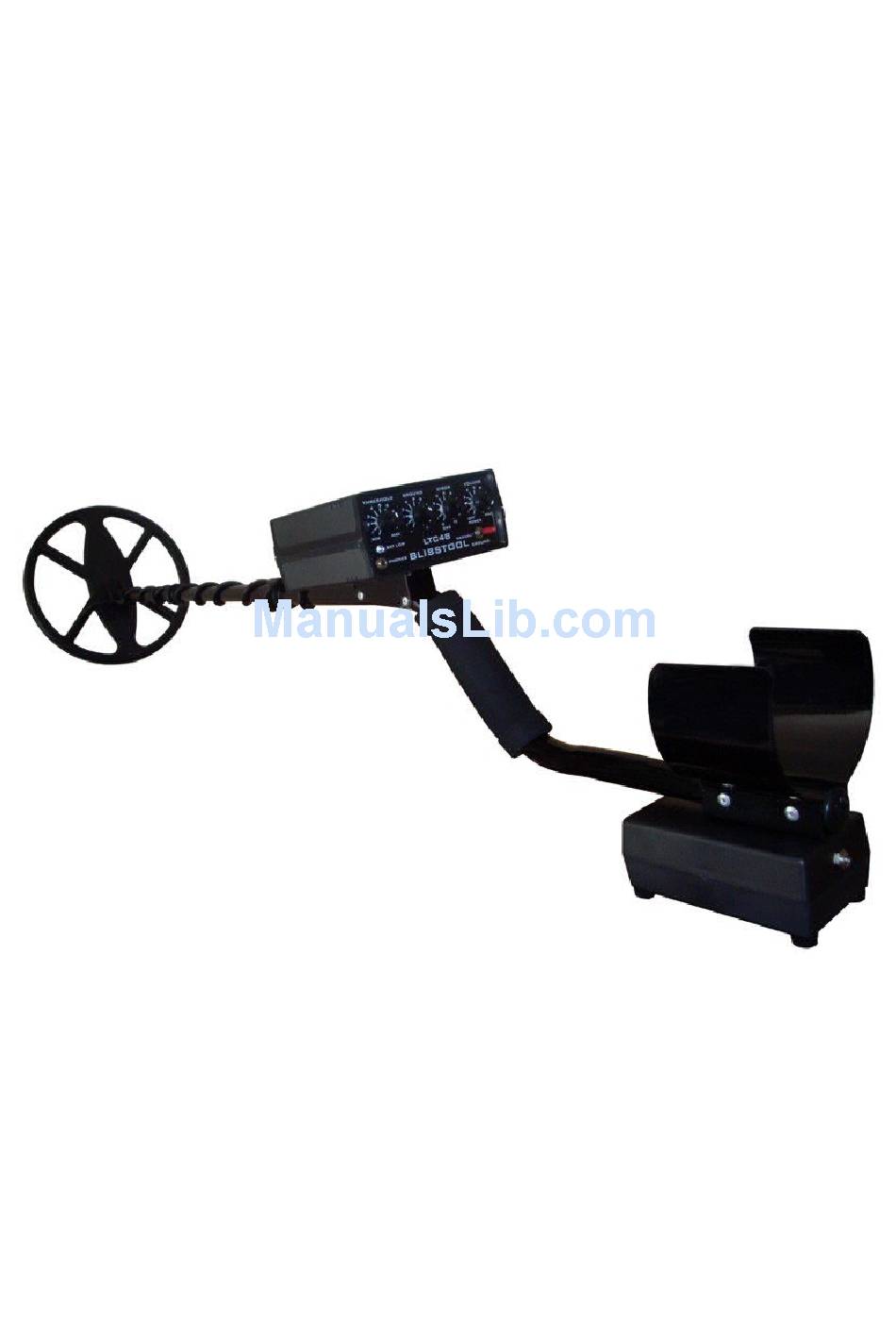

- Page 1 BLISSTOOL BLISSTOOL LTC48 User Guide version EN200908131904 2007 - 2009 © BLISSTOOL...
-
Page 2: Table Of Contents
9. Device adjustment and preparation for work.......11 10. Search method................12 11. Battery charging................13 12. Practical recommendations............14 13. Technical maintenance and service support during warranty..15 14. Legislation..................15 15. Contact information..............15 BLISSTOOL LTC48 – User Guide (version EN200908131904) Page 2 of 15... -
Page 3: Introduction
1. Introduction BLISSTOOL LTC48 is a contemporary professional metal detector, designed to be used on any type of terrains. It features perfect depth and discrimination and is outstanding for its high quality, easy user’s adjustment and minimal maintenance need. That makes it appropriate for both the experienced seekers and the beginners in the field. -
Page 4: Technologies
4. standard pack 1. Metal detector BLISSTOOL LTC48 with 28cm (11") DD search coil BLISSTOOL DD28SC1 and 12V/2500mAh built-in recharging battery BLISSTOOL GP122500 2. Automatic battery charger BLISSTOOL DA12250 3. User guide 4. Transport and storage box 5. - Page 5 Fig.1 / Metal detector BLISSTOOL LTC48 – construction easy assembling disassembling of the device, in the standard pack: – the carrier rod, the fixing ring, the electronic control module, handle, the armrest and the power supply module combined in a single component;...
- Page 6 Recommended always to provide a small advance of the connecting cable of the search coil in his lower part, immediately which he comes out of the search coil. BLISSTOOL LTC48 – User Guide (version EN200908131904) Page 6 of 15...
-
Page 7: Device Assembling And Disassembling
7. Device assembling and disassembling The metal detector BLISSTOOL LTC48 is assembled in the following sequence: 1. The upper part of the lower connecting rod is attached to the lower part of intermediate connecting rod via the small fixing ring, and adjusted at the appropriate length. -
Page 8: Control, Adjustment And Indication Appliances
In similar situations, if the balancing is quite difficult, to assist in achieving a balance, one might adjust the desired level of discrimination in advance (the DISCR knob is switched from GBS position into the desired working mode) and then carry the BLISSTOOL LTC48 – User Guide (version EN200908131904) Page 8 of 15... - Page 9 (corrosion piece of wire or sheet iron) to completely ignore them (usually between level 8 and level 10 of potentiometer GROUND + potentiometer DISCR between level 8 and level 10). BLISSTOOL LTC48 – User Guide (version EN200908131904) Page 9 of 15...
- Page 10 It is recommended that the metal detector should not be used in this mode, as it would not work properly. The charging of the battery should be carried according to the description in 11. Fig.3 / Control, adjustment and indication appliances of BLISSTOOL LTC48 BLISSTOOL LTC48 – User Guide (version EN200908131904)
-
Page 11: Device Adjustment And Preparation For Work
(depth of discrimination). And lastly, the THRESHOLD knob adjusts the audio threshold to the desired level. With this, the metal detector is adjusted and ready for work. BLISSTOOL LTC48 – User Guide (version EN200908131904) Page 11 of 15... -
Page 12: Search Method
The precise location of the detected object is determined by moving the search coil in two perpendicular axes, while the user stands still or turns round for detecting the signal from different sides. BLISSTOOL LTC48 – User Guide (version EN200908131904) Page 12 of 15... -
Page 13: Battery Charging
11. Battery charging The metal detector BLISSTOOL LTC48 has 12V/2500mAh NiMH battery that is placed inside the power supply module. The battery has around 500 charging/discharging cycles (battery “life”), after which its capacitance drops sharply and must be replaced with a new battery. -
Page 14: Practical Recommendations
Do not open the electronic control module box and the power supply module box. If this is necessary, please contact us, using the contact information, given in 15, so that we could provide the appropriate technical support. BLISSTOOL LTC48 – User Guide (version EN200908131904) Page 14 of 15... -
Page 15: Technical Maintenance And Service Support During Warranty
13. Technical maintenance and service support during warranty The metal detector BLISSTOOL LTC48 has a 3 Year Worldwide Warranty for the quality of the produced components and in case of any factory flaws. The warranty excludes the battery and is not valid for mechanical damages of the respective components and for damages done by an incorrect usage or unauthorized access and repair (opening the electric control module;...
