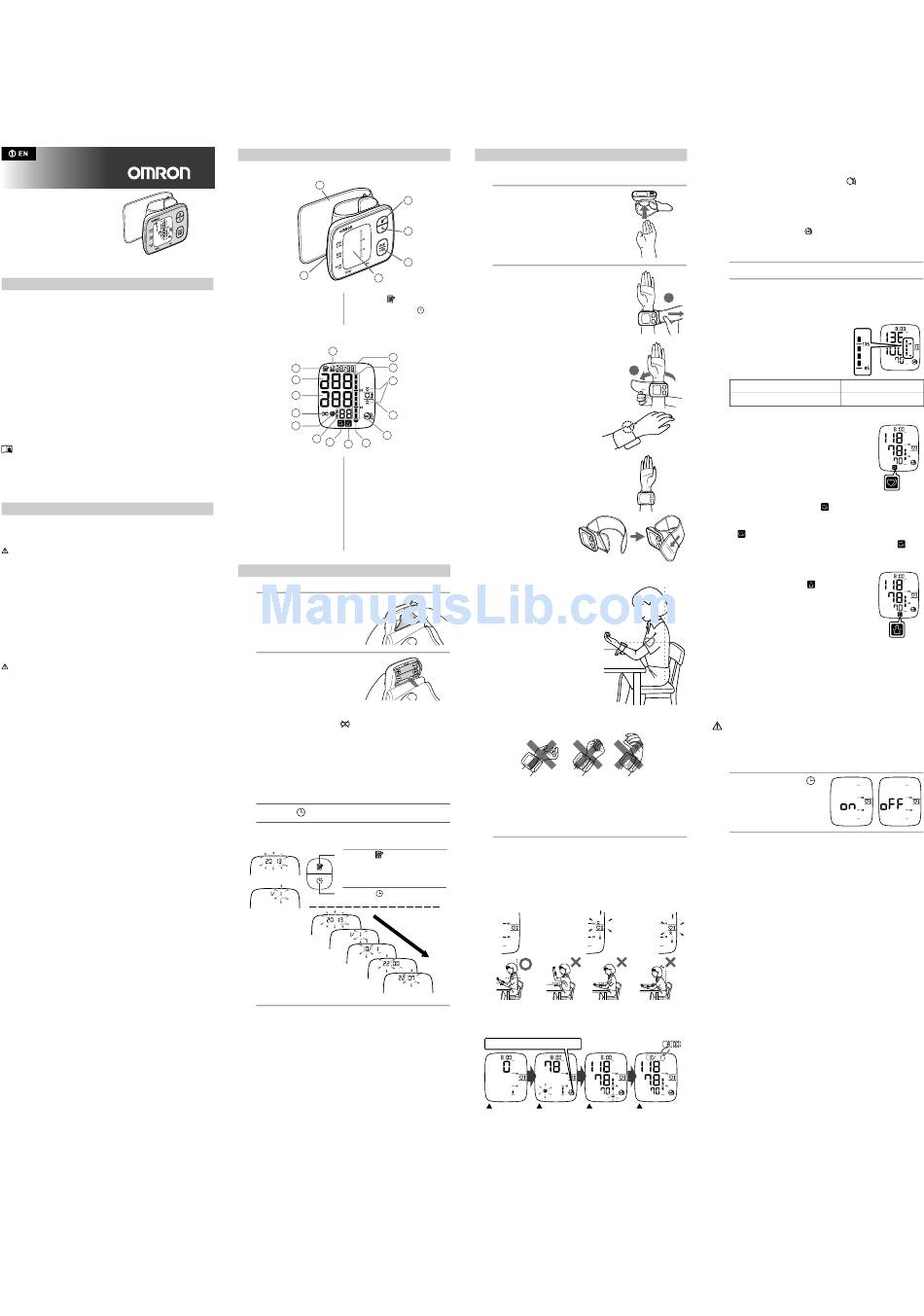

Omron RS6 Instruction Manual

Wrist Blood
Pressure Monitor
Model RS6
Instruction Manual
IM-HEM-6221-E-01-08/2012
1883267-9A
Introduction
Thank you for purchasing the OMRON RS6 Wrist Blood Pressure
Monitor.
The OMRON RS6 is a compact and easy to use blood pressure
monitor, operating on the oscillometric principle. It measures your
blood pressure and pulse rate simply and quickly. For comfortable
controlled inflation without the need of pressure pre-setting or
re-inflation the device uses its advanced "IntelliSense" technology.
Intended Use
This product is designed to measure the blood pressure and pulse
rate of people within the range of the designated wrist cuff, following
the instructions in this instruction manual.
It is mainly designed for general household use. Please read the
Important Safety Information in this instruction manual before using
the unit.
Please read this instruction manual thoroughly before using the
unit.
Please keep for future reference.
For specific information about your own blood pressure,
CONSULT YOUR DOCTOR.
Important Safety Information
Consult your doctor prior to using in pregnancy or if diagnosed with
arrhythmia or arteriosclerosis.
Please read this section carefully before using the unit.
Warning:
• Indicates a potentially hazardous situation which, if not avoided,
could result in death or serious injury.
(General Usage)
• Always consult your doctor. Self-diagnosis of measurement results
and self-treatment are dangerous.
• People with severe blood flow problems, or blood disorders, should
consult a doctor before using the unit, as cuff inflation can cause
internal bleeding.
(Battery Usage)
• If battery fluid should get in your eyes, immediately rinse with
plenty of clean water. Consult a doctor immediately.
Caution:
• Indicates a potentially hazardous situation which, if not avoided,
may result in minor or moderate injury to the user or patient or
damage to the equipment or other property.
(General Usage)
• Do not leave the unit unattended with infants or persons who
cannot express their consent.
• Do not use the unit for any purpose other than measuring blood
pressure.
• Do not use a mobile phone or other devices that emit
electromagnetic fields, near the unit. This may result in incorrect
operation of the unit.
• Do not disassemble the unit or wrist cuff.
• Do not operate the unit in a moving vehicle (car, airplane).
(Battery Usage)
• If battery fluid should get on your skin or clothing, immediately rinse
with plenty of clean water.
• Use only two "AAA" alkaline (LR03) batteries with this unit. Do not
use other types of batteries.
• Do not insert the batteries with their polarities incorrectly aligned.
• Replace old batteries with new ones immediately. Replace both
batteries at the same time.
• Remove the batteries if the unit will not be used for three months or
more.
• Do not use new and used batteries together.
General Precautions
• Do not apply strong shocks and vibrations to or drop the unit.
• Do not take measurements after bathing, drinking alcohol or
caffeine, smoking, exercising or eating.
• Do not inflate the wrist cuff when it is not wrapped around your
wrist.
• Read and follow the "Important information regarding Electro
Magnetic Compatibility (EMC)" in the Technical Data Section.
• Read and follow the "Correct Disposal of This Product" in the
Technical Data Section when disposing of the device and any used
accessories or optional parts.
1. Overview
Main unit:
A
D
E
F
B
C
A. Wrist cuff
D. Memory ( ) button
B. Battery compartment
E. Date/Time setting (
C. Display F. START/STOP button
Display:
P
Q
R
G
H
S
I
J
T
K
U
L
M
O
N
G. Memory symbol N. Movement error symbol
H. Systolic blood pressure O. Deflation symbol
I. Diastolic blood pressure P. Average value symbol
J. Battery low symbol Q. Date/Time display
K. Heartbeat symbol R. Blood pressure level indicator
(Flashes during measurement)
S. Positioning indicator
L. Pulse display and Memory
T. Positioning symbol
number
U. Cuff wrapping guide
M. Irregular heartbeat symbol
2. Preparation
2.1 Installing/Replacing the Batteries
1. Remove the battery cover.
2.
Insert two 1.5V "AAA"
alkaline (LR03) batteries
as indicated in the battery
compartment and then
replace the battery cover.
Notes:
• If the battery low symbol ( ) appears on the display, turn off
the unit then replace both batteries at the same time.
• The measurement values continue to be stored in memory
even after the batteries are replaced.
Disposal of used batteries should be carried out in accordance
with the national regulations for the disposal of batteries.
2.2 Setting the Date and Time
1.
Press the button.
2. Set the monitor to the correct date and time
before taking a measurement for the first time.
1) Push the button to change.
• Hold down to advance the digit
rapidly.
2) Push the button to confirm.
• Next setting appears.
Year
Month
Day
Hour
Minute
3.
Press the START/STOP button to store the setting.
Notes:
• If the batteries have been removed, the date and time setting
will need to be reset.
• If the date and time are not set, "-:--" appears during or after
measurement.
3. Using the Unit
3.1 Applying the Wrist Cuff
Do not apply over clothing.
1.
Put your arm through the
cuff loop.
Your palm should face upward.
2. Wrap the wrist cuff around
your wrist.
Wrap the wrist cuff securely
around the wrist for taking
) button
accurate measurements.
Make sure that the wrist cuff
does not cover the protruding
part of the wrist bone (ulna) on
the outside of the wrist.
Notes:
• You can take a measurement on
either your left or right wrist.
• If the wrist cuff comes off,
assemble as shown in the figure.
3.2 How to Sit Correctly
To take a measurement, you need
to be relaxed and comfortably
seated, under comfortable room
temperature. No bathing, drinking
alcohol or caffeine, smoking,
exercising or eating 30 minutes
before taking a measurement.
• Sit on a chair with your feet flat on the
floor.
• Sit upright with your back straight.
• The cuff should be at the same level
as your heart.
• Relax your wrist and hand. Do not bend your wrist back, clench
your fist, or bend your wrist forward.
3.3 Taking a Reading
Notes:
• To cancel a measurement, press the START/STOP button at
any time during measurement.
• Remain still while taking a measurement.
1.
Press the START/STOP button.
All the symbols appear on the display.
While your position is improper, the Positioning symbol and the
Positioning indicator flash, when you are in proper position the
Positioning symbol lights on the display.
The monitor is in The monitor is higher
proper position. than the heart.
After the Positioning symbol lights for more than 2 seconds,
the wrist cuff will start to inflate automatically.
Alternating date/time display
Cuff Wrapping Guide
START INFLATE DEFLATE
Cuff Wrapping Guide
The Cuff Wrapping Guide is a unique feature that
indicates if the cuff is not wrapped tightly enough
around the wrist. Even when the
blood pressure reading will be taken.
Note: This reading is NOT reliable due to the incorrect
wrapping of the cuff. Please wrap the cuff again, taking
care to wrap it correctly and take the measurement
again. When the
wrapped tightly enough on the wrist and the reading is
accurate and reliable.
2.
Undo the wrist cuff and remove the unit.
3. Press the START/STOP button to turn off the monitor.
1
The monitor automatically stores the measurement in its memory.
It will automatically turn off after two minutes.
Important:
• Recent research suggests that the
following values can be used as a
guide to high blood pressure for
measurements taken at home.
2
Systolic Blood Pressure
Diastolic Blood Pressure
This criteria is for home blood pressure measurement.
• Your blood pressure monitor includes an
irregular heartbeat feature. Irregular
heartbeats can influence the results of the
measurement. The irregular heartbeat
algorithm automatically determines if the
measurement is usable or needs to be
repeated. If the measurement results are
affected by irregular heartbeats but the result
is valid, the result is shown together with the
irregular heartbeat symbol (
If the irregular heartbeats cause the measurement to be
invalid, no result is shown. If the irregular heartbeat symbol
( ) is shown after you have taken a measurement, repeat
the measurement. If the irregular heartbeat symbol (
shown frequently, please make your doctor aware of it.
• If you move during measurement, the
movement error symbol (
display. Keep still and repeat the measurement.
Notes:
• Wait 2 - 3 minutes before taking another
blood pressure measurement. Waiting
between readings allows the arteries to
return to the condition prior to taking the
blood pressure measurement.
• The blood pressure can differ between the right arm and the
left arm, and therefore also the measured blood pressure
values can be different. OMRON recommends to always use
the same arm for measurement. If the values between the
two arms differ substantially, please check with your
physician which arm to use for your measurement.
Warning:
Self-diagnosis of measured results and treatment are
dangerous. Please follow the instructions of your doctor.
3.4 Setting the Positioning Sensor
1.
Press and hold the
button to reset the
Positioning sensor.
The Positioning sensor
is set "on" as default.
2. Press the START/STOP button to store the setting.
The monitor is lower
than the heart.
COMPLETE
is displayed, a
is displayed, the cuff is correctly
Above 135 mmHg
Above 85 mmHg
).
) is
) will appear on the
