Waterfall Audio High Force 1 Evo User Manual

User's Manual
Subwoofer
We thank you very much for purchasing a Waterfall High Force Subwoofer. Our deliberate
choice for aesthetics and performance is constantly guiding our research and development
towards innovative technologies. In order to achieve the best performance with your Home
Cinema system, we recommend you read carefully the following set up instructions.

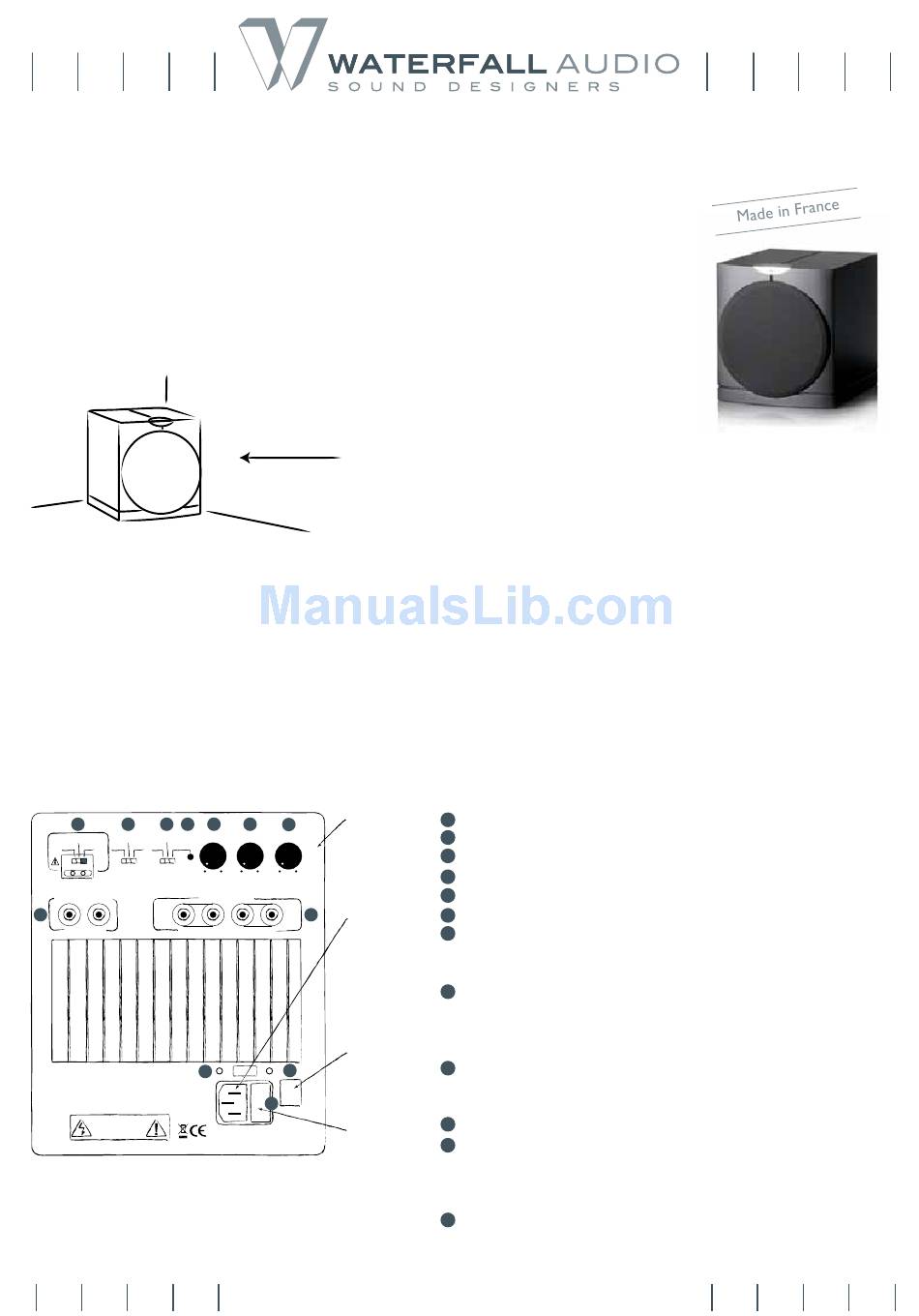

A) Functions & Set up of HF1 Evo's Amplifier
Warning :
Check the mains voltage selector (N°1) position (115V/230V) and use the correct voltage for your country before connecting the
mains plug. Changing the fuse : In the event of complete failure, first disconnect the powers cable from the mains, then check the
mains fuse. When replacing the fuse, only use a fuse which is absolutely identical to the original one. If this does not solve the
problem, contact your dealer.
• Only the subwoofer is to be connected to the mains supply. Never plug your speakers directly into the main power supply.
• Before proceeding with any connection, make sure that all your equipment is switched off.
• Before switching it on, please ensure that the "level" button (N°4) is on minimum.
• Your Waterfall Speakers are to be directly connected to the speaker output socket on your amplifier or A/VProcessor.
• Also ensure that the polarities are correct : + (red) and - (black).
• Do not expose this product to heat and humidity.
10 9 8 7
VENTED
AUTO
12dB
OFF
FULL CLOSED LFE 24dB ON
40
LOW LEVEL INPUT HI-LEVEL INPUT
11
L R + L
S
1
120
®
ATOHM
DO NOT OPEN / NE PAS OUVRIR
RISK OF ELECTRIC SHOCK
DANGER D'ELECTROCUTION
DESIGNED IN FRANCE / TECHNOLOGIE FRANÇAISE
The subwoofer MUST be connected to the mains with the
enclosed connector cord. The main switch has to be on "on"
position and the (N°8) switch "on-auto-off" in the "auto"
position. Your HF1 Evo Subwoofer is equipped with a wide range
of connection options for Hi Fi or Audi Video, Home Cinema.
High Force 1 Evo
In order to achieve the best acoustical performance, the HF1 Evo,
ideally has to be positioned near an angle/corner in the room.
Control panel
6 5 4
FREQ PHASE LEVEL
150 0° 180° 0 MAX
Hz
Mains cord
12
(supplied)
- - R +
Main power
switch
3
(on - off)
I ON
O
2 OFF
115V/60Hz T 2AL Fuse
230V/50Hz T 1AL
200 WATTS
www.waterfallaudio.com
Mains voltage selector (115V/230V)
1
Fuse
2
3 Main power switch (on - off)
Level : Volume adjustment of the integrated amplifier.
4
Phase : Alows you to adjust phase from 0 to 180°.
5
Freq : Adjustment of the frequency cut off, from 40 to 150Hz.
6
PRT : Standby LED indicates unit in standby mode with power
7
connected. When the Sub is activated this standby LED is off and
the Logo LED lights up. Flashes in case of default.
On – Auto – Off : Recommended Setting should be : "Auto", so
8
when not in use for a while, amplifier goes back into standby, if
"On" position is used, this means the amplifier will continuously
be on, and will not go into standby.
24-12-LFE : Switching of the active filter of the Sub. The choice of
9
24Db per octave or 12Db per octave is to be determined through
listening and personal choice.
Factory settings. DO NOT CHANGE
10
Low Level Input/Output : The "audio" signals are transmitted by a
11
cinch cable (supplied by our retailer) linking the "subwoofer
Pre-out" of the processor to one of the "Line in" of the Sub,
(either white or red entry).
"High Level Input" : To be used only with conventional
12
stereo amplifiers.
