User's Manual
Subwoofer
We thank you very much for purchasing a Waterfall High Force Subwoofer. Our deliberate
choice for aesthetics and performance is constantly guiding our research and development
towards innovative technologies. In order to achieve the best performance with your Home
Cinema system, we recommend you read carefully the following set up instructions.

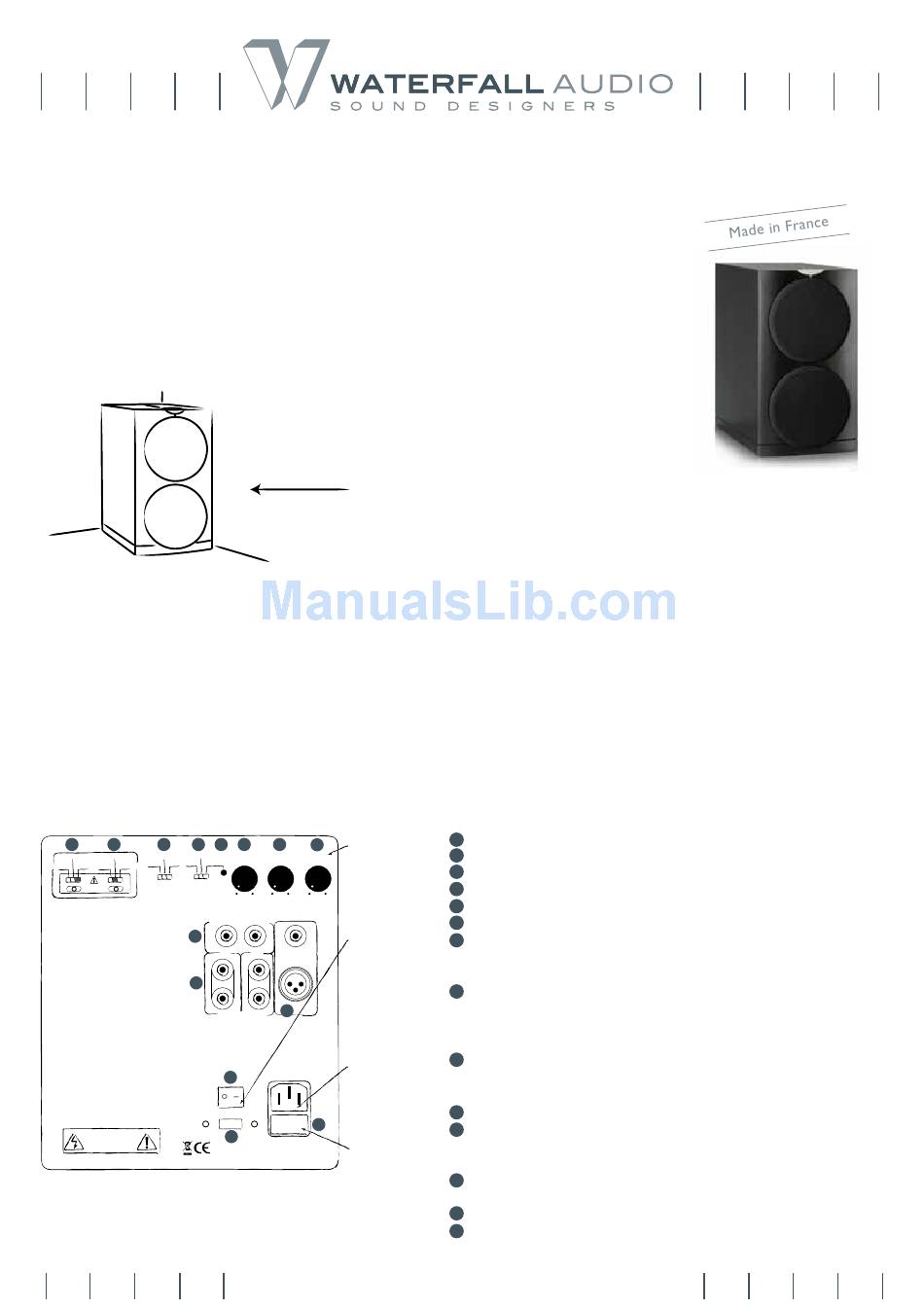

A) Functions & Set up of HF3 IP's Amplifier
Warning :
Check the mains voltage selector (N°1) position (115V/230V) and use the correct voltage for your country before connecting the
mains plug. Changing the fuse : In the event of complete failure, first disconnect the powers cable from the mains, then check the
mains fuse. When replacing the fuse, only use a fuse which is absolutely identical to the original one. If this does not solve the
problem, contact your dealer.
• Only the subwoofer is to be connected to the mains supply. Never plug your speakers directly into the main power supply.
• Before proceeding with any connection, make sure that all your equipment is switched off.
• Before switching it on, please ensure that the "level" button (N°4) is on minimum.
• Your Waterfall Speakers are to be directly connected to the speaker output socket on your amplifier or A/VProcessor.
• Also ensure that the polarities are correct : + ( red ) and - ( black ).
• Do not expose this product to heat and humidity.
13 10 9 8
AUTO
12dB
DIRECT 1 VENTED
ON OFF
LFE 24dB
SUB CLOSED
DIRECT FULL
11
12
S
300
®
ATOHM
OFF
DO NOT OPEN / NE PAS OUVRIR
RISK OF ELECTRIC SHOCK
DANGER D'ELECTROCUTION 115V/60Hz 360W
230V/50Hz T 360W
DESIGNED IN FRANCE / TECHNOLOGIE FRANÇAISE
The subwoofer MUST be connected to the mains with the
enclosed connector cord. The main switch has to be on "on"
position and the (N°8) switch "on-auto-off" in the "auto"
position. Your HF3 IP Subwoofer is equipped with a wide range
of connection options for Hi Fi or Audi Video, Home Cinema.
High Force 3 Ice Power
In order to achieve the best acoustical performance, the HF3 IP Evo,
ideally has to be positioned near an angle/corner in the room.
7 6 5 4
Control panel
FREQ PHASE LEVEL
40 150 0° 180° 0 MAX
Hz
LOW LEVEL INPUT
Mains cord
(supplied)
DIRECT 1
L R
DIRECT 2
+
-
14
HI-LEVEL INPUT
SUBWOOFER
Main power
3
switch
(on - off)
ON
2
1
Fuse
115V : FUSE T3.15AL
230V : FUSE T1.60AL
www.waterfallaudio.com
Mains voltage selector (115V/230V)
1
2 Fuse
3 Main power switch (on - off)
4 Level : Volume adjustment of the integrated amplifier.
5 Phase : Alows you to adjust phase from 0 to 180°.
6
Freq : Adjustment of the frequency cut off, from 40 to 150Hz.
7 PRT : Standby LED indicates unit in standby mode with power connec-
ted. When the Sub is activated this standby LED is off and the Logo LED
lights up. Flashes in case of default.
8 On – Auto – Off : Recommended Setting should be : "Auto", so when
not in use for a while, amplifier goes back into standby, if "On" position
is used, this means the amplifier will continuously be on, and will not go
into standby.
9 24-12-LFE : Switching of the active filter of the Sub. The choice of 24Db
per octave or 12Db per octave is to be determined through listening
and personal choice.
Factory settings. DO NOT CHANGE.
10
Low Level Input/Output : The "audio" signals are transmitted by a cinch
11
cable (supplied by our retailer) linking the "subwoofer Pre-out" of the
processor to one of the "Line in" of the Sub, (either white or red entry).
"High Level Input" : To be used only with conventional
12
stereo amplifiers.
13
Input selector (for specific set up).
Connections for specific use.
