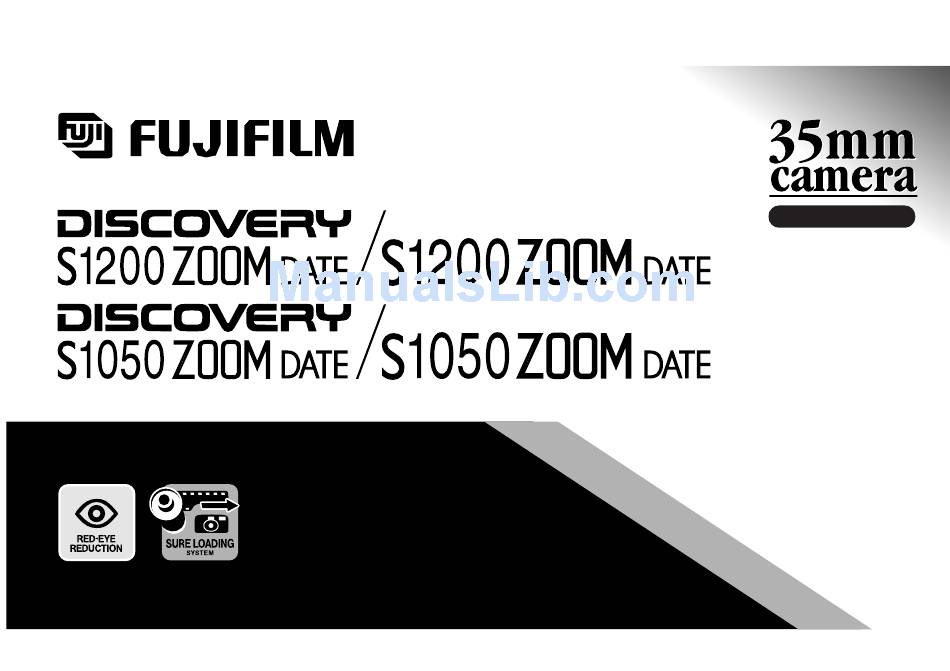

- Page 1 ENGLISH OWNER S MANUAL...
-
Page 2: Table Of Contents
CONTENTS FEATURES ................2 TROUBLE SHOOTING ............41 PART NAMES ................3 COMMON SENSE CAMERA CARE ........43 SPECIFICATIONS ..............44 1. PRELIMINARY STEPS ATTACHING THE STRAP ............7 FEATURES LOADING THE BATTERY ............8 • Fujinon 38-120mm Auto Focus Zoom Lens (for DISCOVERY TURNING ON YOUR CAMERA .......... -
Page 3: Part Names
PART NAMES 1 AF (Autofocus) Window 2 Liquid Crystal Display 3 Shutter Release Button (→p.36,38,10) (→p.10,13) 4 AE Light Sensor 5 Strap Lug (→p.6) 6 Red-eye Reduction Lamp (→p.30) 7 DATE Button 8 Self-timer/Remote Con- (→p.22) (→p.29) trol/Date Set Button 9 MODE Button 0 Mid-Roll Rewind Button (→p.23,30) - Page 4 1 AF (Autofocus) Window 2 Liquid Crystal Display 3 Shutter Release Button 4 AE Light Sensor (→p.36,38,10) (→p.10,13) 5 Strap Lug 6 Red-eye Reduction Lamp 7 DATE Button 8 Self-timer/Remote Con- (→p.30) (→p.6) trol/Date Set Button (→p.29) 9 MODE Button (→p.22) 0 Mid-Roll Rewind Button A Flash...
- Page 5 F AF Lamp (green) (→p.22) (→p.9) G Viewfinder Eye-piece H Film Confirmation Window (→p.18) I Camera Back Lock (→p.21) J Power Button K Zoom Button L Battery Compar tment (→p.14) Cover (→p.8) M Camera Back N Tripod Socket (→p.14,28) (→p.14,28)
- Page 6 Fill-in Flash Mode/ Liquid Crystal Display Flash off Mode/ Flash Charging (→p.34) P Red-eye Reduction Flash Mode (→p.35) (→p.33,34,22) Q Remote-Control Mode R Date Display S Landscape Mode T Night Portrait (Slow Sync) (→p.32) Mode (→p.36) U Self-Timer Mode (→p.38) V Exposure Counter/Self- timer Count W Battery Status...
-
Page 7: Preliminary Steps
1. PRELIMINARY STEPS ATTACHING THE STRAP Slip the thin cord on the carrying strap through the strap lug on the side of the camera leaving a loop. Slide the thick part of the strap through this loop and pull tight. Take up any slack to make sure the strap is securely attached to the camera. Do not use a strap made for cellular phones or similar electronic products. -
Page 8: Loading The Battery
LOADING THE BATTERY Your camera uses one 3V lithium battery CR123A/DL 123A or the equivalent. To load the battery. 1 Open the battery compartment cover by inserting a small tool into the cover slot. 2 Insert the battery following instructions in the diagram on the inside of the battery cover paying particular attention to the position of the , and . -
Page 9: Turning On Your Camera
TURNING ON YOUR CAMERA To prepare to use your camera, first press the power supply button to turn on the power. Pressing the button once more turns the power off. ∗ When you turn your camera on, the lens cover will open and the initial display will appear in the LCD. -
Page 10: Setting The Date (Year-Month-Day/Hour-Minute)
SETTING THE DATE (YEAR-MONTH-DAY/HOUR-MINUTE) Your camera can imprint the date or the time on your picture when you make your exposure. To set your camera for imprinting, first turn on the power and then hold down the DATE button for at least 2 seconds or longer. The year signal will blink and the camera will enter the date/time setting mode. - Page 11 To cancel the date/time setting mode, press the DATE button after changing the minutes. To set the time (hour or minute) by the radio, press in the DATE button when the time signal indicates zero. ∗ The year, month, and day will change together with the hour and minute.
-
Page 12: Selecting The Date Mode
SELECTING THE DATE MODE The date and time (year-month-day/ hour-minute) will be imprinted at the lower right of the photograph. ∗ The date display printed on the front of the picture may not be clearly visible against a dark background. - Page 13 Turn your camera on and then press the DATE button to select the desired date mode. The date and time will be printed based on the mode you select. Y : Year M : Month D : Day T : Time The date/time mode changes in the order shown in the illustration.
-
Page 14: Using Your Camera
2. USING YOUR CAMERA LOADING THE CAMERA Almost all 35mm films that your camera uses will have a DX coding symbol on the film box and on the film cassette itself. Information you will see includes: : Number of Exposures : DX Code symbol : Film Speed (sensitivity to light or ISO rating) •... - Page 15 Insert the roll of film. : FILM TIP mark Pull the end of the film leader out as far as film tip mark. ∗ If you pull the film too far out of the canister, remove the film and adjust the length.
- Page 16 Make sure the end of the film is threaded onto the spool.
- Page 17 Close the camera back. The film advances automatically. Prewinding finishes in about 20 seconds (with 24-exposure film). ∗ The type, number of exposures, and speed of the film that has been loaded may be checked with the film check window. This camera counts the frames starting at the highest number.
-
Page 18: Using Your Finder
USING YOUR FINDER The finder of your camera provides the control you need to take better, more inter- esting pictures. The finder includes: A : Framing Area Compose your picture within these framelines. B : AF (auto-focus) frame For sharp focus, position this frame over the main subject being photographed. C : Close-up Frame Use this when photographing subjects closer than 1.5 m (4.9 ft.) from your camera. - Page 19 With the close-up picture A : Viewfinder B : Print finishing C : Parallax correction mark When photographing a subject closer than about 1.5 m (4.9 ft.), the area shown in the diagram at left will be printed. When taking close ups, the area seen through the viewfinder and the area actually photographed will be different.
-
Page 20: Using Your Camera
USING YOUR CAMERA Turn the camera on and hold it firmly using both hands as shown in the illustration. When taking vertical pictures, hold the camera with the flash unit at the top. Before taking important, once-in-a-lifetime pictures such as weddings or special events, take a few test shots to make sure your camera is functioning correctly. - Page 21 To use the zoom lens, press the mark until you get the composition you want in the finder. Pressing the mark will set the lens at the shorter focal lengths to obtain wide-angle effects. ∗ The focusing range for sharp pictures is from 0.9 m (3.0 ft.) to infinity. Aim at your subject so that it is covered by the whole AF frame.
- Page 22 Press down the shutter release halfway. Focusing is complete when the AF lamp (green) lights up. ∗ If you are closer than 90 cm (35 in.) to the subject, the AF lamp will start blinking to warn that the subject cannot be focused. Note that if you are closer than 35 cm (14 in.) to the subject, the AF lamp turns on but the subject cannot be focused.
- Page 23 Under low light when flash must be used, the following chart gives you the effective flash range for correct exposures for films of various speeds. Note that high-speed film (ISO 400/800) extends your flash range significantly. Effective flash range Effective flash range Film speed Wide angle (38 mm) Telephoto (120 mm)
- Page 24 Under certain unusual conditions, the camera’s autofocus system may not be able to function accurately. At these times, you should use the “Autofocus Lock” setting or the “Landscape Mode” setting (→p.25,34). Conditions which may require these settings include: A bright light source with the picture area such as the sun near your subject or a strong reflection from water or the windshield of a vehicle; A mirror or other strongly reflective surface near the center of your picture;...
-
Page 25: Using The Auto-Focus Lock
USING THE AUTO-FOCUS LOCK In the composition shown at left, the AF frame is off the subject (in this case, the people). In this case the lens will not focus on the subject. Move the camera to position the AF frame over the subject. - Page 26 With the AF frame positioned over the subject, press down the shutter release but- ton halfway to set the auto-focus lock. Check that the AF lamp (green) lights up. While holding the shutter release button halfway down to keep the Auto-Focus lock on, move the camera back to the original position to recompose your picture, then press the shutter release button all the way down.
-
Page 27: Unloading The Film Or Removing Film In Mid-Roll
UNLOADING THE FILM OR REMOVING FILM IN MID-ROLL To Unload the Film After the last frame on a roll of film has been exposed, the film is automatically rewound. ∗ If the camera back should accidentally open during shooting, do not remove the film. Instead, close the back and leave your film as is. - Page 28 1 Slide the camera back lock in the direction indicated by the arrow. 2 Open the camera back in the direction indicated by the arrow. ∗ Do not apply unnecessary force to the camera back. Remove the film.
- Page 29 Removing film in mid-roll Press the button with the point of a pen or something similar, and remove the film. When rewinding is complete, the exposure counter will read “ ”. ∗ Do not press the button with any object that tapers to a sharp point. Film cannot be reused once it has been rewound.
-
Page 30: Advanced Techniques
3. ADVANCED TECHNIQUES SELECTING THE EXPOSURE MODE Your camera offers six exposure modes to give you successful pictures under a wide range of photographic situations with various subjects. These modes are: ) Automatic flash for low light situations ) Red-eye reduction flash for more pleasing pictures of people ) Back light compensation flash mode ) Flash-off mode for natural light pictures ) Landscape mode for pictures of distant subjects... - Page 31 Each push of the MODE button changes the exposure mode in the following order: → → → → →...
- Page 32 : no display) Automatic flash at low brightness mode Used for general photography. The flash lamp fires automatically when the brightness of the subject is lower than the predetermined level. ) Red-eye reduction flash mode Reduce red-eye. The red-eye reduction lamp turns on for about 1 second, then the camera takes a picture when the flash fires.
- Page 33 Dealing with red-eye When you photograph a person in dim light using flash, the pupil of the eye will sometimes appear red. Under low light, the pupils of the eye dilate for better vision. Red-eye is caused by light from the flash entering the dilated pupils and being reflected back to the lens. Red-eye reduction causes a preliminary flash to fire before the actual picture is taken.
- Page 34 ) Flash off mode Used when taking pictures with normal room lighting being utilized, or taking pictures of remote subjects beyond the range of the flash, for example, in a theater or a stadium. The flash stops firing. ∗ When taking pictures under low light, use a tripod whenever possible to avoid unsharp pictures resulting from camera shake.
- Page 35 ) Night portrait (slow sync) mode Used when taking portraits to record the background in a night scene. The slow shutter speed/red-eye reduction flash mode can be used to make sure that both people and nighttime background scenery are photographed clearly. (Af- ter the red-eye reduction lamp has blinked for about 1 seconds, the flash fires.) ∗...
-
Page 36: Using The Self-Timer
USING THE SELF-TIMER Press the button. The self-timer can be used to take up to 3 consecutive exposures. Each press of the button changes the self-timer mode in the following order: → → → ∗ “ ” indicates the remote controller mode (→p.38). 1 Position the AF frame over the main subject, and then compose the image within the framing area. - Page 37 After the self-timer lamp remains lit for about 7 seconds, it blinks for about 3 sec- onds, and then the shutter is released. When taking consecutive exposures, the shutter is released the set number of times at an interval of between 3 and 6 sec- onds.
-
Page 38: Using The Remote Controller
USING THE REMOTE CONTROLLER A remote controller of the proper type is required. Remove the remote controller from its holder by sliding it in the direction of the arrow. A : Remote controller holder B : Transmitter C : Shutter release button ∗... - Page 39 Aim the AF Frame at your subject and compose your picture. 1 Point the remote controller toward the camera’s remote controller sensor, and then press the remote controller’s shutter release button. 2 After the self-timer/remote controller lamp blinks for about 2 seconds, the shutter is released.
- Page 40 The coverage of the remote controller is up to about 5 m (16.4 ft.) when used di- rectly in front of the camera, and up to about 3.5 m (11.5 ft.) when used at a vertical or horizontal angle of 20°. ∗...
-
Page 41: Trouble Shooting
TROUBLE SHOOTING During operation Problems Possible Causes Solutions Page 1 “ 1 Replace the battery with a new one. The shutter release ” symbol is blinking. won’t trip. 2 Power switch is not on. 2 Press the POWER button. 3 “ ”... - Page 42 Printed pictures Problems Possible Causes Solutions Page Picture is not sharp. 1 Was your finger on the AF windows 1 When shooting a picture, hold your camera cor- when shooting? rectly so that your finger is not on the AF windows. 2 Did you aim the subject properly? 2 Compose the picture in the AF frame and shoot, or shoot using AF Lock.
-
Page 43: Common Sense Camera Care
COMMON SENSE CAMERA CARE It is recommended that undeveloped film and cameras con- Although your camera is designed for many years of service, taining film be carried as hand luggage when flying. If included it is a precision instrument and requires thoughtful handling. in checked-in baggage, X-ray inspections may cause over- In particular, avoid exposing it to shock, moisture or physical printing or other effects. -
Page 44: Specifications
SPECIFICATIONS • • Film Film Speed Setting 135 (35 mm) DX roll film Automatic (DX roll film) for speeds from ISO 50 – 3200 • • Picture Size Film Loading 24 mm × 36 mm Sure-loading system (Easy loading and pre-winding) •... - Page 45 • Power Supply One CR123A/DL 123A lithium battery or comparable battery • Others Tripod socket, Remote controller compatible. • Dimensions & Weight 121.5 × 69.0 × 57.5 mm/4.8 × 2.7 × 2.3 in. (main unit), 230 g/8.1 oz. (without battery) ∗...
- Page 46 SPECIFICATIONS • • Film Film Speed Setting 135 (35 mm) DX roll film Automatic (DX roll film) for speeds from ISO 50 – 3200 • • Picture Size Film Loading 24 mm × 36 mm Sure-loading system (Easy loading and pre-winding) •...
- Page 47 • Others Tripod socket, Remote controller compatible. • Dimensions & Weight 121.5 × 69.0 × 57.5 mm/4.8 × 2.7 × 2.3 in. (main unit), 230 g/8.1 oz. (without battery) ∗ Specifications are subject to change without notice.
- Page 48 SPECIFICATIONS DISCOVERY S1200 ZOOM DATE DISCOVERY S1050 ZOOM DATE S1200 ZOOM DATE S1050 ZOOM DATE Film 135 (35mm) DX roll film 24mm × 36mm Picture Size Lens Fujinon lens, 5 components, 5 elements, f=38-120mm 1:6.7-1:12.7 f=38-105mm 1:6.7-1:11.5 Viewfinder Real image zoom finder, 0.41-1.13 ×...
- Page 49 DISCOVERY S1200 ZOOM DATE DISCOVERY S1050 ZOOM DATE S1200 ZOOM DATE S1050 ZOOM DATE Flash Range Film speed Wide angle(38mm) Telephoto(120mm) Film speed Wide angle(38mm) Telephoto(105mm) ISO100 0.9-2.8 m 0.9-2.0 m ISO100 0.9-2.8 m 0.9-2.2 m 3.0-9.2 ft. 3.0-6.6 ft.
