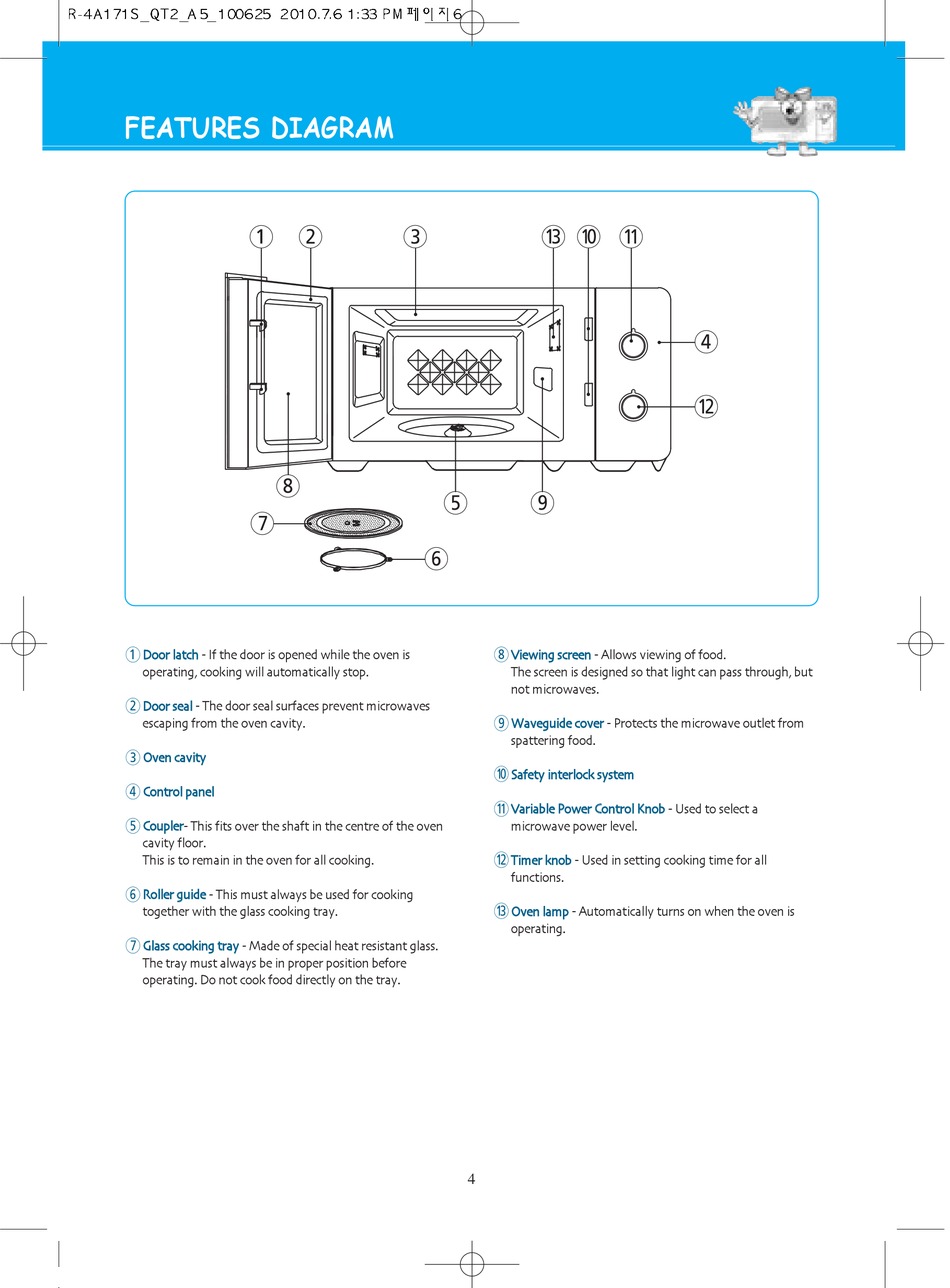

FEATURES DIAGRAM

1 2
8
7
1 Door l l atch
If the door is opened while the oven is
operating cooking will automatically stop
2 Door s s eal
The door seal surfaces prevent microwaves
escaping from the oven cavity
3 Oven c c avity
4 Control p p anel
5 Coupler
This fits over the shaft in the centre of the oven
cavity floor
This is to remain in the oven for all cooking
6 Roller g g uide
This must always be used for cooking
together with the glass cooking tray
7 Glass c c ooking t t ray
Made of special heat resistant glass
The tray must always be in proper position before
operating Do not cook food directly on the tray
3 e 0 q
5 9
6
8 Viewing s s creen
The screen is designed so that light can pass through but
not microwaves
9 Waveguide c c over
spattering food
0 Safety i i nterlock s s ystem
q Variable P P ower C C ontrol K K nob
microwave power level
w Timer k k nob
functions
e Oven l l amp
Automatically turns on when the oven is
operating
4
4
w
Allows viewing of food
Protects the microwave outlet from
Used to select a
Used in setting cooking time for all
