Page 1: User Manual

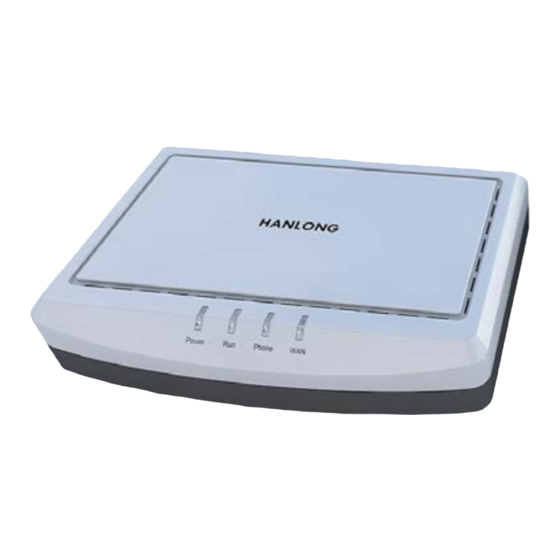

User Manual Unicorn 3001 Analog Telephone Adaptor Hanlong Technology Co., Ltd http://www.hanlongtek.com Copyright © 2008 Hanlong Technology Co., Ltd Page 1 of 26... -
Page 2: Table Of Contents
Configuration through a Central Server ..........25 SOFTWARE UPGRADE .................... 25 RESTORE FACTORY DEFAULT SETTINGS............26 TECHNICAL SUPPORT CONTACT ................26 WELCOME Unicorn 3001 is an all-in-one VoIP integrated access device that features superb audio Copyright © 2008 Hanlong Technology Co., Ltd Page 2 of 26... -
Page 3: What Is In The Package
Unicorn 3001 User Manual quality, rich functionalities, high level of integration, compactness and ultra-affordability. The Unicorn 3001 is fully compatible with SIP industry standard and can interoperate with many other SIP compliant devices and software on the market. Special compatibility features include: Nortel MCS... -
Page 4: Hardware Specification
10 - 90% INSTALLATIONS The Unicorn 3001 is an all-in-one VoIP integrated device designed to be a total solution for networks providing VoIP services. The Unicorn 3001 VoIP features are available when you connect any regular analog telephone to it. -
Page 5: Safety
Following are the steps to install a Unicorn 3001: Connect a standard touch-tone analog telephone to the “Phone” port. Insert Ethernet cable into the WAN port of Unicorn 3001 and connect the other end of the Ethernet cable to an uplink port (a router, switch, hub, modem, etc) Insert the powers supply (included with package) into the Unicorn 3001 and connect it to... -
Page 6: Basic Operations
BASIC OPERATIONS Get Familiar with Voice Unicorn 3001 has stored a voice prompt menu for quick access to settings and simple configuration. You can enter this voice prompt menu one ways Pick up the receiver (or press the Handsfree button) of the analog telephone and press “***”... -
Page 7: Make Phone Call
IP address. Once all of the digits are collected, the input will be processed. Incorrect keyed entry cannot be deleted or undone. The Unicorn 3001 will prompt you to start over by telling you that you made an error. -
Page 8: Direct Ip-To-Ip Calls
Timeout”). Or Dial the number directly, and press # (assuming that “Use # as Dial Key” is set to “YES” during web configuration of your Unicorn 3001). Other functions available during the call are call-waiting/flash, call-transfer, and call- forward. Your SIP gatekeeper/proxy server needs to support these features in order for them to work. -
Page 9: Attended Transfer
Party A can hang Note: When Attended Transfer failed and if party A hangs up, the Unicorn 3001 will ring party A again to remind party A that party B is still on the call, by pressing FLASH or Hook again will restore the conversation between party A and party B. -
Page 10: Call Features
When in conversation without an incoming call, this action will switch to a new channel to make a new call. Status Light Indicator Following tables show the Unicorn 3001 button light pattern indication. Power Indicates Power. Remains ON when power is connected Copyright ©... -
Page 11: Configuration Guide
CONFIGURATION GUIDE Configuring Unicorn 3001 using Web Browser Unicorn 3001 has embedded Web server and HTML pages that allow users to configure the Unicorn 3001 through an easy-to-use Web browser interface such as Microsoft’s Internet Explorer or Netscape browser. Below is a screen shot of the Unicorn 3001 configuration page: 6.1.1... -
Page 12: User Programming And Configuration
End User Password for access to Basic User Options: 6.1.4 Configuration Options and Explanations After a correct password is entered in the login screen, the embedded web server inside the Unicorn 3001 will show the configuration page, which is explained in details below: 6.1.4.1 Device Status DEVICE STATUS... -
Page 13: Basic Options Settings
Static IP mode are not used (even though they are still saved in the Flash memory.) set the PPPoE account settings. The Unicorn 3001 will establish a PPPoE session if any of the PPPoE fields is IP Address set. - Page 14 Unicorn 3001 User Manual This parameter controls how the displayed date/time will Time Zone be adjusted according to the specified time zone. This parameter controls whether the displayed time will Daylight Savings Time be daylight savings time or not. If set to Yes, then the displayed time will be 1 hour ahead of normal time.
-
Page 15: Super Options Setting
Provisioning This parameter defines the URI or IP address of the NTP NTP Server server which is used by the Unicorn 3001 to display the current date/time. Lock Keypad Update If this parameter is set to Yes, the configuration Copyright ©... - Page 16 Unicorn 3001 User Manual update .via. keypad is disabled. Disable Voice Prompt Default is NO. Default is blank, the feature is useful for the Internet Syslog Server Telephone Service Provider. SUPER OPTIONS Setting options Meaning Default is blank, the feature is useful for the Internet Syslog Level Telephone Service Provider.
-
Page 17: Fxs Port
Default is No. If set to Yes the client will use DNS SRV Use DNS SRV for server lookup If the Unicorn 3001 has an assigned PSTN telephone User phone number, this field should be set to “Yes”. Otherwise, set number it to No. - Page 18 3001 will listen and transmit. The default value for FXS port is 5060. This parameter defines the local RTP-RTCP port pair the Unicorn 3001 will listen and transmit. It is the base RTP port for channel 0. When configured, channel 0 will Local RTP port use this port _value for RTP and the port_value+1 for its RTCP;...
- Page 19 Please note that only the user part of a SIP Offhook Auto-Dial address needs to be entered here. The Unicorn 3001 will automatically append the “@” and the host portion of the corresponding SIP address.
- Page 20 Unicorn 3001 User Manual a preference list that will be included with the same preference order in SDP message. The first Vocoder is entered by choosing the appropriate option in “Choice 1”. The last Vocoder is entered by choosing the appropriate option in “Choice 8”.
- Page 21 Unicorn 3001 User Manual Tone Detection Default is Callee. This decides whether Caller or Callee Mode sends out the re INVITE for T.38 or Fax Pass Through. Select either Fixed or Adaptive based on network Jitter Buffer Type conditions. Select Low, Medium or High based on network Jitter Buffer Length conditions.
- Page 22 Unicorn 3001 User Manual 011[2-9]x. | [3469]11 } Explanation of example rule (reading from left to right): ^1900x. - prevents dialing any number started with 1900 <=1617>[2-9]xxxxxx - allows dialing to local area code (617) numbers by dialing 7 numbers and 1617 area code...
- Page 23 Unicorn 3001 User Manual Option Meaning If this parameter is set to Yes, the “From” header in Send Anonymous outgoing INVITE message will be set to anonymous, essentially blocking the Caller ID from displaying. Anonymous Call Default is NO, if set to YES, the anonymous call will be Rejection rejected with busy message.
-
Page 24: Saving The Configuration Changes
6.1.6 Rebooting the Unicorn 3001 You can reboot the Unicorn 3001 by clicking on the “Reboot” button after each update to the configuration page. Alternatively, you can reboot by unplugging the power supply of the Unicorn 3001 and then powering it on again. If your Unicorn 3001 ever becomes “stuck”... -
Page 25: Static Ip Mode
Unicorn 3001 User Manual 6.2.2 Static IP Mode Follow section 5.1 with voice menu option 01 to enable Unicorn 3001 to use STATIC IP mode, then use option 02, 03, 04 to set up Unicorn 3001’s IP, Subnet Mask, Gateway respectively. -
Page 26: Restore Factory Default Settings
“cfg.txt” and the other is “cfg001fc1xxxxxx”, where “001fc1xxxxxx” is the MAC address of the Unicorn 3001. These two files are for initial automatically provisioning purpose only, for normal TFTP or HTTP firmware upgrade, the following error messages in a TFTP or HTTP server log can be ignored.
