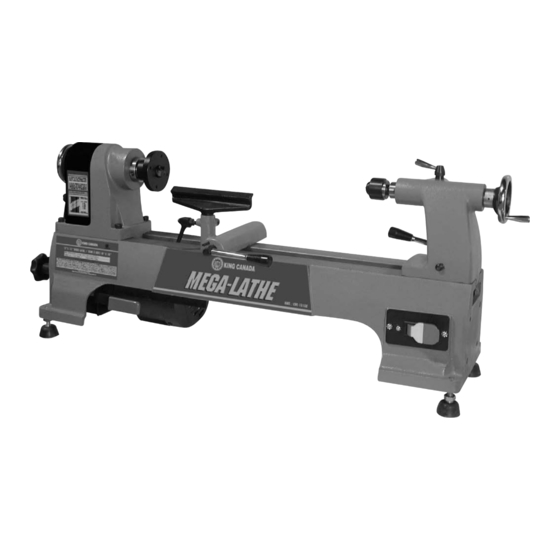

- Page 1 10” X 16” WOOD LATHE MODEL: KWL-1016C INSTRUCTION MANUAL COPYRIGHT © 2003 ALL RIGHTS RESERVED BY KING CANADA TOOLS INC.
- Page 2 Warranty does not apply to defects due directly or indirectly to misuse, abuse, negligence or accidents, repairs or alterations and lack of maintenance. KING CANADA shall in no event be liable for death, injuries to persons or property or for incidental, special or consequential damages arising from the use of our products.
-
Page 3: General Safety Instructions For Power Tools
GENERAL SAFETY INSTRUCTIONS FOR POWER TOOLS 1. KNOW YOUR TOOL 12. ALWAYS WEAR SAFETY GLASSES. Read and understand the owners manual and labels affixed to Always wear safety glasses (ANSI Z87.1). Everyday the tool. Learn its application and limitations as well as its eyeglasses only have impact resistant lenses, thet are NOT specific potential hazards. -
Page 4: Getting To Know Your Wood Lathe
GETTING TO KNOW YOUR WOOD LATHE KWL-1016C SPECIFICATIONS VOLTAGE ......................................120V HORSEPOWER ..................................1/2 HP AMPS ........................................6A MOTOR R.P.M....................................1720 HZ ........................................60 PHASE ........................................1 SWING OVER BED....................................10” SWING OVER BASE ..................................7-1/2” DISTANCE BETWEEN CENTERS ..............................16” SPINDLE SIZE AND THREAD ..............................1” X 8 TPI SPINDLE SPEEDS ......................6 (480, 1270, 1960, 2730, 3327, 4023 RPM) -
Page 5: Electrical Connections
ELECTRICAL CONNECTIONS PLUGGING IN & TURNING ON/OFF WARNING! ALL ELECTRICAL CONNECTIONS MUST BE DONE BY A QUALIFIED ELECTRICIAN. FAILURE TO COMPLY MAY RESULT IN SERIOUS INJURY! ALL ADJUSTMENTS OR REPAIRS MUST BE DONE WITH THE MACHINE DISCONNECTED FROM THE POWER SOURCE. FAILURE TO COMPLY MAY RESULT IN SERIOUS INJURY! POWER SUPPLY PROPERLY GROUNDED OUTLET... - Page 6 ADJUSTMENTS & OPERATION MOUNTING 3” FACEPLATE Warning! Unplug wood lathe before attempting to mount or remove faceplate. Your wood lathe comes with a standard 3” faceplate (A) Fig.6. This faceplate allows you to fasten your workpiece to the spindle when it is impossible to fix the workpiece inbetween two centers.
-
Page 7: Tailstock Adjustments
ADJUSTMENTS & OPERATION TAILSTOCK ADJUSTMENTS Before moving tailstock, make sure the bedway has been lubricated with paste wax or Spray Coat Dry film lubricant (King accessory model: KM-040). The tailstock (A) Fig.10 is moved along the lathe bedway to support the other end of your workpiece using a live center (B).
