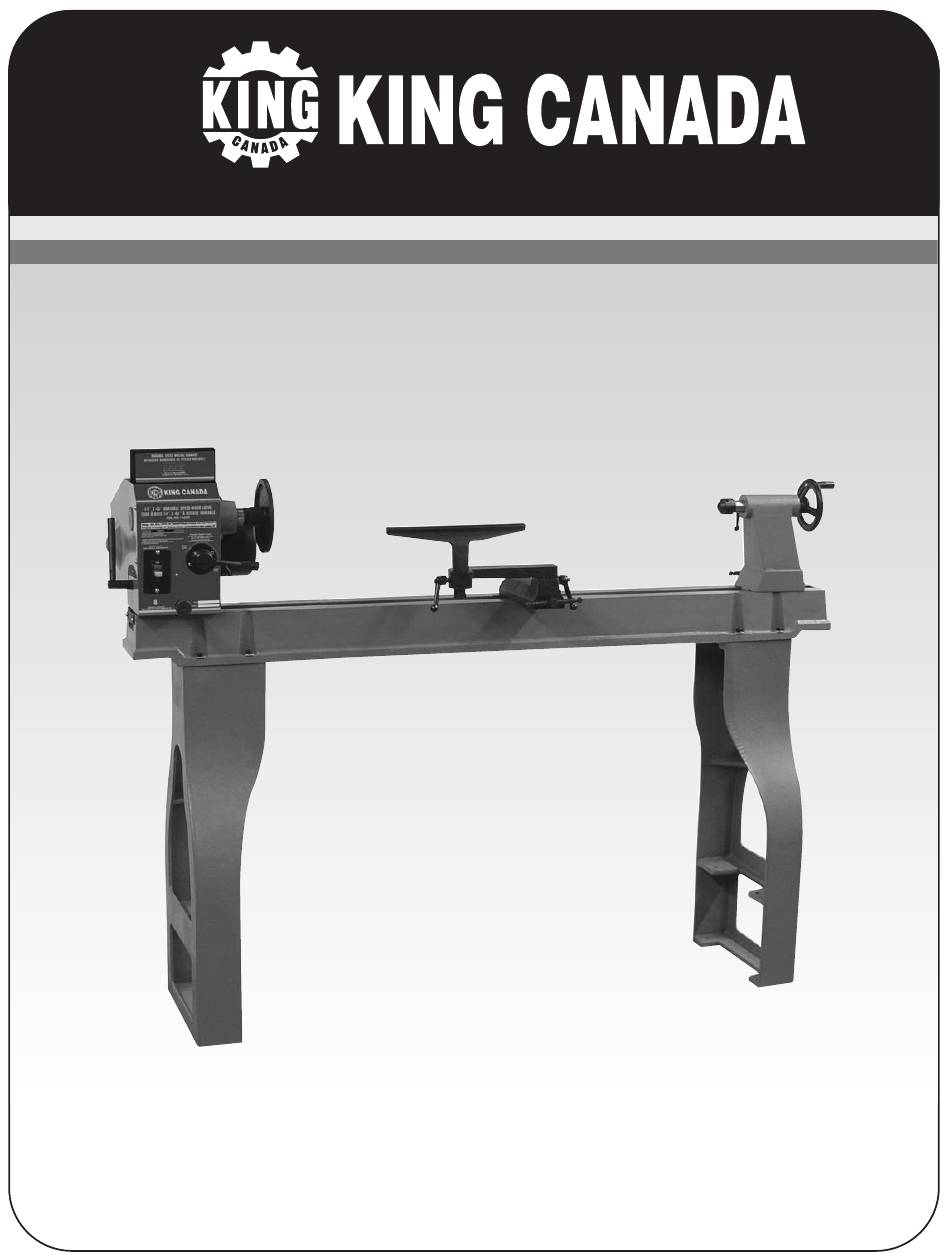

- Page 1 14” X 43” VARIABLE SPEED WOOD LATHE WITH DIGITAL READOUT MODEL: KWL-1443VS INSTRUCTION MANUAL COPYRIGHT © 2009 ALL RIGHTS RESERVED BY KING CANADA TOOLS INC.
-
Page 2: Warranty Information
LIMITED TOOL WARRANTY King Canada makes every effort to ensure that this product meets high quality and durability standards. King Canada warrants to the original retail consumer a 2-year limited warranty as of the date the product was purchased at retail and that each product is free from defects in materials. - Page 3 GENERAL & SPECIFIC SAFETY RULES 1. KNOW YOUR TOOL watch) because they could get caught in moving parts. Non-slip Read and understand the owners manual and labels affixed to the footwear is recommended. Wear protective hair covering to tool. Learn its application and limitations as well as its specific contain long hair.
-
Page 4: Getting To Know Your Wood Lathe
13) Supporting arm lock handle 14) Tool rest base locking lever 15) Tool rest locking handle 16) Wood lathe stand 17) Headstock swivel pin 14” X 43” Wood Lathe Specifications MODEL KWL-1443VS Swing 14-1/2” Distance between centres 43” Spindle size 1” x 8 T.P.I Spindle bore 3/8”... -
Page 5: Electrical Information
ELECTRICAL INFORMATION WARNING! ALL ELECTRICAL CONNECTIONS MUST BE DONE BY A QUALIFIED ELECTRICIAN. FAILURE TO COMPLY MAY RESULT IN SERIOUS INJURY! ALL ADJUSTMENTS OR REPAIRS MUST BE DONE WITH THE MACHINE DISCONNECTED FROM THE POWER SOURCE. FAILURE TO COMPLY MAY RESULT IN SERIOUS INJURY! POWER SUPPLY PROPERLY GROUNDED OUTLET WARNING!: YOUR WOOD LATHE MUST BE CONNECTED TO A 120V, 15-AMP,... - Page 6 ASSEMBLY WARNING! IF ANY PART IS MISSING OR DAMAGED, DO NOT PLUG THE WOOD LATHE IN UNTIL YOU HAVE REPLACED THE MISSING OR DAMAGED PART. For your safety, complete the assembly of the lathe before plugging it into the power supply. INSTALLING WOOD LATHE BED ON STAND LEGS 1.
-
Page 7: Assembly And Adjustments
ASSEMBLY & ADJUSTMENTS ADJUSTING TAILSTOCK 1. The tailstock (A) Fig.7 can be moved to any position on the wood lathe bed by loosening the tailstock lock lever (B) and pushing the tailstock to the desired position on the bed. Tighten tailstock lock lever (B) once the adjustment is made. 2. -
Page 8: Operation
OPERATION TURNING WOOD LATHE ON/OFF 1. Your wood lathe is equipped with a safety toggle switch (A) Fig.11. To turn the machine on, push the switch up to the “On” position, to turn it off, push the switch down to the “Off” position. To prevent unauthorized use, this switch has a safety key (B) which, when removed, allows the switch to be locked in the “off”... -
Page 9: Faceplate Turning
OPERATION FACEPLATE TURNING Faceplate turning operations are performed when a workpiece is mounted to the faceplate, which is mounted to the headstock spindle. This type of turning is ideal for open-faced workpieces such as bowls. If your workpiece diameter is greater than 12”, proceed to the Outboard Turning section. -
Page 10: Maintenance And Troubleshooting
Tailstock quill will not move forward when handwheel is turned. 1. Align the quill keyway with the quill lock handle. PARTS DIAGRAM & PARTS LISTS Refer to the Parts section of the King Canada web site for the most updated parts diagram and parts list.
