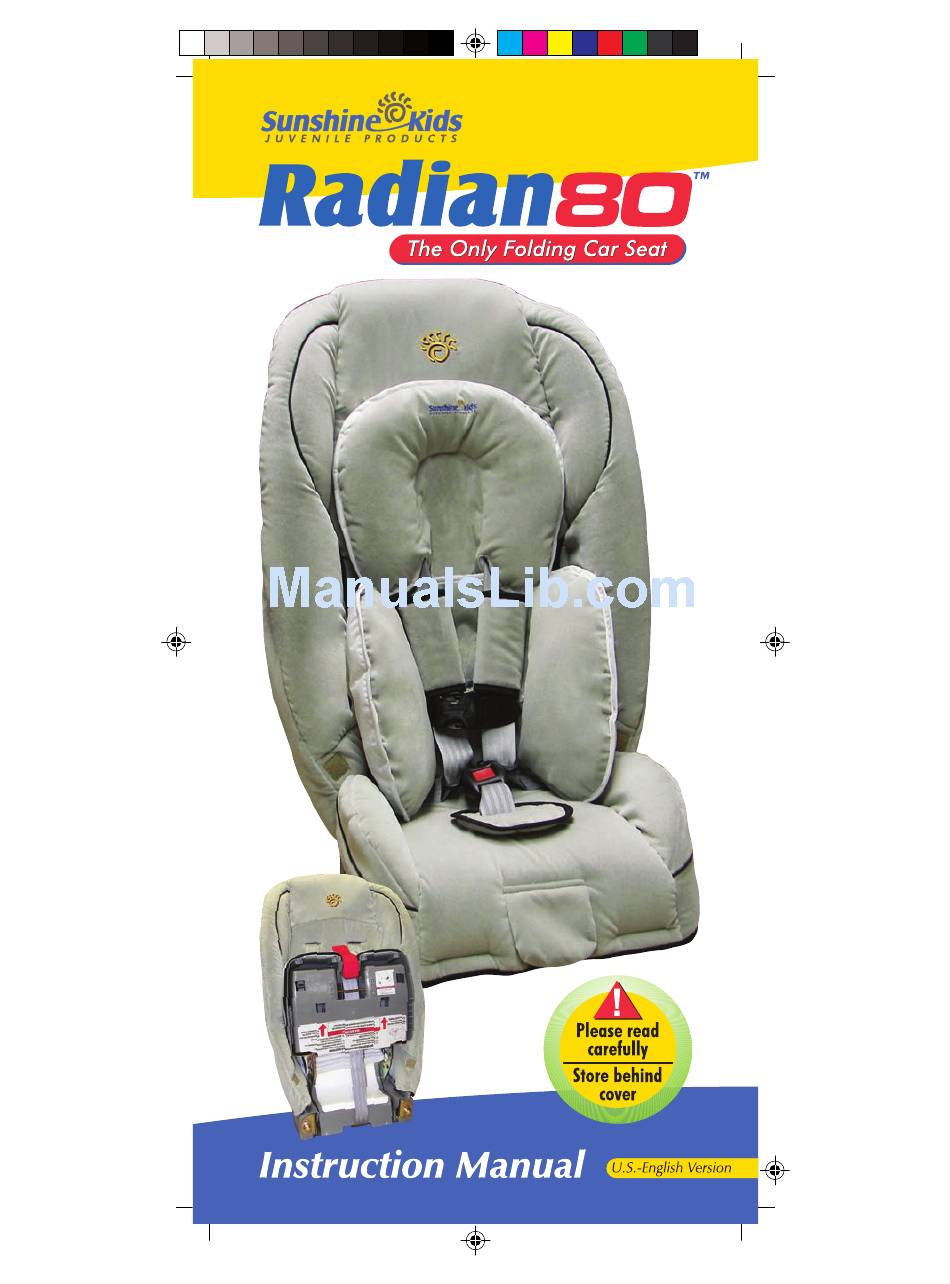

  • Page 1 CY CMY...

  • Page 2: Table Of Contents

    CY CMY Warnings Seating Position Information Child Restraint Safety Information Seat Belt Information Carrying Restraint Support Cushions Unfolding and Folding Restraint Installing and Removing Detachable Base Rear-facing LATCH installation 5 to 33 lbs. Rear-facing Lap-Shoulder Belt installation 5 to 33 lbs. Rear-facing Lap Belt installation 5 to 33 lbs.
  • Page 3 CY CMY 1. Child information tag 12. Top tether 2. LATCH belt 13. Carry strap 3. LATCH strap guides 14. Fabric side panel 4. Forward-facing belt path 15. Harness clip 5. Rear-facing belt path 16. Buckle pad 6. Release lever 17.

  • Page 4: Warnings

    If you have any questions, visit www.skjp.com or contact Sunshine Kids at 1-888-336-7909. • Use only with children weighing between 5 lbs to 80 lbs (2.3 kg to 36 kg) and who have a height of 49 inches (124.5 cm) or less.

  • Page 5: Seating Position Information

    CY CMY...

  • Page 6: Child Restraint Safety Information

    CY CMY...
  • Page 7 CY CMY...

  • Page 8: Seat Belt Information

    CY CMY...

  • Page 9: Carrying Restraint

    CY CMY Carry restraint by red carry strap (Fig. 1), the plastic side (Fig. 2) or connect shoulder strap to webbing anchors on side of restraint (Fig. 3). Support Cushions Infant Support: This restraint features a full infant head and body support (Fig. 1). Toddler Body Support: Remove head support (Fig.

  • Page 10: Unfolding And Folding Restraint

    CY CMY...
  • Page 11 CY CMY...
  • Page 12 CY CMY...

  • Page 13: Installing And Removing Detachable Base

    CY CMY Push down metal tab to lock base (Fig. 3). 1. Lift metal tab to unlock base (Fig. 3). 2. Slide base forward (the opposite direction as shown in Fig. 2). 3. Pull base away from restraint bottom. Tip: To carry detachable base, fit it inside folded restraint (Fig.

  • Page 14: Rear-Facing Latch Installation 5 To 33 Lbs

    CY CMY...
  • Page 15 CY CMY...

  • Page 16: Rear-Facing Lap-Shoulder Belt Installation 5 To 33 Lbs

    CY CMY...
  • Page 17 CY CMY...

  • Page 18: Rear-Facing Lap Belt Installation 5 To 33 Lbs

    CY CMY...
  • Page 19 CY CMY...

  • Page 20: Forward-Facing Latch Installation 22 To 48 Lbs

    CY CMY • ALWAYS use SafeStop with LATCH installation for forward-facing child under 40 lbs (see page 26).
  • Page 21 CY CMY...
  • Page 22 CY CMY • For lap-shoulder belt installation ONLY use SafeStop with top tether and with child under 40 lbs. (see page 26).

  • Page 23: Forward-Facing Lap-Shoulder Belt

    CY CMY Forward-Facing Lap-Shoulder Belt Installation: For Children 22 lbs – 80 lbs (continued) 3. Kneel on restraint to force it into vehicle seat while pulling shoulder portion of seat belt to remove slack and tighten lap portion of seat belt. (Fig.

  • Page 24: Forward-Facing Lap Belt Installation 22 To 80 Lbs

    CY CMY Fig. 1 shows a typical forward-facing installation with lap belt. 1. Place restraint in forward facing position. Stability of installation can be improved by using top tether shown in blue, Fig. 1 (see page 28 for top tether instructions). 2.

  • Page 25: Checking Restraint Stability

    CY CMY Forward-Facing Lap Belt Installation: For Children 22 lbs – 80 lbs (continued) Check List: Confirm restraint is properly positioned. Confirm seat belt is tight and buckle is properly positioned (see page 30). Confirm restraint is stable (see page 25). Removal: Release seat belt buckle and disconnect top tether if in use.

  • Page 26: Aircraft Installation

    CY CMY Aircraft Installation This restraint is certified for use in an aircraft. Most airlines allow the use of a child restraint if it has been approved for airline use and fits properly in the aircraft. Contact your particular airline about their policy in advance.

  • Page 27: Operating Adjustable Bottom

    CY CMY Operating Adjustable Bottom Fig. 1 shows operation of adjustable base. Adjustable bottom must be operated before installation of restraint. Restraint must be locked in its unfolded position before operating adjustable bottom. Lowering adjustable bottom: 1. Pull bar upward. (Fig. 2) 2.

  • Page 28: Top Tether

    CY CMY Top Tether • Sunshine Kids recommends using a top tether in all installations to improve stability and performance of the restraint. • If vehicle does not have tether anchorage points, consult vehicle owner’s manual or contact vehicle manufacturer with questions. Do NOT modify vehicle without approval from vehicle manufacturer or authorized vehicle dealer.

  • Page 29: Tether Connecting Strap

    CY CMY Top Tether (continued) 3. Install restraint as shown in appropriate installation sections (see pages 14 to 24 for restraint installation instructions). 4. After installing restraint, pull top tether adjuster strap to remove all slack. Confirm top tether strap has tension and that restraint is properly secured and stable and restraint is reclined at the proper angle.

  • Page 30: Restraint Harness Buckle

    CY CMY Restraint Harness Buckle • To Fasten: Insert one buckle tongue at a time into buckle. A ‘click’ confirms proper connection after each tongue is inserted. (Fig. 1) • To Unfasten: Press the red button on the face of buckle and both buckle tongues will eject. (Fig.

  • Page 31: Using Harness Clip

    CY CMY Using Harness Clip IMPORTANT: Position harness clip at proper height for child: level with child’s armpits. (Fig.1) To Fasten: Push both halves together until a ‘click’ confirms proper engagement. To Unfasten: Squeeze middle tabs together (Fig. 2-A) and separate clip.

  • Page 32: Properly Securing Child

    CY CMY Properly Securing Child WARNING: Serious injury or death can result if child is not properly secured in restraint. Confirm harness is snug* before each use and after making any restraint adjustments. 1. Confirm proper restraint installation 2. To loosen harness: lift harness adjuster and pull shoulder straps forward (Fig.

  • Page 33: Proper Harness Height And Child Height

    CY CMY Properly Securing Child (continued) IMPORTANT: Give a firm, upward tug on both harness straps behind the child’s shoulders and close to the harness slots in the restraint, to confirm there is no harness slack behind the restraint. 8. Confirm harness is not twisted and lays flat against child.

  • Page 34: Adjusting Harness Height

    CY CMY Proper Harness Height and Child Height (continued) Forward Facing up to 80 lbs (36 kg) Adjusting Harness Height 1. Loosen harness: lift harness adjuster and pull shoulder straps forward. (Fig. 1) 2. From back of restraint, remove shoulder straps from metal harness yoke.

  • Page 35: Harness Buckle Location

    CY CMY Harness Buckle Location Confirm location of harness buckle is correct, to insure proper harness fit: 1. Properly secure child in restraint (see page 32). 2. Check for correct position of harness buckle: Harness buckle can be directly above its buckle slot.
  • Page 36 CY CMY Harness Buckle Removal and Installation (continued) Removing harness buckle: 1. Make sure restraint is securely locked in its unfolded position. (See page 10, unfolding restraint). 2. Unbuckle harness. 3. Push harness buckle strap down 2 inches into rear-facing belt path tunnel.

  • Page 37: Locking Vehicle Belt With Locking Clip

    CY CMY Locking a Vehicle Lap-Shoulder Belt with a Locking Clip Proper use of a locking clip maintains a tight, secure installation by preventing the seat belt from becoming loose over time. WARNING: • Failure to properly lock the seat belt will result in an unsafe installation that will greatly increase the potential for injury or death to the child in an accident.

  • Page 38: Restraint Cover

    CY CMY Locking a Vehicle Lap-Shoulder Belt with a Locking Clip (continued) 7. Once seat belt is tight and locked, complete remaining installation instructions. NOTE: To prevent loss, secure locking clip in its storage location after use. Restraint Cover WARNING: Never remove harness buckle tongues or chest clip from harness shoulder straps.

  • Page 39: Cleaning And Maintenance

    CY CMY Cleaning and Maintenance Cleaning / Maintenance of release mechanism and locking bolts: Periodically inspect release levers and locking bolts for cleanliness and proper functioning: When release levers are lifted, release levers and locking bolts should spring back immediately and completely.

  • Page 40: Washing The Cover

    CY CMY Cleaning and Maintenance (continued) Cleaning the plastic shell: • Clean with damp cloth only: wet cloth with warm water and mild soap and wring thoroughly so it is NOT dripping water. • Towel dry. • Do NOT: use solvents or abrasive cleaners. Washing the cover: •...
  • Page 41 CY CMY Cleaning and Maintenance (continued) Cleaning Harness buckle: If child eats or drinks in restraint, periodically clean harness buckle to insure proper functioning. 1. Remove center buckle from restraint. (see page 35) 2. Rinse thoroughly in mildly hot water or soak overnight to loosen dried liquid or hardened food debris.

  • Page 42: Warranty Information

    Proof of purchase is required. The exclusive remedy for this warranty is that Sunshine Kids will, at its option, replace, repair or provide replacement components for this product or may refund the original purchase price of this product.
  • Page 43 CY CMY expressed or implied. In no event whatsoever, will Sunshine Kids or a retailer of this product be liable for any damages, including those incidental or consequential, arising out the use of this product. Warranty limitations and other warranty terms and conditions.
