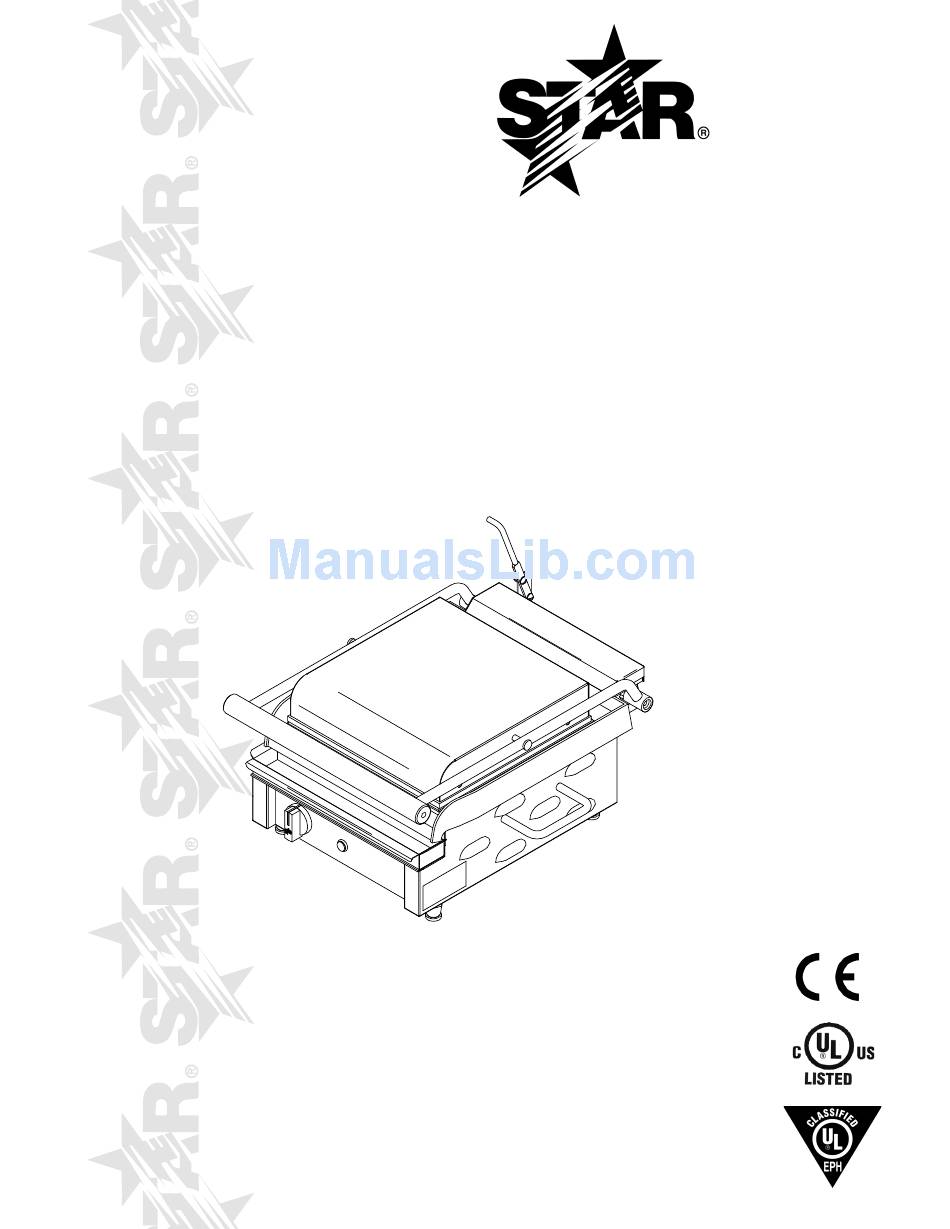

- Page 1 TWO SIDED GRILLS MODEL GX10IG, IS, ISG GX14IG, IS, ISG GX20IG, IS, IGS Installation and Operation Instructions 2M-Z7971 Rev. G 8/16/07 GX10IG...
-
Page 2: Safety Symbol
RETAIN THIS MANUAL FOR FUTURE REFERENCE NOTICE Using any part other than genuine Star factory supplied parts relieves the manufacturer of all liability. Star reserves the right to change specifi cations and product design without notice. Such revisions do not entitle the buyer to corresponding changes, improvements, additions or replacements for previously purchased equipment. -
Page 3: General Installation Data
ELECTRICAL CONNECTION GENERAL INSTALLATION DATA CAUTION CAUTION Before making any electrical connection be sure to read data plate which is located at the bottom This equipment is designed and sold for of the unit. commercial use only by personnel trained and experienced in its operation and is not sold for ELECTRICAL GROUNDING consumer use in and around the home nor for... -
Page 4: Electrical Specifications
ELECTRICAL SPECIFICATIONS Model Voltage Rated Wattage Amps Plug GX10IG 120V 1,400 11.7 NEMA 5-15P GX10IG 230V 1,650 BS 1363A (16amp) GX10IG 208/240V 1,350 / 1,800 6.5 / 7.5 NEMA 6-15P GX10IS 120V 1,400 11.7 NEMA 5-15P GX10IS 230V 1,650 BS 1363A (16amp) GX10IS 208/240V 1,350 / 1,800 6.5 / 7.5... -
Page 5: Monthly Lubrication/Inspection
CLEANING OPERATING HINTS AND SAFETY While holding top lid with one hand, apply only Disconnect power to the unit with the switch at the cleaners which are safe for aluminum and iron end of each day of operation. surfaces. Wipe with clean sponge or towel Do not leave the unit in operation without an until unit is clean. -
Page 6: Operation Troubleshooting
CLEANING cont CAUTION DO NOT SPLASH FRONT CONTROL PANEL! CAUTION DO NOT SPLASH FLEX CONDUIT CONNECTING TOP AND BOTTOM OF THE UNIT. WARNING Do not use ice or cold water to clean the cooking surfaces when the unit is hot. The surfaces are cast aluminum or cast iron and may crack or deform under the shock of rapid temperature change. -
Page 7: Limited Equipment Warranty
LIMITED EQUIPMENT WARRANTY All workmanship and material in Star products have a one (1) year limited warranty on parts & labor in the United States and Canada. Such warranty is limited to the original purchaser only and shall be effective from the date the equipment is placed in service. Star's obligation under this warranty is limited to the repair of defects without charge, by the factory authorized service agency or one of its sub-agencies. - Page 10 SOME ITEMS ARE INCLUDED FOR ILLUSTRATIVE PURPOSES ONLY AND IN CERTAIN INSTANCES MAY NOT BE AVAILABLE This drawing contains information confidential to Star Manufacturing International, Inc. No reproduction or disclosure of its contents is permitted. STAR MANUFACTURING INTERNATIONAL, INC. MODEL GX10, GX14, GX20 SERIES...
-
Page 11: Parts List
PARTS LIST August 16, 2007, Rev G 10" TWO SIDED GRILLS MODEL : GX10IG, GX10IS, GX10ISG Number Part Description Number Unit Number D9-GR0240 TOP HOUSING ASSY 10” 2C-Z2054 CLAMP, THERMISTOR 2C-Z2893 NUT 10-24 Hex STL ZP D9-GR0228 TOP INS. PLATE ASSY -10”... - Page 12 SCREW 10-24X3/8 RHP STL NP IMPORTANT: WHEN ORDERING, SPECIFY VOLTAGE OR TYPE GAS DESIRED PAGE INCLUDE MODEL AND SERIAL NUMBER Some items are included for illustrative purposes only and in certain instances may not be available. Star Manufacturing International, Inc.
- Page 13 SCREW 10-24X3/8 RHP STL NP IMPORTANT: WHEN ORDERING, SPECIFY VOLTAGE OR TYPE GAS DESIRED PAGE INCLUDE MODEL AND SERIAL NUMBER Some items are included for illustrative purposes only and in certain instances may not be available. Star Manufacturing International, Inc.
