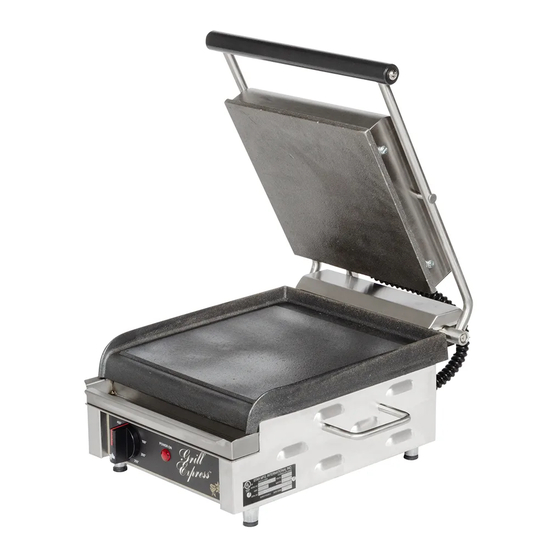

Star GX10IG Installation And Operation Instructions Manual
Two sided
grills
Hide thumbs
Also See for GX10IG:
- Installation and operation instructions manual (17 pages) ,
- Specification sheet (2 pages) ,
- Installation and operation instructions manual (16 pages)
Related Manuals for Star GX10IG
Summary of Contents for Star GX10IG

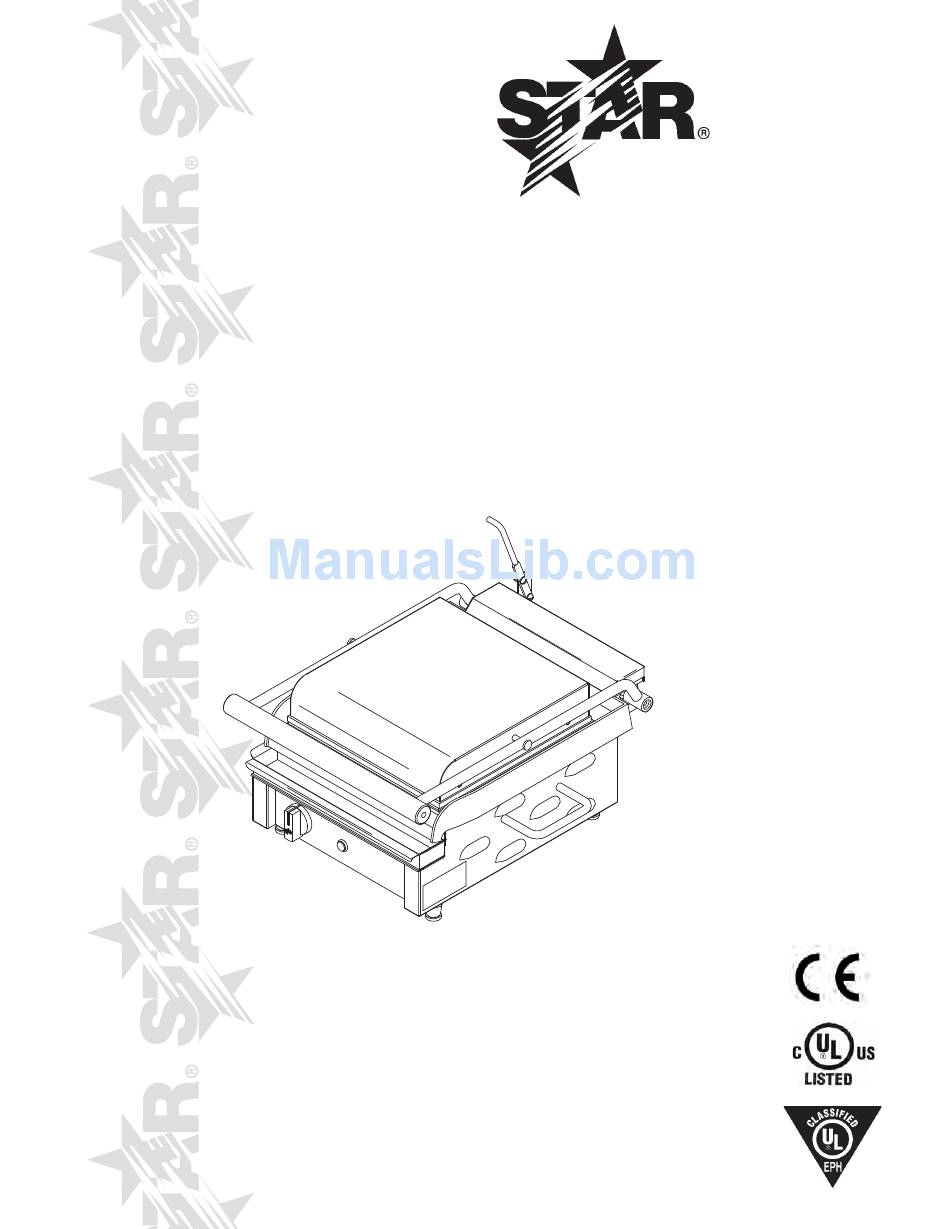

- Page 1 TWO SIDED GRILLS MODEL GX10IG, IS, ISG GX14IG, IS, ISG GX20IG, IS, IGS Installation and Operation Instructions 2M-Z7971 Rev. J 9/22/2010 GX10IG...
-
Page 2: Safety Symbol
RETAIN THIS MANUAL FOR FUTURE REFERENCE NOTICE Using any part other than genuine Star factory supplied parts relieves the manufacturer of all liability. Star reserves the right to change specifications and product design without notice. Such revisions do not entitle the buyer to corresponding changes, improvements, additions or replacements for previously purchased equipment. -
Page 3: General Installation Data
GENERAL INSTALLATION DATA This equipment is designed and sold for commercial use only by personnel trained and experienced in its operation and is not sold for consumer use in and around the home nor for use directly by the general public in food service locations. All shipping containers should be checked for freight damage both visible and concealed. -
Page 4: Daily Operation
ELECTRICAL SPECIFICATIONS Model Voltage Rated Wattage Amps Plug 120V 1,400 11.7 NEMA 5-15P GX10IG 230V 1,650 BS 1363A (16amp) 208/240V 1,350 / 1,800 6.5 / 7.5 NEMA 6-15P 120V 1,400 11.7 NEMA 5-15P GX10IS 230V 1,650 BS 1363A (16amp) 208/240V 1,350 / 1,800 6.5 / 7.5... -
Page 5: Monthly Lubrication/Inspection
OPERATING HINTS AND SAFETY Disconnect power to the unit with the switch at the end of each day of operation. Do not leave the unit in operation without an attendant. Turn thermostat down to 200°F (93°C) during idle periods. It will take only a few minutes to regain operating temperature. -
Page 6: Operation Troubleshooting
CLEANING cont DO NOT USE SHARP OBJECTS TO REMOVE CARBON BUILD-UP. BEFORE CLEANING MAKE SURE POWER IS TURNED OFF, UNIT IS UNPLUGGED AND IS NOT TOO HOT. CAUTION DO NOT SPLASH WATER ON FRONT CONTROL PANEL! DO NOT SPLASH WATER ON FLEX CONDUIT CONNECTING TOP AND WARNING BOTTOM OF THE UNIT. - Page 7 LIMITED EQUIPMENT WARRANTY All workmanship and material in Star products have a one (1) year limited warranty on parts & labor in the United States and Canada. Such warranty is limited to the original purchaser only and shall be effective from the date the equipment is placed in service. Star's obligation under this warranty is limited to the repair of defects without charge, by the factory authorized service agency or one of its sub-agencies.
- Page 10 SOME ITEMS ARE INCLUDED FOR ILLUSTRATIVE PURPOSES ONLY AND IN CERTAIN INSTANCES MAY NOT BE AVAILABLE This drawing contains information confidential to Star Manufacturing International, Inc. No reproduction or disclosure of its contents is permitted. STAR MANUFACTURING INTERNATIONAL, INC. MODEL GX10, GX14, GX20 SERIES GX20 SHOWN SK2121 Rev.
-
Page 11: Parts List
PARTS LIST September 22, 2010, Rev J 10" TWO SIDED GRILLS MODEL : GX10IG, GX10IS, GX10ISG Number Part Number Unit Description Number D9-GR0239 TOP HOUSING & CONDUIT - 10 2C-Z2054 CLAMP, THERMISTOR 2C-Z2893 NUT 10-24 Hex STL ZP D9-GR0228 TOP INS. PLATE ASSY -10”... - Page 12 2A-Z8408 PIN, SLOTTED SPRING-S.S. 2C-08-07-0236 SCREW 10-32 X 3/4 SHCS D9-Z12061 SCRAPER-GROOVES ACCESSORY 2C-Z5193 SCREW 10-24 X .75 PH SS Some items are included for illustrative purposes only and in certain instances may not be available. Star Manufacturing International, Inc.
- Page 13 BOLT 1/4-20X1 PHP STL 2M-Z2620 LABEL CAUTION,BI-LINGUAL 2C-6260 WASHER #10 INT STL NP 2C-2559 NUT 10-24 ACHD BR NP 2A-Z8408 PIN, SLOTTED SPRING-S.S. 2C-08-07-0236 SCREW 10-32 X 3/4 SHCS D9-Z12061 SCRAPER-GROOVES ACCESSORY 2C-Z5193 SCREW 10-24 X .75 PH SS Star Manufacturing International, Inc.
- Page 16 STAR INTERNATIONAL HOLDINGS INC. COMPANY Star - Holman - Lang - Wells - Bloomfield - Toastmaster 10 Sunnen Drive, St. Louis, MO 63143 U.S.A. (314) 678-6303 www.star-mfg.com...
