Turismo

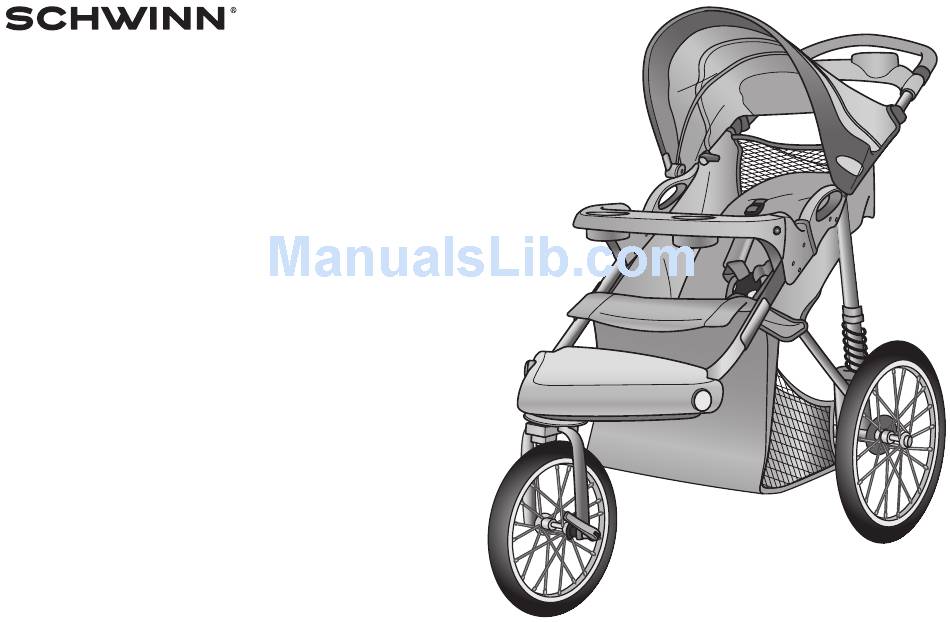

SINGLE SEAT SWIVEL WHEEL LIFESTYLE STROLLER
13-SC113, 13-SC114, 13-SC116, 13-SC117
OWNER'S MANUAL
This manual contains safety, assembly, use and maintenance
instructions. Read these instructions carefully before use and
keep them for future reference. Your child's safety may be
affected if you do not follow these instructions. The Schwinn®
lifestyle stroller must be assembled by an adult who has read
and understands the instructions in this manual.
Keep the packaging away from children and dispose all
packaging before use. Do not return to store. Call toll free
1-800-242-6110 for assistance and replacement parts.
Keep instructions for future reference.
Advertisement
Table of Contents
Related Manuals for Schwinn Turismo 13-SC113
Summary of Contents for Schwinn Turismo 13-SC113
- Page 1 Read these instructions carefully before use and keep them for future reference. Your child’s safety may be affected if you do not follow these instructions. The Schwinn® lifestyle stroller must be assembled by an adult who has read and understands the instructions in this manual.
- Page 2 Thank You For purchasing the Schwinn® lifestyle stroller. You will be sure to enjoy hours of pleasurable exercise and family time. If you have any questions or comments our customer service hours are: 8:00 AM - 5:00 PM Monday through Friday CST.
-
Page 3: Table Of Contents
Contents 1 SAFETY ..........1 5 USING THE LIFESTYLE STROLLER . -
Page 4: Safety
Safety WARNING! • Check the assembly (i.e.: fasteners, wheels) before using the product. • FAILURE TO FOLLOW THE SAFETY INSTRUCTIONS • Never allow children to assemble, fold, or disassemble the LISTED BELOW MAY RESULT IN SERIOUS INJURY OR lifestyle stroller. DEATH. -
Page 5: Use
WARNING! During use be sure to: • Take proper steps (clothing, ventilation, hydration) to protect • Any load attached to the handle affects the stability of the child from exposure hazards such as wind chill and heat the stroller. Unstable hazardous conditions may exist exhaustion. -
Page 6: Storage
ADDITIONAL WARNINGS FOR CUSTOMERS • Do not use the lifestyle stroller in hazardous weather or at night. IN THE EUROPEAN UNION • Accessories not approved by the manufacturer shall not WARNING! be used. • Use the harness as soon as your child can sit unaided. STORAGE •... -
Page 7: Parts And Features
Parts and Features Retractable canopy Parent tray Frame folding Car Seat Tab release triggers Child’s tray MP3 speaker with cord 5-point safety harness Shoulder strap Frame height adjustment anchors Fender Seat adjustment (with screws) strap and buckle Shocks Quick release Storage basket Rear wheels (2) Parking brake levers... -
Page 8: Assembly
Assembly UNFOLD THE LIFESTYLE STROLLER WARNING! • There are pinch points between the sidewalls and the frame of the lifestyle stroller that may cause injury. Fold or unfold the lifestyle stroller slowly using caution. Keep children clear when folding and unfolding the stroller. -
Page 9: Attach The Rear Wheels
ATTACH THE REAR WHEELS WARNING! ❷ Push the wheel into the bracket until you hear the axle click into place. Figure 3.3 Rear wheels that are not securely locked in place may fall off the lifestyle stroller and cause serious injury or ❸... -
Page 10: Attach The Front Wheel
ATTACH THE FRONT WHEEL WARNING! If the front wheel is not securely locked in place it may fall off the lifestyle stroller and cause serious injury or death. Always check the front wheel is securely locked in Quick release place before use. Cone nut Tab washer lever... -
Page 11: Attach The Front Fender
ATTACH THE FRONT FENDER ❶ Place the front fender on the frame and over the front ❸ Insert the screws through the holes in the frame and tighten wheel. Figure 3.5 the front fender to the frame. Be sure the front wheel does not rub against the front fender. -
Page 12: Attach The Parent Tray
ATTACH THE PARENT TRAY ATTACH THE CHILD'S TRAY WARNING! ❶ Turn the child’s tray upside down. Unstable items (such as: hot fluids, tall bottles, metal ❷ Align the pin on the tray with the slot on the handle of the containers) placed in the parent tray may tip over and stroller. -
Page 13: Safety Features
Safety Features USING THE 5-POINT SAFETY HARNESS WARNING! • Avoid serious injury from falling or sliding out. Always properly secure the passenger with the 5-point safety harness. • It may be dangerous to leave your child unattended. Never leave your child unattended in or near the lifestyle stroller. -
Page 14: Adjusting The Shoulder Strap Height
ADJUSTING THE SHOULDER STRAP HEIGHT USING THE SAFETY WRIST STRAP WARNING! Use these seat height slots to properly adjust the height of Using the lifestyle stroller without the safety wrist strap the shoulder straps to your child’s height. To adjust the may result in the user becoming separated from the shoulder strap height: stroller and serious injury or death to the passenger. -
Page 15: Using The Lifestyle Stroller
Using the Lifestyle Stroller USING THE REMOTE FRONT WHEEL USING THE PARKING BRAKE SWIVEL LOCK ❶ Step on the red levers next to the rear wheels until the cogs ❶ Press the button to engage the front wheel lock. Figure 5.1 in the brake and wheel engage. -
Page 16: Reclining The Seat
RECLINING THE SEAT PLUGGING IN AN MP3 PLAYER WARNING! Connect an MP3 player (not included) to the cord attached to the frame. Note: The connector on the stroller is a standard Improper adjustment of the 5-point safety harness when male mini-plug. Female connector for the MP3 player is not the seat is in the reclined position may result in the child provided. -
Page 17: Using The Child Tray
USING THE CHILD TRAY WARNING! Unstable items (i.e.: Hot fluids, tall bottles, metal containers) placed in the child trays may tip over and seriously injure the passenger. Always remove items that may tip over before using the lifestyle stroller. ❶ Press the red button on the outside of the tray. Figure 5.5 ❷... -
Page 18: Inserting A Car Seat
INSERTING A CAR SEAT WARNING! ❷ Slide the car seat notches on the bottom of the car seat into the grooves of the child tray cup holders. Important: Be • Incorrectly placing and securing the car seat may sure the red car seat tabs are under the car seat and result in the seat, and child, being thrown from the support the front end of the car seat. - Page 19 ❹ Raise the jogger seat by unfastening the buckle on the back ❼ Thread the straps through the stroller handle, the car seat of the seat. Pull the strap until it is flush against the car seat. carrying handle and over the top of the car seat. Each car Figure 5.11 seat strap configuration varies, see the instruction manual for your car seat for the correct routing of the straps on...
-
Page 20: Disassembling And Storing The Lifestyle Stroller
Disassembling and Storing the Lifestyle Stroller WARNING! ❸ Pull the red folding release triggers on both sides of the handle towards you. • There are pinch points between the sidewalls and the frame of the lifestyle stroller that may cause injury. ❹... -
Page 21: Maintenance
Maintenance Warranty Always check the following before and during use: Pacific Cycle warrants this product to be free of defective materials and workmanship for 1 year from the date of original • Ensure there is no damage, missing parts and that all parts purchase. - Page 22 Manufactured for Pacific Cycle, Inc (A Division of Dorel Industries) Pacific Cycle, Inc. 4902 Hammersley Road Madison, WI 53711 ©2013 Pacific Cycle, Inc. Schwinn® is a registered trademark of Pacific Cycle, Inc. www.schwinnbike.com Made in China · Printed 2013...
