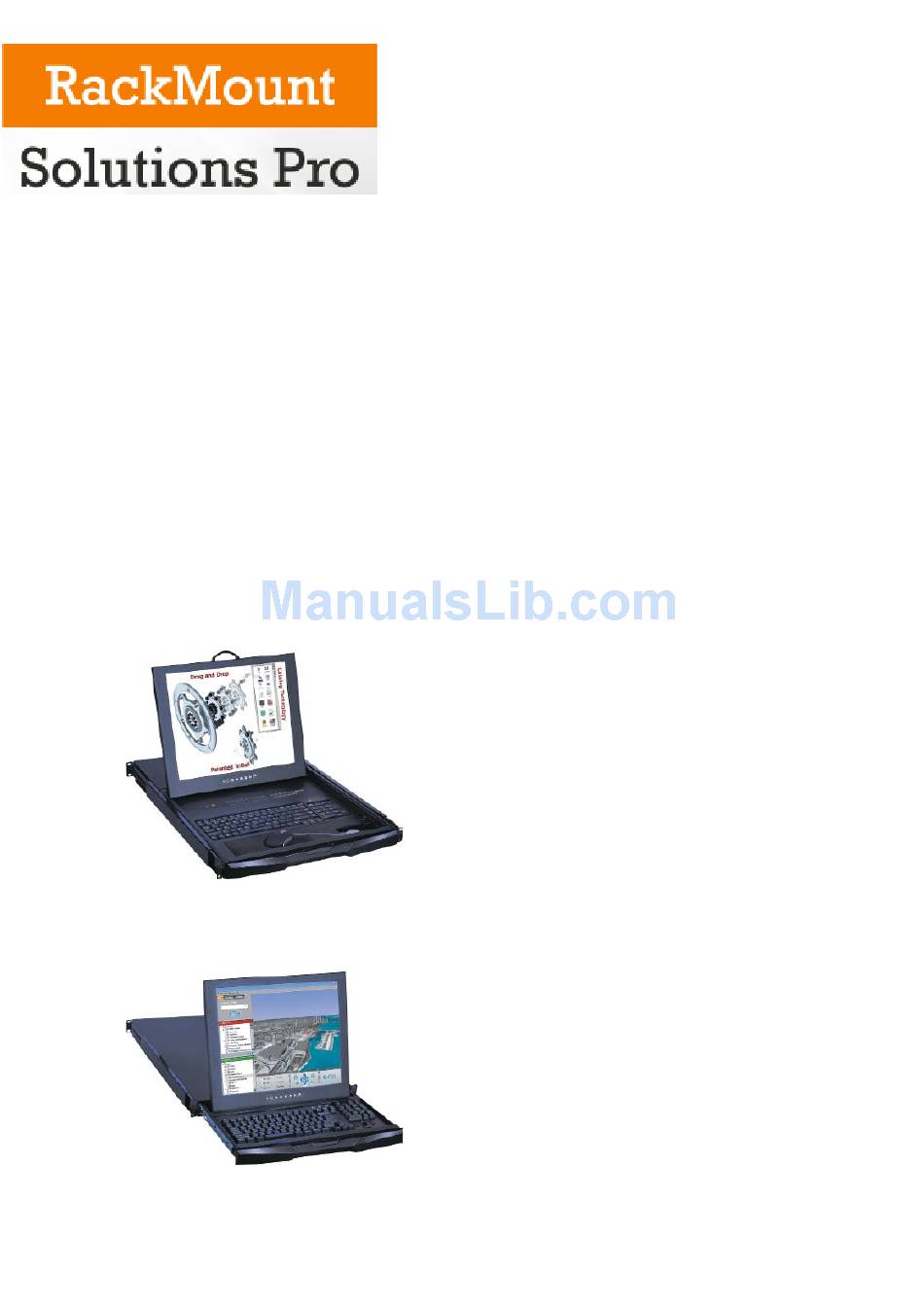

- Page 1 User Manual 1U LCD Keyboard Drawer 17", 19" screen size Models RKP-7 / 9 Series - Use of a true optical mouse - 1U 17", 19" screen size Models RKP-1617 / 1619 Series - 1U 17", 19" screen size - Desk top size keyboard...
- Page 2 Blank page...
-
Page 3: Table Of Contents
Contents Chapter 1 Getting Started Important Safeguards............1 Regulatory Notice..............2 Package Contents............3-4 Before Installation...............5 Unpacking................5 Optional Accessories............5 Peripheral Products.............6 Structure Diagram...............7 How to Install “One Man” Installation Slides....8-9 1.10 How to Use The Slides.............10 1.11 RKP-7 / 9 (Single console) ......11 - Use CE-6 to connect to server via PS/2 interface 1.12 RKP-7 / 9 (Single console) -
Page 4: Important Safeguards
Chapter 1 1.1 Important Safeguards Please read all of these instructions carefully before you use the device. Save this manual for future reference. What the warranty does not cover ■ Any product, on which the serial number has been defaced, modifi ed or removed. ■... -
Page 5: Regulatory Notice
Chapter 1 1.2 Regulatory Notice Legal Information First English printing, October 2002 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without no- tice. -
Page 6: Package Contents
Chapter 1 1.3 Package Contents For RKP-7 / 9 series LCD keyboard drawer x 1 pc Power cord x 1 pc CE-6 Combo 4-in-1 KVM cable x 1 pc User manual x 1 pc WOM-01 Mini USB optical mouse x 1 pc Mounting bracket x 2 pcs M6*15mm screw x 8 pcs M6 cage nut x 6 pcs... -
Page 7: Package Contents
Chapter 1 1.3 Package Contents For RKP-1617 / 1619 series LCD keyboard drawer x 1 pc Power cord x 1 pc User manual x 1 pc Auto switch power adapter x 1 pc CE-6 Combo 4-in-1 KVM cable x 1 pc Mounting bracket x 2 pcs M6*15mm screw x 8 pcs M6 cage nut x 6 pcs... -
Page 8: Before Installation
Chapter 1 1.4 Before Installation ■ It is very important to locate the LCD Keyboard Drawer in a suitable environment. ■ The surface for placing and fi xing the LCD Keyboard Drawer should be stable and level or mounted into a suitable cabinet. -
Page 9: Peripheral Products
Chapter 1 1.7 Peripheral Products Item Model No. Description MU-1602 / MU-1603 / MU-1604 Matrix Cat6 16 port KVM MU-IP1613 / MU-IP1614 / MU-IP1624 Matrix IP Cat6 16 port KVM Matrix Cat6 KVM MU-3202 / MU-3203 / MU-3204 Matrix Cat6 32 port KVM MU-IP3213 / MU-IP3214 / MU-IP3224 Matrix IP Cat6 32 port KVM M-802 / M-803 / M-804... -
Page 10: Structure Diagram
Chapter 1 1.8 Structure Diagram For RKP-7 / 9 series LCD interchangeable module kit Membrane switch (KVM option) “One Man” Installation Slide Mini USB optical mouse LCD membrane 104 key notepad keyboard with full numberical pad Microswitch Carry handle to release the 2-pt lock For RKP-1617 / 1619 series LCD interchangeable module kit Full “Unix style”... -
Page 11: How To Install "One Man" Installation Slides
Chapter 1 1.9 How to Install "One Man" Installation Slides Install into rack Rear side Right bracket ■ Attach the left and right mounting bracket to rack 19” mounting rails. ■ Adjust the rear mouting bracket to fi t your rack. ■... -
Page 12: How To Install "One Man" Installation Slides
Chapter 1 1.9 How to Install “One Man” Installation Slides ■ Attach front left and right mounting ears of the LCD keyboard drawer to vertical mounting rails. ■ M6 screw and cup washer x 2 pcs included. Complete the installation ■... -
Page 13: How To Use The Slides
Chapter 1 1.10 How to Use the Slides ■ A black arrow release button is located on the outside of each slide. (shown in Figure 1). Figure 1. ■ Pull and hold the black arrow button on either side of the LCD keyboard drawer to unlock. (shown in Figure 2). -
Page 14: Rkp-7 / 9 (Single Console)
Chapter 1 1.11 RKP-7 / 9 (Single console) - Use CE-6 to connect to server via PS/2 interface Figure 4. Example of connecting CE-6 4-in-1 Combo KVM cable to server via PS/2 interface 1.12 RKP-7 / 9 (Single console) - Use CE-6 to connect to KVM via PS/2 interface CE-6 KVM Cable Figure 5. -
Page 15: Rkp-7 / 9 (Single Console)
Chapter 1 1.13 RKP-7 / 9 (Single console) - Use CE-6 to connect to server via USB interface Figure 6. Example of connecting CE-6 4-in-1 Combo KVM cable to server via USB interface 1.14 RKP-7 / 9 (Single console) - Use CE-6 to connect to KVM via USB interface CE-6 KVM Cable Figure 7. -
Page 16: On-Screen Display Operation
Chapter 2 2.1 On-screen Display Operation LCD membrane RKP-7 / 9 RKP-1617 / 1619 Membrane Switch Function Power light Green = On Orange = Power saving Power on / off LCD Display the OSD menu Scrolls through menu options and adjusts the displayed control (To auto adjustment by pressing the button for 5 seconds) Exit the OSD screen... -
Page 17: On-Screen Menu
Chapter 2 2.2 On-screen Menu OSD Confi guration Page Image: To enter into the brighness, contrast, color temp, red, green, and blue Geometry: To enter into the auto adjust, H position, V position, phase and clock Video: To enter into the colour, tint, sharpness, noise reduction, DCDi and TV Setup Audio: To enter into volume, bass, treble, balance, AVL and mute... -
Page 18: Specifi Cations
Chapter 3 3.1 Specifi cations Item Description Form Factor 1U rack mounting on slide-out rails LCD Manufacturer Model RKP-7 RKP-9 RKP-1617 RKP-1619 Diagonal Size 17" TFT 19" TFT 17" TFT 19" TFT Max. Resolution 1280 x 1024 1280 x 1024 1280 x 1024 1280 x 1024 Brightness (cd/m²) -
Page 19: Keyboard & Mouse
Chapter 3 3.2 Keyboard & Mouse For RKP-7 / 9 series ■ WOM-01 mini USB optical mouse Standard : Wire ■ WOM-02 Wireless optical mouse Optional : ■ Multiple keyboard language selections Supporting layouts N keyboard option: WOM-01 WOM-02 Wire mini USB optical mouse Wireless USB optical mouse For RKP-1617 / 1619 series Supporting layouts... -
Page 20: Kvm Options
Chapter 4 4.1 KVM Options Our KVM is designed to seamlessly integrate into the rear of our full range of LCD drawer solutions: ■ For KVM operation, please refer to KVM user manual ■ Option with Multiple consoles Matrix KVM ■... -
Page 21: Audio Option
Chapter 4 4.4 Audio Option RKP-7 / 9 Speaker RKP-1617 / 1619 3-in-1 VGA KB mouse Power Audio console port RKP-7 / 9 RKP-1617 / 1619 Remarks ■ Audio input is 35mm audio plug ■ The speaker is sharing the same power with LCD. P.18... -
Page 22: Touchscreen Options
Chapter 4 4.5 DC Power Options Model Input rating Input voltage: 12-Volt 24-Volt 48-Volt Input range: 9 ~ 18V 18 ~ 36V 36 ~ 75V Input current - No load 50 mA 50 mA 50 mA - Full load 4950 mA 2450 mA 1220 mA Output rating... -
Page 23: Chapter 5 Troubleshooting
Chapter 5 5.1 Troubleshooting 1. How do I adjust the resolution? To change monitor resolution, click Start -> Control Panel -> Display. Select Setting tab to adjust the monitor resolution in Desktop Area. The available resolutions, "640 x 480", "800 x 600", "1024 x 768", "1152 x 864", "1280 x 1024", are deter- mined by the display card in your computer. -
Page 24: Chapter 6 Dimensions
19 kg 25 kg RKP-1619 series 17.4 x 27.6 x 1.73" 23.2 x 33.7 x 6.6" 42 lb 55 lb P.23 All brand names, logo and registered trademarks are properties of their respective owners. Copyright 2011 Rackmount-Solutions-Pro.com. All rights reserved.
