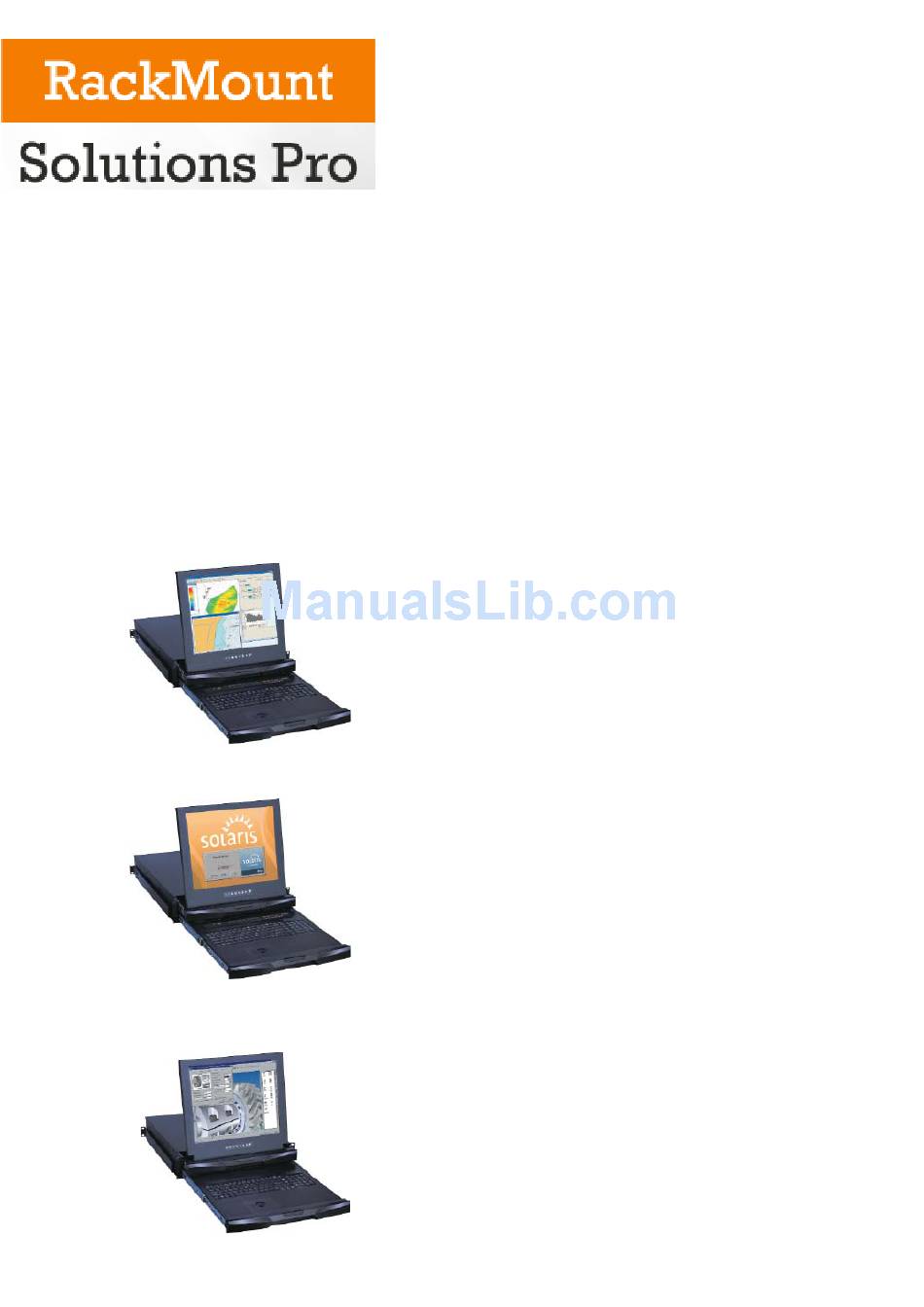

- Page 1 User Manual 2U Dual Slides LCD Keyboard Drawer 15", 17", 19" screen size Models RKP-217 / 219 Series - With KVM Options - 2U 17”, 19” screen size Models S-217 / 219 Series - With KVM Options - 2U 17", 19" screen size - Designed for SUN Solaris Models RKP-2415 / 2417 / 2419 Series...
-
Page 2: Table Of Contents
Contents Chapter 1 Getting Started Important Safeguards............1 Regulatory Notice..............2 Package Contents...............3 Before Installation...............4 Unpacking................4 Optional Accessories............4 Peripheral Products.............5 Structure Diagram...............5 How to Install “One Man” Installation Slides....6-7 1.10 How to Use The Slides............8 1.11 How to Use The Dual Slide..........9 1.12 “S”... - Page 3 Contents Chapter 4 Optional Specifi cation KVM Options..............19 DVI-D Input Option............19 BNC + S-Video Option............19 Audio Option..............20 DC power Options............21 Touchscreen Options............21 Chapter 5 Troubleshooting ............22 Chapter 6 Dimensions ..............23...
-
Page 4: Important Safeguards
Chapter 1 1.1 Important Safeguards Please read all of these instructions carefully before you use the device. Save this manual for future reference. What the warranty does not cover ■ Any product, on which the serial number has been defaced, modifi ed or removed. ■... -
Page 5: Regulatory Notice
Chapter 1 1.2 Regulatory Notice Legal Information First English printing, October 2002 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without no- tice. -
Page 6: Package Contents
Chapter 1 1.3 Package Contents LCD keyboard drawer x 1 pc CB-6 USB 2-in-1 KVM cable x 1 pc (for “S” series) CE-6 Combo 4-in-1 KVM cable x 1 pc (for RKP series) User manual x 1 pc Power cord x 1 pc Auto switch power adapter ( for external power version) x 1 pc Mounting bracket x 2 pcs M6*15mm screw x 8 pcs... -
Page 7: Before Installation
Chapter 1 1.4 Before Installation ■ It is very important to locate the LCD Keyboard Drawer in a suitable environment. ■ The surface for placing and fi xing the LCD Keyboard Drawer should be stable and level or mounted into a suitable cabinet. -
Page 8: Peripheral Products
Chapter 1 1.7 Peripheral Products Item Model No. Description MU-1602 / MU-1603 / MU-1604 Matrix Cat6 16 port KVM MU-IP1613 / MU-IP1614 / MU-IP1624 Matrix IP Cat6 16 port KVM Matrix Cat6 KVM MU-3202 / MU-3203 / MU-3204 Matrix Cat6 32 port KVM MU-IP3213 / MU-IP3214 / MU-IP3224 Matrix IP Cat6 32 port KVM M-802 / M-803 / M-804... -
Page 9: How To Install "One Man" Installation Slides
Chapter 1 1.9 How to Install "One Man" Installation Slides Install into rack Rear side Right bracket ■ Attach the left and right mounting bracket to rack 19” mounting rails. ■ Adjust the rear mouting bracket to fi t your rack. ■... -
Page 10: How To Install "One Man" Installation Slides
Chapter 1 1.9 How to Install "One Man" Installation Slides ■ Attach front left and right mounting ears of the LCD keyboard drawer to vertical mounting rails. ■ M6 screw and cup washer x 2 pcs included. Complete the installation ■... -
Page 11: How To Use The Slides
Chapter 1 1.10 How to Use the Slides For keyboard drawer only ■ A black arrow release button is located on the outside of each slide in the keyboard drawer. (shown in Figure 1). Figure 1. ■ Pull and hold the black arrow button on either side of the LCD keyboard drawer to unlock. -
Page 12: How To Use The Dual Slide
Chapter 1 1.11 How to Use The Dual slide ■ Gently pull the handle toward the front of the lower keyboard drawer (shown in Figure 4). Figure 4. Pulling the handle toward the front of keyboard drawer. ■ Push the handle toward the front of the upper LCD drawer (shown in Figure 5). -
Page 13: S" Series (Single Console)
Chapter 1 1.12 “S” Series (Single console) - Use CB-6 to connect to server via USB interface Figure 8. Example of connecting CB-6 2-in-1 USB KVM cable to server via USB interface 1.13 “S” Series (Single console) - Use CB-6 to connect to KVM via USB interface CB-6 KVM Cable Figure 9. -
Page 14: Rkp Series (Single Console)
Chapter 1 1.14 RKP Series (Single console) - Use CE-6 to connect to server via PS/2 interface Figure 10. Example of connecting CE-6 4-in-1 Combo KVM cable to server via PS/2 interface 1.15 RKP Series (Single console) - Use CE-6 to connect to KVM via PS/2 interface CE-6 KVM Cable Figure 11 Example of connecting CE-6 4-in-1 Combo KVM cable to KVM via PS/2 interface Remarks... -
Page 15: Rkp Series (Single Console)
Chapter 1 1.16 RKP Series (Single console) - Use CE-6 to connect to server via USB interface Figure 12. Example of connecting CE-6 4-in-1 Combo KVM cable to server via USB interface 1.17 RKP Series (Single console) - Use CE-6 to connect to KVM via USB interface CE-6 KVM Cable Figure 13. -
Page 16: On-Screen Display Operation
Chapter 2 2.1 On-screen Display Operation 15" LCD membrane 17" & 19" LCD membrane Membrane Switch Function Power light Green = On Orange = Power saving Power on / off LCD Display the OSD menu Scrolls through menu options and adjusts the displayed control (To auto adjustment by pressing the button for 5 seconds) Exit the OSD screen... -
Page 17: On-Screen Menu
Chapter 2 2.2 On-screen Menu OSD Confi guration Page Image: To enter into the brighness, contrast, color temp, red, green, and blue Geometry: To enter into the auto adjust, H position, V position, phase and clock Video: To enter into the colour, tint, sharpness, noise reduction, DCDi and TV Setup Audio: To enter into volume, bass, treble, balance, AVL and mute... -
Page 18: Specifi Cations
Chapter 3 3.1 Specifi cations Item Description Form Factor 1U rack mounting on slide-out rails LCD Manufacturer Series “S” Diagonal Size 15" TFT 17" TFT 19" TFT 17" TFT 19" TFT 1152 x 900 (Direct) 1152 x 900 (Direct) Max. Resolution 1024 x 768 1280 x 1024 1280 x 1024... -
Page 19: Keyboard & Mouse
Chapter 3 3.2 Keyboard & Mouse For RKP-217 / 219 / 2415 / 2417 / 2419 series Supporting layouts N keyboard integrated with N keyboard integrated with touchpad trackball P.16... -
Page 20: Keyboard & Mouse
Chapter 3 3.2 Keyboard & Mouse For S-217 / 219 series Supporting layouts NS keyboard integrated with touchpad ■ Incorporates SUN keys, including Stop, Cut, Paste, Compose, Copy and Help ■ 104 key notepad keyboard with full numerical pad and SUN function ■... -
Page 21: How To Use "Ns" Keyboard
Chapter 3 3.3 How to Use "NS" keyboard ■ NS SUN-compatible keyboard incorporates SUN short-cut keys. ■ Press the Fn/Num button to switch the color the Num LED. Num LED in Off mode Num LED in Green color Key pad behaves as a SUN Solaris system Key pad behaves as a normal key pad mode administration command mode Three Audio / Display keys are located in the upper-right corner of the NS keyboard:... -
Page 22: Kvm Options
Chapter 4 4.1 KVM Options Our KVM is designed to seamlessly integrate into the rear of our full range of LCD drawer solutions: ■ For KVM operation, please refer to KVM user manual ■ Option with Multiple consoles Matrix KVM ■... -
Page 23: Audio Option
Chapter 4 4.4 Audio Option Speaker 3-in-1 VGA KB mouse Power Audio console port Internal power version External power version Remarks ■ Audio input is 35mm audio plug ■ The speaker is sharing the same power with LCD. P.20... -
Page 24: Dc Power Options
Chapter 4 4.5 DC Power Options Model Input rating Input voltage: 12-Volt 24-Volt 48-Volt Input range: 9 ~ 18V 18 ~ 36V 36 ~ 75V Input current - No load 50 mA 50 mA 50 mA - Full load 4950 mA 2450 mA 1220 mA Output rating... -
Page 25: Chapter 5 Troubleshooting
Chapter 5 5.1 Troubleshooting 1. Is interference signal appeared on LCD normal when shutting down the computer ? In rare cases, interference may appear on the monitor. This may be caused by signal rate of VGA card and is considered normal. -
Page 26: Chapter 6 Dimensions
584 x 616 x 216 mm 18 kg 24 kg RKP-2419 series 17.4 x 18.9 x 3.5" 23 x 24.3 x 8.5” 40 lb 53 lb All brand names, logo and registered trademarks are properties of their respective owners. Copyright 2011 Rackmount-Solutions-Pro.com. All rights reserved.
