Healthrider HRTL14508.0 User Manual

H140t
Hide thumbs Also See for HRTL14508.0:
Table of Contents

Advertisement

Quick Links

www.healthrider.com
Model No. HRTL14508.0
Serial No.
Write the serial number in the space
above for reference.
Serial Number Decal
QUESTIONS?
As a manufacturer, we are commit-
ted to providing complete customer
satisfaction. If you have questions,
or if parts are damaged or missing,
DO NOT CONTACT THE STORE;
please contact Customer Care.
IMPORTANT: You must note the
product model number and serial
number (see the drawing above)
before contacting us:
1-888-922-4222
CALL TOLL-FREE:
Mon.–Fri. 6 a.m.–6 p.m. MT
Sat. 8 a.m.–4 p.m. MT
ON THE WEB:
www.healthriderservice.com
CAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. Save this manual
for future reference.
USER'S MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HRTL14508.0 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Healthrider HRTL14508.0

Summary of Contents for Healthrider HRTL14508.0

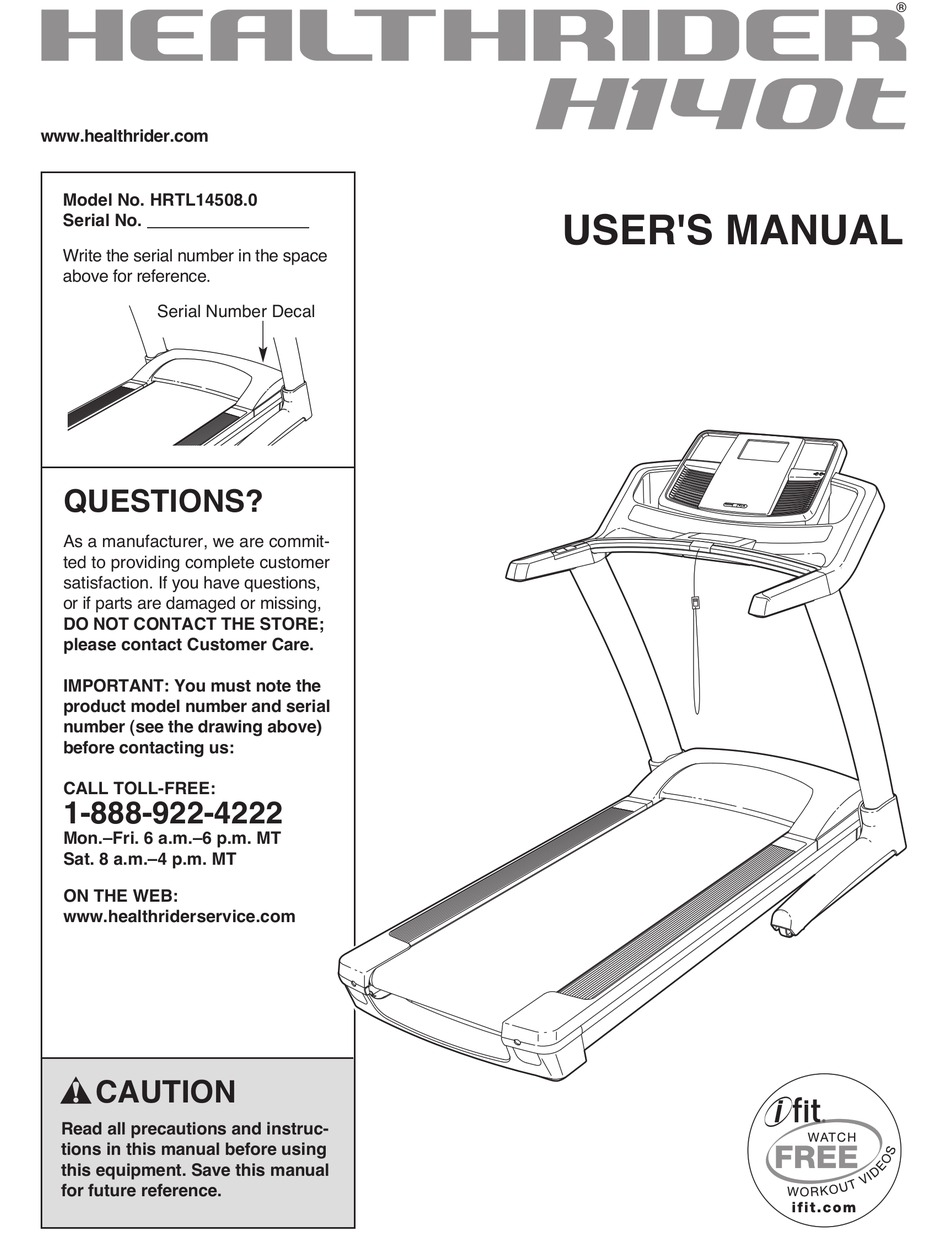

  • Page 1 USER'S MANUAL Model No. HRTL14508.0 Serial No. Write the serial number in the space above for reference. Serial Number Decal QUESTIONS? As a manufacturer, we are commit- ted to providing complete customer satisfaction. If you have questions, or if parts are damaged or missing, DO NOT CONTACT THE STORE;...

  • Page 2: Table Of Contents

    Apply the decal in the location shown. Note: The decals may not be shown at actual size. HealthRider is a registered trademark of ICON IP, Inc.

  • Page 3: Important Precautions

    3. Use the treadmill only as described. page 14. To purchase a surge suppressor, see your local HealthRider dealer or call the tele- 4. Place the treadmill on a level surface, with at phone number on the front cover of this man- least 8 ft.
  • Page 4 18. The treadmill is capable of high speeds. other than the procedures in this manual Adjust the speed in small increments to should be performed by an authorized service avoid sudden jumps in speed. representative only. 19. The pulse sensors are not medical devices. 27.
  • Page 5 33. Upon completion of any service or repairs to • Use a jumper wire not smaller than No. 6 the treadmill or the television, ask the service AWG (13.3mm ) copper, or the equivalent technician to perform safety checks to con- when a separate antenna-grounding elec- firm that the unit is in proper operating condi- trode is used.

  • Page 6: Before You Begin

    BEFORE YOU BEGIN Thank you for selecting the revolutionary HealthRider ual. To help us assist you, note the product model ® H140t treadmill. The H140t treadmill offers an impres- number and serial number before contacting us. The sive selection of features designed to make your work- model number and the location of the serial number outs at home more enjoyable and effective.

  • Page 7: Assembly

    ASSEMBLY To hire an authorized service technician to assemble the treadmill, call 1-800-445-2480. Assembly re- quires two persons. Set the treadmill in a cleared area and remove all packing materials. Do not dispose of the packing materials until assembly is completed. Note: The underside of the treadmill walking belt is coated with high-performance lubricant.
  • Page 8 2. Have a second person hold the Right Upright (88) near the Right Base Cover (117). See the inset drawing. Locate the wire tie in the rectan- gular hole in the bottom of the Right Upright. Tie the wire tie securely around the end of the Upright Wire (86).
  • Page 9 4. Set the console assembly face down on a soft surface to avoid scratching the console assem- bly. Identify the Left Accessory Tray (90) and the Right Accessory Tray (100). Attach the Left Accessory Tray (90) and the Console Right Accessory Tray (100) to the console as- Assembly sembly with eight #8 x 1/2"...
  • Page 10 6. Insert the wires from step 5 into the Uprights (85, 88) as you set the console assembly on the Console Uprights. Be careful not to pinch any wires. Assembly Attach the console assembly with four 3/8" x 1 1/4" Patch Bolts (1) and four 3/8" Star Washers (8).
  • Page 11 9. Orient the Storage Latch (78) so that the large barrel and the Latch Knob (77) are in the posi- tions shown. Remove the tie from the upper end of the Storage Latch (78). Attach the upper end of the Storage Latch to the bracket on the Frame (61) with a 3/8"...
  • Page 12 If you purchase the optional chest pulse sensor (see page 26), follow the steps below to install the re- ceiver included with the chest pulse sensor. 1. Make sure that the power cord is unplugged. Remove the indicated #8 x 1/2" Screw (17) from the Pulse Receiver Cover (95) on the back of the console assembly.
  • Page 13 Before operating the television, you must connect an antenna or a 75 ohm CATV cable to the 75 ohm ter- minal or the 96" A/V Wire to the audio/video input jacks. Note: Use a CATV cable to connect to an external source such as a cable box, satellite TV box, VCR, or analog cable.

  • Page 14: Operation And Adjustment

    Grounded Outlet Box the right). To purchase a surge suppressor, see Adapter your local HealthRider dealer or call the telephone Surge Suppressor number on the front cover of this manual and order part number 146148, or see your local electronics store.
  • Page 15 CONSOLE DIAGRAM FEATURES OF THE CONSOLE run with the Marathon workout. iFit workouts automati- cally control the treadmill while the voice of a personal The treadmill console offers an impressive selection of trainer coaches you through every step of your workout. features designed to make your workouts more effec- One iFit card is included.
  • Page 16 HOW TO TURN ON THE POWER HOW TO USE THE MANUAL MODE IMPORTANT: If the treadmill has been exposed to 1. Insert the key into the console. cold temperatures, allow it to warm to room tem- perature before turning on the power. If you do not See HOW TO TURN ON THE POWER at the left.
  • Page 17 5. Follow your progress with the displays. Before using the handgrip pulse sensor, remove the sheets of clear plastic from the metal contacts. The matrix—When you In addition, make sure that your hands are clean. select the manual mode, the matrix will To measure display a track that rep- your heart rate,...
  • Page 18 HOW TO USE A PRESET WORKOUT segment. If you are using Current Segment an incline workout, the 1. Insert the key into the console. height of the flashing segment indicates the in- See HOW TO TURN ON THE POWER on page 16. cline setting for the cur- rent segment.
  • Page 19 HOW TO CREATE A CUSTOM WORKOUT ment. To program speed and incline settings for the first segment, simply adjust the speed and in- 1. Insert the key into the console. cline of the treadmill as desired by pressing the speed and incline buttons. See HOW TO TURN ON THE POWER on page 16.
  • Page 20 HOW TO USE A CUSTOM WORKOUT If desired, you can redesign the workout while using it. To change the speed setting or the in- 1. Insert the key into the console. cline setting for the current segment, simply press the speed or incline buttons. When the current See HOW TO TURN ON THE POWER on page 16.
  • Page 21 HOW TO USE AN IFIT WORKOUT just to the first speed and incline settings of the workout. Hold the handrails and begin walking. 1. Insert the key into the console. During the workout, a personal trainer will guide you See HOW TO TURN ON THE POWER on page 16. through the workout.
  • Page 22 HOW TO OPERATE THE PERSONAL TELEVISION minal on the treadmill, select the TV source. If you have plugged the audio/video wire harness into the IMPORTANT: Before operating the television, you audio/video input jack, select the AV source. must connect the audio/video wire harness or a CATV cable to the treadmill (see page 13).
  • Page 23 HOW TO USE THE REMOTE CONTROL Press the EPG button to view the electronic program guide. Note: The electronic program guide is only The first time you use the re- available when viewing ATSC digital television. mote control, insert batteries (see HOW TO REPLACE THE Press the Info button to view information about the cur- BATTERIES IN THE REMOTE...
  • Page 24 HOW TO ADJUST THE TELEVISION SETTINGS 4. Adjust the time settings. You must use your remote control to adjust television Adjust the OSD (on-screen display) duration, sleep settings. Press the Menu button to enter the main timer, time zone, or daylight savings time settings. menu or to return to a previous menu.
  • Page 25 6. Scan and save channels. After all valid chan- nels available in your Select CATV or AIR. Select CATV to receive cable area have been Program Name Skip channels through the 75 ohm terminal on the tread- saved into the televi- FD 3803 KQUED-SD mill.
  • Page 26 THE INFORMATION MODE HOW TO USE THE STEREO SOUND SYSTEM The console features an information mode that keeps To play music or audio books through the consoleʼs track of the total distance that the walking belt has stereo speakers, you must connect your MP3 player, moved and the total number of hours that the treadmill CD player, or other personal audio player to the con- has been used.

  • Page 27: How To Fold And Move The Treadmill

    HOW TO FOLD AND MOVE THE TREADMILL HOW TO FOLD THE TREADMILL FOR STORAGE Before folding the treadmill, adjust the incline to the lowest position. If you do not do this, you may damage the treadmill when you fold it. Remove the key and unplug the power cord.

  • Page 28: Troubleshooting

    TROUBLESHOOTING Most treadmill problems can be solved by following the steps below. Find the symptom that applies, and follow the steps listed. If further assistance is needed, please see the front cover of this manual. PROBLEM: The power does not turn on SOLUTION: a.
  • Page 29 Lower the treadmill (see HOW TO LOWER THE TREADMILL FOR USE on page 27). Remove the four indicated #8 x 3/4" Screws (7), and remove the Motor Hood (66). Next, locate the Reed Switch (48) and the Magnet (124) on the left side of the Pulley (54). Turn the View Pulley until the Magnet is aligned with the Reed Switch.
  • Page 30 PROBLEM: The walking belt is off-center or slips when walked on SOLUTION: a. If the walking belt is off-center, remove the key and UNPLUG THE POWER CORD. If the walking belt has shifted to the left, use the hex key to turn the left idler roller bolt clockwise 1/2 of a turn;...
  • Page 31 PROBLEM: The remote control does not function correctly SOLUTION: a. Make sure you are standing on the treadmill, holding the remote control near the television and pointing the remote control directly at the console. b. If your remote control is still not functioning correctly, the batteries should be replaced; most re- mote control problems are the result of low batteries.

  • Page 32: Exercise Guidelines

    EXERCISE GUIDELINES WARNING: Burning Fat—To burn fat effectively, you must exer- cise at a low intensity level for a sustained period of Before beginning any time. During the first few minutes of exercise, your exercise program, consult your physician. body uses carbohydrate calories for energy. Only after This is especially important for persons over the first few minutes of exercise does your body begin the age of 35 or persons with pre-existing...

  • Page 33: Part List

    PART LIST—Model No. HRTL14508.0 R0109A To locate the parts listed below, see the EXPLODED DRAWING near the end of this manual. Key No. Qty. Description Key No. Qty. Description 3/8" x 1 1/4" Patch Bolt Lift Arm 3/8" x 3 3/4" Patch Bolt Reed Switch Clamp 3/8"...
  • Page 34 Key No. Qty. Description Key No. Qty. Description 96" A/V Wire Remote Control Left Handrail Magnet Right Handrail Filter Wire Right Bottom Handrail Cover Console Base Console Crossbar Left Bottom Handrail Cover Left Console Fan Left Handrail Cover Rear Foot Right Handrail Cover Speaker Console Cover...

  • Page 35: Exploded Drawing

    EXPLODED DRAWING A—Model No. HRTL14508.0 R0109A...
  • Page 36 EXPLODED DRAWING B—Model No. HRTL14508.0 R0109A...
  • Page 37 EXPLODED DRAWING C—Model No. HRTL14508.0 R0109A...
  • Page 38 EXPLODED DRAWING D—Model No. HRTL14508.0 R0109A...
  • Page 39 EXPLODED DRAWING E—Model No. HRTL14508.0 R0109A...

  • Page 40: Ordering Replacement Parts

    ORDERING REPLACEMENT PARTS To order replacement parts, please see the front cover of this manual. To help us assist you, be prepared to provide the following information when contacting us: • the model number and serial number of the product (see the front cover of this manual) •...
