Elba EV-5199 User Manual

Elba EV-5199 User Manual

Water filtration vacuum cleaner 220-240v 50hz 1200w, 1400w max.
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Water Filtration Vacuum Cleaner
User Guide
Model: EV-5199
220-240V 50HZ，1200W,1400W max.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EV-5199 and is the answer not in the manual?

Questions and answers

Related Manuals for Elba EV-5199

Summary of Contents for Elba EV-5199

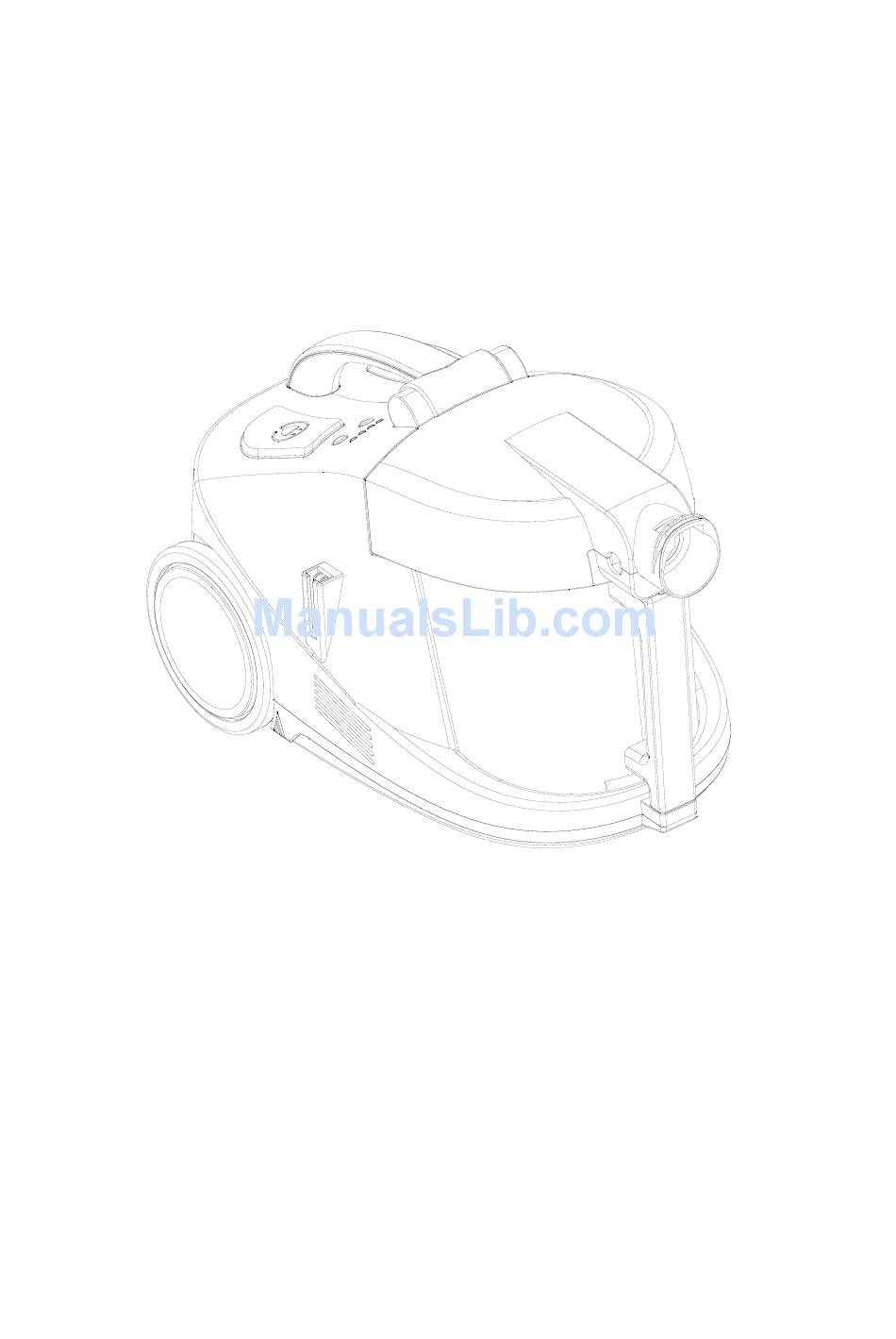

  • Page 1 Water Filtration Vacuum Cleaner User Guide Model: EV-5199 220-240V 50HZ，1200W,1400W max.

  • Page 2: Important Safeguards

    IMPORTANT SAFEGUARDS 1. Safety Precautions During Use  To ensure safe and correct use of your product, do not operate without first reading this operation manual thoroughly.  To avoid shortening the life span or damaging your product, do not use the machine with parts or accessories not original.
  • Page 3 electrical shock.  Always switch-off your machine and disconnect the AC plug from the mains outlet when the product is not in use.  Do not use your machine if the AC cord or plug is damaged.  Do not tamper with a damaged AC cord or plug. Return the product to the Service Centre for inspection. ...
  • Page 4 Part and Accessories Index Handle Flexible Hose Telescopic Tube Rewind Button Carrying Handle Switch Button Brush Big Wheel Handy Cyclonic Crevice Nozzle Tank Cover Attatchment Floater Sponge Filter Meshed Filter Cage Duster Brush Curved Tube Water Tank Water Brush...

  • Page 5: Preparation Before Use

    Preparation Before Use Caution  Do not overfill the water container. Note the `Maximum Level` marking.  Do not fill the water container with anything other than water.  Always empty the dirty water, clean and store your machine correctly after each use. 1.
  • Page 6  Connect the telescopic tube to the flexible hose 2. Power On  Extract the AC power cord fully by holding the cord and pull it towards you. Do not pull the cord by holding the plug. as this will damage the cord. ...

  • Page 7: Use Of Your Product

    Use of your product 1. Suction Power Selection Button  There are four suction power setting, Low, Medium, High and Turbo. Use (+) or (-) button on the main body of the machine to select the desired setting. (Fig.8)  The current suction power is indicated by the number of green indicator lights.

  • Page 8: Product Care And Storage

    Caution: If you use your machine for liquid suction. Make sure you first reduce the amount of water in the tank by about half. It is also important not to allow the tank to become too full of vacuumed liquid. When you finish, empty the tank completely and vacuum up about one liter of clean water to rinse clean the inside of the Flexible Hose and the Telescopic Tube.
  • Page 9 1. General  You may wipe the machine with a damp cloth. Synthetic detergent may be used on plastic and metal parts if necessary. Make sure you wipe the machine and its parts dry before storage.  Do not use strong cleaning agents such as benzene or thinner to clean the machine. ...
  • Page 10 HOW TO USE HANDY CYCLONE ATTACHMENT What it is: 1. An additional cyclonic dust collecting device for all vacuum cleaner. 2. With detachable transparent dust tank, capacity 1 L. 3. Easy to drop the dust. 4. Easy to see the dust cleaned. 5.
  • Page 11 Fig.01 How to use this attachment: 1.Connect the cyclonic attachment to the flexible hose handle and telescopic tube。Then can use it for cleaning job. (Fig.02,Fig03) Fig.02 Fig.03 2. If the diameter of the attachment is not fitting with the hose handle and/or the telescopic tube, Please use the additional connectors to connect with the attachment, then connecting with the handle and tube.
  • Page 12 Fig.04 3. After finishing the cleaning, You can take out the dust cup and drop the dust to dust bin. You can wash the dust cup with the water. (Fig.05, Fig06) Fig.05 Fig.06 Note: Pls don’t use this attachment to sucking water or liquid , if the vacuum cleaner is not a wet/dry vacuum.

  • Page 13: Troubleshooting

    Troubleshooting Do not disassemble or attempt to repair the machine yourself Conditions Possible Cause and Solution  If the sucked dust or water is too full, then the float switch will goes up to stop the suction. It is a safety device, not the machine is damaged.
