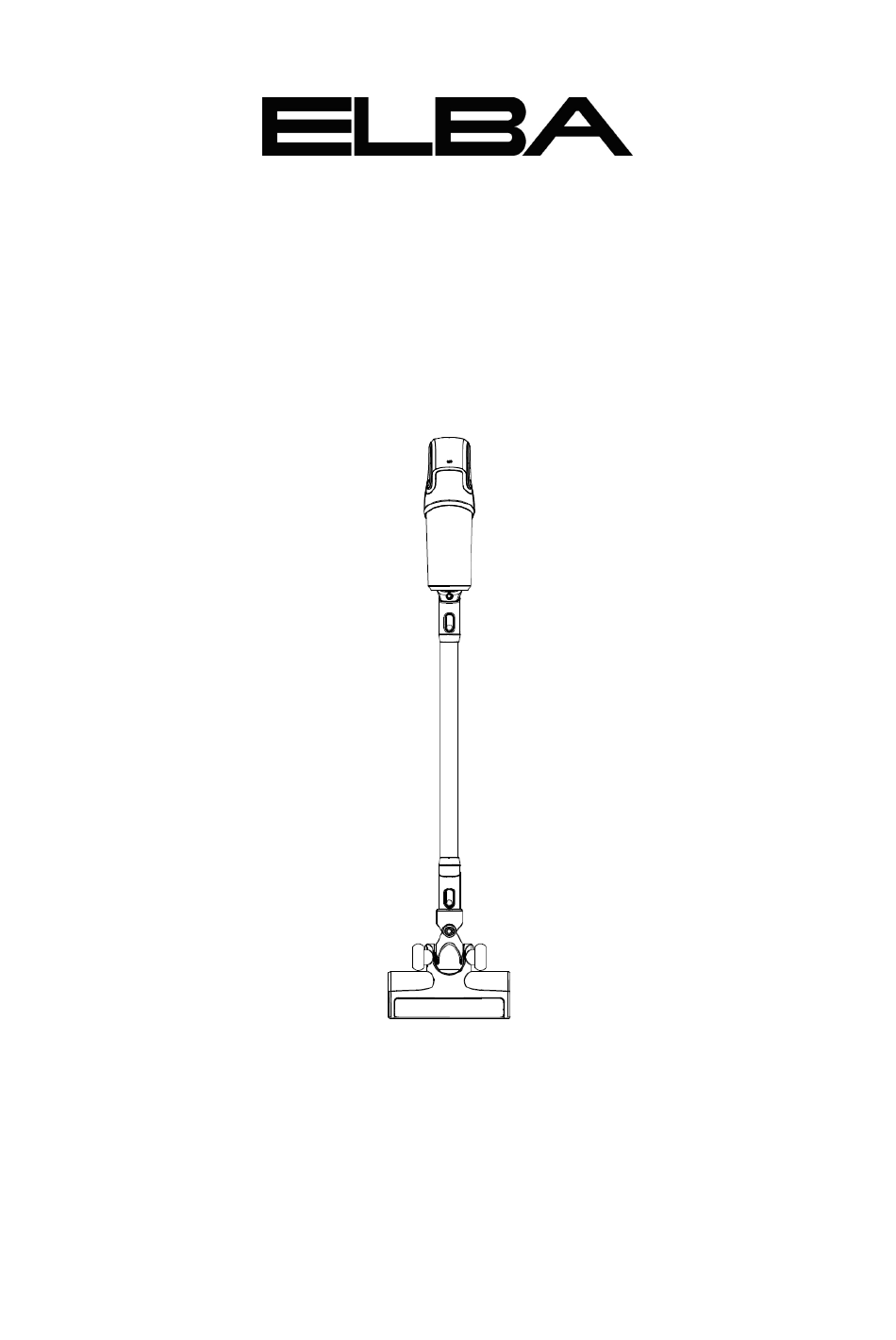

- Page 1 Model No. : ESVC 3926 GY 2 In 1 Stick Vacuum Cleaner INSTRUCTION MANUAL Read this manual thoroughly before using and save it for future reference...
- Page 2 1. IMPORTANCE SAFE GUARDS Before using the electrical appliance, the following basic precautions should always be followed: This appliance is designed for domestic dry vacuum cleaning only. Do not pick up liquids or use on wet surfaces for fear of damage to the appliance. Never immerse the charger or the appliance into water to avoid any danger.
-
Page 3: Part List
2. PART LIST Aluminum Tube Charger Dust Container Wall Mount Bracket (Standard) Sand Net Filter Small Crevice Nozzle (Standard) HEPA Filter Small Dust Nozzle (Standard) Main Unit Hard Floor Brush (Standard) Battery Pack... -
Page 4: Installation Instruction
3. INSTALLATION INSTRUCTION For the convenience of transportation and storage, the main unit, floor brush, aluminum tube assembly and other parts (wall-mount bracket, charger, small dust brush and flat spout) are packed separately in the box. User should follow the steps below for assembling the appliance when first use. - Page 5 3.3 Wall-mount Bracket Installation Pin up two self-tapping screws M4*20 (included) with a distance of 71.5mm in between as shown in figure 3e. Fix the wall bracket (No.8) on the screws properly, see figure 3f. Hang the small crevice nozzle (No. 9) and small dust nozzle (No. 10) on the designated slot as shown in figure 3g.
- Page 6 Battery indicator Figure 4c 4.2 Main Unit (Handheld Unit) Press the release key button (B) to detach the main unit from the aluminum tube, see figure 4d. Press the power switch button to switch on the handheld unit. The operation will be the same as operating the whole unit (refer to Point 4.1).
- Page 7 4.3 Small Crevice Nozzle and Small Dust Nozzle The small crevice nozzle (No.9) is for cleaning the corners of the wall or confined gap while the small dust nozzle (No.10) is mainly for stubborn stains or dust in surface. Both accessories are applicable to use on the main unit or aluminum tube.
-
Page 8: Battery Pack
5. BATTERY PACK There are 2 ways to charge the battery pack – Hang the unit on the wall-mount bracket if the bracket is near to power socket (Figure 5a) or take out the battery pack and charge directly using the charging cable(Figure 5b). Either way, plug the charging cable into the connection point at the back of the battery to start charging. -
Page 9: Cleaning And Maintenance
6. RUNTIME The lifespan for Li-on battery is subject to natural wear. Thus, the battery capacity and the runtime will decrease over a period of times. This is normal aging process and does not indicate faulty or defect on the product. Run Time High Gear Up to 17 min... - Page 10 Knob Figure 7c 7.3 Assembling Filters After cleaning, insert the HEPA filter back to the sand net filter and lock it in place by turning the knob clockwise. Put the sand net filter unit into the dust container and ensure that the filter unit is correctly fitted (Figure 7d).
- Page 11 Wash or replace it if too much dust or blockage; remove hair from the brush bar if jams and keep it tangle-free after use in a long time so that the vacuum cleaner work more efficiently. TECHNICAL SPECIFICATION Product Model ESVC 3926 GY Working Voltage DC 21.6V Rated Power 130W...
- Page 12 The manufacturer and agent decline all responsibilities in the event of damage caused by improper, incorrect or illogical use of the appliance. Contact after sales service center when in doubt of the condition of the appliance. For after sales service [Singapore], please contact Casa (S) Pte Ltd 15 Kian Teck Crescent, Singapore 628884 Telephone: +65 6268 0077...
