Summary of Contents for Elba ESVC 2990 GY

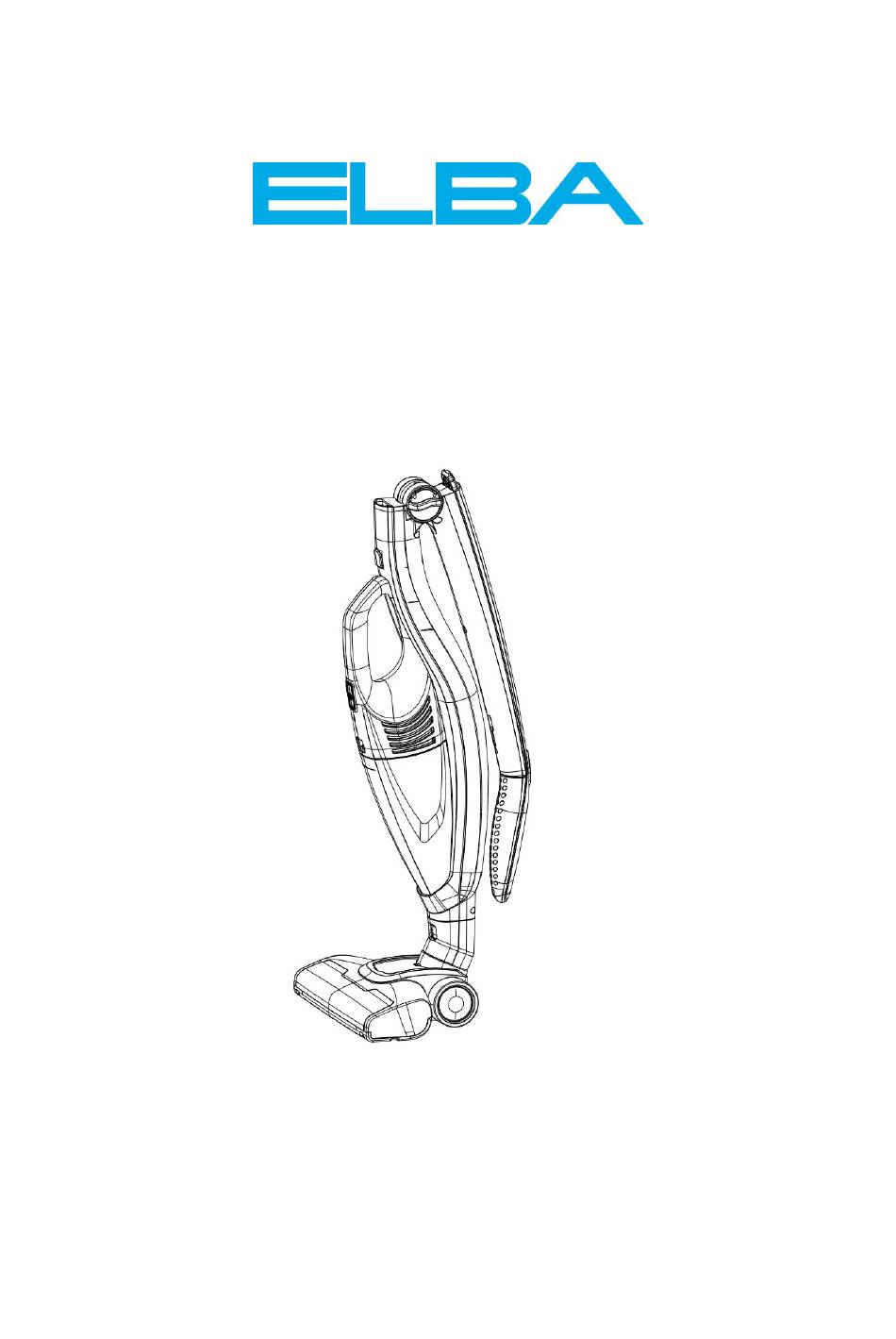

- Page 1 Model No. : ESVC 2990 GY 2 In 1 Stick Vacuum Cleaner Instruction Manual Read this manual thoroughly before using and save it for future reference...
-
Page 2: Important Safeguards
1. IMPORTANT SAFE GUARDS Before using the electrical appliance, the following basic precautions should always be followed: This is a dry vacuum cleaner do not use it to suck liquid to avoid being damaged. Do not immerse the charger or vacuum cleaner into the water for cleaning to avoid any risk. -
Page 3: Parts List
2. PARTS LIST Fig. 2-1 Handheld Unit Wire Holder Cloth Filter Flat Suction Spout Sand Net Filter Small Hair Brush Dust Cup Body Floor Brush Adaptor Hair Cutter... -
Page 4: Installation Instruction
3. INSTALLATION INSTRUCTION The body, floor brush, wall mount base, adaptor, small hair brush and flat suction spout shall be packed separately for convenient transportation and storage as this vacuum cleaner is of large size. The users shall install the appliance by following the operation as below when use at the first time. - Page 5 4. OPERATION INSTRUCTION 4.1 Operate the whole unit There are two buttons on the handle - power switch (1) and power regulation button (2) (see Fig.4-1). Press the power switch (1), the motor starts to run, and the appliance enters into high speed working mode. Press the power regulation button (2), the appliance changes to the low speed working mode.
-
Page 6: Cleaning And Maintenance
Fig.４-3a Fig.４-3b Fig.４-2 Fig.４-4a Fig.４-4b 5. CLEANING AND MAINTENANCE Detach the accessory on the sub-unit, and then press the release button (2) of dust cup (1) to remove it from the sub-unit. Fig.5-1... - Page 7 Grasp the filter handle (3) and remove the filter assembly (4) from the dust cup, and then empty the dust cup and rinse it with water. Wipe the residual water on the dust cup and let it dry completely after cleaning. Fig.
- Page 8 Fig. 5-4 If hair found on the floor brush, press the roll brush release tab (7) as shown below (Fig. 5-5a) to open the roll brush cover, and then remove the roll brush (8) (Fig. 5-5b). Fig. 5-5a Fig. 5-5b ...
-
Page 9: Technical Specification
The electric roll brush may be wrapped with some hair or other floccule after prolong usage, please clean it in time to make the appliance work efficiently. 6. TECHNICAL SPECIFICATION Product model ESVC 2990 GY Working voltage DC 14.4V Rated power... - Page 10 Fig. 7 ENVIRONMENT-FRIENDLY DIPOSAL You can help protect the environment! Please remember to respect the local regulations: Hand in the non-working electrical equipments to an appropriate waste disposal centre.
- Page 11 Please note: Casa (S) Pte Ltd reserves all rights to the final interpretation of the content of this manual. Customer will not be notified in the event of any amendments to the content. For original parts & reliable service: CASA (S) PTE LTD 15 KIAN TECK CRESCENT, SINGAPORE 628884 TEL:+65 6268 0077...
