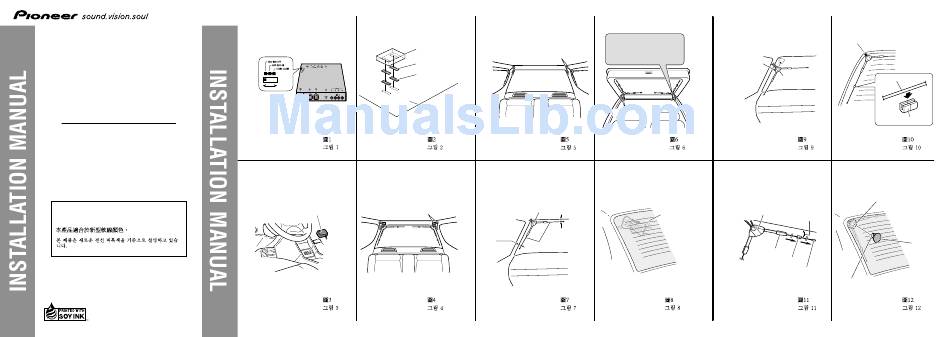

Pioneer GEX-P5750TV Installation Manual

GEX-P5750TV
This product conforms to new cord colors.
Los colores de los cables de este producto se
conforman con un nuevo código de colores.
Printed in Japan
Imprimé au Japon
<CRD4000-A> ES <KSNNF> <05D00000>
1. This unit
2. Velcro tape (hard)
3. Velcro tape (soft)
4. Car nat or chassis
Fig. 1 Fig. 2
1. Clamps
1. Remote sensor
2. Double-sided
tape
Fig. 3 Fig. 4
2. When mounting on a hatchback
window, use clamps where necessary
to assure the cable is not stretched or
Clamps does not cause an obstruction when
the hatch is opened or closed.
1. Clamps
Fig. 5 Fig. 6
1. Booster amp section
Decide on a suitable location for mounting
before removing the protective paper.
1. Window glass
20 mm
20 mm
2. Antenna elements
Fig. 7 Fig. 8
1. Remove the
protective
paper and stick
on.
1. Antenna element
2. Booster amp section
2. Holder
Fig. 9 Fig. 10
1. Remove moisture, dust, dirt
and oil from where you are
going to stick on the seal.
1. Booster amp section
20 mm
2. Loading coil
3. Holder
4. Antenna top
3. Remove the protective
paper and stick on.
Fig. 11 Fig. 12
2. Seal
