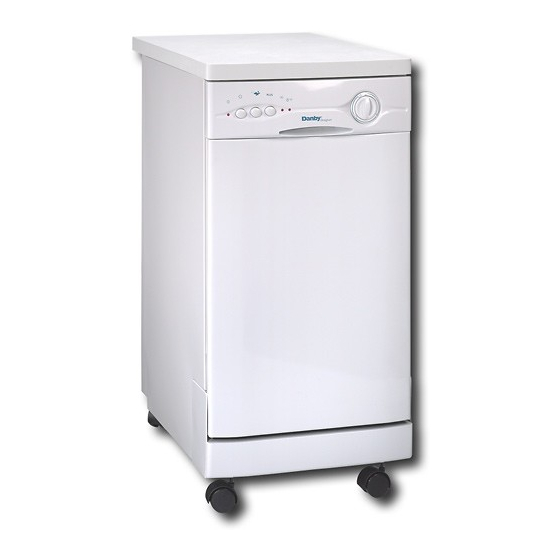

Danby Designer DDW1805W Instruction Manual
Portable dishwasher
Hide thumbs
Also See for Designer DDW1805W:
- Instruction manual (34 pages) ,
- Instruction manual (17 pages) ,
- Instruction manual (10 pages)
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Related Manuals for Danby Designer DDW1805W
Summary of Contents for Danby Designer DDW1805W
-
Page 1: Save These Instructions
Portable Dishwasher Instruction Manual DDW1805W Write the model and serial numbers here: Model # __________________ Serial # __________________ You can find them on the tub wall just inside the door or the lower part of the back. SAVE THESE INSTRUCTIONS... -
Page 2: Table Of Contents
Safety Information ......1 Danby & You, A Service Partnership Thank you for buying this product. As a home appliances producer, we are proud of our quality products and we are committed to providing dependable service. -
Page 3: Safety Information
IMPORTANT SAFETY INFORMATION READ ALL INSTRUCTIONS BEFORE USING WARNING! When using your dishwasher, follow the basic precautions below WARNING! HYDROGEN GAS IS EXPLOSIVE Under certain conditions, hydrogen gas may be produced in a hot-water system that has not been used for two weeks or more. -
Page 4: Control Panel
CONTROL PANEL Model : DDW1805W Rapid Plus STOP STOP STOP Power ON Light: Illuminates when the ON/OFF Button is " " . Rapid Button: Only used with cycle pressed down. " " . Plus Button: Only used with cycle Rinse Aid Warning Light: Illuminates when the dispenser needs to be refilled. -
Page 5: Wash Cycle Table
WASH CYCLE TABLE(DDW1805W) Description Detergent Plus Rapid Cycle Selection Rinse Cycle Program pre/main of Cycle Button Button Information -rinse For normally soiled loads, Wash (60˚ ) such as pots , plates,glasses Normal 4/20 gr. Rinse and lightly soiled pans. Rinse (72˚ ) Normal Wash Standard Daily Cycle. -
Page 6: Water Softener
WATER SOFTENER There are two ways to reduce the water hardness: one way is by using water softener, the other is by using detergent. The hardness of the water varies from place to place. If hard water is used in the dishwasher, deposits will form on the dishes and utensils. -
Page 7: Detergent Dispenser
DETERGENT DISPENSER The dispenser must be refilled before the start of each wash cycle according to the instructions provided in the" Wash Cycle Table". Our dishwashers use less detergent and rinse aid than conventional dishwashers. Generally, only one tablespoon of detergent is needed for a normal wash load. -
Page 8: Adjusting Rinse Aid Dispenser
Adjusting Rinse Aid Dispenser A measured amount of rinse aid is released during the final rinse. As with detergent, the amount of rinse aid needed for your dishes depends on the hardness of the water in your area. Too much rinse aid can result in lather or foaming and can cause cloudiness or streaks on your dishes. -
Page 9: Silverware Basket
How to use the Lower Rack We recommend that you place large items in the lower rack: pots, pans, lids, serving dishes and bowls, as shown below. It is preferable to place serving dishes and lids on the side of the racks in order to avoid blocking the rotation of the top spray arm. -
Page 10: At The End Of The Wash Cycle
Cancell ing or modifying a wash cycle setting. . . A cycle that is underway can only be modified if it has only been running for a short time. Otherwise, the detergent may have already been released, and the appliance may have already drained the wash water. If this is the case, the detergent dispenser must be refilled (see the paragraph entitled "... -
Page 11: Cleaning The Spray Arms
Cleaning the Spray Arms It is necessary to clean the spray arms regularly as hard water chemicals will clog the spray arm jets and bearings. To remove the spray arm, screw off the nut to take out the washer on top of the spray arm and remove the arm. Wash the arms in soapy, warm water and use a soft brush to clean the jets. - Page 12 OVERFLOW CONDITIONS: The dishwasher is designed to detect/monitor water overflow conditions. The overflow tube is located in the lower (well) section of the inner door liner. This tube must be kept free and clear of obstructions and debris. In the event of an overflow condition, the water level rises above the height of the overflow tube and is directed into the overflow container.
- Page 13 How to Drain Excess Water If the sink is 34 inches or higher from the floor, the excess water in Unicouple hoses cannot be drained directly into the sink. It will be necessary to drain excess water from hoses into a bowl or suitable container that is held outside and lower than the sink.
-
Page 14: Troubleshooting Tips
BEFORE CALLING FOR SERVICE . . . T r oubleshooting Tips Review the chart on the following pages before calling for service. Problem Possible Causes What To Do Dishwasher doesn t Fuse blown, or the Replace fuse or reset circuit breaker. Remove any other circuit breaker acted appliances sharing the same circuit with the dishwasher Power supply is not... - Page 15 BEFORE CALLING FOR SERVICE . . . Problem Possible Causes What To Do Glassware is Combination of soft Use less detergent if you have soft water and select a water and too much shortest cycle to wash the glassware and to get them clean. cloudy detergent Yellow or brown film...
- Page 16 NOTE: Continuing research results in steady improvement. Therefore, this information and these specifications are subject to change without notice.
- Page 17 FREE STANDING DISHWASHER LIMITED IN-HOME PRODUCT WARRANTY This quality product is warranted to be free from manufacturer’s defects in material and workmanship, provided that the unit is installed and operated in compliance with the installation and operating conditions intended by the manufacturer. Danby.
