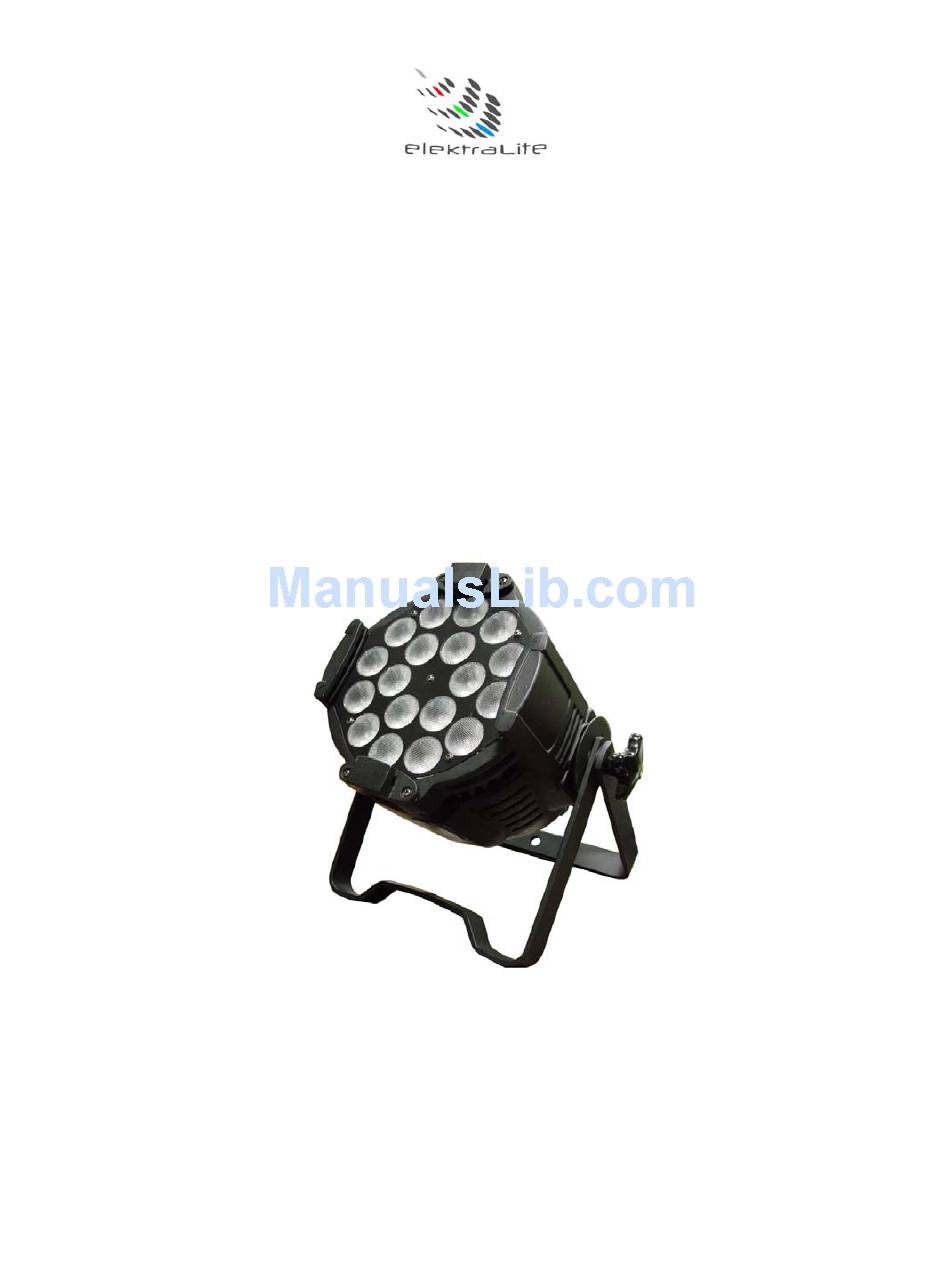

Page 1: User Manual
Elektralite LED 1018 RGBWA (5-in-1) USER MANUAL Elektralite (a division of Group One), 70, Sea Lane, Farmingdale, NY11735, U.S.A. T. +1 (516)-249-3662. F. +1 (516)-249-8870 WWW.MYELEKTRALITE.COM... -
Page 2: Safety Instructions
1. Unpacking Thank you for choosing the Elektralite 1018 RGBWA (5-in-1) fixture. For your own safety, please read this manual before installing the device. This manual covers important information on installation and applications. Please keep this manual for future reference. -
Page 3: General Guidelines
3 feet. Always mount the Elektralite 1018 (5-in-1) with an appropriate safety cable. Operate the Elektralite 1018 (5-in-1) only when you are familiar with the features on the fixture. Do not permit operation by persons not qualified. -
Page 4: Dmx-512 Control Connection
The DMX terminator is simply a 5 pin XLR plug (male) with a 120 Ω resistor connected between pins 2 and 3. It is then plugged into the output XLR socket of the last Elektralite 1018 (5-in-1) or other dmx device in the chain. Please see illustration below. - Page 5 6. Menus in the fixture. Root Menu Sub Menu 1 Sub Menu 2 STAT (STATIC LOOK) R(ED) 0-255 G(REEN) 0-255 B(LUE) 0-255 W(HITE) 0-255 A(MBER) 0-255 S(STROBE) 0-255 AUTO (AUTOMATIC) AT 01 THROUGH TO AT10 PR 01 THROUGH TO PR10 SLAV(E) ASSIGN DMX CHANNEL 1-512...
-
Page 6: Auto Programs
7. Static Look. The Elektralite 1018 (5-in-1) can be set to a single static look quickly. Use the Menu button to get to STAT. Press Enter. The next screen will read R000. This is addressing the RED leds. If Red is to be in the static look, then use the ↑ or ↓ to increase the value of the red. -
Page 7: Run Mode
12. 12. ID Address. An Elektralite 1018 (5-in-1) can be addressed (controlled) through the dmx or instead it can have its own unique ID address. There are a total of 255 different ID addresses from 1 to 255. - Page 8 13. Edit The Edit function allows the 10 inbuilt PR programs to be edited and customized. The programs that can be edited are PR01 through PR10. Each of the programs can have up to 99 scenes (SC01-SC99). Each scene has 5 components that can be edited on the fixture. They are the Red leds, the Green leds, the Blue leds, the White leds, the Amber led, the time the scene is "played"...
- Page 9 14. Set. (Set has several Sub Menus which allow functions to be used). 1). UPLD. Custom programs can be uploaded from a master fixture into a slave fixture. First:- connect the fixtures to power and have a dmx cable going from the Master (dmx out) to the Slave (dmx in).
- Page 10 5).RGBW The RGBW setting allows the ability to calibrate the white achieved when mixing RGB. When RGBW is set to OFF, the output when Red, Green, and Blue is at maximum is 255 for all three colors. By definition this combination produces a white with a blue tinge which affects all other colors if cameras and other video equipment are "keyed"...
- Page 11 16. CAL 2 When RGBW is turned on under the SET menu, then CAL2 will allow you to set up the white balance for the RGB components. To adjust the white balance, go through the Root Menu until CAL 2., the screen will read RGBW press enter again.
- Page 12 Personality tables. (for the personality STAG please refer to the DMX channel assignments on pages 14 & 15. STAG uses all 12 channels as shown in the dmx channel assignment table). ARC1 0-255 0-255 GREEN 0-255 BLUE 0-50 Linear dimmer speed（DIM=OFF） 51-100 nonlinear speed1（DIM1）...
- Page 13 ARC3 0-255 0-255 GREEN 0-255 BLUE 0-255 WHITE 0-255 AMBER 0-50 Linear dimmer speed（DIM=OFF） 51-100 Nonlinear speed 1（DIM1） 101-150 Nonlinear speed 2（DIM2） 151-200 Nonlinear speed 3（DIM3） 201-255 Nonlinear speed 4 (DIM4) ARC3+D 0-255 MASTER DIMMER 0-255 0-255 GREEN 0-255 BLUE 0-255 WHITE 0-255...
-
Page 14: Dmx Channel Assignments
DMX Channel Assignments. Grand Master for RGBW 0-255 0-255 Leds (or chase speed when anyone of PR01 thru PR10 in Ch08 is operational) Leds (or cross fade time when anyone of PR01 thru PR10 in Ch08 is operational) 0-255 GREEN 0-255 Leds Blue... -
Page 15: Cleaning And Maintenance
The clear front plastic cover for the lenses should be cleaned so the light output is maintained. With the Elektralite 1018 (5-in-1) turned off, use only a moist lint-free cloth, and clean the plastic cover. Never use alcohol or solvents to clean the fixture. Never spray anything onto the fixture at the front or in any... -
Page 16: Technical Specification
12" x 10.9" x 9.1" 8.5 kgs 19 pounds Elektralite is a division of Group One. Group One and its divisions are constantly improving their product range and we reserve the right to make changes without prior notice. -
Page 17: Other Products
Other Products. For other great products that are manufactured under the Elektralite product line, please go to the website at www.myelektralite.com A preview of the products include:- Elektralite LED Pro Line eye Kandy The Elektralite TurboFog (check out the ElektraFog too!) - Page 18 The Elektralite TurboHazer (check out the ElektraHazer too!)
