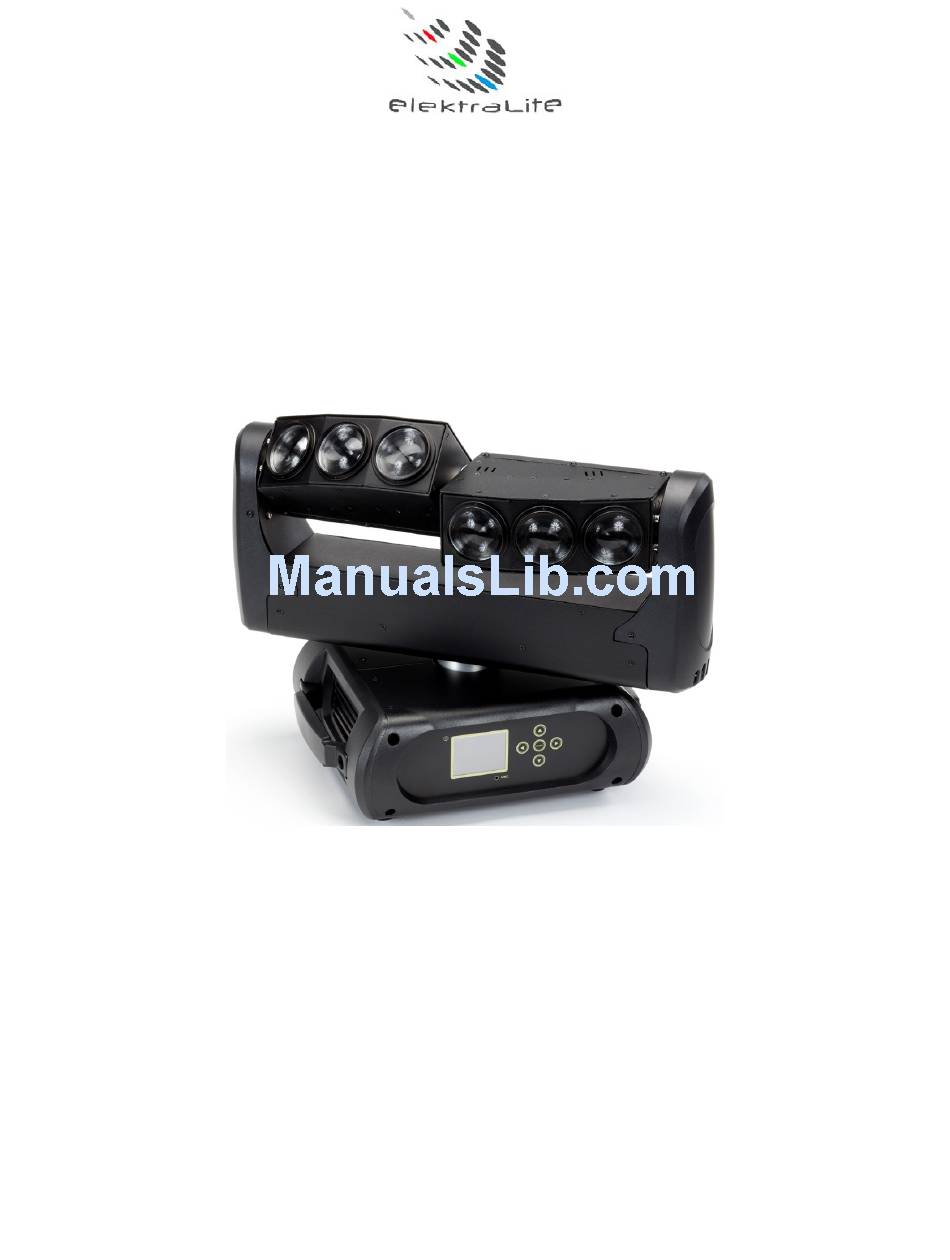

- Page 1 ElektraLite lightStream USER MANUAL (Version 1.02) Elektralite (a division of Group One), 70, Sea Lane, Farmingdale, NY11735, U.S.A. T. +1 (631)-396-0184. F. +1 (631)-396-0190 WWW.MYELEKTRALITE.COM...
-
Page 2: Safety Instructions
To keep this simple, we are going to refer to the fixture as the Elektralite lightStream throughout the manual. The Elektralite lightStream uses a high powered 90 watt led which is run a balanced and conservative arrangement at 60 watts. -
Page 3: General Guidelines
NOT be used as one phase in a 120v circuit to create 208 volts across the Elektralite lightStream. The reason for this is simple, the neutral is not protected with a fuse. Any problem with that phase will not be protected by the Elektralite lightStream. -
Page 4: Dmx-512 Control Connection
DMX terminator is used. This helps prevent corruption of the digital control signal. The DMX terminator is simply a 5 pin XLR plug (male) with a 120 Ω resistor connected between pins 2 and 3. It is then plugged into the output XLR socket of the last Elektralite... - Page 5 6. Channel Values for profiling the Elektralite lightStream. Channel Name Function Value Value 8bit 16bit Pan Coarse Pan fine Pan Fine Tilt Tilt Coarse Tilt fine Tilt Fine Tilt Tilt Coarse Tilt fine Tilt Fine Movement fastest to Slowest Speed...
- Page 6 6. Channel Values for profiling the Elektralite lightStream (Cont). Channel Name Function Value Value 8bit 16bit Shutter Shutter closed Effect 1 slow to fast Effect 2 slow to fast Strobe effect slow to fast Effect 3 slow to fast Effect 4 slow to fast...
- Page 7 6. Channel Values for profiling the Elektralite lightStream (Cont). Channel Name Function Value Value 8bit 16bit Virtual Color Bounce (ch9 must be set at between 80-111). Color 2 Black out Red=full, Green→up, Blue=0, White=0 Red→down, Green=full, Blue=0, White=0 Red=0, Green=255, Blue→up, White=0 Red=0, Green→down, Blue=255, White=0...
- Page 8 Hibernation (see menu section 7 for explanation of hibernation) Not used There is a choice of 4 modes that the ElektraLite lightStream can operate. The default channel configuration out of the box, is Standard Mode (St) using a total of 18 channels of DMX.
- Page 9 7. Operational Tips. (In Standard Mode). A). In order to have output from the leds. The shutter (ch 7) and dimmer (ch 8) must be outputting (>001 dmx) plus any of the individual led channels (ch 12 through to 17) must be outputting >001 dmx. So if all 6 leds are needed full on in Red;...
- Page 10 Fan speed Sensors Channel Value PAN………CONTROL Display value of channel Error Message Pan,Tilt…… Error channels Fixture Model ElektraLite LightStream Display model brand and model Software Ver Version of each IC 1U01 V1.0.00 & 2U01 V1.0.00 Reset Reset all Pan & Tilt Reset Pan &...
- Page 11 Time a scene is “played” So 00.500 = ½ sec Input from an external DMX Input Press Enter will record Controller. the scene into the LightStream Scenes ScXX=>ScXX For copying Scenes Record Note: 1、 Reload explanation: There are three types of reload.
-
Page 12: Maintenance
21 pounds 10kgs (out of box) 26 pounds 12kgs (in box) ElektraLite is a division of Group One. Group One and its divisions are constantly improving their product range and we reserve the right to make changes without prior notice. -
Page 13: Other Products
Other Products. ElektraLite has other great products that are manufactured under the ElektraLite product line. Go check out the website at www.myelektralite.com A preview of the products include:- ElektraLite Audience Blinder The Elektralite 1018 Using 144 x 5watt warm white or cool white leds,...
