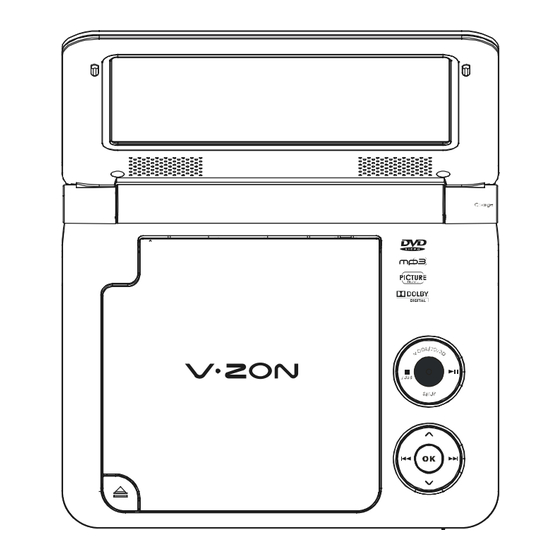

- Page 1 TF3DVD7019 Portable 3D DVD Player 7″ Widescreen TFT LCD Portable DVD/CD/MP3 Player with 3D display, USB and SD Slot Instruction Manual Please read this manual carefully before operation.
-
Page 2: Precautions
Retain this information for future DO NOT OPEN reference. CAUTION: TO REDUCE THE RISK OF FIRE AND ELEC- Model No. TF3DVD7019 TRIC SHOCK, DO NOT REMOVE THE COVER (OR BACK) Serial No. OF THE UNIT. REFER SERVICING ONLY TO QUALIFIED SERVICE PERSONNEL. - Page 3 PRECAUTIONS Do not make any changes or modifications to the equipment unless otherwise specified in the manual. If such changes or modifications should be made, you could be required to stop operation of the equipment. For recycling or disposal information about this product, please contact your local authorities or the Electronics Industries Alliance: www.eiae.org.
-
Page 4: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS Read Instructions: All the safety and operating instructions should be read before the product is operated. Retain Instructions: The safety and operating instructions should be retained for future refer- ence. Heed Warnings: All warnings on the product and in the operating instructions should be adhered to. - Page 5 IMPORTANT SAFETY INSTRUCTIONS : On no account should this unit be used by the driver of a moving Using the unit in a Vehicle motor vehicle, or left unsecured in the vehicle whilst driving. If this unit is being used by a passenger in your vehicle, be sure that it is secured or held safely, and does not obstruct any safety device (i.e.
- Page 6 IMPORTANT SAFETY INSTRUCTIONS for long periods of time. This will prevent damage to the product due to lightning or power-line surges. If at any time in the future you should need to dispose of this product please note that Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist.
-
Page 7: Table Of Contents
TABLE OF CONTENTS PRECAUTIONS ..........................2 IMPORTANT SAFETY INSTRUCTIONS ..................4 TABLE OF CONTENTS ........................7 PACKAGE CONTENTS ........................9 ABOUT OPTICAL DISCS ......................10 Disc Requirements.........................10 Disc Care and Maintenance ....................10 Handling a Disc ......................10 Cleaning a Disc ......................10 LOCATION OF CONTROLS ......................11 Front View .......................... - Page 8 TABLE OF CONTENTS Angle/Program ........................19 Menu/Title ..........................20 Repeat A-B Mode ........................20 Repeat Playback of a chapter/Title / All of a Disc ..............20 Display Menu .........................20 To acess the USB/Card mode....................20 SETUP ............................21 General ..........................21 Video ............................21 Audio ............................22 SPECIFICATIONS .........................23 TROUBLESHOOTING ........................24...
-
Page 9: Package Contents
PACKAGE CONTENTS Please make sure the following items are included in the package. If any items are missing, please contact your local dealer. Menu /Title Angle /Pro- gram 2D/3D TF3DVD7019 Remote Control HEarphones AC Adapter... -
Page 10: About Optical Discs
ABOUT OPTICAL DISCS Disc Requirements This DVD player supports playback of the following discs. Type Disc Mark Content Type Disc Size Max. Playback Time 133 min (SS-SL) 242 min (SS-DL) Audio + Video DVD-Video Discs 12 cm (moving picture) 266 min (DS-SL) 484 min (DS-DL) Audio Compact Discs (CDs) Audio... -
Page 11: Location Of Controls
LOCATION OF CONTROLS 7″ TFT LCD Speaker Charge LCD Mode/2D/3D Button Play/Pause Button Setup/Display Button Stop/USB/SD Card Button Direction Buttons Next (Right) Button Enter Button Previous (Left) Button Open Button Front View Stop/USB/Card button LCD Mode/2D/3D button • Stop Press this button once to prestop the playback, •... -
Page 12: Right View
LOCATION OF CONTROLS DC 9V in Jack USB Port Video Jack Audio Jack Headphone Jack SD Slot Volume Dial Battery Compartment Ventilation Slots Right View Remote Sensor Power Switch DC 9V IN Jack To connect to the AC Adapter / DC 16V Car adapter for power supply. USB Port For use with USB flash drives. -
Page 13: Remote Control
LOCATION OF CONTROLS Remote Control Display/Setup Zoom Subtitle Power UP/Slow Forward Direction Buttons Next Repeat A-B Previous Enter Fast Forward Fast Reverse Repeat All Play/Pause Menu Menu/Title /Title Audio Angle Numeric Buttons Angle/Program /Prp- gram LCD Mode/USB/SD 2D/3D 2D/3D... -
Page 14: Connections
CONNECTIONS Audio and Video Connections Refer to the owner’s manual of the external device as well. Before connecting the power source, ensure that all the connections are properly done. USB/SD Card Connection Insert the USB/SD card into the USB port on the right panel/the card slot on the left panel of the main unit. Press and hold the Stop/USB button on the unit or the LCD Mode/USB button on the remote to enter source mode. -
Page 15: Power Connection
CONNECTIONS Power Connections • Connecting to the wall outlet To DC 9V in Jack Caution: • Do not connect the power plug to a power outlet other than that which AC adapter: is indicated here and on the label This AC adapter operates on as this may result in the risk of fire 100-240V~~50/60Hz 0.5A MAX DC OUT: 9V... -
Page 16: Getting Started
GETTING STARTED Using the Remote Control To load a battery in the remote: Pull in the direction of the arrow. Slide the compartment out. Place the battery in the compartment with the positive side ( + ) facing up. Push the compartment in to close. •... -
Page 17: Power Supply
BASIC OPERATIONS Prepare the connections and power supply. Load a disc. Press the Open button to open the disc compartment lid. Load a disc with the label-side facing up. Close the lid manually. If a single-sided disc is loaded upside-down, the player will display “BAD DISC”. Start playback. -
Page 18: Numeric Keypad
BASIC OPERATIONS 2D/3D Display This player using the state of the art glasses free 3D display technogy, it means you can enjoy the 3D video without glasses. And it’s very convenient to switch between 2D and 3D display modes. To view the videos (or images) in 2D/3D format: 1. -
Page 19: Function Buttons
FUNCTION BUTTONS Display/Setup • Press the DISPLAY button once to show playback information. • Press it twice to enter the player’s setup menu. Enter the Setup menu to adjust the player’s internal settings, please see the SETUP section for more details. Zoom Press ZOOM to change the magnification level of the picture. -
Page 20: Menu/Title
FUNCTION BUTTONS Menu / Title Menu Press the Menu/Title button during DVD playback to return to the DVD’s Main menu. /Title Press and hold the Menu/Title button during DVD playback to return to the DVD’s Title menu. Repeat A-B Mode To repeat playback of a specific section of a disc (loop): Press A-B to set the desired start point (“A”) of the section to be repeated. -
Page 21: Setup
SETUP Various features of the player can be adjusted in the SETUP menu. 1. Press twice to enter the player’s setup menu. 2. Press the direction buttons to select the desired item. 3. Press ENTER to confirm. Video Audio General OSD language English English... - Page 22 SETUP Channel Output...
-
Page 23: Specifications
SPECIFICATIONS /PAL 7.8x6.5x1.1 inch 700g Specifications and manual are subject to change without prior notice. -
Page 24: Troubleshooting
TROUBLESHOOTING There is no power to the device. • Ensure that the Power Switch on the main unit is physically set to the ON position. • Ensure that the AC adapter cord is securely connected to the player and the proper wall outlet. The device will not play the disc. - Page 25 TROUBLESHOOTING The remote control doesn’t work. • Ensure that the Power Switch has been physically set to the ON position. • Ensure that there are no obstacles between the remote and the player. • Point the remote at the remote sensor on the main unit. •...
